GPU Power Connector Safety Is Now a Core Build Decision
GPU power connector safety is the set of practices, components, and technologies that prevent overheating, electrical overload, and physical damage at the interface between a graphics card and its power supply, protecting both expensive hardware and the wider PC from failures caused by unstable high‑current connections. Melting 12VHPWR and 12V‑2×6 plugs turned this from a niche concern into a mainstream crisis: burnt sockets, damaged cards, and the real possibility that a small plastic connector can take out a four‑figure build. In my view, treating power delivery as an afterthought is now reckless. Modern GPUs can draw hundreds of watts through a single tiny 16‑pin connector, and that design leaves almost no margin for sloppy cable insertion or cheap adapters. The smart response is to blend better detection, smarter PSUs, and, for risk‑averse users, safer 8‑pin connector alternatives.
Why 16‑Pin 12VHPWR Melting Incidents Changed the Risk Equation

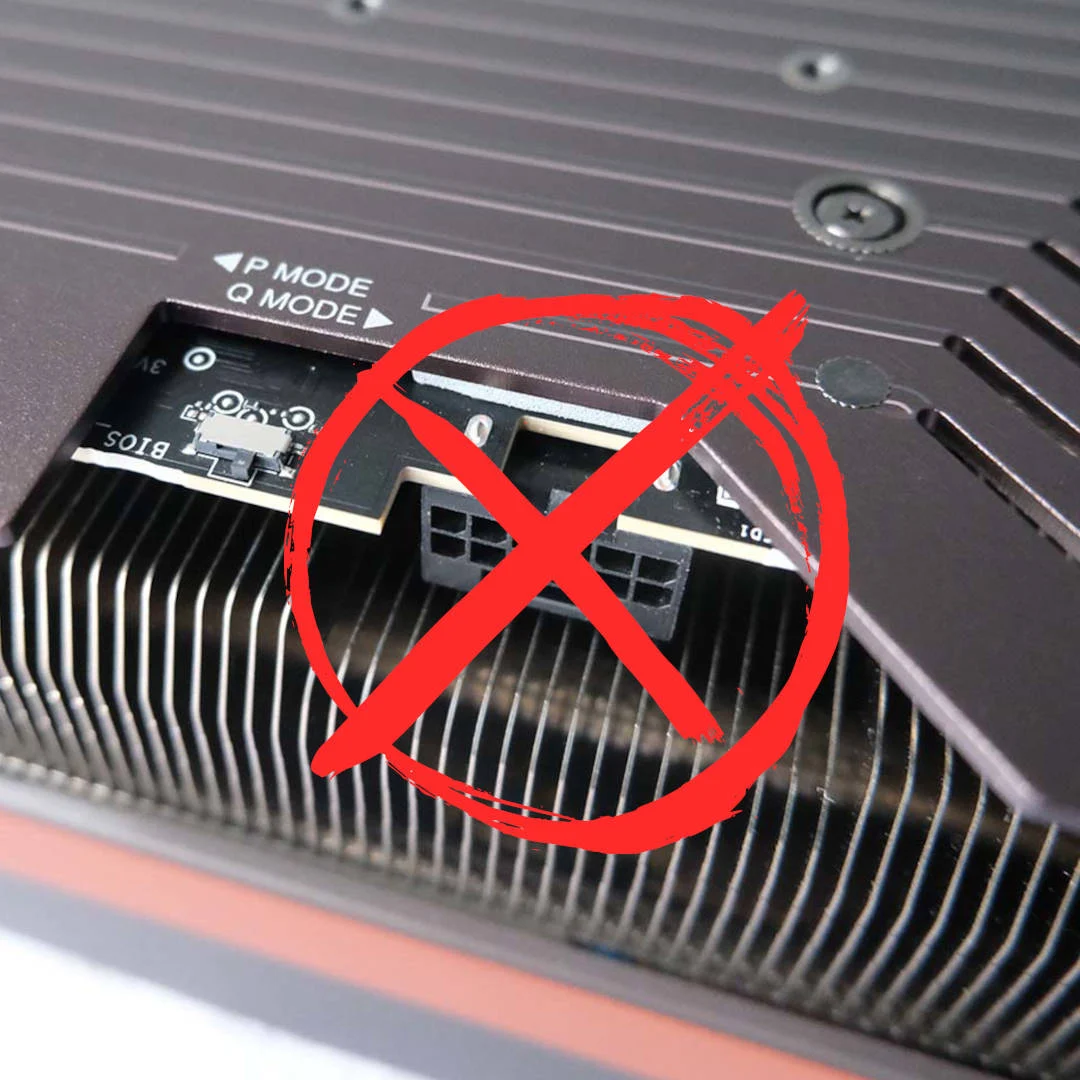

On paper, the 16‑pin 12VHPWR and its 12V‑2×6 successor looked elegant: up to 600W over a single compact connector instead of a row of bulky 8‑pins. In practice, pushing that much current through a tight bundle of wires created a failure mode that enthusiasts cannot ignore. The cable uses six positive wires, six ground, and four sensing lines; each positive wire can carry about 100W (8.33A at 12V). If the plug is slightly dislodged, contact resistance shifts the load onto fewer wires, which can overheat and melt the surrounding plastic. That is not cosmetic damage—it can destroy the graphics card, the cable, and sometimes the PSU too. After experiencing a melted cable firsthand, one editor argued the standard “isn’t fit for purpose”, and I agree with that blunt assessment. When there are “disturbing” numbers of burned‑out cards reported, trusting this connector without extra safeguards is faith, not engineering.
GIGABYTE T‑Guard: Active Graphics Card Cable Monitoring Is the New Baseline
Instead of hoping users seat a 16‑pin cable perfectly every time, GIGABYTE’s new GAMING Series PSUs add active graphics card cable monitoring through a feature called T‑Guard. These units are built to modern ATX 3.1 and PCIe 5.1 standards and come in 750W, 850W, and 1000W capacities, with different colors to suit enthusiast builds. The interesting part isn’t aesthetics; it’s strategy. T‑Guard continuously tracks the temperature of the 12V‑2×6 GPU power connector using built‑in sensors, looking for abnormal heat caused by a loose plug or excessive load. When it detects trouble, it doesn’t kill the entire system; it intelligently limits power only to the GPU, alerts the user, and lets the rest of the PC keep running long enough to save work before shutting down. Combined with real‑time temperature monitoring, automatic GPU power limiting, and controlled shutdown, T‑Guard offers three layers of protection against connector failures. This is exactly how 12VHPWR melting prevention should work: assume connectors will fail, and design the PSU to defend the hardware proactively.
Risk‑Averse Enthusiasts: 8‑Pin Connector Alternatives Are Still the Safe Bet

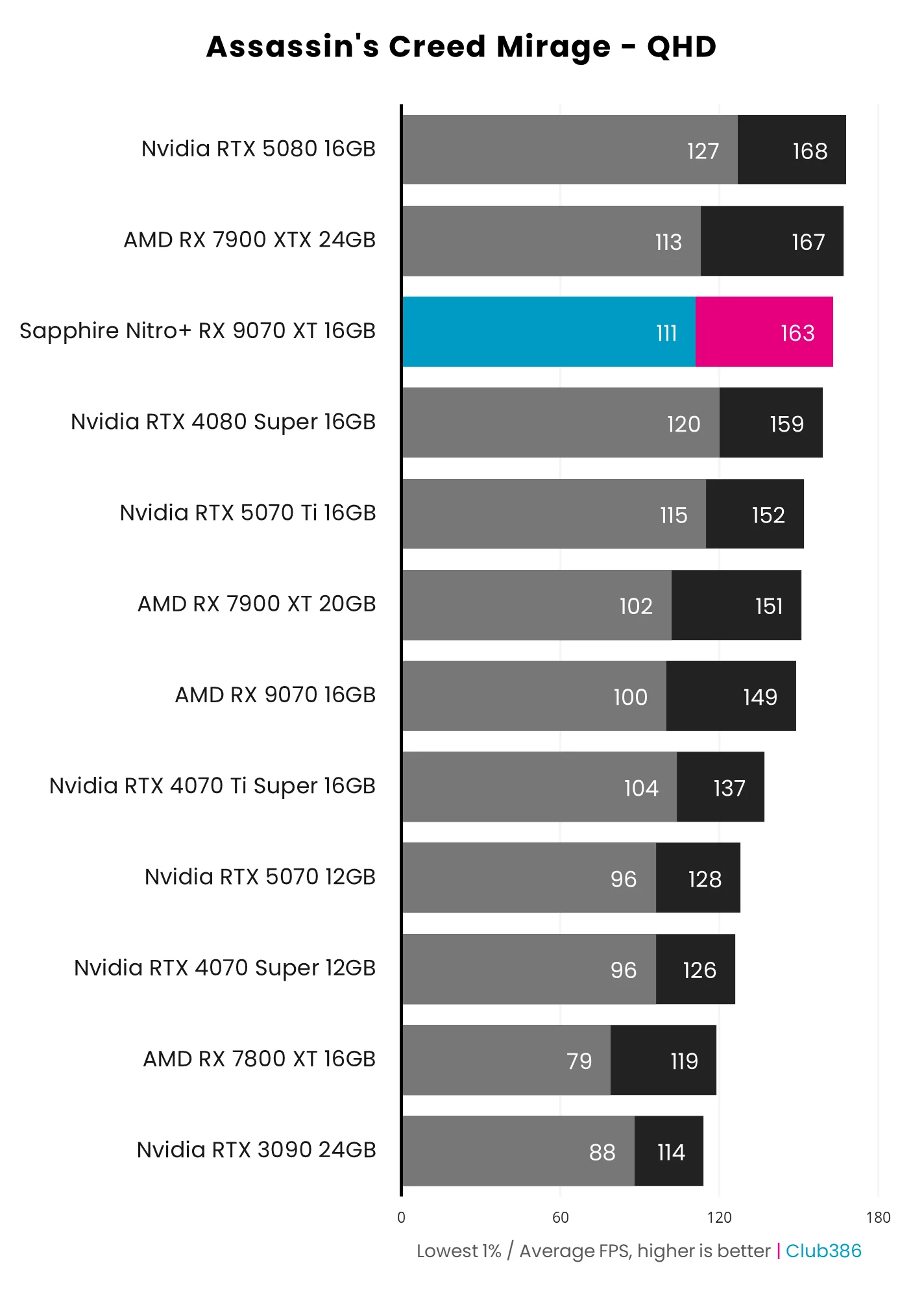

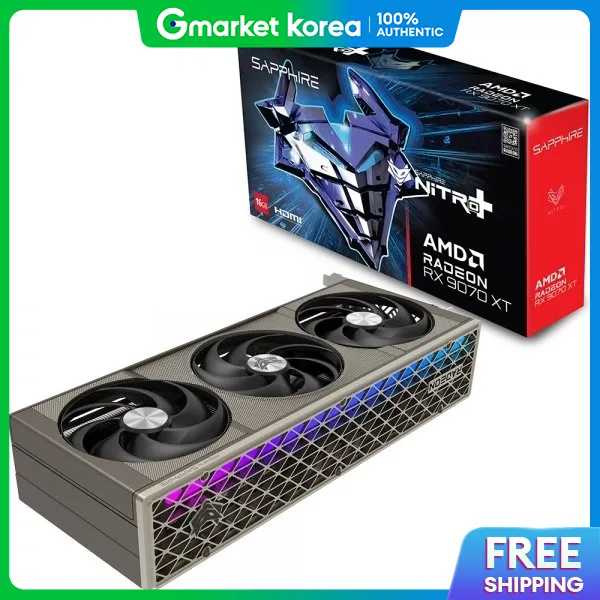

Not everyone wants to gamble on the 16‑pin standard, even with smarter PSUs watching over it. Many enthusiasts prefer tried‑and‑tested 8‑pin connectors, and there are credible high‑end options for staying off the 12V‑2×6 train altogether. If you want strong GPU performance without a 12V‑2×6 cable, AMD is the obvious candidate. The Radeon RX 9070 XT uses the latest Navi 48 GPU with 64 RDNA 4 compute units, 64 third‑generation RT accelerators, and 16GB of 20Gb/s GDDR6 on a 256‑bit bus. It is rated for 304W and fed via two or three 8‑pin connectors depending on the variant, so you must double‑check that the specific card you buy keeps those legacy sockets. One example model with 8‑pins is the Sapphire Pulse. According to one review, “If you want to stick with 8‑pin connectors, this is your best option in terms of performance and features right now.” For safety‑first builders, that balance of power and familiar cabling is compelling.
When Reliability Beats Features: RX 7900 XTX and 8‑Pin Nvidia Options

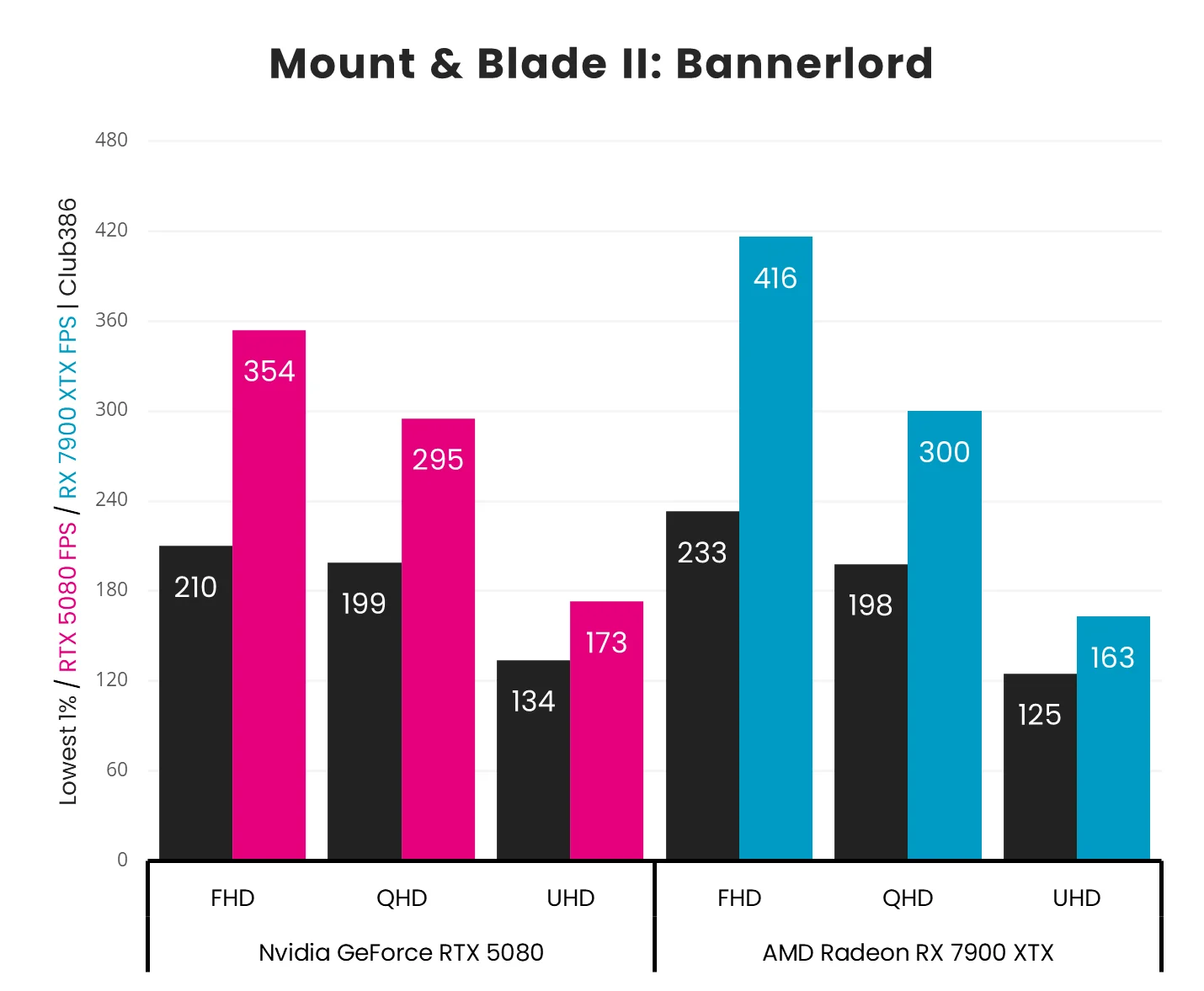

If you want even more memory and solid 4K rasterisation without touching 12V‑2×6, the Radeon RX 7900 XTX deserves a hard look. It uses AMD’s Navi 31 GPU with 96 RDNA 3 compute units, 96 RT cores, and 24GB of 20Gb/s GDDR6 on a 384‑bit bus, targeting a 355W power draw at stock. Crucially, every 7900 XTX card uses three 8‑pin power connectors; there are no sneaky 16‑pin variants hiding in the product stack. Performance lands between the RX 9070 XT and a GeForce RTX 5080 depending on the game, with excellent rasterisation but comparatively poor ray tracing. If you care more about connector reliability and VRAM than the absolute best RT, that trade‑off is acceptable. On the Nvidia side, fans of DLSS 4 and the Blackwell architecture are boxed in: the GeForce RTX 5060 Ti 16GB is described as “the most powerful new GPU Nvidia offers with old‑school 8‑pin power connectors.” For cautious builders, that fact alone may outweigh its mid‑range position.
