The uncomfortable truth about RTX 5090 connector failures
RTX 5090 connector failure refers to recurring cases where the 16-pin power interface on high-end GPUs overheats, melts, or explodes, damaging the graphics card, sometimes the VRAM, and in severe incidents even burning adjacent PCB layers while users operate within recommended power limits.
This is not an edge-case curiosity; it is a pattern of Nvidia GPU safety issues that stretches back to the RTX 40 series and now continues with the RTX 5090. Melted power connectors have already been reported on GeForce RTX 5090 units despite the move to the newer 12V-2×6 standard that was supposed to replace older, less safe designs. When a connector fails at 500–600W draw, it does not fail gently—it can take the GPU and VRAM with it. That makes this less a user-error story and more a systemic reliability story, and users need to treat it as a real risk, not forum drama.
Blown 16-pin connectors and dead VRAM: what is actually happening

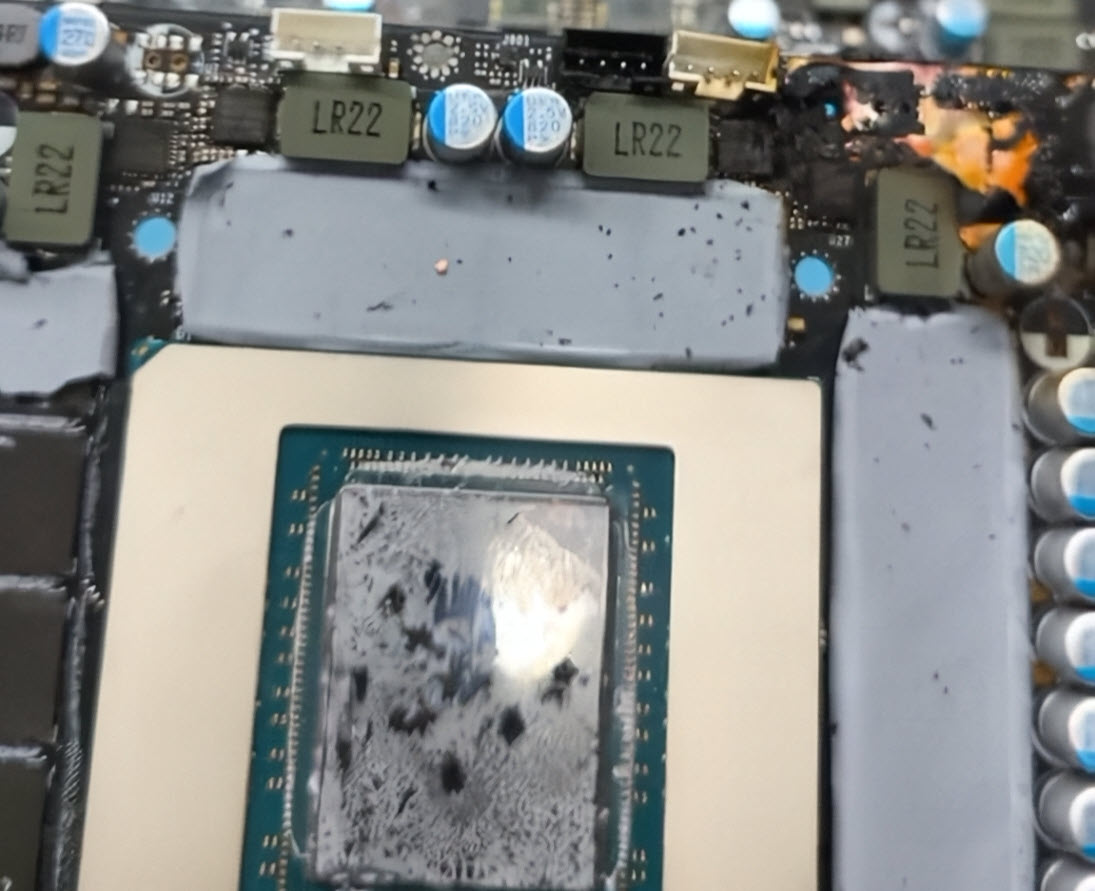

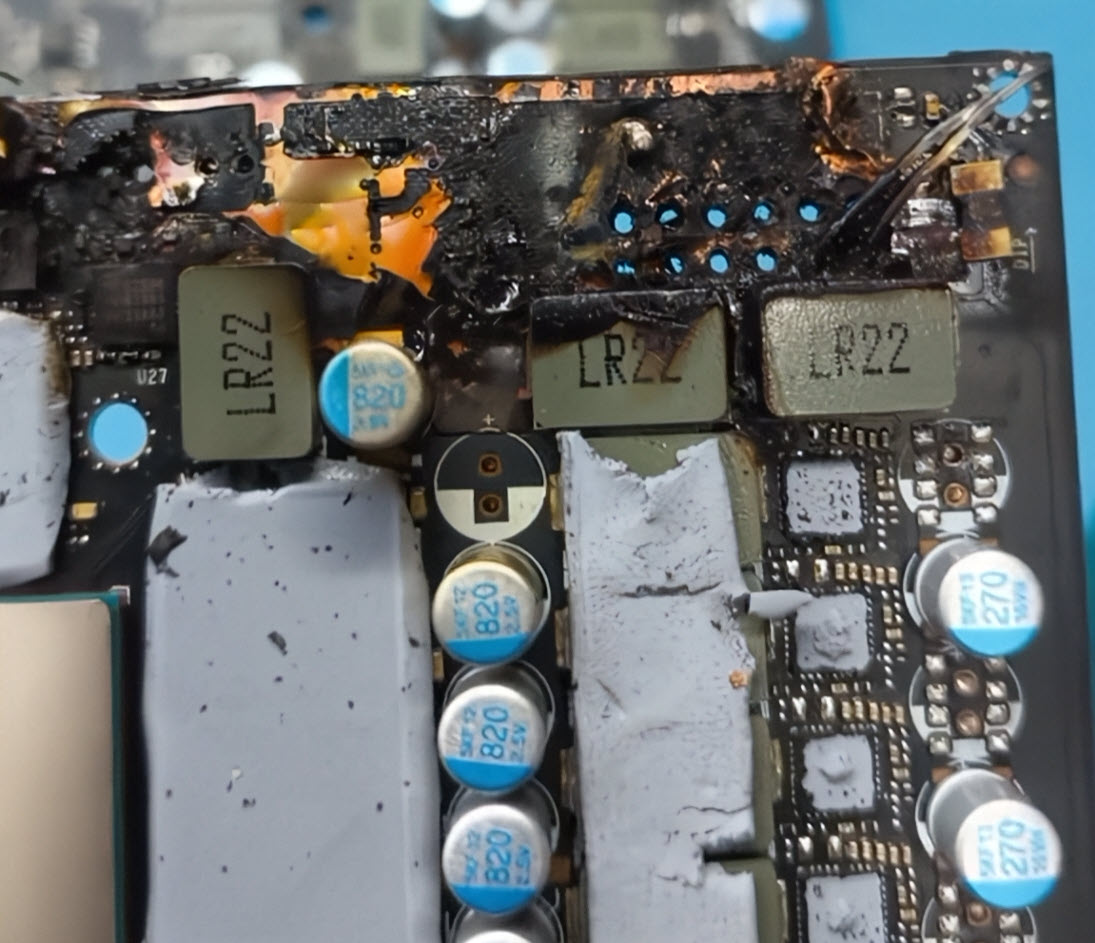

Repair shops are already seeing some of the worst 16-pin connector damage yet on RTX 5090 cards. A GPU repair outlet received two RTX 5090s; on the second card, the entire 16-pin connector was reported as "completely blown up," with burn damage so deep that bare copper layers of the PCB were exposed, and the destruction extended into the GPU core and VRAM, leaving them dead. In plain terms, this was not a melted plug—it was a localized explosion.
These incidents are not limited to one bad build or a sketchy adapter. Ever since the RTX 40 series, the 16-pin connector has been described as killing many graphics cards, with most cases hitting the power-hungry RTX 4090 and RTX 5090 operating in the 450–600W range. One report describes a system with a 1000W power supply and original cables that still suffered damage from a melted power connector on an RTX 5090. When cards die under these conditions, blaming end users starts to look like denial rather than diagnosis.
Why the 12V-2×6 “fix” hasn’t solved GPU power cable melting

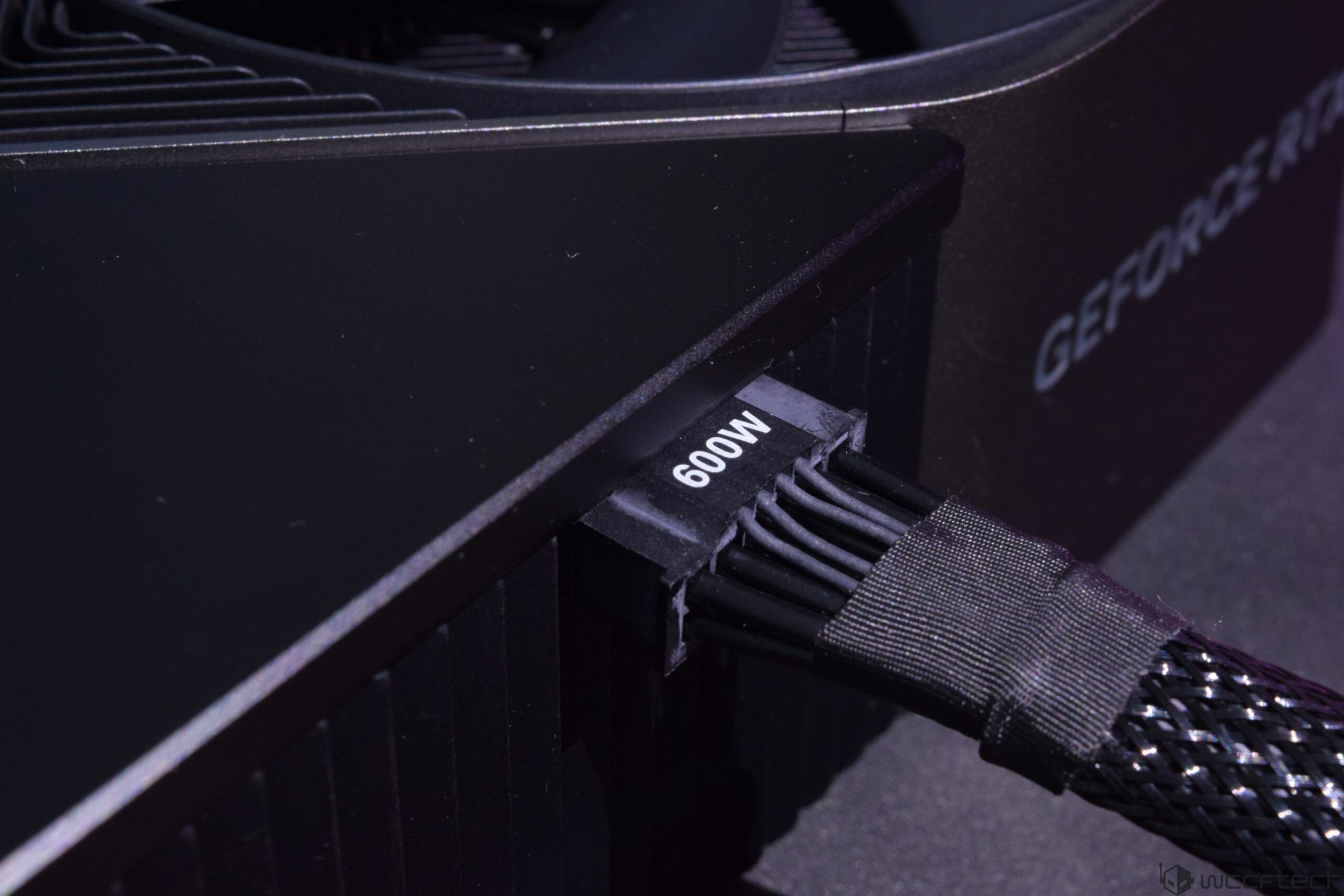

On paper, Nvidia and its partners moved to the 12V-2×6 standard to make high-power GPUs safer. This revised 16-pin design adds better connection detection and is paired with ATX 3.1 power supplies that are supposed to offer more safety features. Yet reports now show some GeForce RTX 5090 units still suffering damage due to melted power connectors, even after this transition.
That gap between theory and reality is the heart of today’s Nvidia GPU safety issues. The RTX 5090’s power draw, hitting around 500–600W, can create uneven current distribution, excessive heat, and cable stress. New standards alone cannot compensate if the physical interface remains fragile under real-world strain. We are also seeing similar failures on other brands’ GPUs that use the same 16-pin connector, including less power-hungry models, which strongly suggests an underlying connector problem rather than a single vendor’s design flaw. As one report notes, “new 16-pin standards, which were meant to be safer… have failed to solve the issues.”
Who is at risk and how severe are these Nvidia GPU safety issues?
The immediate risk group is owners or buyers of high-end GPUs using the 16-pin power connector, particularly the RTX 5090 and earlier RTX 4090, which operate in the 450–600W range. Some RTX 50 series cards have failed despite users following guidance on recommended cables and limiting power consumption, showing that careful configuration is not a guaranteed shield. That shifts these incidents from rare “edge” cases into a credible risk profile for anyone running these cards near their designed power envelope.

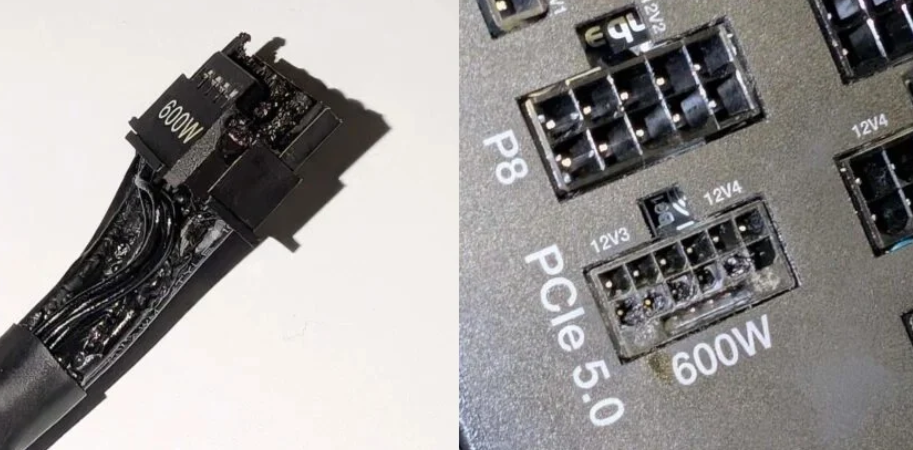

Severity is high because failure is often catastrophic, not minor. Recent reports show connectors burning, melting, and even exploding, with damage propagating into GPU dies and VRAM packages. In one case, there were no traces left of the physical connector after the event. This is the kind of failure that can take your main work or gaming machine offline without warning. While replacements are sometimes provided, access depends heavily on region and retailer, and there is no acknowledged engineering fix in place yet.
What you should do now: practical steps until a real fix exists
There is no definitive hardware fix today; reports are explicit that RTX 5090s and other 16-pin-equipped cards remain prone to burning, melting, and even explosions, and that “there’s no fix for them, but replacements are provided” where possible. Nvidia continues to defend the connector, saying it complies with the ATX 3.1 specification. That means the burden of risk management currently falls on users, not on a redesigned standard.
If you run or plan to buy an RTX 5090, you should be firm about power delivery quality. Reports advise using a quality power supply that complies with modern standards and avoiding questionable adapters in favor of original, certified cables. One source explicitly recommends investing in original and certification-backed power cables for users whose work and key files depend on system uptime. You should also ensure 16-pin cables are installed according to manufacturer guidance, using official installation resources where available. Until the connector design itself changes or a proven fix appears, disciplined power configuration and reliable cabling are your best defense against GPU power cable melting and 16-pin connector damage.
