Why RTX 5090 Power Connectors Keep Failing

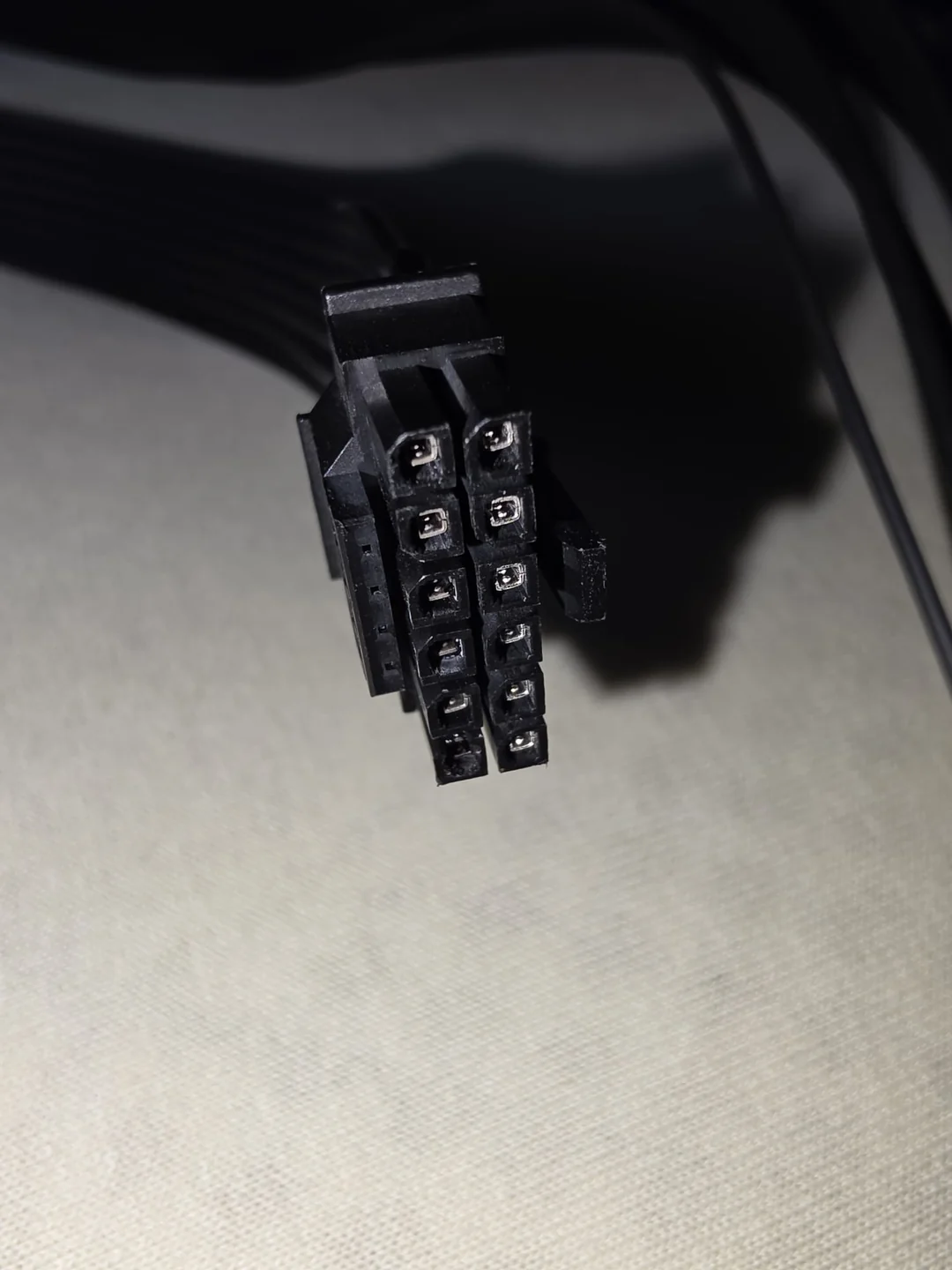

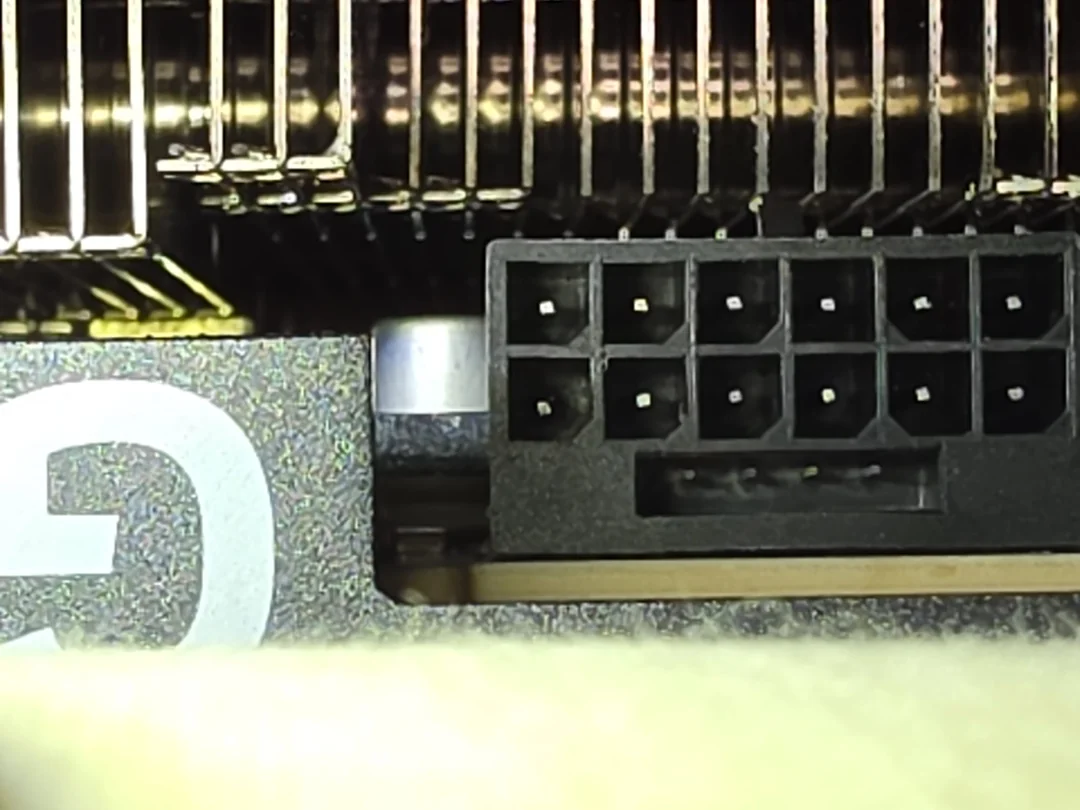

RTX 5090 connector failure refers to the recurring problem of 16‑pin 12VHPWR and 12V‑2x6 GPU power plugs overheating, deforming, or melting under load, even when users report careful installation, regular inspection, and high‑quality power supplies in their systems. A recent case highlights the contradiction: a Reddit RTX 5090 owner who inspected his 12VHPWR connector every month still ended up with a 12VHPWR melted cable and blackened GPU socket. He vertically mounted the card, used an official Corsair Type 4 16‑pin cable, and ensured there was enough clearance. Yet, the connector still burned. Commentary on the case points to design fragility and possible damage from repeated unplugging as likely contributors, suggesting that the underlying connector standard remains sensitive to seating, strain, and wear in ways that routine user maintenance alone cannot fully control.
Maintenance Habits, Fragile Pins, and User Risk
The Reddit user’s routine was meant to improve GPU power safety: every three months he unplugged and replugged the 16‑pin, and every month he pressed on the connector to confirm it was seated. According to Wccftech, this pattern may have backfired because “it can be a disaster if one is unplugging and plugging a 16‑pin power connector frequently,” as the terminals are prone to damage. Once the contact area is reduced or uneven, resistance rises and heat can concentrate at a few pins, increasing the risk of a 12VHPWR melted cable during heavy gaming. Experts now warn against unnecessary disconnections; if the plug is fully latched and the cable is not under tension or bent sharply, frequent reseating may do more harm than good. This shifts some focus away from user diligence and toward the inherent fragility of the connector design under repeated mechanical stress.
MSI’s 12V-2x6 Safeguard: Detecting Trouble Before It Melts
MSI is responding to connector worries with hardware‑level power delivery protection on its RTX 5090 SUPRIM Safeguard. The card integrates current monitoring on each 12V‑2x6 power pin, plus server‑grade eFUSE to shield the GPU from electrical damage. If an imbalance or abnormal condition is detected, an LED warning lights up, a system notification appears, and an onboard buzzer sounds; users can even attach an external buzzer for clearer alerts in closed cases. After 120 seconds of unresolved fault, MSI’s Intelligent Power Safeguard clamps the GPU’s power limit to 70%, cutting stress on the connector and cable. MSI says this approach mirrors its Safeguard and Safeguard+ PSUs, which also watch for load irregularities. By instrumenting both ends of the 12V‑2x6 connector, MSI aims to catch unsafe conditions early so owners can shut down, reseat, or replace cables before physical damage occurs.
Extreme PSUs and the Push for Safer High-Wattage Builds
On the power supply side, high‑end units are being redesigned to feed multiple RTX 5090 GPUs without overtaxing a single connector. ASUS’s ROG Thor 3000W Titanium III Edition 20 is specified to support up to four GeForce RTX 5090 graphics cards, pairing vast capacity with a focus on GPU power safety. The PSU uses server‑grade gallium nitride components to cut thermal loss and includes an ROG Equalizer 12V‑2x6 power cable that ASUS claims runs cooler at the connection point under constant heavy load. A built‑in voltage stabilizer helps shield components from spikes, while full protection against short circuit, over‑current, and over‑voltage backs up the hardware. An OLED readout for real‑time power use encourages owners to monitor how close their systems run to the PSU’s limits, reducing the temptation to operate at unsafe margins where even minor connector issues can become critical.
Responsibility, Design Limits, and What Owners Should Do Now
As RTX 5090 connector failures continue, the debate around responsibility is sharpening. Users are urged to follow manufacturer guidelines, avoid sharp bends, and stop over‑handling the plug, yet incidents still occur in seemingly well‑built systems. Meanwhile, vendors are adding layered power delivery protection, from MSI’s 12V‑2x6 Safeguard monitoring to ASUS’s cooler‑running high‑capacity PSUs, acknowledging that the connector standard itself can be unforgiving. For current owners, the practical steps are clear: install the 16‑pin once with a firm push until it audibly clicks, check visually that it is fully seated and not under stress, and then leave it alone unless you see or smell signs of overheating. Combining careful builds with new protective GPU and PSU technologies appears to be the most realistic path to reducing RTX 5090 connector failure risk while the industry continues to refine the power standards behind these power‑hungry cards.
