Why the 12V-2x6 Connector Became a Problem
The 12V-2x6 connector is a compact high‑power GPU plug that combines twelve power and ground pins into a single cable, and its main reliability problem comes from uneven current sharing and partially seated plugs that can lead to overheated plastic, warped housings, and in the worst cases, melted connectors on high‑end cards. As GPUs like the RTX 5090 push power limits higher, even a slight misalignment or loose fit can force more current through fewer pins, creating hot spots that normal power supplies do not detect in time. This has turned the 12V-2x6 connector into a concern for anyone chasing top performance. Instead of abandoning the connector, brands are now building GPU power protection into both graphics cards and PSUs to detect imbalances, warn users, and limit power before damage occurs.
MSI Safeguard: GPU-Level Protection for RTX 5090
MSI’s RTX 5090 SUPRIM Safeguard attacks 12V-2x6 risk directly on the graphics card. The board adds current monitoring hardware and server‑grade eFUSE to watch every power pin feeding the GPU. When abnormal power conditions appear, MSI Intelligent Power Safeguard responds in stages: a red LED lights up, a system notification appears, and an internal buzzer sounds. Users can also add an external buzzer for clearer alerts outside the case. If the issue continues for 120 seconds, the card locks its power limit to 70%, reducing strain on the connector and cutting heat at the plug. According to Overclock3D, “MSI’s RTX 5090 SUPRIM Safeguard features current monitoring hardware and several layers of safeguards.” For builders focused on RTX 5090 safety, this GPU power protection means the card itself can detect connector problems before they damage the hardware.

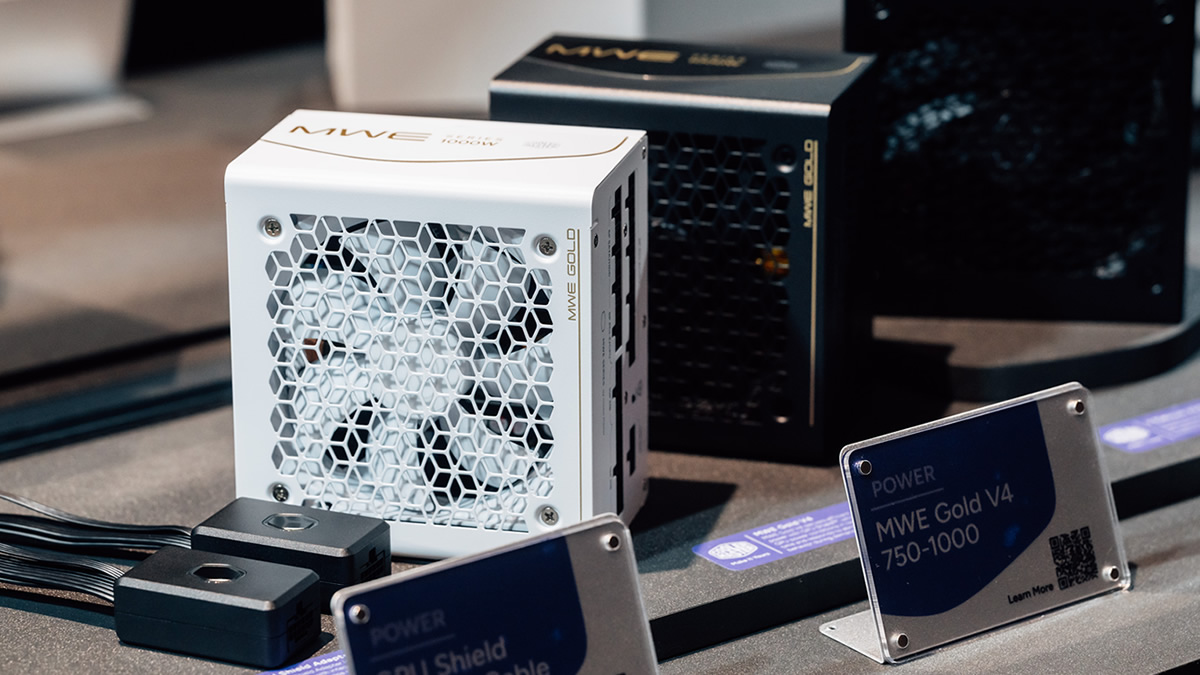

Cooler Master GPU Shield Inside MWE Gold V4 PSUs
Cooler Master’s GPU Shield technology tackles power connector failure prevention from the PSU side. In the MWE Gold V4 series, GPU Shield uses per‑pin sensing on the 12V-2x6 output to monitor current in real time. If any pin draws more than 9A, the PSU automatically reduces power delivery to stop the cable from overheating and potentially melting. A red indicator light inside the PSU highlights the fault, and if the anomaly lasts more than three minutes, the system shuts down entirely. Builders can then reseat or replace the 12V-2x6 cable and restore normal operation. This GPU Shield technology is planned for more high‑end Cooler Master PSUs, turning the power supply into an active guardian for GPUs that rely on the 12V-2x6 connector, whether that is an RTX 5090 or another flagship card.
Standalone GPU Shield Add-On for Existing Builds
For gamers who already own a capable 12V-2x6 PSU, Cooler Master’s standalone GPU Shield add‑on offers retrofittable GPU power protection. The device sits inline between the PSU and the graphics card, so it works with any 12V-2x6 or 12VHPWR power supply. Like the PSU‑integrated version, it detects current imbalances across the connector and uses a built‑in buzzer to warn users when pins are overloaded. This audio alert tells you to shut down, reseat the connector, or swap the cable before heat builds up. The add‑on will come in two versions: one with a buzzer and another combining a buzzer with RGB lighting. While its short form factor may make cable routing and hiding the unit more challenging, its main advantage is clear: it brings GPU Shield technology and 12V-2x6 protection to existing systems without requiring a new PSU.
Which Protection Option Fits Your Setup?
Choosing between MSI Safeguard and GPU Shield technology comes down to where you want power connector failure prevention to live. If you are buying an RTX 5090 and want alerts plus automatic power limiting directly on the card, MSI’s Safeguard-equipped GPU gives you per‑pin monitoring and an integrated warning system. If you prefer PSU‑side control and plan future GPU upgrades, the MWE Gold V4 with built‑in GPU Shield spreads protection across any card connected to its 12V-2x6 output. For current builds with solid PSUs, the standalone GPU Shield add‑on is the most flexible option, adding protection to almost any existing setup. Together, these approaches mark a new phase where GPU power protection is no longer an optional extra but a built‑in response to rising power demands on flagship graphics cards.
