Why the RTX 5090 Power Connector Needed a Rethink
The RTX 5090 power connector debate centers on preventing 12V-2×6 failures by combining smarter power delivery, on-card monitoring, and better heat control so high‑end GPUs can pull huge wattage without melting cables, damaging connectors, or risking long‑term reliability for gamers and creators. MSI has turned this problem into a design target for its RTX 5090 SUPRIM Safeguard concept, which integrates graphics card safeguards directly onto the PCB. Instead of relying only on the PSU or cable quality, the GPU itself now watches for abnormal power behavior, throttles power when needed, and warns users in real time. Paired with diamond-laced cooling materials and a reinforced 16‑pin connector layout, MSI’s approach signals a shift toward GPU power safety features as a first-class design priority rather than an afterthought bolted onto adapters or third‑party cables.
Diamond-Laced Cooling: Keeping Power Connectors and VRAM Cooler
MSI’s next-generation RTX design tackles heat with a more aggressive thermal stack so the 12V-2×6 connector and surrounding components run cooler under sustained load. The company is moving to ultra‑thin 0.8 mm metal fan blades that provide up to 40% better airflow thanks to a rigid all‑metal structure and wider airflow paths. Under the shroud, advanced spiral‑groove heat pipes increase contact area and efficiency, while a Diamond-Composite thermal pad pulls heat away from memory modules faster than conventional pads. A Diamond‑Copper composite baseplate then moves GPU heat quickly into the heatsink. Together, these elements reduce hotspots that can worsen connector stress. According to Wccftech, this fully integrated cooling module has already been demonstrated on an RTX 5090 32 GB prototype in Gaming Trio trim, indicating MSI intends to match power safety with serious thermal engineering on high‑end cards.
Safe 16-Pin and eFuse: Server-Style Protection for Consumer GPUs

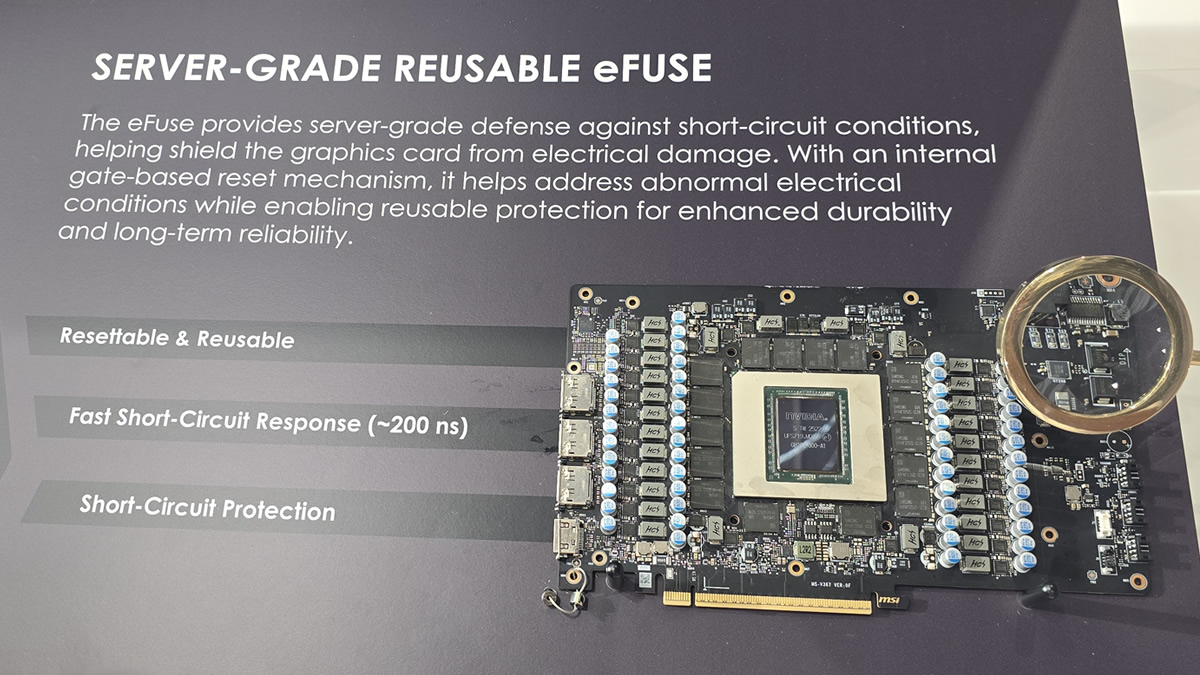

Beyond airflow, MSI is redesigning the RTX 5090 power connector path itself. Its Safe 16‑pin layout ties directly into on‑board Safeguard circuitry, so protection starts at the 12V-2×6 connector design rather than depending on a matching PSU. The headline change is server‑grade eFuse components integrated on the GPU, giving each power pin voltage and current monitoring plus a rapid short‑circuit response around 200 ns. Unlike traditional one‑time fuses, these are resettable through an internal gate‑based mechanism, improving long‑term graphics card safeguards. If an electrical event occurs, the fuse cuts power fast enough to shield the GPU from damage, then can be reused instead of requiring a physical repair. MSI previously limited this logic to its Safeguard PSUs, but bringing it onto the card means users gain a consistent defense even when mixing power supplies and cables from different vendors.
Intelligent Power Safeguard: When the GPU Warns You to Stop

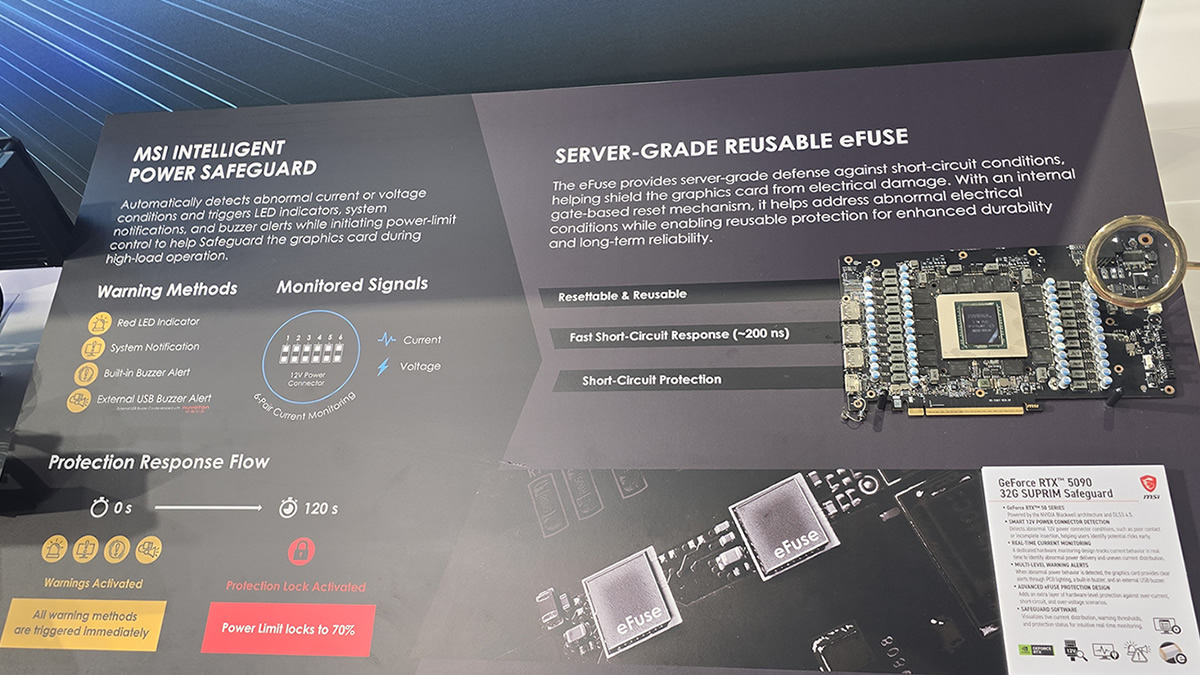

MSI’s RTX 5090 SUPRIM Safeguard makes the GPU an active safety monitor for the 12V-2×6 connector. Dedicated current‑sensing hardware tracks each power pin and feeds an Intelligent Power Safeguard system that reacts to abnormal load or imbalance. The first response is communication: a red LED on the shroud lights up, software sends a system notification, and a built‑in buzzer sounds inside the case. Users can even attach an external buzzer for louder alerts. If the warning is ignored, a protection lock engages after 120 seconds, clamping the GPU power limit to 70% to reduce connector strain and heat buildup. At that point, MSI advises shutting down, reseating, or replacing the cable to restore even loading. Overclock3D notes that this GPU‑side logic mirrors MSI’s Safeguard and Safeguard+ PSU behavior, closing the loop on power protection from both ends of the cable.
What MSI’s Approach Means for Next-Gen GPU Power Safety
MSI’s combination of diamond‑laced cooling, safe 16‑pin hardware, and resettable fuses marks a shift from reactive fixes to proactive design around RTX 5090 power connector risks. Instead of treating melted 12V-2×6 connectors as isolated user error, the RTX 5090 SUPRIM Safeguard assumes high‑power GPUs need built‑in intelligence to handle imperfect cables, adapters, or PSU pairings. Continuous pin‑level monitoring, audible and visual alerts, and automatic power limiting translate into real‑world reliability gains for anyone pushing demanding games or compute workloads. For the wider industry, MSI’s design sets a new bar: next‑gen GPU power safety features should live on the card, not only in the power supply. As more high‑end models adopt similar safeguards, the era of guessing whether a 16‑pin cable is safely seated may give way to GPUs that tell you—before something burns.
