From Melting GPU Cables to Monitored Connectors
T-Guard technology is GIGABYTE’s new PSU overheating protection system that continuously tracks the temperature of the GPU power connector using built-in sensors, then limits power to the graphics card instead of killing the whole PC when abnormal heat is detected, helping protect expensive hardware and prevent data loss in demanding gaming systems.
This is the kind of fix enthusiasts have been waiting for. Power supplies are rarely exciting, but the cost of modern GPUs and a history of melting 12V‑2×6 connectors make the PSU one of the worst places to cut corners. GIGABYTE’s new GAMING Series PSUs attack the problem directly with T-Guard, an active safety layer designed for that same 12V‑2×6 GPU power connector. Instead of hoping users seat the cable perfectly and never exceed safe loads, the PSU now watches the connector itself in real time and intervenes before things cook.
In other words, the industry is finally admitting that the GPU power connector is a failure point worth engineering around, not blaming on user error.
How T-Guard Changes PSU Overheating Protection
Traditional PSU protection is blunt: something goes wrong, the system shuts off, and you are left guessing what burned. T-Guard flips that script. The GAMING Series units continuously monitor the 12V‑2×6 connector with onboard temperature sensors instead of waiting for a catastrophic short or full PSU overload. When they detect abnormal heat from a loose GPU connector or a heavy electrical load, they immediately alert the system and start protecting the hardware.
Here is the smart part: rather than shutting down the entire PC, the PSU reduces power only to the graphics card so the rest of the system keeps running. That gives you time to save any unsaved work and shut down safely, and if your CPU has integrated graphics, you still get video output for troubleshooting instead of a black screen. Combined with real-time temperature monitoring, automatic GPU power limiting, and the ability to recover your work, GIGABYTE calls this three layers of protection against connector failures.
That is the key shift: PSU overheating protection moves from reactive damage control to proactive, connector-level risk management.
Why Enthusiasts With Flagship GPUs Should Care

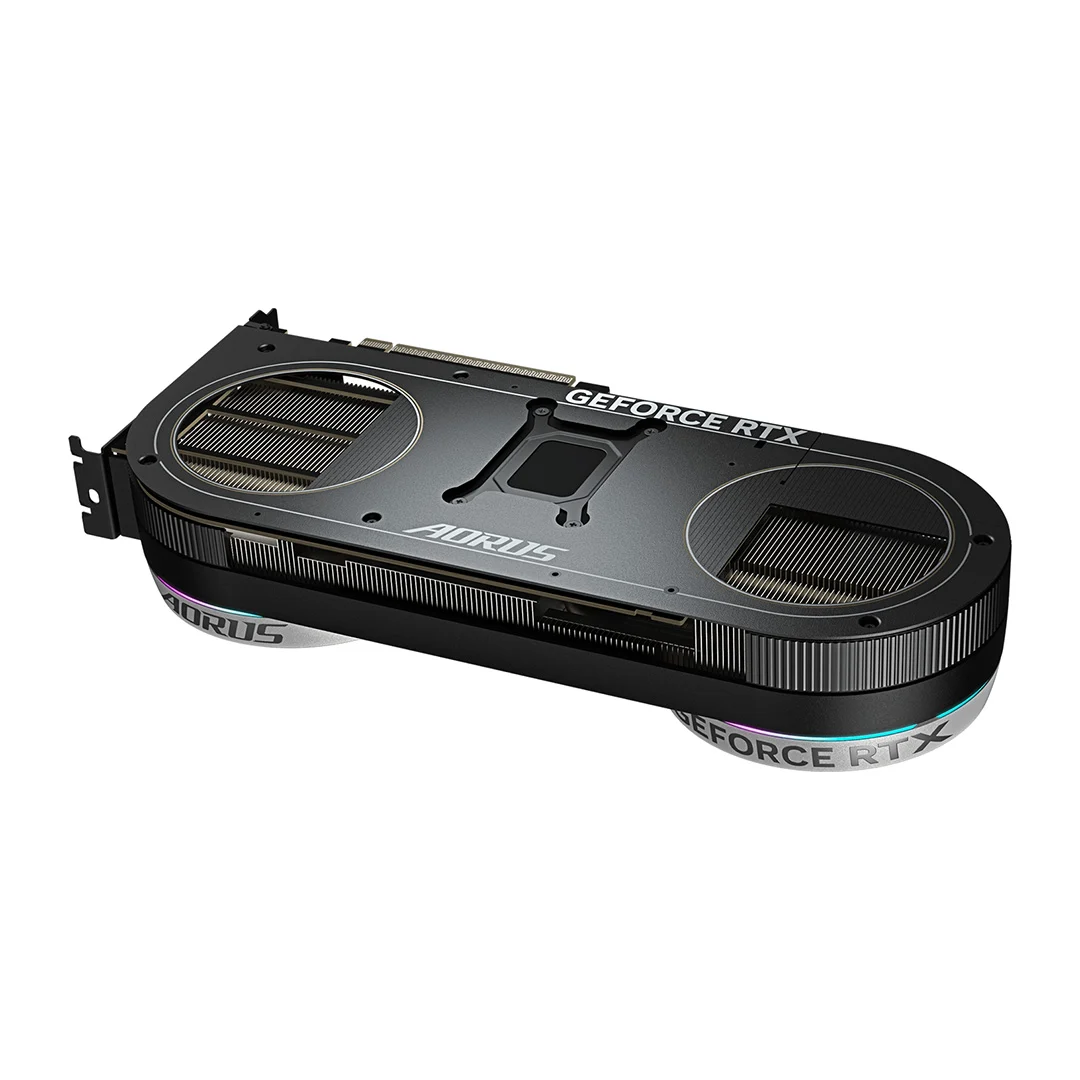

High-end GPUs are no longer modest add-in cards; they are dense slabs of silicon pulling huge power through a single GPU power connector. The Aorus GeForce RTX 5070 Infinity, for example, hides its 16‑pin connector inside a sleek twin‑fan nacelle design, prioritising clean aesthetics while still demanding serious power delivery. Its GPU205 die packs 6,144 CUDA cores, 192 Tensor cores, 48 RT cores, and 12GB of GDDR7 on a 192‑bit bus, with a 2,715MHz boost—203MHz above stock clocks—which is “a decent extra helping of hertz” even if it will not transform frame rates.
Cards like this are expensive centrepieces of gaming rigs, and previous connector-melting incidents have made builders nervous about pushing power limits. T-Guard speaks directly to that anxiety: it constantly checks whether the GPU power connector is both seated and running cool, with a dual-colour 12V‑2×6 cable that makes correct insertion easier to verify before power-on. For anyone planning an RTX-class flagship build, having the PSU act as an active guardian rather than a dumb power brick is no longer a luxury—it is basic risk management.
GAMING Series PSUs: Built for Heavier, Quieter Loads
Crucially, T-Guard is not arriving on bargain-bin hardware. The new GAMING Series PSUs are fully compliant with ATX 3.1 and PCIe 5.1, meaning they are ready for current and upcoming GPUs that use the 12V‑2×6 connector. They come in 750W, 850W, and 1000W capacities with both Black and Ice color options to better match different builds. Internally, they rely on 100% Japanese capacitors and include a dual-color 12V‑2×6 cable so you can confirm the GPU connector is properly plugged in before you ever hit the power button.
Efficiency and noise are treated as first-class features too. The lineup carries Cybenetics ETA Platinum efficiency and LAMBDA A+ low-noise certifications, with average operating noise staying below 20 dB(A) under typical workloads according to GIGABYTE. A 135mm Fluid Dynamic Bearing fan and HybridCool mode allow the fan to stop entirely under light loads, which keeps the PSU almost silent when your system is idle or just browsing. This matters: if you are going to prioritise PSU overheating protection, it should not come at the cost of a hotter, louder box in the bottom of your case.
Proactive Protection Is the Future of PC Power
GIGABYTE’s recent hardware moves show a clear pattern. On the GPU side, the Aorus RTX 5070 Infinity focuses on premium thermals and 40th‑anniversary styling, from its Windforce Hyperburst cooling system with Hawk fans and vapour chamber to a hidden 16‑pin connector that keeps builds clean. On the power side, the GAMING Series brings T-Guard, a system that treats the GPU power connector as a monitored, protected link rather than an afterthought.
Taken together, this is a shift from “hope the build is fine” to “design for when it is not.” For builders running expensive GPUs, PSU overheating protection at the connector level should become a baseline expectation. The next logical step for the ecosystem is obvious: if a PSU can detect and limit a bad GPU connection in real time, everything from cases to GPU coolers should be designed assuming that intelligence exists. T-Guard is not a niche gimmick; it is an early glimpse of how smarter power delivery will keep future high-end PCs from failing in the most painful way possible—silently, expensively, and without warning.
