Why the 12V-2x6 power connector needs smarter protection
The 12V-2x6 power connector is a high-current GPU power standard that can overheat or fail when cables are not fully seated or power is imbalanced across individual pins, and new multi-layer protection systems aim to detect these faults early, limit power, and warn users before connector damage or cable melting occurs. After a string of 12V-2x6 and 12VHPWR incidents, safety has become a selling point rather than an afterthought. GPU power protection now includes monitored connectors, warning buzzers, LEDs, and automatic power limiting at both PSU and GPU level. MSI and Cooler Master are treating PSU GPU Shield technology and integrated safeguards as differentiators, not niche extras. RTX 5090 safety features and retrofit add-ons signal a shift: connector reliability issues are acknowledged, and vendors are racing to make protection standard on high-end builds.
MSI’s RTX 5090 Safeguard: GPU-level protection as a feature
MSI’s RTX 5090 SUPRIM Safeguard brings connector intelligence onto the graphics card itself, turning the GPU into an active safety device. The card adds current monitoring hardware with server-grade eFUSE to watch voltage and current on each 12V-2x6 power pin, guarding against electrical damage. When abnormal power conditions occur, MSI Intelligent Power Safeguard responds in stages: a red LED lights up, a system notification appears, and an internal buzzer sounds, with an optional external buzzer for cases where the card’s audio is muffled. If the problem continues for 120 seconds, the GPU activates a protection lock that caps the power limit at 70%, reducing strain and heat on the connector. MSI notes that this behaviour mirrors its Safeguard and Safeguard+ PSU features, and together they allow users to diagnose and correct seating or cable issues before any physical damage happens.
Cooler Master’s MWE Gold V4: PSU GPU Shield technology at the source
Cooler Master addresses 12V-2x6 power connector risks from the PSU side with its MWE Gold V4 line and built-in GPU Shield technology. The patent-pending system uses per-pin sensing to monitor current on each 12V-2x6 pin in real time. When any pin draws more than 9A, the PSU limits power delivery to avoid connector or cable overheating, and a red light beside the modular outputs turns on. If the abnormal condition persists for more than three minutes, the PSU powers down the whole system, prompting users to reseat or replace the cable. According to Overclock3D, "GPU Shield uses per-pin sensing to monitor current in real-time" and can prevent melted connector incidents caused by imbalanced delivery. GPU Shield debuts on 750W–1000W MWE Gold V4 models and is expected to expand across Cooler Master’s high-end PSUs.
Standalone GPU Shield add-on: retrofitting protection to existing builds

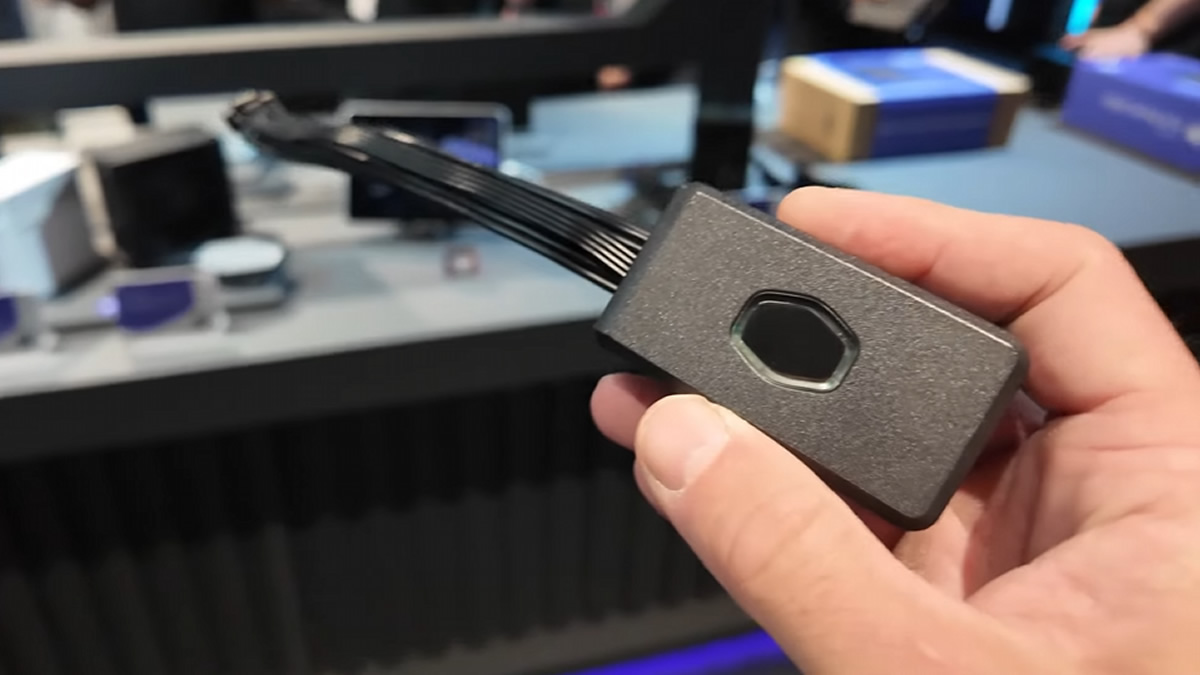

For users who do not want to replace a working PSU, Cooler Master offers GPU Shield as a standalone in-line accessory compatible with any 12V-2x6 or 12VHPWR PSU. This add-on sits between the PSU and GPU, using the same current imbalance detection logic as the MWE Gold V4 units and warning users through a built-in buzzer when unsafe conditions appear. Once alerted, builders are expected to stop workloads, shut down, and check whether the connector is fully seated or whether the cable needs replacement. The device will be sold in two versions: one with a buzzer only and another that adds RGB lighting, making the alert more visible in windowed cases. Its main advantage is retrofit GPU power protection without a full PSU swap, although the short connector length could make clean routing trickier in tightly managed cable layouts.
Safety as a differentiator: layered GPU power protection becomes the norm
Together, MSI’s Safeguard ecosystem and Cooler Master’s GPU Shield lineup show an industry pivot toward layered GPU power protection. Connector reliability issues are now met with monitoring at three levels: GPUs that sense per-pin anomalies and self-limit power, PSUs that detect imbalances and shut down before damage, and standalone add-ons that retrofit safety to existing 12V-2x6 power connector setups. This combination treats RTX 5090 safety features and PSU GPU Shield technology as central to product identity rather than optional extras. For enthusiasts and system integrators, the message is clear: future-ready builds should consider not only wattage and efficiency, but also how many layers of protection guard the GPU power path. As more vendors follow MSI and Cooler Master, multi-tier protection around the 12V-2x6 standard is likely to become expected, not exceptional.
