How New Tweeter and Waveguide Designs Change Speaker Behavior
Ported cavity tweeters and advanced waveguide technology are new loudspeaker component designs that control air movement and wavefront shape so engineers can tune frequency response, directivity, and distortion more precisely across the audible band. Together, they move high‑frequency drivers beyond simple dome tweeters on flat plates toward integrated acoustic systems. The ported cavity tweeter concept, patented by Alexander B. Ralph, adds an acoustic duct through the face plate and diaphragm frame that acts as a Helmholtz resonator, raising output over a selected frequency range and improving frequency response optimization around the tweeter’s low end. In parallel, Celestion’s Lensguide waveguide technology reshapes how compression drivers feed horns and line arrays, delivering more consistent speaker directivity and smoother coverage. These tweeter design innovations point toward a future where sound staging and coverage are engineered from the transducer outward, not patched at the crossover.
Inside the Ported Cavity Tweeter: A Helmholtz Resonator for HF Drivers

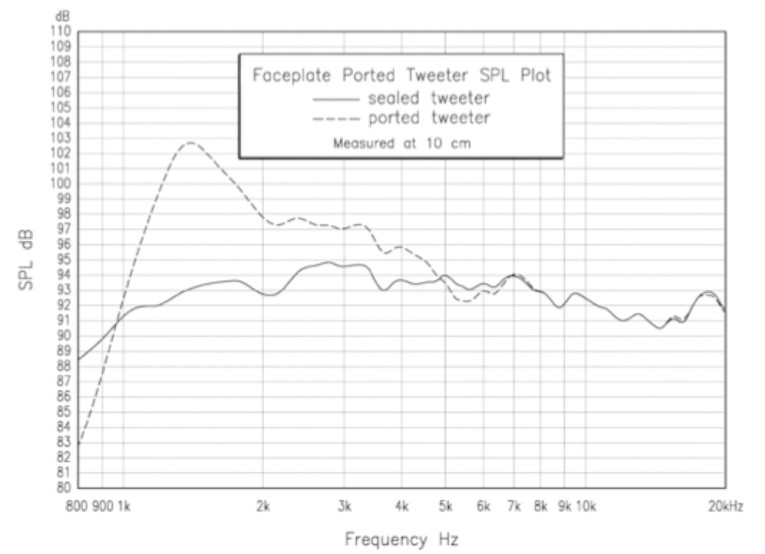

The ported cavity tweeter patent describes a familiar 25 mm style dome tweeter reimagined as a small Helmholtz resonator. A dome diaphragm sits in a central aperture, powered by a high‑energy magnet and voice coil, while at least one acoustic duct passes through the face plate and diaphragm frame, connecting ambient air to an internal air cavity. The air mass in this duct oscillates with the dome’s motion over a defined frequency band, boosting output and easing excursion demands at the tweeter’s lower operating limits. According to audioXpress’s patent review, the ported cavity tweeter is configured “to increase the output level over a range of frequencies,” addressing the usual distortion and thermal limits that keep typical 25 mm domes above 2 kHz. Comparative SPL and distortion plots show that adding the tuned port extends usable bandwidth while maintaining controlled behavior.
From Dome Limitations to Extended-Band Tweeters
Conventional dome tweeters are constrained by their fundamental resonance and excursion limits, which often force crossover points above 2 kHz to avoid overload and distortion. The reviewer notes that cubic volume displacement requirements climb by 12 dB for each halving of frequency, which rapidly stresses a small voice coil and dome. Earlier experiments by Roy Cizek even explored a bass‑reflex style “ported tweeter” for wider bandwidth and better thermal ventilation, but those ideas did not enter mainstream production. The ported cavity tweeter formalizes this concept with a patent framework, treating the tweeter assembly as a compact ported system tuned to share low‑frequency work with the diaphragm. That shift allows lower crossover options without demanding extreme excursion, giving system designers new freedom to shape the transition between midrange and high‑frequency drivers and to refine overall frequency response optimization.
Celestion’s Lensguide and Planar Exit: Waveguide Technology for Modern Arrays
While tweeter mechanics push downward in frequency, waveguide technology is advancing how high‑frequency energy spreads into a room. Celestion’s Lensguide innovation uses sophisticated shape optimization, including mode matching and edge‑diffraction modeling, to deliver optimized frequency response and directivity from the compression driver throat to the horn mouth. The company has applied Lensguide to new line array waveshapers and horn designs, aiming for consistent coverage and phase behavior in large systems that are difficult to measure as complete arrays. In parallel, Celestion introduced the PXT6000 rectangular exit compression driver with patented Planar eXit technology, which forms a controlled planar wavefront for more predictable horizontal and vertical coverage. These developments build on earlier research such as the Axi2050 axiperiodic diaphragm and show how simulation‑driven waveguides can provide smoother on‑ and off‑axis responses than older, trial‑and‑error horn geometries.
Precision Sound Staging Through Integrated Tweeter and Waveguide Design
Bringing ported cavity tweeters together with advanced waveguides points toward a more integrated approach to high‑frequency system design. A tweeter configured as a Helmholtz resonator adds headroom and control near its low end, while a waveguide such as Celestion’s Lensguide shapes how that energy is projected into space. In systems where a ported cavity tweeter is mated to a waveguide, measurements show that directivity and output can be tuned together rather than treated as separate problems. At the array and horn level, waveguide technology like Planar eXit creates a consistent wavefront, making it easier to combine multiple elements into a coherent sound field. The result is more precise sound staging and coverage: listeners experience smoother tonal balance across seats, and designers gain a reliable link between simulation, measurement, and what audiences actually hear in demanding reinforcement and high‑resolution playback applications.
