Horn Tweeter Design: Why Directivity Matters More Than Ever

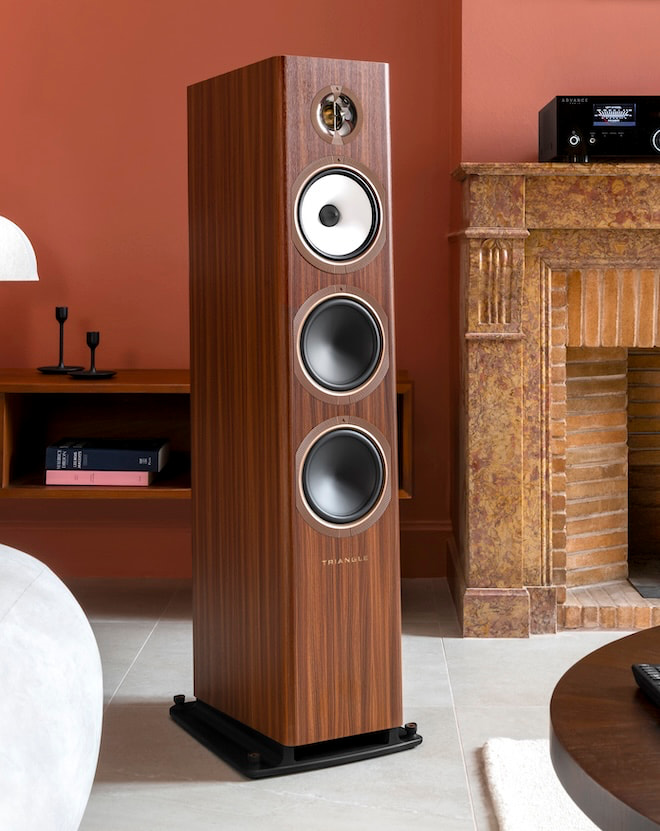

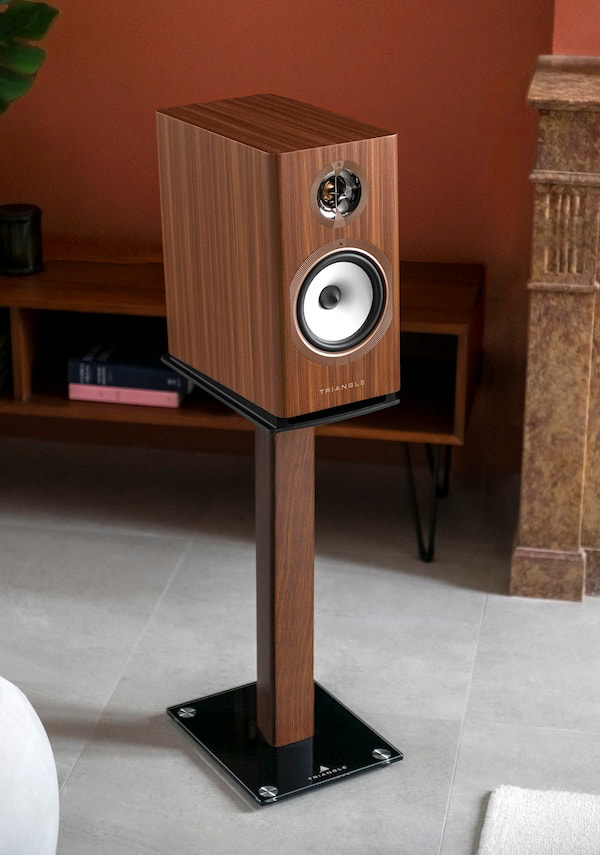

Horn tweeter design, ported diaphragm tweeters, and advanced waveguides represent a new generation of speaker driver technology aimed at controlling dispersion, boosting output, and lowering distortion to deliver more coherent, consistent high‑frequency performance in modern premium loudspeakers, whether used in home systems or commercial installations. The exciting shift is that tweeters are no longer passive passengers in a design; they are now engineered as directional, tuned acoustic engines. Triangle’s TZ2540MG horn tweeter combines two acoustic concepts not previously used together in one of the company’s tweeters, using an Oblate Spheroid Super Elliptical Waveguide profile intended to promote more even high‑frequency dispersion. A barrel‑shaped cutout at the base of the horn creates volumetric compression near the suspension point, improving behavior around the crossover region and supporting smoother integration between the tweeter and midrange driver. That is not a subtle tweak; it is a clear statement that directivity control and coherence are now design priorities, not afterthoughts.
Ported Diaphragm Tweeters: Turning Cavity Resonance Into an Asset

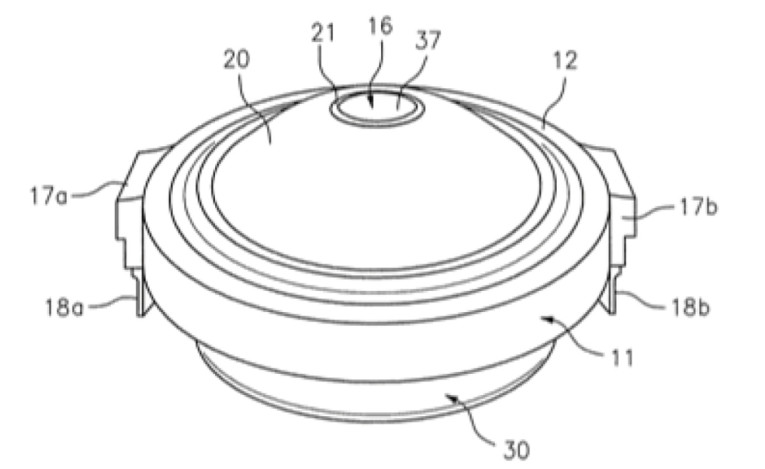

If horn tweeters reshape dispersion, the diaphragm ported tweeter rewrites how we think about the tweeter’s internal cavities. Instead of fighting resonance, it tunes and uses it. The patent describes a ring structure with upper and lower portions, a dome‑shaped diaphragm secured at its periphery to the upper ring, and a concentrically positioned aperture at the apex of the dome. An acoustic duct is coupled to that aperture, with an open first end at the diaphragm and a second open end extending away from it. Configured as a Helmholtz resonator, this diaphragm ported tweeter increases output level over a range of frequencies. More importantly, a sound pressure wave produced by oscillation of air in the acoustic duct adds to the sound pressure wave from the dome to raise output over tuned frequencies. In practice, that means better acoustic performance and the potential to reduce distortion without resorting to brute‑force power or oversized domes, making the ported diaphragm tweeter a smart solution rather than a gimmick.
Waveguide Dispersion and the Rise of Axi‑Symmetric Control
Advanced waveguides are the quiet heroes behind the latest horn tweeter design and waveguide dispersion breakthroughs. Triangle’s OS‑SEW horn profile is intended to promote more even high‑frequency dispersion and more consistent off‑axis performance, turning the listening area into a wide, stable soundstage rather than a single hot seat. On the commercial side, inside the p9 pendant loudspeaker’s black anodized aluminum enclosure is a 9‑inch driver system featuring a Theorem axi‑symmetric waveguide and a carbon fiber sandwich low‑frequency diaphragm. That Theorem waveguide is designed to maintain 120‑degree dispersion through the upper frequencies, creating broad and consistent coverage in spaces where listeners may be spread across a wide area. When a manufacturer can say, in effect, “this speaker keeps a controlled 120‑degree pattern through the highs,” that is a big deal for sound staging, whether you call it imaging in a living room or coverage in a hospitality venue. The trend is clear: precise dispersion is now engineered, not left to chance.
Driver Architecture: Coherent Systems, Not Isolated Tweeters
The new horn tweeters and ported diaphragm concepts only make sense when you see them as part of complete driver architectures. Triangle developed every Solstice driver specifically for the new lineup, rather than adapting existing units from the Esprit range. The 16 cm drivers use a new arch‑shaped, die‑cast aluminum basket designed to increase structural rigidity while improving airflow around the rear of the cone. That attention to mechanical design directly supports the horn tweeter’s quest for cleaner crossover behavior and less coloration. Similarly, the p9 pendant’s 9‑inch driver system pairs its Theorem waveguide with a carbon fiber sandwich low‑frequency diaphragm, showing that the brand views tweeter and woofer as a single acoustic engine with shared goals for output and control. This is the point: speaker driver technology is shifting from bolt‑on components to integrated, purpose‑built systems where horns, ports, waveguides, and baskets are all tuned to work together. The result is greater coherence and a more predictable listening experience across real rooms, not theory‑perfect labs.
What These Tweeter Breakthroughs Mean for Future Speakers
Horn tweeter design, ported diaphragm tweeters, and precise waveguide dispersion are not fashion statements; they are signs that loudspeaker engineering is taking direct control of how high frequencies behave in real spaces. The diaphragm ported tweeter shows how tuned cavity resonance can increase output over a range of frequencies, turning an old problem into useful energy. Triangle’s horn profile and barrel‑cutout geometry confirm that high‑frequency dispersion and crossover behavior are now first‑order design targets, while the Theorem axi‑symmetric waveguide demonstrates that maintaining 120‑degree dispersion through the upper frequencies is practical, not theoretical. For listeners, this means future premium speakers will be judged less on raw specs and more on how consistently they sound across seats and rooms. The direction is clear and positive: smarter tweeters, better‑integrated drivers, and high‑frequency performance that feels coherent instead of chaotic.
