From Simple Domes to Engineered Horns: The New Tweeter Era
Horn tweeter technology and ported diaphragm tweeter designs describe a new generation of advanced speaker drivers that focus less on raw loudness and more on carefully controlled dispersion, smoother integration with midrange units, and higher output over targeted frequency bands, transforming premium loudspeaker design around the listening experience rather than legacy dome conventions.
The headline change is clear: Triangle replaced its long‑running Esprit range with the Solstice lineup, built from the ground up on a new horn tweeter platform. Instead of treating tweeters as commodity one‑inch domes, the company now treats them as the primary acoustic interface that shapes soundstaging and room interaction. In parallel, the diaphragm ported tweeter patent (US 10,469,938) by Alexander B. Ralph formalizes a much more aggressive approach to boosting high‑frequency output via acoustic ducts and tuned resonators. Together, these moves signal that the era of "good enough" dome tweeters is ending. Serious loudspeakers are pivoting toward deliberate tweeter dispersion control and structural engineering, and that shift will affect how enthusiasts evaluate speakers for years.
Triangle Solstice: Horn Tweeter Technology as the New Centerpiece
Triangle’s Solstice series is the most visible proof that horn tweeters are no longer the preserve of niche, efficiency‑obsessed designs. The Solstice 8 floorstander, Solstice 3 bookshelf, and Solstice C3 center all use the new TZ2540MG horn tweeter, replacing the traditional dome‑in‑a‑small‑flare approach with a fully engineered waveguide geometry and motor system. This makes the tweeter the defining element of the lineup, not an afterthought bolted onto a box.
The horn follows an OS‑SEW (Oblate Spheroid Super Elliptical Waveguide) profile, intended to give more even high‑frequency dispersion, a wider listening area, and more stable soundstaging beyond the central seat. A barrel‑shaped cutout at the base creates volumetric compression around the suspension, improving the way the tweeter behaves at the crossover region and smoothing integration with the cellulose‑pulp midrange drivers. Triangle developed all Solstice drivers specifically for this platform to maintain consistent voicing and behavior across stereo and home‑cinema configurations. In other words, horn tweeter technology here is not about shouting; it is about shaping the sound field and making the entire system behave like one coherent acoustic engine.
Ported Diaphragm Tweeter: Engineering Output, Not Guessing with EQ
Where Triangle redesigns the horn, Alexander Ralph’s diaphragm ported tweeter patent goes after the physics of the diaphragm itself. Instead of accepting the dome’s natural roll‑off, the design adds an acoustic duct to act as a tuned resonator. This makes the tweeter a small, purpose‑built machine for increasing output over a defined band, rather than a passive device later corrected with equalization or marketing claims.
The patent describes a ring structure with upper and lower portions, a dome diaphragm secured at its periphery, and a concentrically positioned aperture at the apex of the dome. An acoustic duct attaches to that aperture, with one open end at the diaphragm and the other extending away. By configuring this as a Helmholtz resonator, the sound pressure wave from the oscillating air column adds to the wave from the moving dome, increasing output over a tuned frequency range. A notable quotable line is embedded in the claims: "The diaphragm ported tweeter is configured as a Helmholtz resonator to increase an output level over a range of frequencies". This is tweeter dispersion control and response shaping done mechanically and acoustically, not patched in the crossover.
Advanced Speaker Drivers, Cabinets, and Crossovers: A System-Level Rethink
What matters most is that these tweeter ideas are tied to broader premium loudspeaker design, not dropped into otherwise conventional boxes. Triangle’s Solstice drivers were created specifically for the series rather than adapted from Esprit, aiming for consistent behavior across all models. The 16 cm units sit in new arch‑shaped die‑cast aluminum baskets that raise rigidity and improve airflow behind the cone, while natural cellulose pulp cones target neutral midrange reproduction. Advanced speaker drivers here are tuned for both mechanical stability and acoustic character.
Cabinet and crossover work track the same philosophy. The DVAS (Driver Vibration Absorption System) ties drivers into the structure to cut vibration and raise cabinet rigidity, with the promised benefits of clarity, detail, and dynamic expression. All external edges are rounded to lower diffraction and support more even dispersion, which directly helps stereo imaging. Underneath, a dual‑material cast‑iron and silicone base combines mechanical isolation with a hidden laminar bass‑reflex port, designed to reduce turbulence and eliminate visible ports. Air‑core inductors, MKT capacitors, and cement‑coated resistors in the crossover are not decorative; they are the final layer that lets the horn tweeter, midrange driver, and cabinet collaborate on a refined, stable soundstage.
Why This Matters to Listeners: Soundstage, Seats, and Real Rooms
For ordinary listeners, the practical impact of horn tweeter technology and ported diaphragm designs is not abstract. It is about how many seats sound good, how stable the stereo image feels, and how believable instruments appear in space. Triangle claims its OS‑SEW horn profile promotes a wider listening area, more stable soundstage, and more consistent tonal balance beyond the central listening position. In a world where living rooms rarely match textbook setups, this matters more than chasing another decibel of sensitivity.

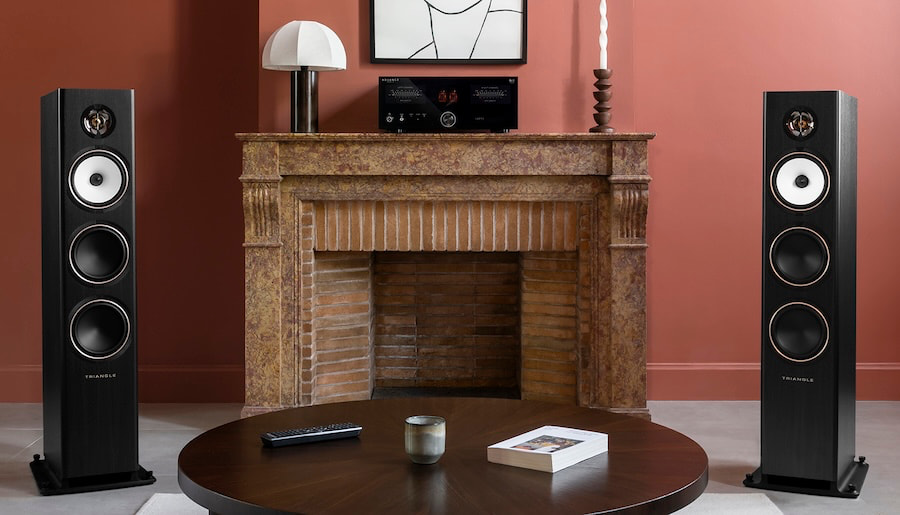

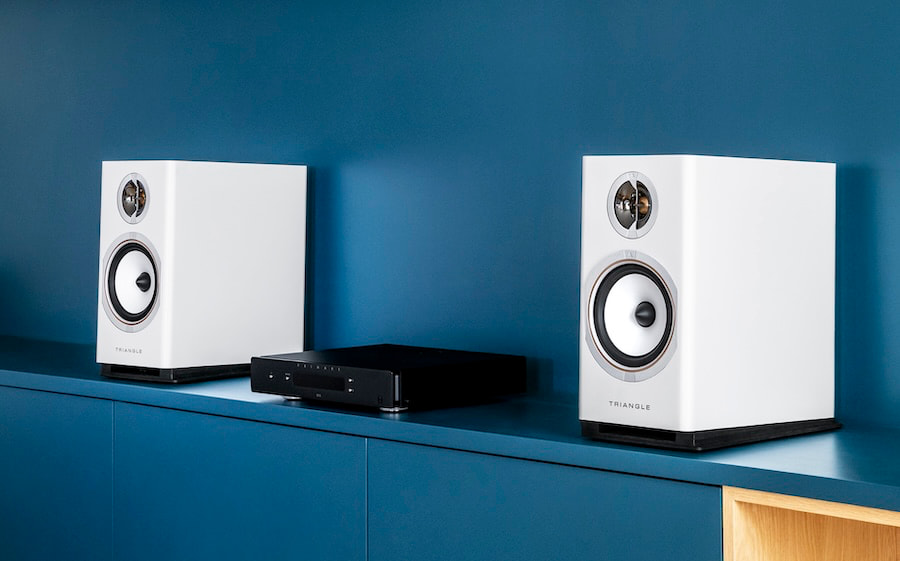

The Solstice 8 is aimed at serious two‑channel systems in medium to larger rooms, while the Solstice 3 and C3 build logical routes into matched stereo or three‑channel front arrays. When combined with controlled dispersion, reduced turbulence from laminar ports, and tweeters whose output is engineered rather than guessed, the result is speakers that behave predictably in real spaces. Enthusiasts should start judging premium loudspeakers on how coherently their advanced speaker drivers, horn tweeter technology, and cabinet systems work together, not on isolated spec sheet numbers. The new message from both the Solstice platform and the diaphragm ported tweeter patent is clear: soundstaging is now an engineering priority, not a fortunate accident.
