What Ported Cavity Tweeters and Lensguide Waveguides Are Changing
Ported cavity tweeter driver technology and Lensguide waveguide speaker design are new high‑frequency engineering approaches that combine acoustic resonators and carefully shaped guides to improve frequency response control, lower distortion, and deliver more even speaker directivity optimization across a wide range of listening positions. Together, they target historic weak points in tweeters and horns: limited bandwidth, excursion‑driven distortion near crossover, and erratic off‑axis behavior that colors sound for anyone not seated on the central axis. Instead of treating tweeters as simple domes and horns as passive flares, these designs integrate tuned cavities, ducts, and wave‑shaping paths into the core architecture of the driver. The result is a push toward premium speaker systems where dispersion, output capability, and tonal balance can be predicted and controlled by design, not left to trial‑and‑error tuning in the lab or listening room.
Inside the Ported Cavity Tweeter: A Tweeter as a Helmholtz Resonator

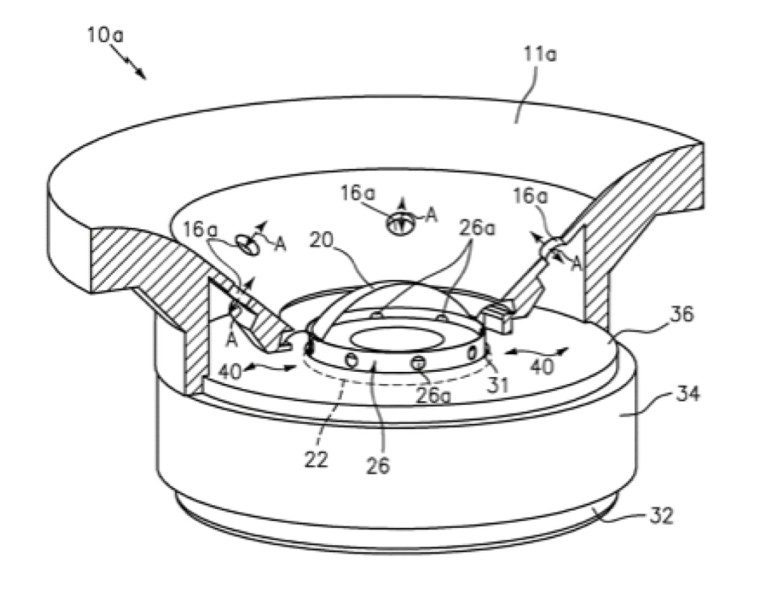

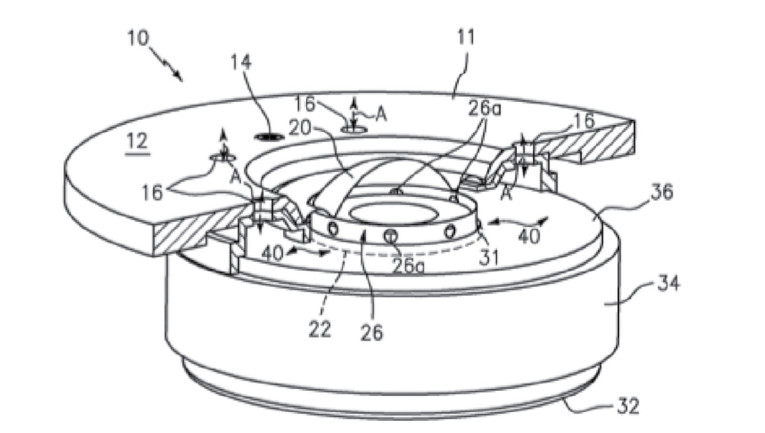

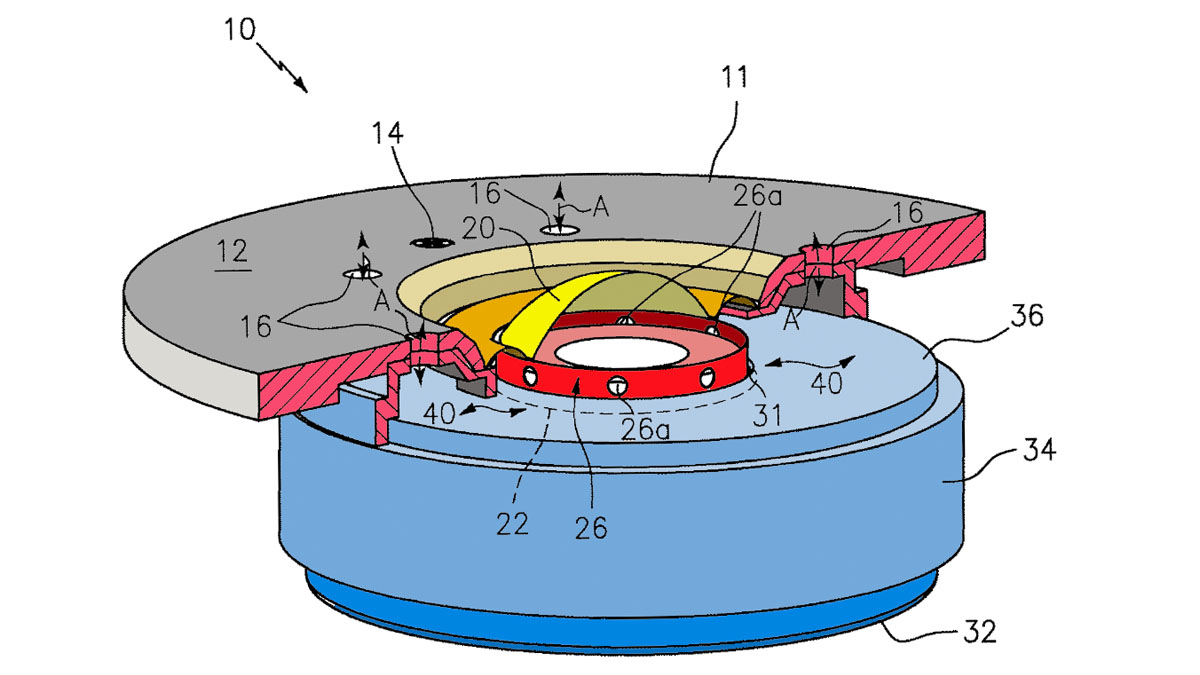

Alexander B. Ralph’s ported cavity tweeter reimagines the standard 25 mm dome by building a Helmholtz resonator around the driver. The design adds at least one acoustic duct that passes through the face plate and diaphragm frame, connecting ambient air to a trapped cavity behind the dome. The mass of air in this duct oscillates with dome movement, reinforcing output over a defined frequency band and easing excursion demands. According to audioXpress, the ported cavity tweeter is "configured as a Helmholtz resonator to increase the output level over a range of frequencies." This matters because traditional domes often see their fundamental resonance between about 500 Hz and just under 2 kHz, yet are usually crossed above 2 kHz to avoid large‑signal distortion and thermal stress. A tuned ported cavity can extend usable bandwidth downward while maintaining cleaner behavior near the crossover.
From Wideband Tweeters to Waveguide‑Enhanced Domes
The ported cavity tweeter continues a long search for wideband tweeters that can cross much lower without losing control. Earlier experiments, such as Roy Cizek’s wideband dome at JBL, aimed for crossover points around 800 Hz by combining extended‑excursion motors with bass‑reflex‑style venting to reduce dome excursion and improve voice‑coil ventilation. Ralph’s patent adds another dimension by pairing a dome with a ported cavity and allowing integration with external waveguides. In some configurations, the tweeter sits behind a waveguide that shapes dispersion while the internal acoustic duct raises output in the lower part of the tweeter’s passband. Comparative distortion and SPL measurements in the patent review indicate that this combination can deliver higher sound pressure levels at lower frequencies than conventional domes, supporting both frequency response control and smoother off‑axis behavior when used in sophisticated baffle or horn systems.
Celestion Lensguide: Waveguide Speaker Design for Consistent Directivity

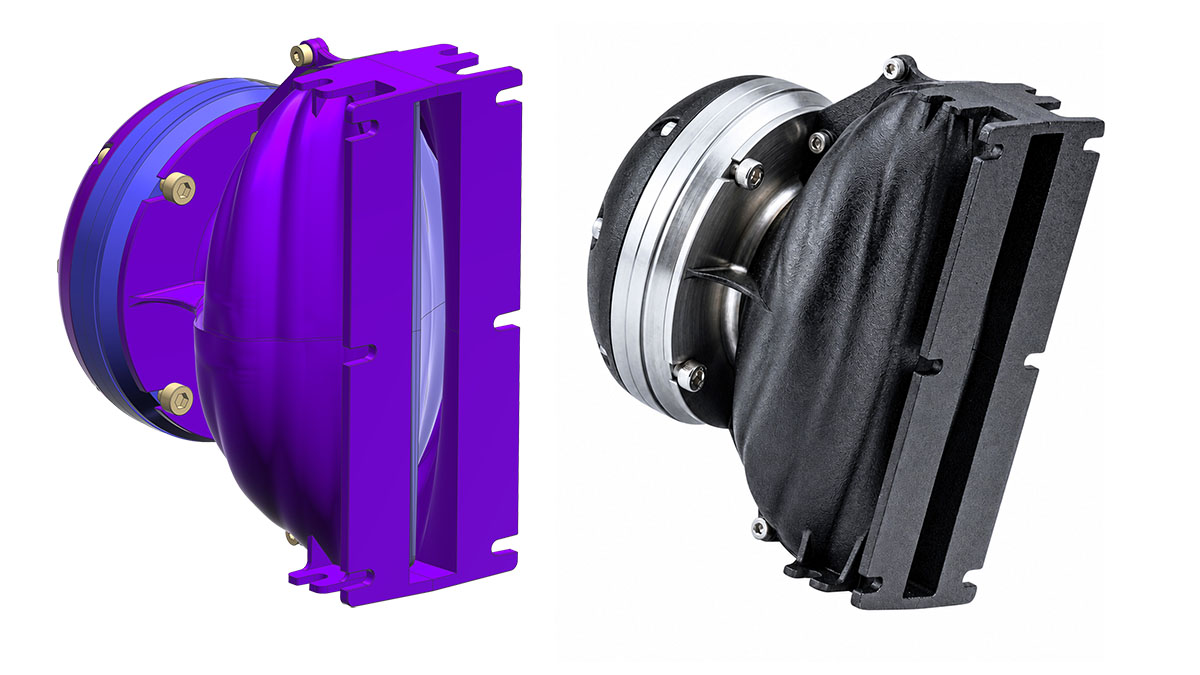

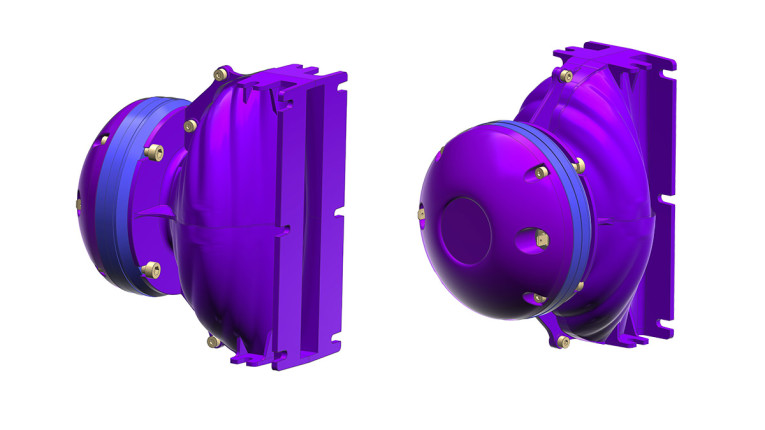

Celestion’s Lensguide technology takes waveguide speaker design further by treating the horn or waveshaper as a precision component for frequency response control and directivity. Instead of relying on traditional flares refined through trial‑and‑error prototypes, Celestion uses advanced computer modeling, including mode‑matching and edge‑diffraction simulations, to predict how sound will behave from throat to mouth. Lensguide is applied to line array waveshapers and horn designs to deliver optimized coverage and more reliable off‑axis response across a wide frequency range. The company pairs this with innovations like the PXT6000 rectangular exit compression driver and Planar eXit technology to maintain controlled high‑frequency directivity and smooth response. In large sound‑reinforcement systems, where complete arrays are hard to measure as a whole, this approach promises more accurate aiming, reduced lobing, and better listener‑to‑listener consistency without endless hardware iterations.
Toward Integrated Directivity and Frequency Response Optimization
Together, ported cavity tweeters and Lensguide waveguides point to a shift in tweeter driver technology from component‑level upgrades to system‑level acoustic design. On the driver side, tuned ducts and cavities act as built‑in equalizers, extending usable bandwidth and supporting lower crossovers with less distortion. On the acoustic side, waveguides and waveshapers sculpt radiation patterns so that on‑axis and off‑axis responses track more closely, reducing tonal changes as listeners move around a room or venue. For premium speaker design, this means directivity, efficiency, and thermal limits can be co‑designed from the start, instead of patched later with crossovers or DSP. As more patents emerge around ported cavity tweeters, Lensguide, and planar exits, the industry is likely to see loudspeakers where frequency response and dispersion are treated as tightly coupled design targets rather than separate problems.
