What Ported Cavity Tweeters and Waveguides Aim to Solve
Ported cavity tweeter and waveguide speaker design refer to patented high‑frequency driver and horn structures that use controlled air cavities and precisely shaped acoustic paths to improve frequency response optimization and speaker directivity control across a wider bandwidth than conventional dome tweeters and horns. Traditional 25 mm tweeter driver technology struggles when asked to play loud, clean, and evenly dispersed sound below about 2 kHz. Distortion rises quickly because excursion and thermal limits are pushed, and dispersion can become uneven as frequency climbs. At the same time, horn‑loaded systems can trade flat frequency response for tightly controlled coverage, forcing designers to compromise between tonal balance and directivity. New patents for ported cavity tweeters and waveguide innovations seek to remove those trade‑offs by tuning air motion and wavefront shape, rather than relying only on brute‑force motor strength or trial‑and‑error horn geometry.
Inside the Ported Cavity Tweeter: A Helmholtz Resonator in a Dome

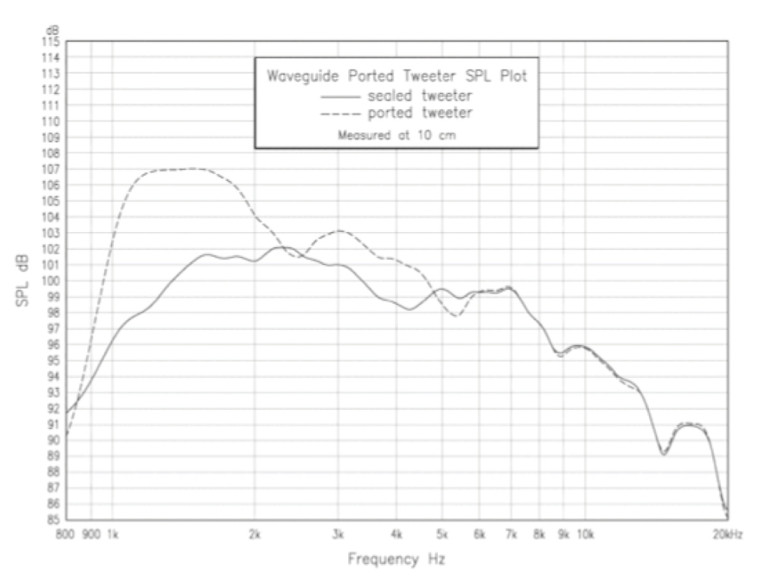

Alexander B. Ralph’s ported cavity tweeter patent describes a dome tweeter where the face plate, diaphragm frame, and central aperture surround a dome‑shaped diaphragm and voice coil, backed by a magnetic assembly. The key difference is at least one acoustic duct that passes through the face plate and frame, connecting ambient air to an internal cavity so that the enclosed air behaves as a Helmholtz resonator. According to audioXpress’s patent review, “the ported cavity tweeter is configured as a Helmholtz resonator to increase the output level over a range of frequencies.” By letting the air mass inside the duct oscillate with the diaphragm, the system can boost output, reduce excursion, and help control resonance modes around the tweeter’s fundamental frequency. This approach targets the classic limitation where many dome tweeters must cross above 2 kHz to avoid nonlinear distortion and thermal stress.
Waveguide Breakthroughs: Celestion Lensguide and Planar eXit
Celestion’s Lensguide waveguide technology focuses on shaping the wavefront leaving compression drivers so that frequency response remains smooth while directivity stays controlled over a wide range. The company’s work builds on modern simulation tools, including mode‑matching and edge‑diffraction models that better predict what happens at the horn throat and mouth. This enables line array waveshapers and horns that are less dependent on manual tuning yet deliver more predictable coverage. The Lensguide platform supports ultra‑wide dispersion designs, while the upcoming PXT6000 rectangular exit compression driver and Planar eXit technology aim to maintain high‑frequency directivity control with a smooth frequency response. These advances directly support frequency response optimization in complex systems where many elements must behave as one source, which is vital for consistent coverage in large venues and for accurate stereo imaging in advanced consumer loudspeakers.
Directivity and Frequency Response: From Trade‑Offs to Tuned Systems

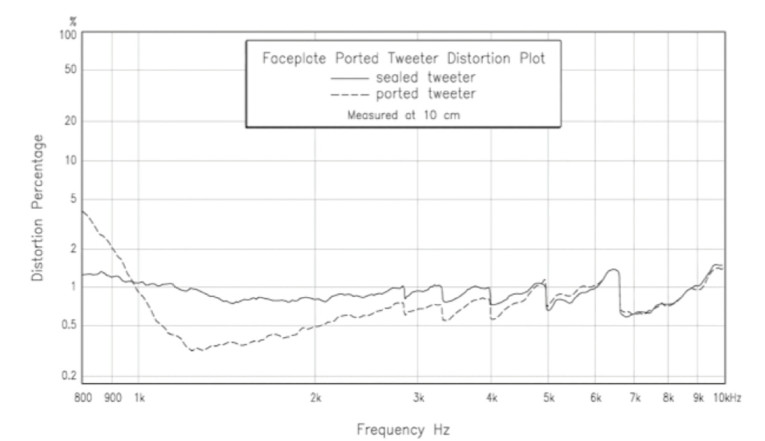

Both the ported cavity tweeter and Lensguide‑style waveguides target the same challenge: predictable speaker directivity control without sacrificing flat frequency response. In Ralph’s tweeter design, the integrated acoustic duct and cavity let designers tune resonance with the precision of a Helmholtz resonator, raising output across a defined band and easing the load on the voice coil. This can extend usable bandwidth downward while managing distortion, which is especially important near crossover points. On the waveguide side, Celestion’s simulation‑driven shapes encourage consistent phase behavior and reduce edge diffraction, so off‑axis listeners hear a similar tonal balance to on‑axis listeners. When these ideas are combined in a system, the tweeter driver technology and waveguide speaker design no longer work in isolation; they form a coupled acoustic network where air volumes, apertures, and surface shapes are all tuned together.
From Line Arrays to Living Rooms: Applications and Future Directions
The practical impact of these patents spans professional and consumer markets. In touring line arrays and fixed installations, Lensguide‑equipped horns and PXT‑series drivers can enhance coverage consistency, reduce the need for corrective equalization, and offer more reliable performance from venue to venue. In studio monitors and high‑end home speakers, a ported cavity tweeter can allow lower crossover points, better integration with midrange drivers, and improved power handling, all while keeping frequency response smooth. The broader trend is a convergence of acoustic engineering and materials science: tweeter structures, magnetic assemblies, and waveguides are co‑designed with simulation‑driven shapes and carefully controlled air paths. As designers keep pushing for higher output and more compact enclosures, expect future tweeter driver technology and waveguide speaker design to rely even more on tuned cavities, ducts, and novel wavefront management rather than only larger motors or heavier diaphragms.
