Why These Four ESP32 Projects Beat Yet Another LED Tutorial
ESP32 projects that matter combine sensors, on‑device intelligence, and clear real‑world outcomes, such as secure access control, environment-aware devices, flight instrument emulation, and waypoint-based GNSS navigation, rather than shallow IoT experiments with cloud dashboards and blinking LEDs. If you want to grow beyond beginner status, you need builds that force you to handle perception, decision-making, and user interfaces in hardware you can hold in your hand. These four projects—RFID access control, LiDAR room detection with Edge Impulse, an avionics simulator, and a handheld GNSS navigation device—do exactly that. They turn the ESP32 into the core of systems that feel like products, not lab exercises, and they make you think about latency, reliability, and interaction instead of yet another HTTP request.
ESP32-S3 RFID Access Control: Local, Contactless Security
If you are still relying on cloud logins for every door, you are overcomplicating security. An ESP32-S3 RFID access control build proves you can get reliable, contactless authentication with nothing more than RFID cards, an RC522 reader, and a local UID list. The reader scans nearby tags, grabs their unique ID, and the ESP32-S3 compares it against authorized entries; valid cards unlock the door, invalid ones do nothing. This is far more appropriate for homes, labs, and small offices than streaming every attempt to a remote service. The project is explicitly pitched as “a smart security solution” that can be used for smart locks, attendance systems, and IoT security applications. It is also practical for learners: its low cost, straightforward wiring over SPI, and scalable list of card IDs make it an excellent starting point for makers, students, and developers exploring RFID access control in the real world.

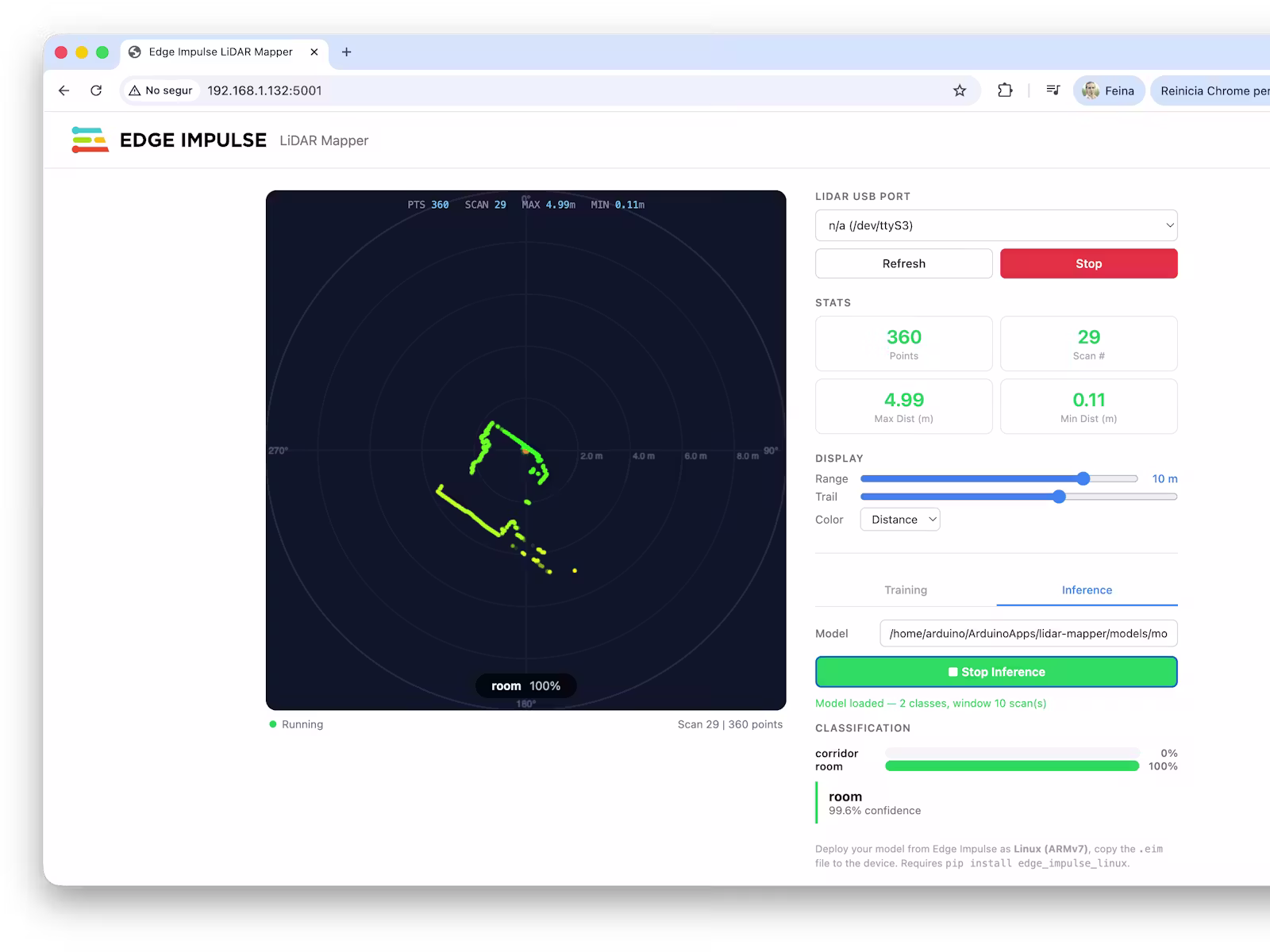

LiDAR Room Detection with Edge Impulse: ML on the Edge
Environment awareness is where ESP32 projects usually fall short; they measure a value but do not understand it. Adapting the LiDAR room classification project to the ESP32 mindset shows what on‑device machine learning can do. The original build uses a 2D dToF LiDAR and a board to classify rooms without the heavy computation of SLAM or camera-based vision. The sensor generates continuous 360° scans, up to 12 meters away, and those distance fingerprints are treated as 360‑dimensional time‑series feature vectors. Edge Impulse Studio handles ingestion, segmentation into one‑second windows, feature extraction, neural network training, quantization, and deployment back to the microcontroller for low‑latency inference. Initial testing confirms high classification accuracy within controlled environments with very low latency. The point is not the specific rooms; it’s learning the pattern: this is a blueprint for LiDAR detection and ML‑powered ESP32 projects that make decisions locally, in milliseconds, with no external CPU farm.
ESP32 Avionics Simulator: Turning Sensor Data into Flight Instruments
Most microcontroller dashboards stop at plotting a value. An avionics simulator on ESP32 goes further, turning raw I2C sensor outputs into full flight instruments. The project combines an RGB display, the Arduino GFX library, and multiple I2C devices wired on dedicated SDA and SCL pins. Addresses for a PCF8574, an MPU6050 IMU, and a QMC5883L compass are defined so the code can read pitch, roll, and heading in real time. Those values drive an artificial horizon: pitchDeg and rollDeg feed a drawing function that rotates and offsets sky and ground segments to mimic an aircraft attitude indicator. A screen mode enum lets the device switch between attitude, compass, altimeter, and airplane views. This is what an advanced ESP32 project looks like—LiDAR detection tells you where you are, avionics simulation teaches you how to represent motion and orientation in a graphical interface that feels like something you’d trust in a cockpit.
Pathfinder GNSS Navigation: DIY Waypoints Without a Smartphone
Phone maps are convenient, but they are also overkill when you need only distance and bearing to a single destination. The Pathfinder project started from a simple question: “Can I build a navigation device where I enter destination coordinates and the device continuously shows the distance and direction to the target while I'm walking?” The builder used a DFRobot FireBeetle 2 ESP32‑C6 with a Gravity GNSS Positioning Module, a BMM350 triple‑axis magnetometer, a 240×240 IPS display, rotary encoder, buzzer, and LiPo battery to create a compact handheld navigator. Initial tests exposed a real limitation: GNSS heading is reliable only while moving, so when you stop, the direction estimate collapses. Adding the magnetometer fixed that, giving a stable orientation even at rest. The result is a device that shows both distance and bearing to a predefined waypoint with about ±5 meters accuracy. According to the project author, this turns into a genuinely practical GNSS navigation tool you can build yourself.
Conclusion: ESP32 as a Platform for Serious Devices
If your ESP32 work never leaves the breadboard, you are missing the point. An RFID access control system proves you can build contactless security that lives entirely on local hardware. LiDAR room detection with Edge Impulse shows that distance fingerprints and neural networks can run at the edge and classify environments in real time. The avionics simulator turns sensor fusion into an attitude indicator, compass, and altimeter wrapped in a graphical interface. The Pathfinder GNSS navigation device demonstrates waypoint-based positioning without leaning on commercial navigation gear or smartphones. Together, these ESP32 projects argue for a different way to learn electronics and embedded ML: pick problems that matter, wire up sensors that perceive the world, and use the microcontroller as the brain of tools you would actually use outdoors, in a workshop, or in a cockpit simulator.
