From Boring IoT Node to Experimental Playground
ESP32 firmware projects are open-source software packages that transform a low-cost ESP32 microcontroller into specialised devices for tasks like protocol exploration, wireless voice communication, or interactive digital pets, often using nothing more than a USB cable, WiFi radio, and a web browser for control and experimentation. Instead of treating the ESP32 as yet another anonymous IoT module, these projects treat it as the main character: a protocol workbench, a DIY walkie talkie, or a digital pet ESP32 that feeds on WiFi traffic. That shift matters. It turns a $5 board from disposable glue logic into something you can learn from, teach with, and carry around. The key takeaway: when firmware is open source and hardware is this cheap, the ESP32 stops being infrastructure and becomes a place to explore ideas. If you still see it only as “WiFi on a chip,” you are missing the most interesting part.
ESP32 Bit Pirate: A Browser-Based Lab in Your Pocket

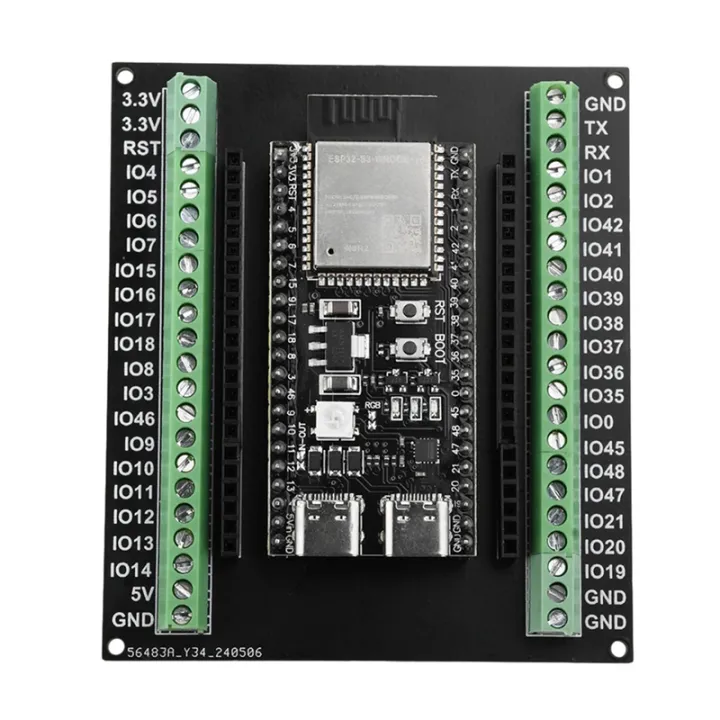

ESP32 Bit Pirate argues that you do not need a full desktop toolchain or expensive instruments to start exploring hardware protocols. Flash its firmware onto an ESP32-S3 board, connect a single USB cable, and the microcontroller becomes a bridge between your browser and the physical world. Through Web Serial tools, that board turns into an I2C scanner, SPI flash probe, serial terminal, GPIO controller, and simple logic capture device, all controlled from browser-based workflows. One quotable idea from the project is that its goal is “to make real embedded exploration easier to start, cheaper to teach, and practical enough to use anywhere.” It is deliberately modest: this is not a replacement for every professional lab instrument or a high-end logic analyzer, but it is valuable for students, makers, workshops, and small labs that need WiFi protocol tools and bus introspection to be approachable. The opinionated lesson here is clear: debug tools should be as portable and open as the microcontrollers they examine.
ESP32Talkie: License-Free DIY Walkie Talkie Over WiFi

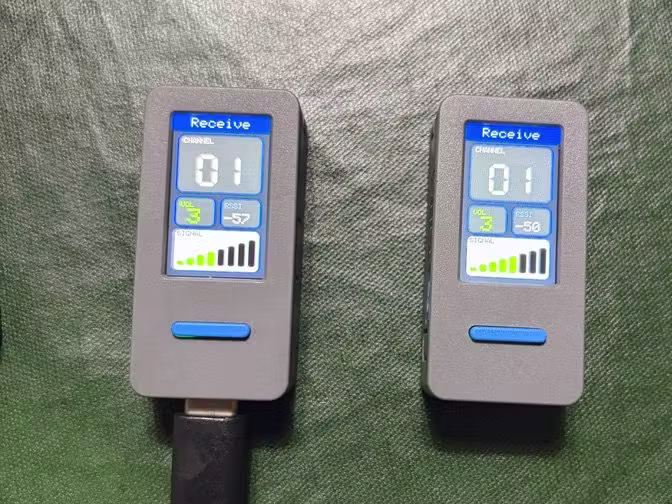

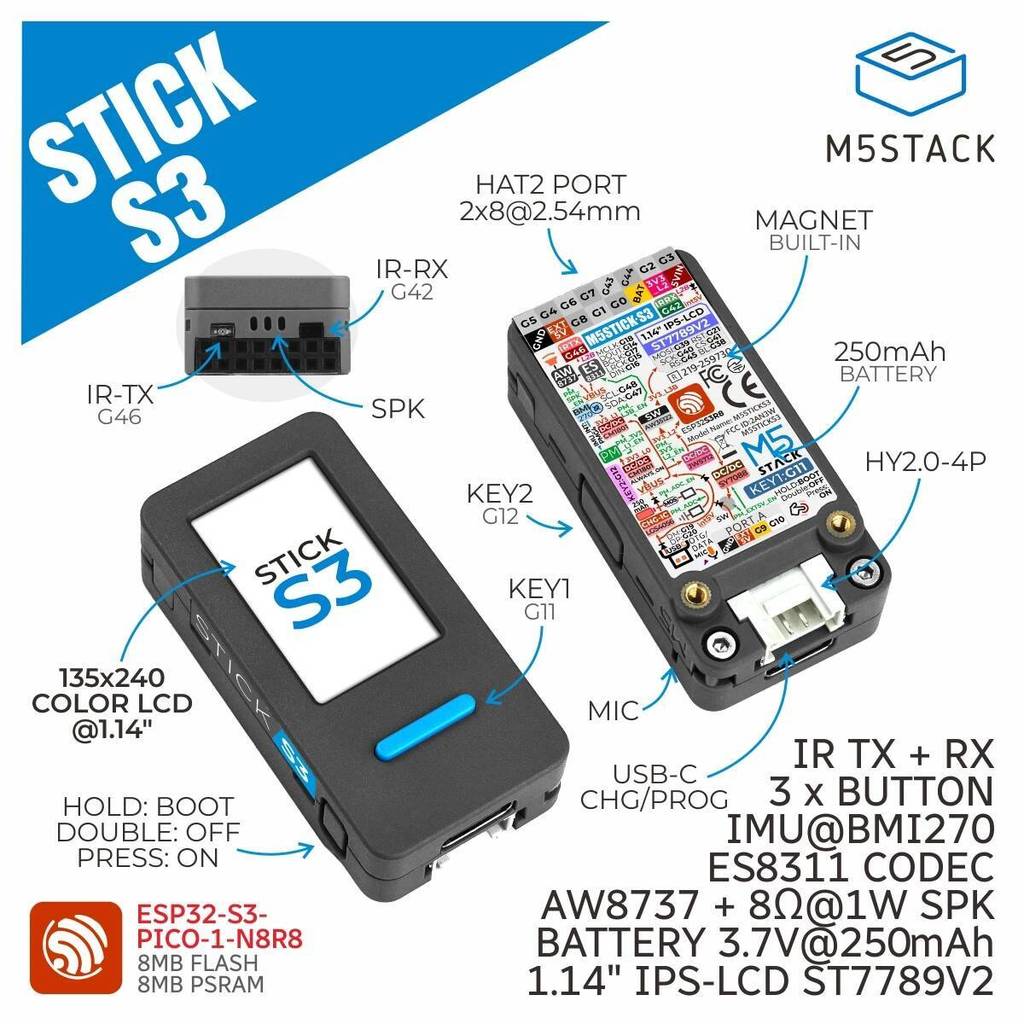

If Bit Pirate turns the ESP32 into a lab instrument, ESP32Talkie turns it into a handheld radio without touching traditional RF licensing headaches. Running on a stock M5StickS3, the firmware creates a DIY walkie talkie that streams live voice over Espressif’s ESP-NOW protocol in Long Range mode on 2.4 GHz WiFi frequencies. With push-to-talk controls, 13 selectable channels from 2412–2472 MHz, and broadcast addressing, multiple units share real-time voice with no pairing, no router, and no internet, up to about 1 km line-of-sight. “Real-time voice communication between two or more units over 2.4 GHz Wi-Fi frequencies” becomes practical because the Long Range mode trades throughput for better sensitivity; the firmware design embraces that limitation instead of hiding it. Everything is software on top of an open source microcontroller platform, with MIT-licensed code available to inspect and remix. The strong opinion here: if you are still buying toy walkie-talkies, you are ignoring the radios you already own.
GRIMWALKER: A WiFi-Sniffing Digital Pet ESP32
GRIMWALKER is the most unapologetically strange of the three: a firmware project that turns a $5 microcontroller into a living digital pet ESP32 that survives by eating WiFi probe requests, WPA handshakes, BLE advertisements, and captive-portal credentials. On boot, it spins up an access point named GRIMWALKER, mounts SPIFFS, restores pet state from RTC memory so the creature survives deep sleep, and runs FreeRTOS tasks for packet sniffing, pet maintenance, and captive-portal DNS. Using the ESP32’s hardware promiscuous mode, beacon spammer, and a channel hopper sweeping channels 1–13, it acts as both WiFi protocol tool and game engine. Hunger, corrosion, entropy, corruption, and experience stats control whether your pet evolves from Wraith Hatchling up to Daedroth Lord, or falls into feral mode when starvation hits zero. Calling this a “network debugger” would miss the point: it is a commentary on how casually we surround ourselves with packets, turning invisible radio noise into visible behavior.
Why These ESP32 Experiments Matter
Across Bit Pirate, ESP32Talkie, and GRIMWALKER, the pattern is striking: each project takes an inexpensive, widely available ESP32 board and uses open-source firmware to give it a role far beyond generic IoT node. Bit Pirate turns it into browser-controlled WiFi protocol tools and bus analyzers for teaching and quick debugging. ESP32Talkie reframes the on-board WiFi radio as a license-free voice channel with practical range and everyday usefulness. GRIMWALKER weaponizes promiscuous mode into a playful, slightly sinister way to visualise wireless activity as a hungry pet. All rely on code you can read, modify, and reuse, and hardware that costs about the price of lunch. The opinionated conclusion: if you own ESP32 boards and only use them for boilerplate IoT tasks, you are wasting them. Treat them as experimental canvases, and you gain not only gadgets but new ways to think about protocols, radios, and the invisible environment your devices inhabit.
