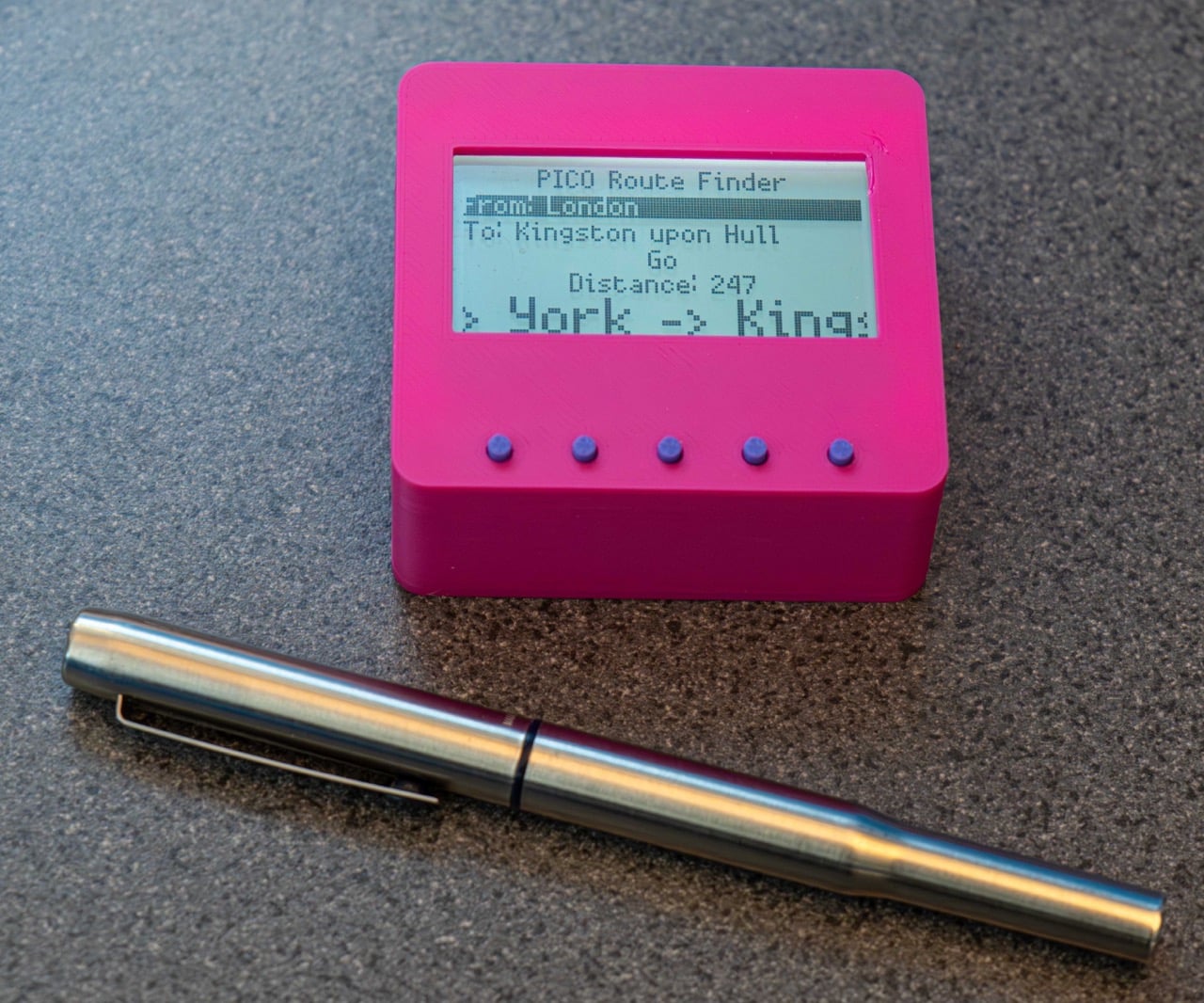

What You’re Building: A Pocket Route Finder on Pico
A pocket route finder on Raspberry Pi Pico is a small, battery-friendly device that stores a map as a graph and uses Dijkstra’s algorithm to compute the cheapest path between locations in real time, turning classic computer science theory into a practical microcontroller route finder that runs entirely offline on constrained embedded hardware. Dijkstra’s algorithm works by keeping track of journey costs, always exploring the lowest-cost unvisited node first, and remembering how each location links back to the start. When you pair this with the Pico’s dual‑core ARM processor and a multi-threaded firmware stack, you get Raspberry Pi pathfinding that does not depend on any cloud service and can respond quickly to button presses or sensor updates. This project is ideal if you want hands-on experience with embedded algorithms and you are comfortable with basic Python or C and command-line tools.
Designing the Map and Dijkstra’s Algorithm for Constrained Hardware
Before you touch firmware, sketch your world. The route finder treats rooms or locations as nodes in a graph and connections between them as links with costs, like the castle map with the Hall, Library, Kitchen, Bedroom, and Treasure Room connected by doors that each have a specific cost in coins. The algorithm keeps a table of known locations, whether they have been visited, the current best cost to reach them, and the route back to the start; as you discover cheaper paths, you overwrite more expensive entries. On a microcontroller, memory is the real constraint, just as Dijkstra’s original demonstration was limited to 64 locations because of tiny main memory. Aim for compact data structures: use integer IDs, arrays instead of dynamic lists where possible, and keep your map small enough that the Pico’s RAM leaves room for stacks and message buffers. This discipline makes Dijkstra’s algorithm Pico-friendly while keeping your code readable and modifiable.
Step-by-Step: Flashing Open-Source NuttX Firmware on Pico
To turn theory into a working microcontroller route finder, you will run a POSIX-style real-time operating system on your Raspberry Pi Pico and then add your Dijkstra’s algorithm code on top. Running Apache NuttX on the Pico transforms the board into a POSIX-compliant, multi-threaded system and unlocks its full dual-core potential via symmetric multiprocessing, with threads communicating through asynchronous messages to minimize blocking and keep both cores busy. The reference firmware and ArduProf-based application template are open source under the GNU General Public License Version 3, so you are free to modify and redistribute your route finder logic as much as you like. Here is the core procedure you will follow to get the base firmware running; think of this as your launchpad for adding embedded algorithms later.
- Launch a terminal app on your development machine and clone the reference repository by running the command: git clone --recurse-submodules https://github.com/teamprof/arduprof-template.gif.
- Change to the Pico application folder and create the symbolic link that registers the ArduProf app, using: cd arduprof-template/pico-nuttx-app followed by ln -s ../src apps/arduprof.
- Move into the NuttX build folder, configure it for the Pico USB shell, and prepare to compile by running: cd nuttx then ./tools/configure.sh -l ../src/boards/arm/rp2040/raspberrypi-pico/configs/usbnsh.
- Build the firmware image by typing make and pressing ENTER; if everything goes smoothly, you will see the successful build screen indicating that nuttx.uf2 has been created.
- Flash the firmware onto the Raspberry Pi Pico: press and hold the BOOTSEL button, plug the USB cable into the Pico and your PC, release BOOTSEL, then copy the UF2 file using cp nuttx.uf2 /media/teamprof/RPI-RP2.
- Unplug and reconnect the Pico; it will power up and immediately start running the firmware, and if everything goes smoothly the on-board LED will toggle every second while the system displays the expected console output.
- Launch a serial terminal app such as minicom and connect to /dev/ttyACM0 with 8N1, 115200 bps, using the command minicom -b 115200 -D /dev/ttyACM0 so you can interact with the NuttX shell and confirm the board is responding.
The main gotcha here is path and device names: commands like cp nuttx.uf2 /media/teamprof/RPI-RP2 and minicom -b 115200 -D /dev/ttyACM0 assume your system mounts the Pico and exposes the serial device under those identifiers. On a different operating system you may need to adjust the mount location or serial port name, but the sequence stays the same: configure, build, copy, and then attach a serial terminal. Once the NuttX shell is running, you have a stable multi-threaded base where your Dijkstra task can run alongside input and display threads without blocking other features, making Raspberry Pi pathfinding feel responsive even on a tiny board.
Adding the Treasure-Hunt Route Finder Logic
With firmware in place, you can treat NuttX and ArduProf as plumbing and focus on the fun part: the treasure-hunt navigation demo. In the castle story, you start at the Hall, read door labels to find costs to the Kitchen, Library, and Treasure Room, and then explore unvisited rooms in order of lowest cost to discover cheaper paths to the gold. In code, that table of rooms becomes your core data structure. One thread can maintain the graph and run Dijkstra’s algorithm whenever you select a start and destination, while other threads handle buttons, a small display, or even a serial command interface. As each path is evaluated, your algorithm updates any route whose new cost is lower than the current stored cost, mirroring the way traveling via the Library made the Kitchen cheaper than going straight from the Hall. The clever part is that nodes which never participate in the cheapest route, like the Stables in the story, are ignored automatically, which keeps processing light on embedded systems.
Why This Project Is Worth It, and What to Watch For
By the time your pocket route finder is running, you will have touched every layer of an embedded pathfinding stack: real-time firmware, thread messaging, graph modeling, and the Dijkstra core. You saw how a POSIX-compliant, multi-threaded OS unlocks the Pico’s dual-core potential with symmetric multiprocessing, giving you real-time pathfinding without any cloud dependency. You also tuned your algorithm to respect memory limits, echoing Dijkstra’s original challenge of fitting routes into the small amount of main memory available, where even his demonstration was limited to 64 locations. From here, you can expand the map, change the cost model, or repurpose the firmware for routing data packets or guiding a small robot through obstacles. The key thing to watch is resource balance: every extra node, feature, or thread consumes RAM and CPU time. If you keep your graph modest and your tasks well separated, this microcontroller route finder stays fast, readable, and ready for others to reuse thanks to its open-source license.
