Why ESP32 Boards Are Ideal for a Budget Smart Home
ESP32 IoT projects are low-cost, Wi-Fi enabled builds that use small microcontroller boards to replace expensive smart home devices, online dashboards, security panels, and subscription-based services with DIY hardware and open-source firmware. ESP32-S3 boards cost under $10 and rival Raspberry Pi capability at a fraction of the price, giving you Wi‑Fi, Bluetooth, and more than enough processing power for most home automation tasks. According to ZDNET, a cheap $7 ESP32-S3 board can run a full-network ad blocker without any coding. Compared with a typical Raspberry Pi setup, these boards draw less power, boot almost instantly, and are easier to embed into custom enclosures. In the sections below, you will build a DNS ad blocker, an RFID access control system, a smart stats dashboard, an HTTPS web server microcontroller, and a multi-sensor water quality analyzer to modernize your budget smart home.

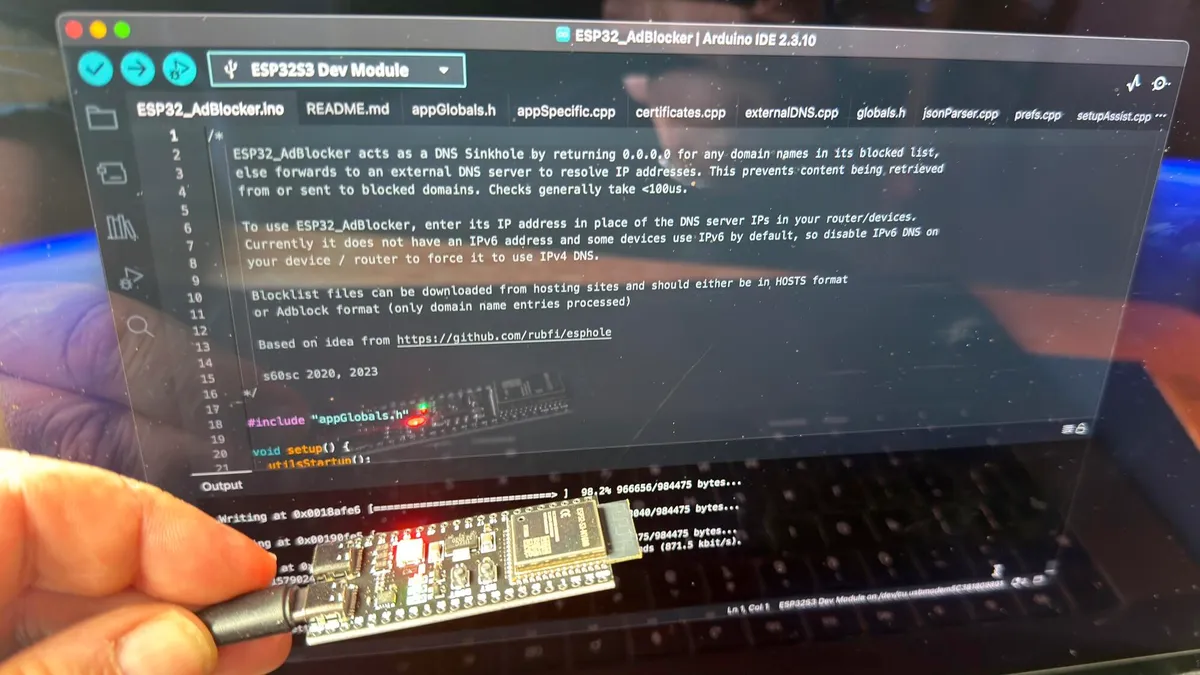

ESP32-S3 Network-Wide Ad Blocker with No Coding
Turning an ESP32-S3 into a home-wide ad blocker removes the need for paid VPNs or subscription-based security suites. Following ZDNET’s approach, you flash existing open-source firmware that turns the board into a DNS sinkhole. All devices on your network point their DNS to the ESP32-S3, which intercepts requests to known advertising and tracking domains and blocks them before any content downloads. The result is faster page loads, lower data usage, and fewer distractions without browser plugins on every device. The key win is accessibility: the ad-blocking capability can be programmed onto an ESP32-S3 in minutes without coding expertise, because you reuse prebuilt images and web interfaces. For a budget smart home, this single board can replace a dedicated Pi-hole box or premium router add-ons, while still letting you extend the ESP32 later with extra ESP32 IoT projects like basic logging or status LEDs.

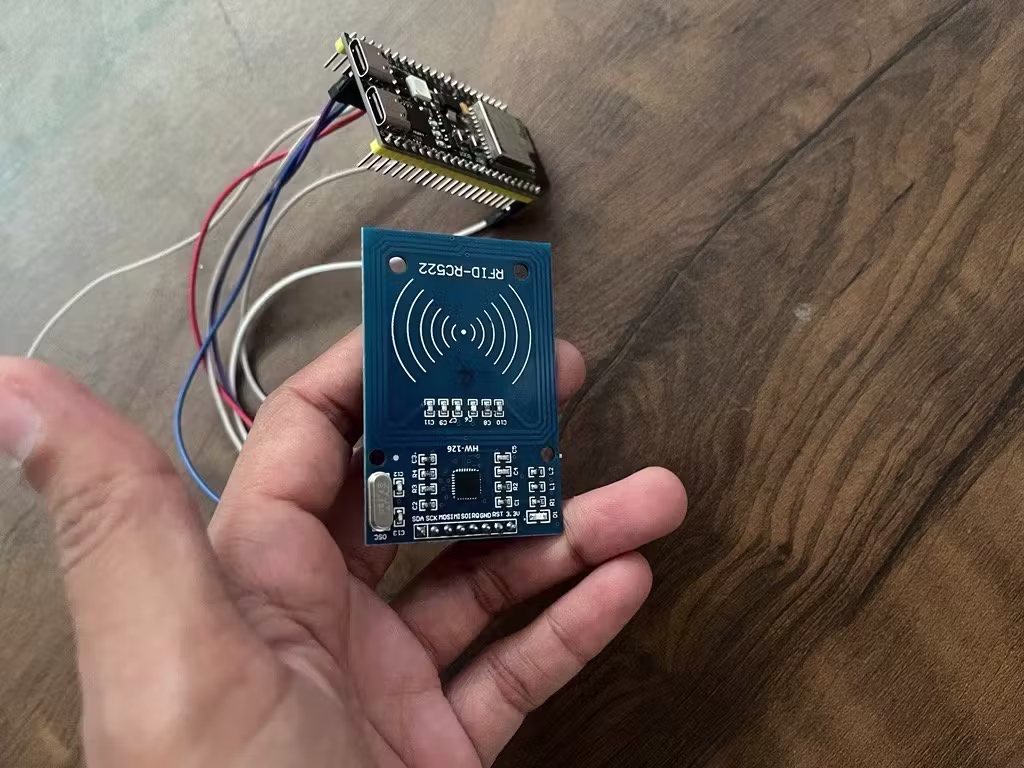

RFID Access Control: Secure Doors and Desks with ESP32-S3
A DIY RFID access control system lets you replace expensive smart locks and badge readers with a simple ESP32-S3 and RC522 module. The RC522 continuously scans for nearby RFID cards or tags and sends each card’s unique identifier (UID) to the ESP32-S3. The microcontroller compares the UID with a stored list of authorized users; matching cards trigger a relay or GPIO pin that can unlock a door, open a cabinet, or log attendance events. This RFID access control design is ideal for labs, home offices, or shared workshop spaces, where you want secure but contactless entry without recurring cloud fees. Because the ESP32-S3 supports Wi‑Fi, you can later add features like log uploads or alerts. Start by wiring the RC522 via SPI, installing the required RFID libraries, and coding basic grant-or-deny logic — then integrate it with a lock driver or smart-home relay.
Build a Smart Stats Dashboard and Local HTTPS Web Server
You can turn affordable microcontrollers into powerful information hubs and control panels. One ESP32-C3 smart dashboard project uses a 1.69-inch ST7789 display, three buttons, and a buzzer to show YouTube watch hours, subscriber counts, AdMob revenue, local weather, currency, and last video analytics on a colorful interface. The device pulls data from Google Cloud Console and other APIs, then renders it via a custom C++ display library for smooth transitions, so you no longer need to check multiple websites to track creator stats. In parallel, you can build a web server microcontroller using an RP2040 paired with a W5500 Ethernet module, like the W55RP20. In that design, a TLS 1.2 HTTPS server runs fully on the chip, letting you control GPIO, PWM, ADC, I2C, and SPI from a browser by clicking a pin map, without any cloud gateway or companion app.
ESP32 Water Quality Analyzer with pH, Conductivity and Turbidity
A multi-sensor water quality sensor project lets your budget smart home monitor aquariums, rainwater tanks, or nearby streams. One build uses an ESP32 development board combined with three analog sensors: pH, conductivity (TDS), and turbidity. The system continuously collects readings and displays them in real time through the Arduino IDE Serial Monitor. Because no single probe tells the whole story, combining pH, conductivity, and turbidity gives a more complete view of water condition: clear water can still be chemically contaminated, while turbid water might only contain harmless sediment. The project uses a step-up converter and a 21700 lithium-ion battery to supply 5 V to the sensors, plus a resistor divider to keep the pH output within safe ESP32 input limits. While not a replacement for laboratory-grade instruments, this ESP32 IoT project offers a practical way to spot trends and obvious pollution events.
