What a Microcontroller AI Assistant Is and Why XiaoZhi Matters
A microcontroller AI assistant is a compact, low-power device that runs conversational or task-focused artificial intelligence directly on embedded hardware, combining sensors, network access and local logic so users can speak, type or trigger actions without depending on heavy cloud infrastructure or power-hungry computers. The XiaoZhi AI framework brings this idea to life by adapting an MCP-based chatbot to small boards like the W55MH32, using MicroPython as the programming environment. Instead of relying on expensive hardware, you get a board that can talk to an AI server, read keyboard input, and use a shared speaker–microphone connection to handle voice interaction. According to the W55MH32 MicroPython documentation, XiaoZhi AI on this chip lets you “talk to the Chatbot like you are talking with an LLM on your PC,” while still integrating closely with on-board components such as LEDs.
Setting Up W55MH32 and MicroPython for XiaoZhi AI

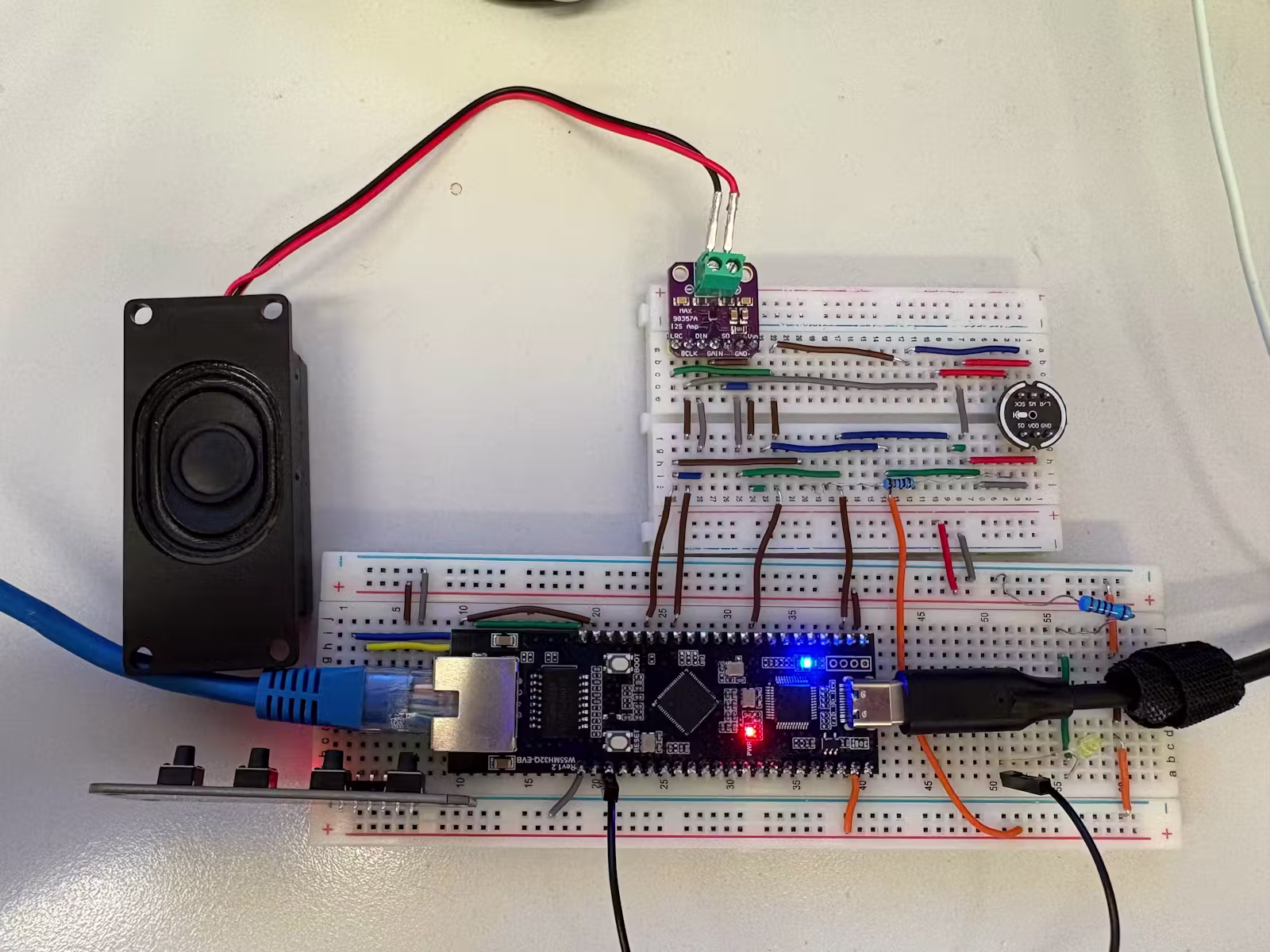

To start your W55MH32 development, connect the board to both power and your network. Plug an Ethernet cable from your router to the board and connect the board’s USB port to your PC so MicroPython can communicate with it. The XiaoZhi AI framework uses MicroPython embedded AI scripts, so you will typically work in an IDE such as Thonny to upload and run code. Once your firmware and scripts are in place, opening the MicroPython terminal lets you see prompts from the XiaoZhi chatbot program. When you run the main script, the program asks you to press the start button on the board; this triggers its connection to the AI server through Ethernet. When the terminal later requests user input, you can type directly or switch to microphone mode by holding the record button, using the shared audio jack for voice.
Talking to Your XiaoZhi Microcontroller AI Assistant
Once your board connects to the AI server, you can interact with your microcontroller AI assistant in two ways. From the Thonny IDE terminal, type questions or commands and watch XiaoZhi respond like a familiar large language model. The same script also supports voice: the W55MH32 shares the speaker and microphone on a single connection, using speaker mode by default and microphone mode while the record button is held. You can ask the assistant to introduce itself, switch languages, or answer general questions. The project’s example server implementation even exposes MCP tools, such as a weather function, so you can say things like “What’s the current weather?” and get a response routed through the AI server tools. For longer conversations, blend keyboard and voice input; the framework handles both channels so your assistant feels more flexible and natural to use.
Adding Custom MCP Tools: Control Hardware with Natural Language
The most powerful feature of the XiaoZhi AI framework on W55MH32 is the ability to create custom MCP tools that expose hardware functions to the AI assistant. On the board, you can define tools that describe their purpose and input schema, then register them so the AI can call them automatically based on user requests. For example, the sample code shows a toggle_led tool that controls an on-board LED on pin PB11. Its inputSchema allows a value of 0 or 1, and the MicroPython function uses Pin('PB11', Pin.OUT) to set or flip the LED state before returning a success message. The author notes that “it is important to know how to write the inputSchema for your MCP tool so that the AI can call your function properly,” and recommends reading the Model Context Protocol overview to design reliable, AI-callable functions.
Building a Personal, Cloud-Connected but Locally Extensible Assistant
With XiaoZhi AI, W55MH32 development, and MicroPython embedded AI scripts, you can build a personal assistant that blends cloud intelligence with local control. The board connects to an AI server over Ethernet for natural language understanding and MCP tools like weather, while still giving you fine-grained access to pins, sensors and actuators through custom tools. You can adapt the assistant to your language, add device-specific capabilities such as LEDs, motors or relays, and run everything on affordable microcontroller hardware instead of high-end GPUs. Because logic and hardware access sit on the board, you keep tight control over how the assistant interacts with your devices. The documentation encourages readers to “have a fun AI journey,” and this setup offers a practical path to learn about Model Context Protocol, microcontroller AI assistants, and voice-enabled embedded systems without heavy infrastructure.
