What NVIDIA Isaac GR00T Is and Why It Matters

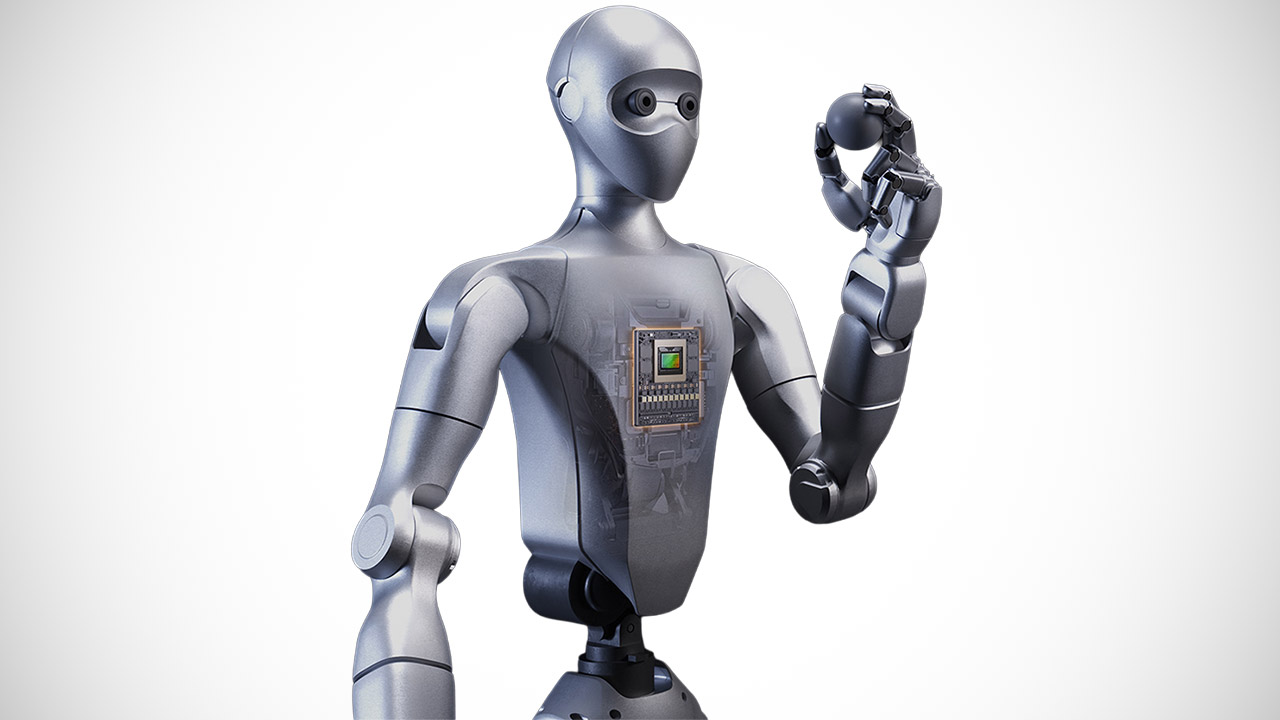

NVIDIA Isaac GR00T is an open humanoid robot design that combines a full human-scale body, high-performance onboard compute, and a complete AI software stack into one unified robotics research platform for academic and frontier labs focused on developing general-purpose physical skills. Announced at NVIDIA’s GTC event, the Isaac GR00T Reference Humanoid Robot is built around the Unitree H2 Plus chassis, Sharpa Wave tactile five-finger hands, and the Jetson AGX Thor T5000 module. It is meant to replace today’s fragmented approach, where teams must stitch together separate hardware, simulation tools, and control software. Instead, labs receive a humanoid robot design with integrated sensing, manipulation, and AI reasoning tools. This combination is positioned as a standard starting point for humanoid robot design and open source robotics research, allowing institutions to focus on skill learning, safety, and deployment rather than low-level system integration.
A Human-Scale Humanoid Robot Design Built for Real Tasks

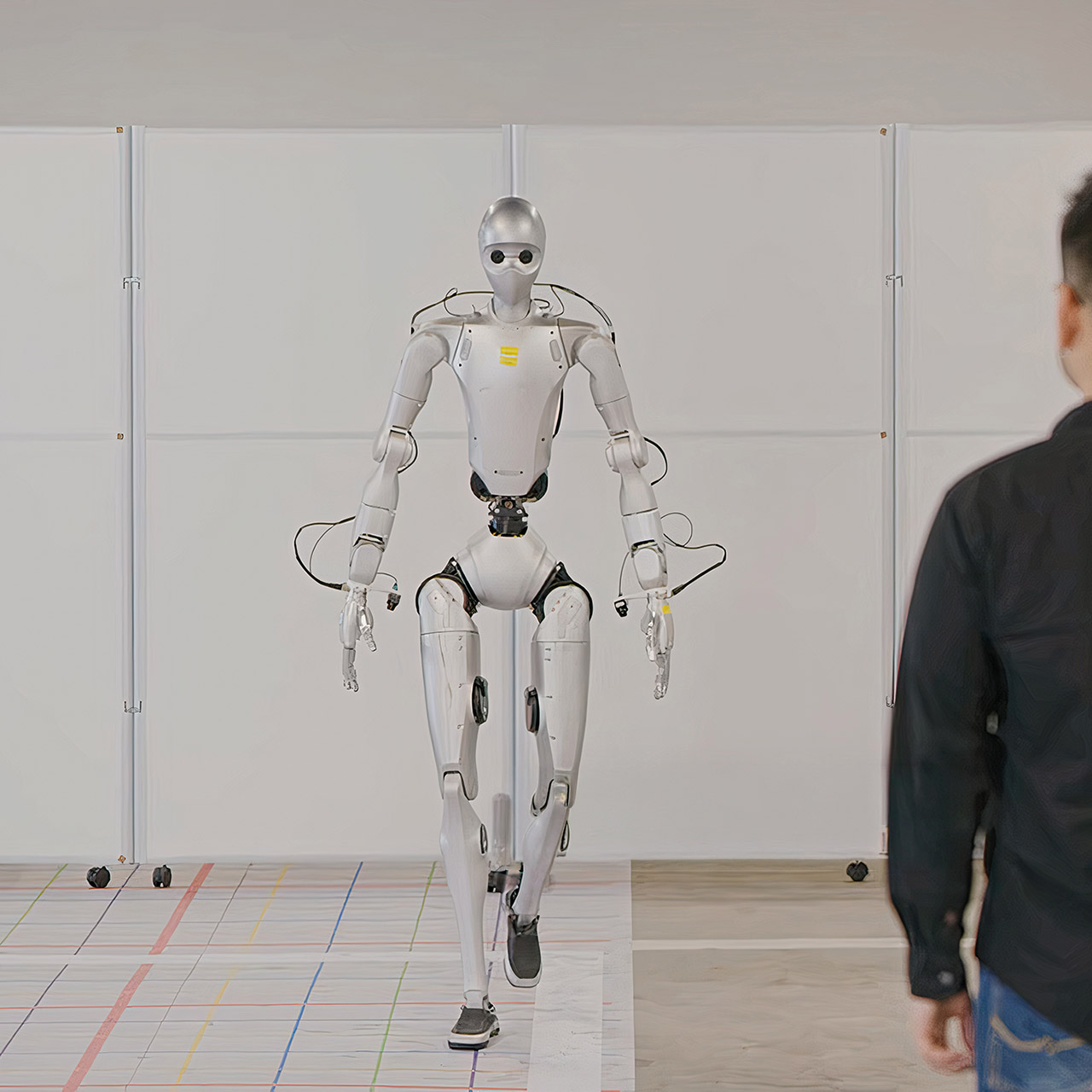

At the hardware level, Isaac GR00T centers on a human-scale Unitree H2 Plus humanoid robot standing nearly six feet tall and weighing about 150 pounds. The base body offers 31 degrees of freedom, while dual Sharpa Wave five-finger hands expand this to 75 degrees of freedom across body and fingers for dexterous manipulation. According to NVIDIA, the legs can generate up to 360 Newton-metres of torque and the arms up to 120 Newton-metres, with each arm rated for a 7 kg payload and peaks of 15 kg for heavy lifts. Vision and awareness come from a head-mounted stereo camera with a wide field of view, wrist cameras for close-up tasks, and an inertia measurement unit for tracking balance and motion. Together, these features turn the GR00T reference into a capable robotics research platform for locomotion, grasping, and whole-body control experiments in academic environments.
Jetson Thor and the AI Stack Behind Physical Intelligence

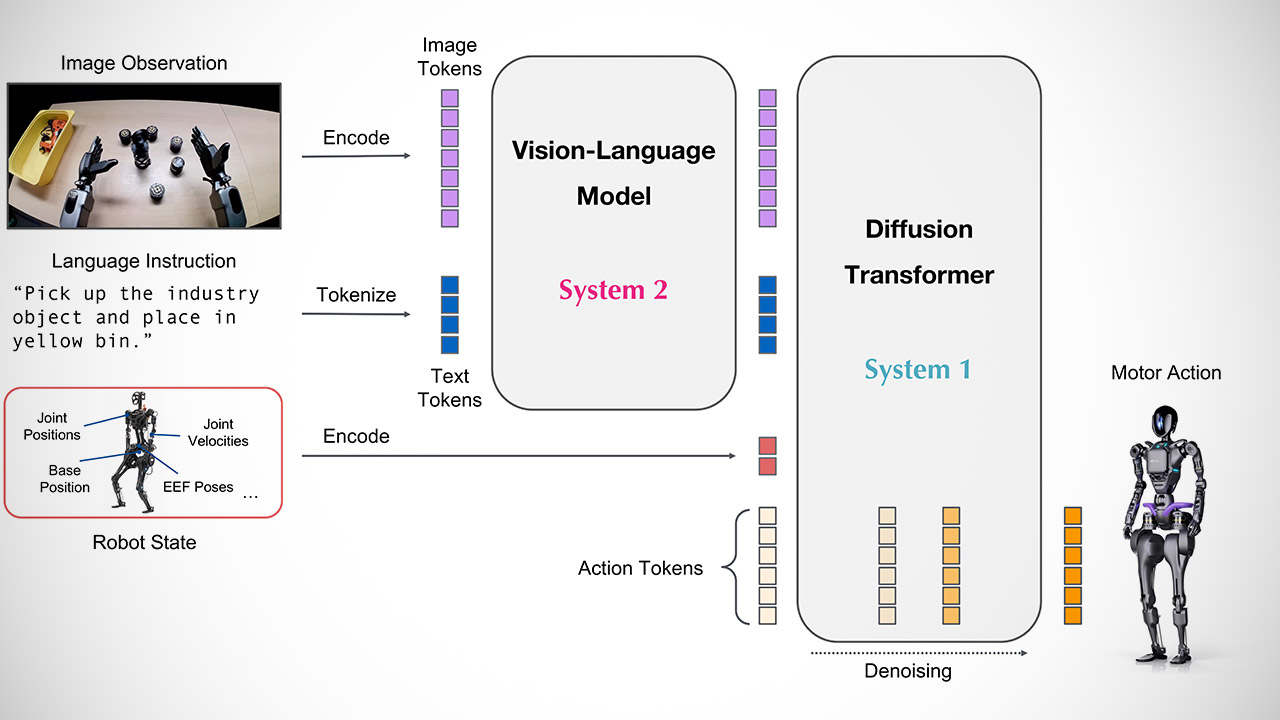

The NVIDIA Jetson AGX Thor T5000 provides the on-board computing backbone for Isaac GR00T, pairing an NVIDIA Blackwell GPU rated at 2,070 FP4 teraflops of AI performance with a 14-core Arm CPU and 128 GB of unified memory. Power consumption ranges from 40 W to 130 W, enabling about three hours of operation on the 15 Ah, 0.972 kWh battery. Connectivity includes Ethernet, Wi‑Fi 6, Bluetooth 5.2, and USB, plus microphones and speakers for voice interaction and a remote emergency stop for safety. On top of this hardware, the Isaac GR00T development platform delivers open foundation models for humanoid reasoning and multitask behavior. These models can ingest spoken commands, camera feeds, and robot state data, then return movement instructions, turning the humanoid robot design into a responsive AI-driven agent rather than a manually scripted machine.
From Simulation to Real Robots: A Unified Robotics Research Platform
Isaac GR00T is designed as a full-stack robotics research platform that connects data collection, simulation, training, and deployment. NVIDIA Isaac Teleop lets teams capture demonstration data from human operators, either by driving the robot remotely or logging sensor streams. This data can fine-tune GR00T’s open models or train new behaviors. Isaac Sim and Isaac Lab then simulate these policies in virtual environments, where researchers can test safety and performance before moving to hardware. Once policies are ready, Isaac ROS tools transfer them to the physical robot and execute them in real time on Jetson Thor. This end-to-end chain replaces ad hoc bridges that labs typically build between different simulators, middleware, and controllers, reducing setup time for open source robotics projects while keeping robot data, training logs, and telemetry under the institution’s control.
Democratizing Humanoid Research for Universities and Labs
By publishing Isaac GR00T as an open reference design, NVIDIA aims to lower the barrier for institutions that cannot build a humanoid robot design from scratch. Research groups gain a pre-integrated humanoid body, sensing suite, compute module, and AI stack that they can adopt wholly or in modular fashion. “The NVIDIA Isaac GR00T Reference Humanoid Robot gives researchers a single, open platform to make breakthrough discoveries toward general-purpose physical intelligence,” said Jensen Huang, founder and CEO of NVIDIA. Early adopters include Ai2, ETH Zurich, Stanford Robotics Center, and UC San Diego’s Advanced Robotics and Controls Laboratory, alongside NVIDIA Research itself, which will use the platform to advance open models and frameworks. With support also extending to the Unitree G1 humanoid robot, Isaac GR00T signals a move toward shared, open source robotics baselines that many labs can build on together.
