What the ESP32-CAM Can Do and What You Need First

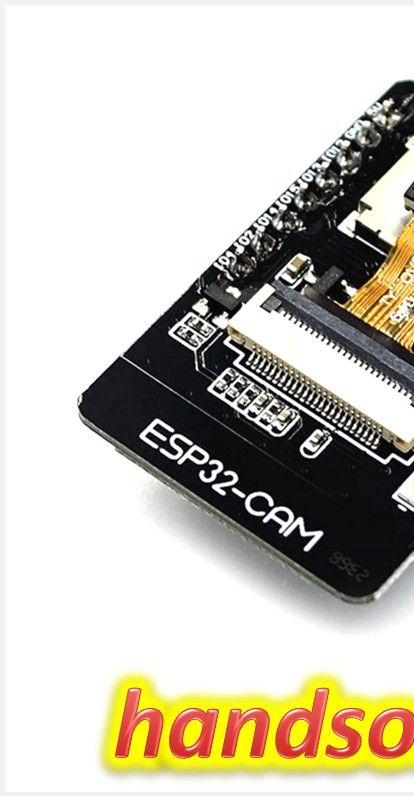

The ESP32-CAM is a compact Wi‑Fi and Bluetooth microcontroller board with a built‑in camera interface that lets you build wireless security cameras, smart doorbells, robot vision, and other embedded vision IoT microcontroller projects using low-cost hardware and familiar Arduino IDE programming workflows.
If you want a small board that can stream images over Wi‑Fi, react to sensors, and slot into home automation or monitoring projects, the ESP32-CAM is worth your time. The real caveat: it is fussier than a typical Arduino when it comes to wiring and power, so you need to be patient with the first setup. You will program it over an FTDI USB‑to‑TTL adapter instead of a built‑in USB port, and you must respect its ESP32 pinout configuration, especially GPIO0 during uploads.
To follow this ESP32-CAM setup guide, gather the core hardware: an ESP32-CAM module (commonly the AI Thinker version), an OV2640 camera, an FTDI USB‑to‑TTL programmer, female‑to‑female jumper wires, and a USB cable, plus an optional microSD card for logging. On the software side, install the Arduino IDE. If you later want to tie this into a richer home automation stack with dashboards and MQTT messaging, a Linux-capable host board such as an Arduino Uno Q, a USB‑C cable, Arduino App Lab, and a computer on the same network are useful for running Home Assistant in Docker and an MQTT broker.
Step-by-Step ESP32-CAM Hardware Wiring and Arduino IDE Programming
You only need to follow one clean sequence to get from bare board to a working camera web server. The main trap at this stage is wiring: reversed TX/RX pins or a missing GPIO0‑to‑GND link will stop uploads dead, and unstable 5 V power will make the board reset or the camera fail. Treat every connection as suspect until proven correct, and don’t rush the first upload.
- Mount the OV2640 camera module on the ESP32-CAM and firmly insert the ribbon cable so it is fully seated and not skewed.
- Wire the ESP32-CAM to the FTDI USB‑to‑TTL programmer: connect 5V to 5V, GND to GND, TX on the FTDI to RX on the ESP32-CAM, and RX on the FTDI to TX on the ESP32-CAM, checking TX/RX are not reversed.
- Tie GPIO0 to GND with a jumper wire to place the ESP32-CAM in download (programming) mode before you attempt to upload any sketch.
- Open Arduino IDE, install the ESP32 board package via Boards Manager, and select the "AI Thinker ESP32-CAM" board with upload speed 115200, flash frequency 40 MHz, and the Huge APP partition scheme.
- Connect the FTDI to your computer over USB, select the correct COM port in Arduino IDE, and load the built‑in Camera Web Server example from the ESP32 board package.
- Click Upload, wait for the sketch to transfer, then disconnect GPIO0 from GND and reset the board so it boots into normal run mode instead of staying in download mode.
When the sketch is uploaded and the board is rebooted, the Camera Web Server example will bring up a Wi‑Fi-connected web interface so you can view the camera stream. At this point, you have a working ESP32-CAM that you can drop into IoT microcontroller projects such as wireless security cameras, smart doorbells, QR code scanners, robot cameras, and remote monitoring systems. “After completing the setup, you can build many exciting projects such as a Wi‑Fi Security Camera, Smart Doorbell, Motion Detection Camera, QR Code Scanner, Robot Camera, Remote Monitoring System, Time‑Lapse Camera, and IoT Image Logger.”
Turning ESP32-CAM into a Networked IoT Node with Home Automation Tools
Once the ESP32-CAM runs the Camera Web Server example reliably, the next step in many IoT microcontroller projects is to put that video feed or sensor data into a broader automation environment. That means you need a host with full networking, storage, and container support, while the ESP32-CAM stays focused on camera capture and GPIO-level logic.
A dual‑processor board like the Arduino Uno Q provides that "Linux side" environment. Its Debian Linux side can run Docker, Python, and Home Assistant, while the STM32 microcontroller behaves like a classic Arduino handling physical pins. In this architecture, the ESP32-CAM acts as one more networked camera or sensor node, and the Linux side board runs services that talk MQTT and automate responses. By the end of such a tutorial flow, you can reach a point where Home Assistant runs in Docker, an MQTT broker bridges the Linux side and an attached microcontroller, and toggling a switch on the Home Assistant dashboard controls a physical LED with the entity appearing automatically. That kind of setup is the pattern you will reuse when you integrate ESP32-CAM nodes into larger automation systems.
The big gotcha here is networking discipline. According to the Uno Q guide, most "nothing is working" moments come down to confusion over which processor (Linux or MCU) a piece of code runs on and whether the IP address of the Linux side changed after a router reboot. Treat IP addresses and MQTT configuration as carefully as you treat GPIO wiring on the ESP32-CAM itself. Keep notes on which device hosts which service, and verify connectivity with simple tests before you introduce camera streams or more advanced ESP32-CAM logic.
Troubleshooting Gotchas and Making Projects Stable
ESP32-CAM troubleshooting is mostly about being systematic. If the board fails to upload, refuses to boot, or shows no camera image, resist the urge to keep changing code and instead walk through the common physical and configuration faults one by one. The same thinking applies on the automation side: if your MQTT-based project stops responding, check the simple things like IP addresses and broker configuration before you blame the ESP32-CAM.
For ESP32-CAM itself, verify that GPIO0 is correctly connected to GND during programming and disconnected afterward, that TX and RX are not reversed between the FTDI and the ESP32-CAM, that you are feeding a stable 5 V power supply, and that the correct COM port and board are selected in Arduino IDE. Also check that the camera ribbon cable is firmly inserted; a loose ribbon can be the difference between a clean image and a dead feed. Most upload failures are caused by wiring mistakes or unstable power, so re-check those before you blame the board.
On the IoT host side, two common pitfalls stand out: never assume the IP address of your Linux host is static, and be aware that Mosquitto 2.x’s default configuration can block anonymous MQTT connections even when the port looks open. The guide warns that without an explicit listener on 1883 and allow_anonymous set to true, Home Assistant’s MQTT integration will fail to connect and this is "the single most common failure point in this whole setup." If you clear those, you can expect a stable environment where ESP32-CAM boards stream data reliably and your automation rules work as intended.
Is ESP32-CAM Worth the Effort?
The ESP32-CAM takes more care than a USB-equipped development board, but once you get past FTDI wiring and the quirks of GPIO0, you gain a small, capable module that can anchor many camera-focused IoT microcontroller projects. Combined with a Linux-capable host and Home Assistant-style tooling, it becomes part of a flexible system where cameras, LEDs, and sensors respond to MQTT events and dashboard controls.
If you watch out for the real gotchas—TX/RX reversal, unstable 5 V power, incorrect board selection, loose camera ribbon, non-static IP addresses, and restrictive MQTT configuration—you will spend more time building wireless security cameras, smart doorbells, robot cameras, and IoT image loggers than chasing obscure bugs. In other words, yes, it is worth it, as long as you treat both wiring and network configuration as first-class parts of the project, not afterthoughts.
