Why Build Specialized ESP32 Sensor Projects?
ESP32 sensor projects are hands-on builds where a low-cost ESP32 microcontroller board is combined with off-the-shelf sensors to collect, process, and display real-world measurements for practical problem solving and learning. In this guide, you will build three focused devices: a water quality analyzer for environmental monitoring, a DIY avionics simulator for flight instrument training, and a GNSS waypoint navigation device for outdoor use. Each project highlights microcontroller sensor integration, from wiring and calibration to data processing and user interfaces, while staying affordable with common development boards and modules. Along the way, you will learn how different sensors—pH probes, inertial units, magnetometers, and GNSS receivers—work together to provide more useful information than any single reading. The goal is not to replace professional equipment, but to gain repeatable, educational builds that show how to turn raw sensor data into meaningful decisions.
Project 1: ESP32 Water Quality Monitoring Station
Start the water quality monitoring project by combining an ESP32 development board with three analog sensors: a pH probe, a conductivity (TDS) sensor, and a turbidity sensor. Mount them so each probe can be dipped into the same sample, then connect their analog outputs to the ESP32 through suitable conditioning boards and a step-up converter if needed. Calibrate each sensor using known reference solutions, logging readings in the Arduino IDE Serial Monitor and adjusting conversion formulas until pH, dissolved solids, and turbidity match expectations. According to the water analyzer project, this multi-sensor approach allows the ESP32 to estimate whether water appears clean, moderately polluted, or heavily polluted by comparing trends rather than any single value. Clear water may still show abnormal conductivity, while seemingly cloudy water might be mineral-rich but safe. Finish by writing code that categorizes samples based on combined thresholds and prints a simple quality status.
Project 2: DIY Avionics Simulator with ESP32-S3
The DIY avionics simulator focuses on building an artificial horizon and basic flight instruments on an ESP32-S3 with a square RGB display. Use the Arduino_GFX Library to drive a 480×480 panel and draw a sky-and-ground horizon disk, pitch ladder, and roll markings. Connect I2C sensors such as an MPU6050 for pitch and roll and a QMC5883L magnetometer for heading, assigning SDA and SCL pins on the ESP32-S3 and matching I2C addresses in code. A rotary encoder can adjust brightness or switch modes, while a PCF8574 I/O expander handles button inputs. The firmware continuously reads sensor data, converts it to degrees, and redraws only when pitch or roll changes beyond small thresholds to keep updates smooth. This DIY avionics simulator demonstrates microcontroller sensor integration for real-time graphics, teaching how to structure data acquisition loops, debounced user input, and a responsive graphical user interface on embedded hardware.

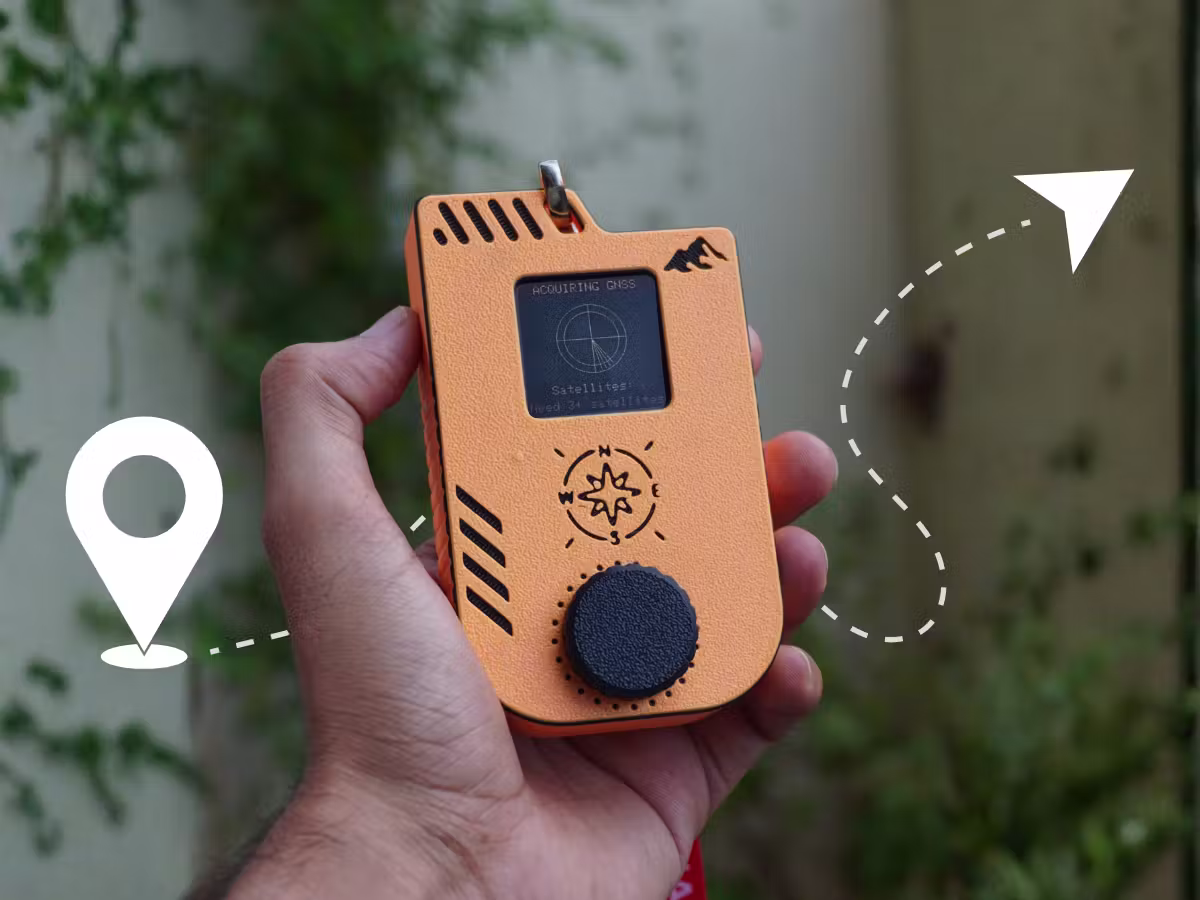

Project 3: GNSS Waypoint GPS Navigation Device
For the GPS navigation device, build a handheld waypoint navigator around a FireBeetle 2 ESP32-C6, a GNSS positioning module, a BMM350 magnetometer, and a 1.54-inch 240×240 IPS display. The GNSS receiver provides latitude and longitude, while the magnetometer adds a digital compass so orientation remains accurate even when you stand still. A rotary encoder lets you enter destination coordinates and scroll menus, and a piezo buzzer offers feedback for events such as reaching a waypoint. The firmware calculates distance and bearing from your current position to the target and refreshes values as you walk. According to the Pathfinder project, the finished device achieves “an accuracy of approximately ±5 meters,” which is excellent for a DIY navigation tool. Package everything into a 3D-printed enclosure to protect the electronics and turn the prototype into a practical field-ready GPS navigation device for hiking or experimental mapping.
