Why Display-Driven Embedded Projects Are Worth Your Time
Display-driven embedded projects are small systems built around microcontrollers and screens that show live data, graphics, or interaction, combining Arduino boards, IoT platforms, and BLE devices into practical tools such as visual dashboards, quote panels, and portable password managers. This roundup argues that if you enjoy embedded systems display work, you should stop treating screens as an optional add-on and start designing your projects around them. When you do, three open-source ecosystems stand out: Arduino with the U8G2 library for monochrome SSD1306 OLED setup, M5Stack Core2 with Visuino visual programming for Wi-Fi and IoT quote displays, and M5StickC PLUS2 for compact BLE hardware security devices. Together they show that with modern Arduino display projects and M5Stack tutorials, you can move from blinking LEDs to small, useful interfaces that feel like real products instead of experiments.
Monochrome OLED Graphics With Arduino and U8G2
If you want to learn embedded systems display work, a 128×64 monochrome SSD1306 OLED on Arduino is still the best starting point. The Universal 8bit Graphics Library U8G2 plugs straight into the Arduino IDE and hides the ugly details of the display controller, giving you a clean API for text and graphics on dozens of screens. Instead of hand-writing low-level I2C or SPI code, you pick a constructor such as U8G2_SSD1306_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE); and get a working SSD1306 OLED setup with one line. From there, U8G2’s frame buffer and page buffer examples let you choose between higher speed or lower RAM use on Arduino boards. Opinionated take: beginners should start with page buffer examples to avoid memory headaches and focus on designing readable interfaces—status screens, menus, and simple graphs—before worrying about animation or heavy graphics.

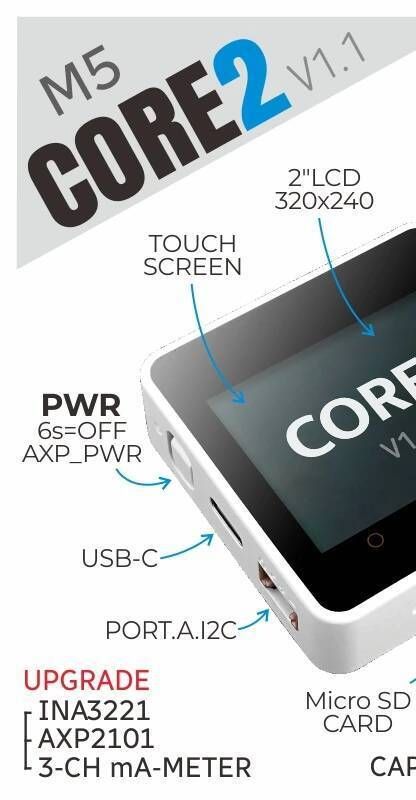

Quote-Driven IoT Displays With M5Stack Core2 and Visuino
Once you are comfortable drawing pixels, you should graduate to internet-connected Arduino display projects—this is where the M5Stack Core2 and Visuino shine. In a visual programming tutorial, the M5Stack Core2 connects to Wi‑Fi, calls a free API at api.quotable.io, and shows inspirational quotes on its built‑in screen every 20 seconds. According to the tutorial, "Every 20 seconds, the ESP32 automatically requests and displays a new random quote". Instead of writing complex networking code, you drag blocks in Visuino to configure Wi‑Fi, send HTTP requests, parse JSON, and bind quote text and author fields to display elements. The key opinion here: for many makers, visual programming is not a crutch but a productive way to prototype embedded systems display ideas. You can use any ESP32 or similar Wi‑Fi‑enabled board with Visuino, then refine the design by adding favorite-quote storage, animations, or external displays as you gain confidence.

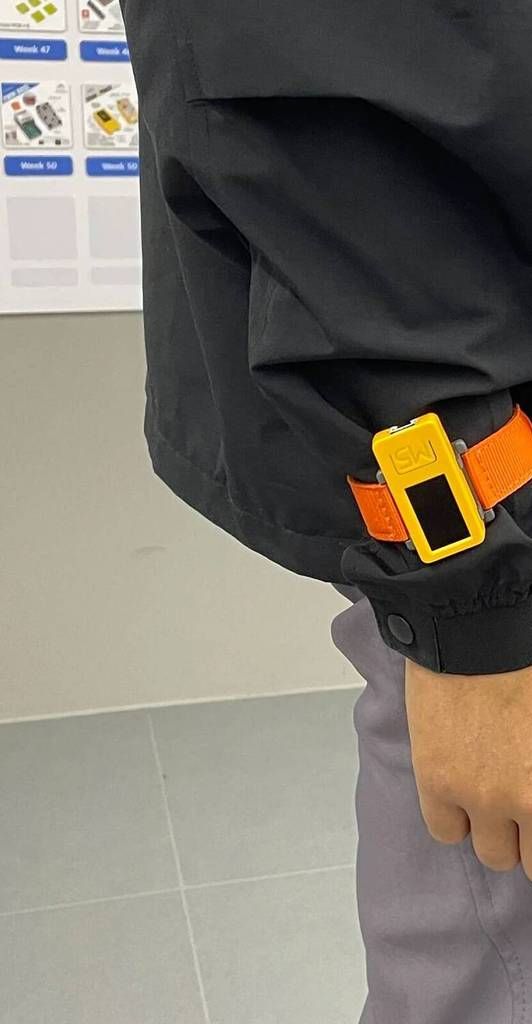

Portable Hardware Security With M5StickC Plus2 and BLE
If you think screens are only for pretty IoT dashboards, a compact security device built on M5StickC PLUS2 proves otherwise. In the PocketVault project, the M5StickC Plus2 pairs BLE connectivity with a small display to act as a keychain-sized password manager, using BleKeyboard bleKeyboard("M5 Vault", "Espressif", 100); to send credentials over Bluetooth. The firmware tracks device mode with a LOCKED state and auto-locks after const unsigned long AUTO_LOCK_MS = 60000; // 60 seconds of inactivity. Visual feedback on the StickCP2 display (for example, StickCP2.Display.drawRect(x, y, w, h, TFT_DARKCYAN);) and audio cues from the onboard speaker turn abstract security flows into clear interactions. My view: this type of project shows the real power of embedded systems display hardware—offline encryption, PIN entry, and BLE status become understandable because the device can talk back to the user on screen, not just over serial logs.
Open-Source Displays: Picking the Right Path Forward
The most exciting part of these three projects is not the hardware; it is the open-source firmware ecosystems and communities around them. U8G2’s GitHub-hosted Universal 8bit Graphics Library is maintained openly and documents constructors for a long list of supported displays. The Visuino quote project ships its visual configuration file so you can download and open it, tweak the timing, or swap APIs to build your own real‑time IoT display. The PocketVault firmware leans on open libraries such as mbedtls and BleKeyboard for encryption and BLE HID behavior. My recommendation: pick one platform, clone or import a working project, and modify the display behavior—fonts, layout, refresh intervals—before changing deeper logic. That rhythm lets you learn how Arduino display projects, M5Stack tutorials, and BLE security tools fit together, and keeps you close to the communities that improve these tools every day.
