Why DIY Handheld Emulators Are Worth Building
A DIY handheld emulator is a portable gaming device you assemble yourself from microcontroller boards, off‑the‑shelf displays, buttons, and power modules, then load with emulation software or custom games so you can carry retro titles and home‑built experiences in a pocketable, fully controllable console that reflects your own design choices instead of a manufacturer’s agenda. If that sounds ambitious, good—it should. The whole point of an ESP32 handheld emulator or Arduino handheld console is that you stop being a consumer and start being the person who decides what a gaming device is allowed to do. You don’t need a lab or a degree. You need a clear goal: do you want a DIY retro gaming device, a microcontroller game project that experiments with 1D LEDs, or a custom handheld build that doubles as a synth and voice assistant? Each path has a different sweet spot of complexity and capability, and choosing the right platform up front is the difference between a fun weekend build and a half‑finished frustration.

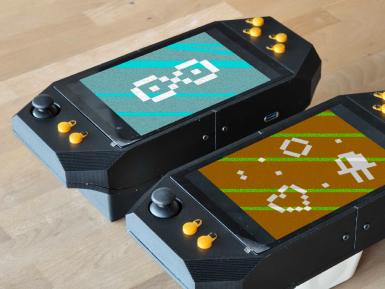

Arduino UNO Q: The Fast Track to a "Real" Retro Handheld
If you want a handheld that feels like a commercial retro console but don’t want to solder, the Arduino UNO Q route is the most beginner‑friendly way to get there. This design leans on modular hardware so you can focus on assembly, not electronics theory. An UNO Q 4GB board handles the processing, while an Arduino UNO Media Carrier exposes DSI for the display and a 3.5 mm jack for audio without custom wiring between components. Three Modulino buttons and a Modulino joystick take care of controls; you complete the bill of materials with a display, UPS module, a small speaker, and a USB‑C PD adapter. The only truly custom elements are a 3D‑printed enclosure and buttons, fastened with heat‑set inserts for a clean, professional finish. In practice, that means you get to work on the fun problems—how the console feels in your hands, how big the screen is, whether you add motion controls—instead of troubleshooting a hand‑drawn PCB. The result is a slightly chunky but fully capable retro emulator box that "anyone can build" when they follow the published hardware list and walkthrough.
ESP32 Handhelds: From Simple LED Games to All‑In‑One Grooveboxes
ESP32‑based handhelds are where budget hardware explodes into wild capability. At the modest end, an ESP32 development board combined with a 60‑pixel WS2812B LED strip, an ST7735 SPI TFT display, four push buttons, a passive buzzer, and a 5 V supply becomes a 1D LED game console with menus, sound effects, and multiple built‑in games like Space Invaders, Pong, and Runner. Here the LED strip is the main display, while the TFT shows scores and information, turning a single line of lights into a full microcontroller game project. Push that same idea harder and you get the ESP32‑S3 handheld that runs a retro emulator, an FM synth, a Guitar Hero‑style rhythm game, and a voice assistant on one device. It uses an ESP32‑S3 with 16 MB flash, a 2.8" ILI9341 SPI display, line out, onboard speaker, LEDs, and an SD card with separate firmware partitions for each app. GROOVEBOX handles synth duties, WC‑HERO delivers the rhythm game, RETROGO runs classic games, and BADRUL acts as a push‑to‑talk assistant. This multi‑function ESP32 handheld proves your custom handheld build doesn’t have to pick between gaming and music—both can live on the same board.
Choosing Components: How Screen, Brain, and Power Shape Your Build
The hardest truth in DIY handheld design is that component selection locks in what your device can do. An ESP32‑S3 with 16 MB flash and a 2.8" ILI9341 SPI display is enough headroom for multiple firmware partitions, audio output, and retro emulation in a single portable board. A simpler ESP32 with a WS2812B strip and ST7735 TFT is perfect for a focused LED game console with menus and sound but will struggle if you expect it to run heavyweight emulators. On the Arduino side, the UNO Q plus Media Carrier combo gives you Linux‑powered RetroArch, DSI display output, and audio through a 3.5 mm jack all from one board. Game ROMs sit on onboard eMMC, and the STM32 microcontroller passes controller input to the Linux environment as standard USB gamepad commands. You add a display, UPS module, speaker, and USB‑C PD adapter to finish the handheld. The trade‑off: more capability means more modules and a chunkier enclosure, while a smaller, simpler stack limits you to lighter games or single‑purpose devices.
From Basic Know‑How to Fully Custom Handhelds
None of these builds are magic; they do, however, reward anyone willing to learn basic electronics and follow a structured guide. Many handheld projects in the maker world feel out of reach because they depend on custom PCBs or rare parts and assume a deep electronics background. The UNO Q retro console flips that script by relying on standard components, premade cables, and a thorough, beginner‑friendly tutorial with full hardware and software details. On the ESP32 side, the LED console’s Arduino IDE codebase makes it straightforward to modify games, add new modes, or turn the project into your own starting point. The payoff is control. A DIY retro gaming device can be re‑skinned, reprogrammed, or expanded. You can swap displays, redesign enclosures, attach motion sensors, or add more games and audio features. Multi‑function ESP32 handhelds show that you can fold in FM synthesis, rhythm games, and voice assistance without waiting for a commercial product to match your wish list. If you’re willing to experiment, your next handheld won’t be something you buy—it will be something you built to fit your own idea of fun.
