What an ESP32 Handheld Can Do for You
An ESP32 handheld is a compact DIY device built around an ESP32 board that combines a screen, buttons, audio, and optional LEDs so it can act as a retro game emulator, touchscreen game controller, and portable music synthesizer in one project, using affordable modules and Arduino‑friendly tools that hobbyists without advanced electronics skills can assemble and program at home.
If you grew up wanting a Game Boy, a rhythm game controller, and a boutique groovebox, this is your chance to roll them into one pocketable DIY retro console. One documented handheld runs four apps off a single ESP32‑S3: a "GROOVEBOX" FM synth and sampler, a Guitar Hero‑style rhythm game, a RETROGO retro game emulator, and a BADRUL voice assistant, all sharing one board, display, speaker, LEDs, and SD card partitions. The real prerequisite is curiosity more than deep technical skill; Arduino‑based frameworks and pre‑built ecosystems like XIAO ESP32S3 and similar modular stacks keep the electronics approachable.
Plan Your Multi‑Function ESP32 Handheld
Before you start wiring and flashing firmware, you need a clear idea of what your ESP32 handheld emulator, synth, and touchscreen game controller should feel like in your hands. Think through the mix of retro gaming, LED‑driven effects, and music tools you want, because that will decide which modules to buy and how you lay them out.

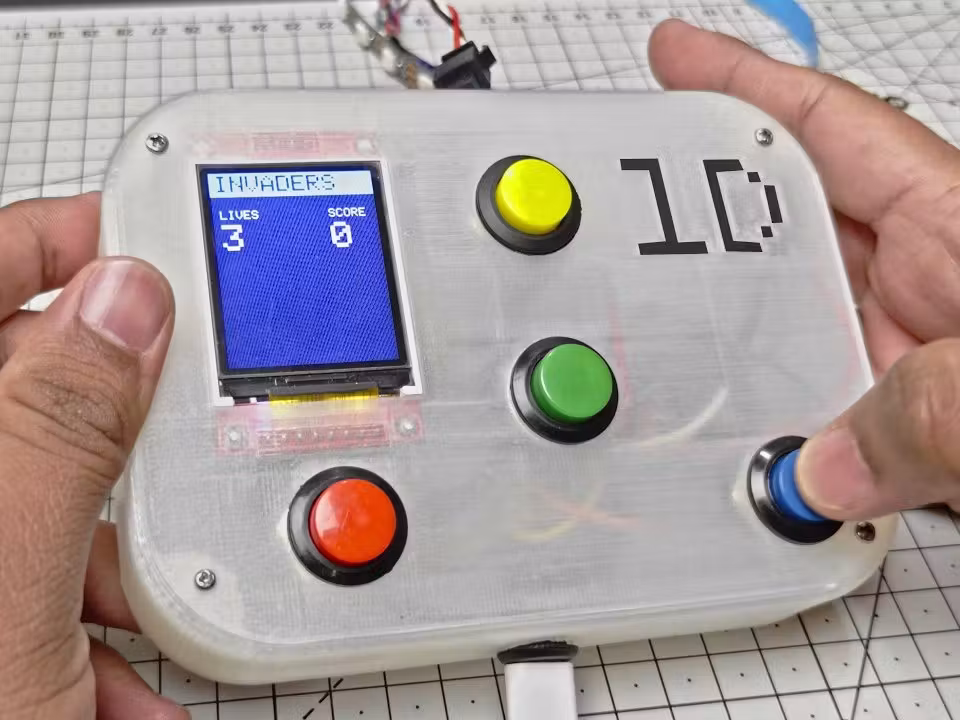

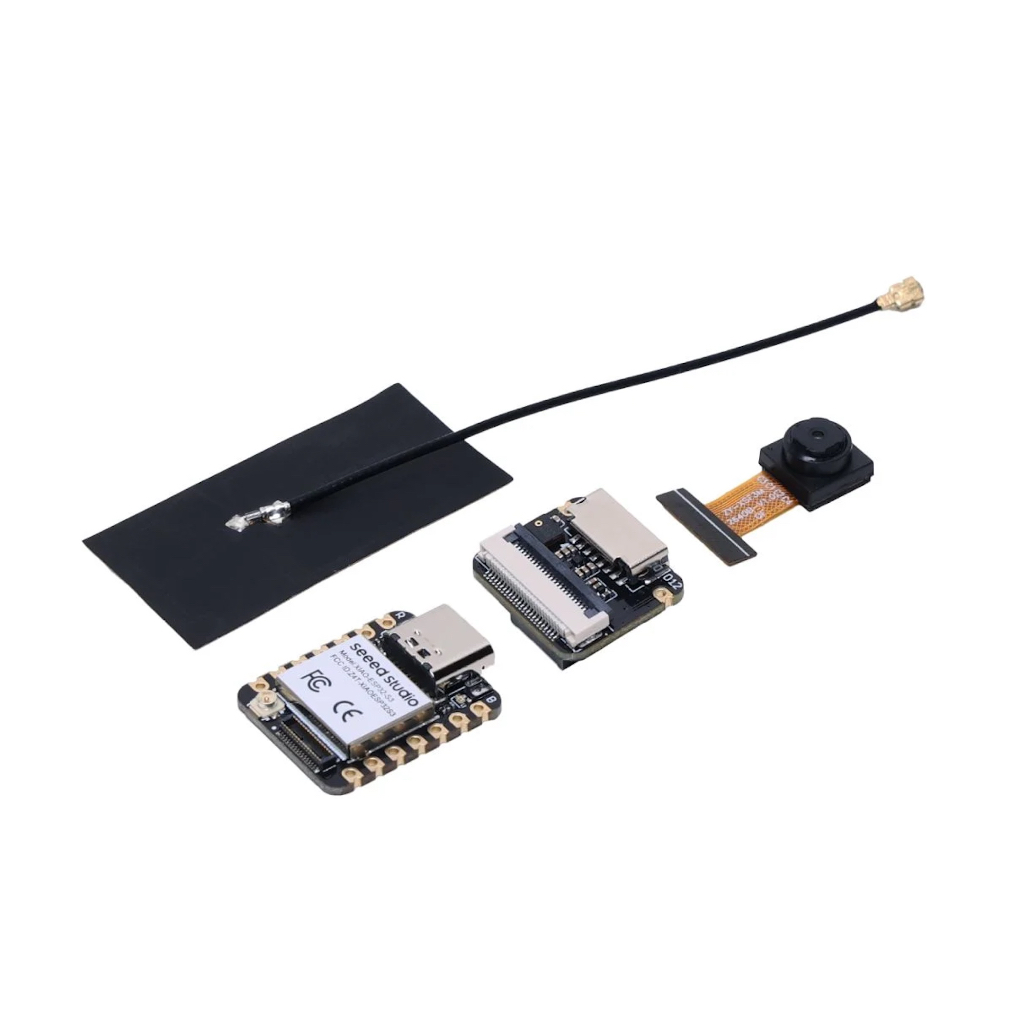

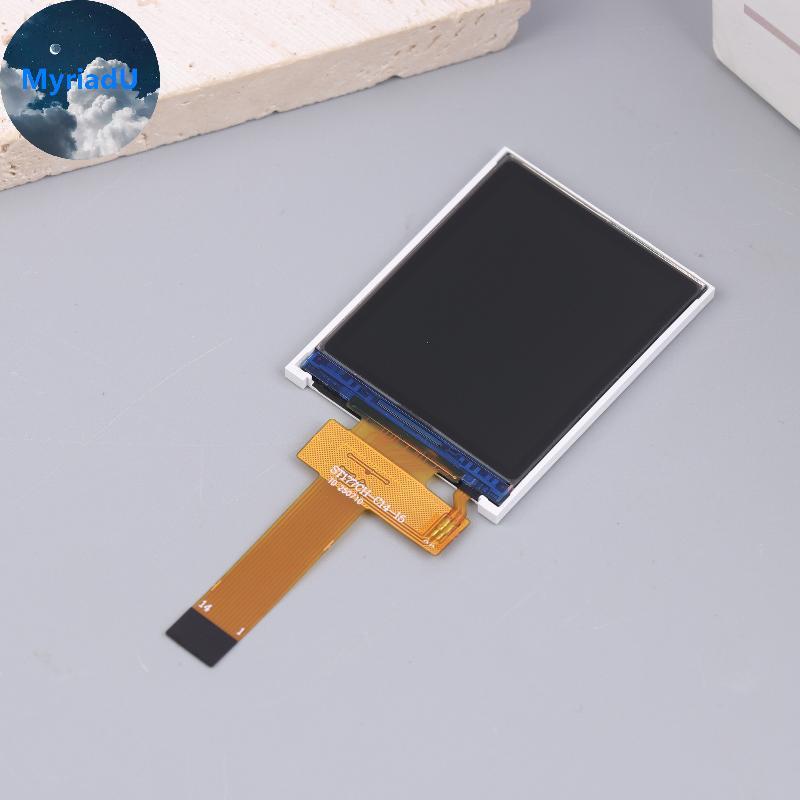

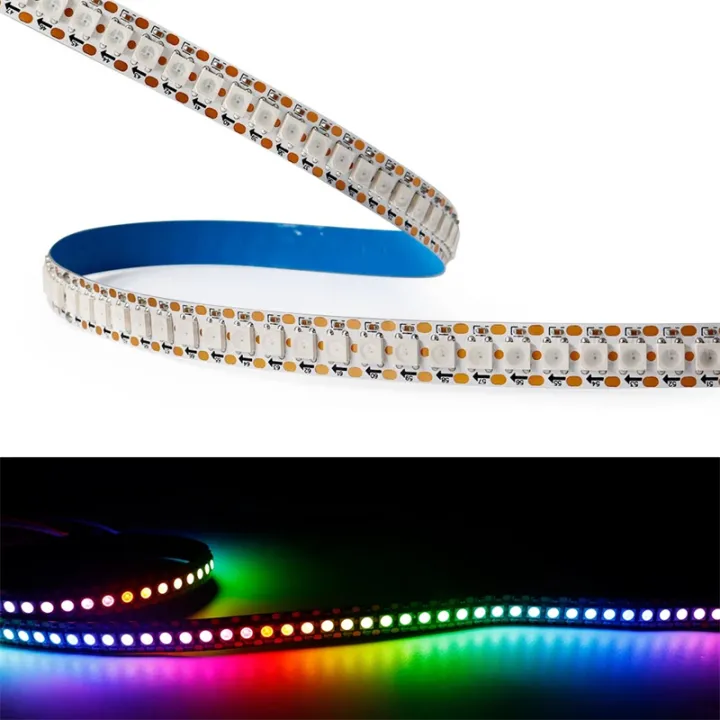

For a classic DIY retro console layout, pair an ESP32 development board with a color TFT display, a few push buttons, a passive buzzer or speaker, and a 5V power supply. One example uses an ST7735 SPI TFT screen plus four buttons as the menu and score display while a 60‑pixel WS2812B LED strip becomes a one‑dimensional game field with Space Invaders, Runner, Pong, and other built‑in games. If a touchscreen game controller appeals more, you can lean on modular ecosystems like the Seeed Studio XIAO ESP32S3 paired with their round touch display expansion board (GC9A01 with CHSC6X touch), which snaps together and reduces soldering complexity. Decide early whether you want both LED strip gameplay and touchscreen input, because combining them affects enclosure size and power routing.
Step‑by‑Step: Flash Your First Touchscreen Game
To get a feel for Arduino handheld gaming without writing a full engine by hand, start with a proven touchscreen project. A 2048 implementation for the XIAO ESP32S3 plus round touch display is a good first milestone: once it runs, you know your board, screen, and USB connection are all healthy. From there, you can extend the code into a larger menu that launches your emulator, synth, and LED games.
- Open the CodeCraft platform in a Chrome, Edge, or 360 browser that supports the Web Serial API, log in, and create a new project.
- In the CodeCraft dialog, describe the features and visual effects you want for your 2048 touchscreen game so it can generate suitable code.
- Connect the Seeed Studio XIAO ESP32S3 main controller board to your computer with a USB cable, select the correct device model and serial port in CodeCraft, then click the flash button and wait for programming to complete.
- Once flashing finishes, confirm that the round touch display expansion board lights up with a blue "2048" title, current score, and 4×4 grid of colorful numbered tiles, then swipe on the touchscreen to move and merge tiles and tap to restart after win or loss.
The gotcha here is that your browser and USB cable are part of the hardware chain: if Web Serial is disabled or the cable is flaky, flashing will fail even though your ESP32 is fine. On the upside, CodeCraft lets you describe layout fixes in natural language and regenerates code, so you can refine title and score placement without digging into low‑level drawing routines.
Add Retro Emulation, LED Games, and an FM Synth
Once you have a working touchscreen game, you can expand your ESP32 handheld into a hub for multiple apps. The model to copy is simple: treat each function—retro emulator, FM synth, Guitar Hero‑style controller, voice assistant—as a separate firmware partition or sketch that shares the same hardware but boots into different modes. Your touchscreen main menu becomes the launcher.
On the retro side, an emulator like RETROGO can use the TFT screen, physical buttons, and speaker already in place. For LED‑centric games, reuse the earlier 1D console idea: drive a WS2812B strip from the ESP32, show menus and scores on the TFT, and play sound effects through your buzzer. For music, follow the groovebox concept with an FM synth, wavetable playback, sampler, and step sequencer responding to the same buttons and display. "Because the project is written in the Arduino IDE, it's easy to modify and use as a starting point for your own ideas," which makes adding modes less intimidating than it sounds. Over time you can sprinkle in extras such as high‑score saving, better animations, or multiplayer support on your LED games.
Is Building an ESP32 Handheld Worth It?
Putting an ESP32 handheld emulator, FM synth, touchscreen game controller, and LED console onto one board is absolutely worth it if you like learning by tinkering. Community builds show that a single ESP32‑S3 with about 16MB of flash, a mid‑sized SPI display, line out, onboard speaker, LEDs, and SD storage can host four distinct apps—from groovebox to Guitar Hero clone to retro emulator to voice assistant—without needing exotic hardware.
Touchscreen projects like 2048 on the XIAO ESP32S3 round display are ideal for exploring conditional logic, arrays, and state management in a very visual way. LED‑driven consoles prove that even a simple strip can become a complete game system with menus, sound effects, and multiple titles written in the Arduino IDE. The main thing to watch for is scope creep: with modular ecosystems that reduce soldering complexity and Arduino‑based frameworks that make handheld modding accessible, it is easy to keep adding modes forever. Start with one working game and one synth mode, then grow from there; the fun is in the journey as much as the finished handheld.
