Why Embedded Display Projects Belong in Your First Hardware Builds
Embedded display projects are beginner-friendly hardware experiments where affordable microcontroller boards drive small screens to show graphics, text, or live internet data, teaching practical skills in programming, interfaces, and user experience while creating useful tools like password vaults and inspirational quote panels that you can carry, gift, or extend into more advanced embedded systems interface designs. These projects matter because they turn abstract code into visible, interactive results. Instead of blinking yet another LED, you learn to render fonts, handle input, and talk to web APIs. With open-source microcontroller platforms and libraries, you are not locked into one vendor, and you can move from a simple SSD1306 OLED display test to connected content or security-focused devices without changing your core development habits. The key takeaway: small screens make embedded systems tangible, and that accelerates learning.

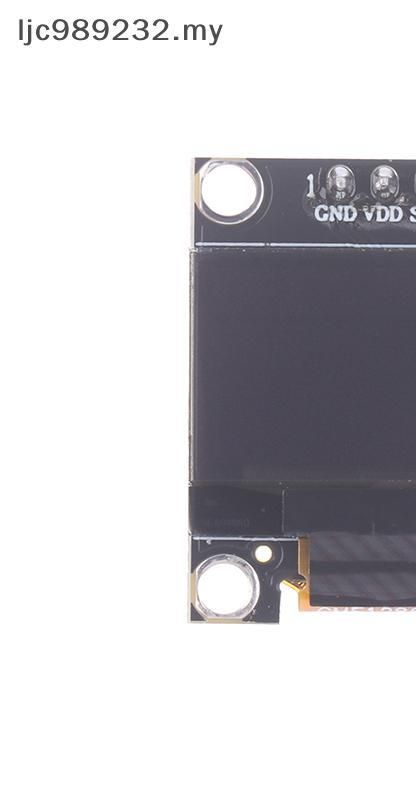

Project 1: Arduino + SSD1306 OLED Using the U8G2 GraphicsTest
If you want to understand Arduino display projects, start with a plain SSD1306 OLED and the U8G2 library in the Arduino IDE. Instead of fighting raw controller commands, you install the Universal 8bit Graphics Library and pick the right constructor for your SSD1306 display and wiring, such as U8G2_SSD1306_128X64_NONAME_F_HW_I2C. This opinionated step matters: choosing the correct setup line decides whether your screen flickers or becomes a solid canvas. U8G2 gives you three styles of examples: frame buffer with clearBuffer/sendBuffer, which is fast but “may not work with all Arduino boards because of RAM consumption”, and page buffer with firstPage/nextPage, which uses less memory and “should work with all Arduino boards”. There is even a U8x8 text-only mode with no RAM usage for simple interfaces. My advice: start with page-buffer examples to avoid frustration, then graduate to frame-buffer when you know your board’s limits. In practical terms, GraphicsTest turns your SSD1306 OLED into a playground of lines, circles, fonts, and icons. You should treat this not as a cute demo but as your visual toolkit—copy pieces of code from GraphicsTest into real projects, from sensor dashboards to mini games, instead of reinventing drawing routines.
| Display Mode | Memory Use | Best For |
|---|---|---|
| Frame buffer (clearBuffer/sendBuffer) | High RAM | Fast, full graphics on boards with enough memory. |
| Page buffer (firstPage/nextPage) | Lower RAM | Reliable rendering on most Arduino boards. |
| U8x8 text only | No RAM for graphics | Simple text interfaces on very constrained boards. |
Project 2: PocketVault on M5StickC Plus2 – Security You Can See
Once you can draw to a screen, the next step is giving that screen responsibility—like guarding your passwords. The PocketVault project turns an M5StickC Plus2 into a keychain-sized BLE password manager with a clear display and audible feedback. This is not a toy demo; it pushes you to think about device modes, inactivity timeouts, and user feedback. The code uses the M5StickCPlus2 board support along with BleKeyboard bleKeyboard("M5 Vault", "Espressif", 100); to act as a Bluetooth keyboard that can type passwords into a paired device. It tracks states such as LOCKED, VAULT_MODE, and CONFIG_MODE, and enforces an AUTO_LOCK_MS of 60000 milliseconds, meaning the vault auto-locks after 60 seconds of inactivity. That is a quotable design decision: “AUTO_LOCK_MS = 60000; // 60 seconds of inactivity”. From a learning point of view, PocketVault teaches that a good embedded systems interface is more than pixels. You add sound feedback—playClick, playError, playSuccess driving StickCP2.Speaker.tone()—and you manage state transitions and NVRAM-stored services. Building this project trains you to combine user experience thinking with hardware constraints, a skill you cannot get from blinking LEDs.
Pros
- Real-world application: BLE password entry instead of a static demo.
- Teaches states, timeouts, and audio feedback alongside display work.
Cons
- More complex than a basic OLED test; requires attention to modes and security assumptions.
- Depends on BLE and supporting libraries, adding configuration overhead.

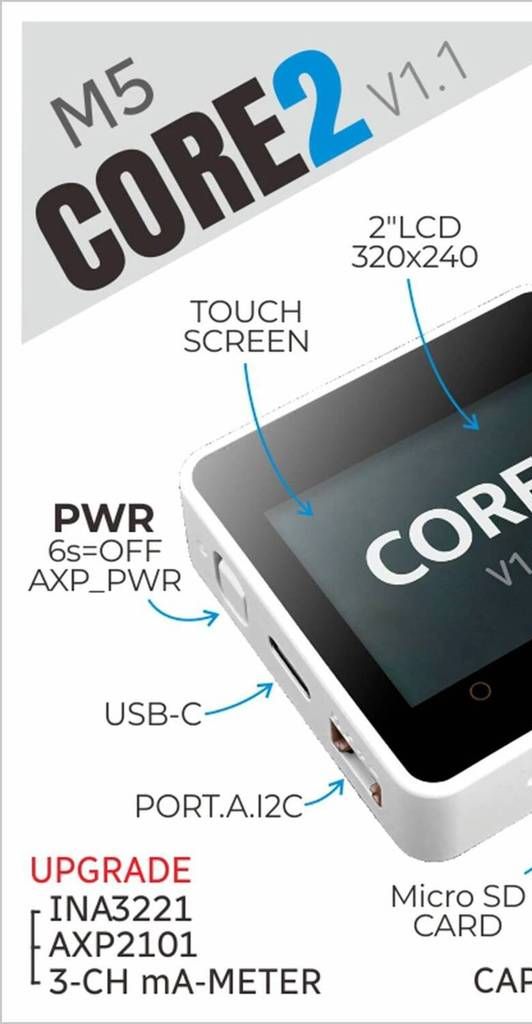

Project 3: M5Stack Core2 Quote Display with Visual Programming
If PocketVault is about serious security, the M5Stack Core2 quote display shows the playful side of embedded interfaces: a Wi-Fi-enabled board that fetches live inspirational quotes and displays them on its screen. In this visual programming tutorial, you select the M5 Stack Core board type in Visuino and configure Wi-Fi, HTTP, and JSON handling through drag-and-drop blocks rather than lines of C++. That makes it ideal for beginners who want results before they master every low-level detail. When the device starts, it automatically connects to your Wi-Fi network and requests a random quote from api.quotable.io, showing it instantly on the display. Every 20 seconds, the ESP32 automatically requests and displays a new random quote, a clear, time-based behavior you can tune. According to the tutorial, “you can use any ESP32 or similar Wi-Fi-enabled board” in place of the Core2, making the concept portable across hardware. The crucial lesson is that embedded systems interface work now includes talking to web APIs. Visuino lets you configure Wi-Fi, send HTTP requests, parse JSON responses, and build an internet-connected application without writing complex code. Once you grasp that pipeline, you can swap quotes for weather, status dashboards, or notifications with minimal changes.
From Graphics Test to Daily Tools: How to Combine These Projects
These three Arduino display projects form a practical learning path. You begin with U8G2 GraphicsTest on an SSD1306 OLED to learn how constructors, buffers, and fonts operate on a tiny screen. You then step up to PocketVault on M5StickC Plus2, where the display becomes part of a password workflow managed by BLE, device states, and audio feedback. Finally, the M5Stack Core2 quote display adds Wi-Fi and HTTP APIs, proving that a microcontroller can serve live content, not just static text. All three projects rely on affordable, widely available boards—Arduino-compatible devices, ESP32-based M5StickC Plus2, and M5Stack Core2—and open-source libraries or tools like the Universal 8bit Graphics Library. That matters: you can rebuild or remix them without proprietary lock-in. More importantly, they stay beginner-friendly. U8G2’s text-only mode can run on very limited hardware, and Visuino’s interface lets newcomers configure Wi-Fi and JSON parsing “without writing complex code”. My conclusion is simple: if you want to learn embedded systems in a way that feels useful, not academic, build all three. Let the SSD1306 OLED teach you graphics, let PocketVault teach you responsibility, and let the quote display teach you connectivity. Once your code can draw, protect, and talk to the internet, you are no longer playing with microcontrollers—you are building daily tools.
