What Direct-to-Die GPU Cooling Is (and Why You’d Risk It)
Direct-to-die GPU cooling is a custom liquid-cooling method that removes the usual metal cold plate and pumps coolant through a custom water block directly across the exposed GPU silicon to cut temperatures far below what stock coolers or off-the-shelf AIO solutions can manage under load.
When a modder built a custom 3D-printed cooler block and flowed water straight over an RTX 2060 Super’s die, they saw temperatures fall from around 70°C with the stock cooler to 36°C with an attached AIO and down again to 28°C with direct water cooling under a Heaven benchmark load. That is serious GPU temperature reduction and shows why enthusiasts are tempted. At the same time, the early prototypes leaked and the first print materials turned out porous, letting water seep through the block walls and fittings. So this is a project for experienced tinkerers who accept that a mistake can short a card instantly.
Gear, Materials, and the Big Risks Before You Start
Before you go anywhere near a working graphics card, you need a safe playground and the right parts. The modder who popularised this approach started with a non-working GeForce RTX 3060, using it as a dummy to measure and design a 3D printed water block that channels coolant directly over the GPU die. Around the die, they painted nail polish over nearby surface-mount components to help prevent water damage and short circuits.
The heart of the build is a custom water block GPU made on a 3D printer. Getting this 3D printed cooler block right is harder than it sounds; early prints leaked through the edges and in some cases the plastic itself was slightly porous, letting water permeate out once the pump started. To fight that, they embedded pipe fittings into the plastic, added washers, gaskets, and hose clamps, and then reinforced both the block-to-GPU joint and the tube fittings with epoxy adhesive until they had a non-leaky prototype.
Step-by-Step: How to Build and Test a Direct-to-Die Block
Here is the high-level process that has already been proven to work. Follow the order closely; skipping the test stages is how expensive cards die early.
- Start with a dead or non-working GPU of similar size, such as a failed RTX 3060, and strip the cooler so you can measure the bare die and mounting area accurately for a 3D printed water block.
- Design and print a 3D-printed cooler block that channels water directly over the GPU die, and integrate plumbing features such as embedded pipe fittings, washers, gaskets, and hose clamps so the fittings can be clamped and sealed securely.
- Mask and protect nearby components on the dummy card by coating surface-mount parts surrounding the GPU with nail polish to reduce the chance of water-induced shorts when you begin leak testing.
- Mount the printed block to the dummy GPU using the original cooler’s retaining clamp mechanism or a similar bracket, then run water through the loop to find leaks; when you find them, add epoxy adhesive around the block perimeter and repeat until the block itself is watertight.
- Once the block body is sealed, focus on the tube fittings by watching for water oozing from the joints during pump operation, then apply epoxy to those fittings and test again until the complete setup survives extended leak tests without drips.

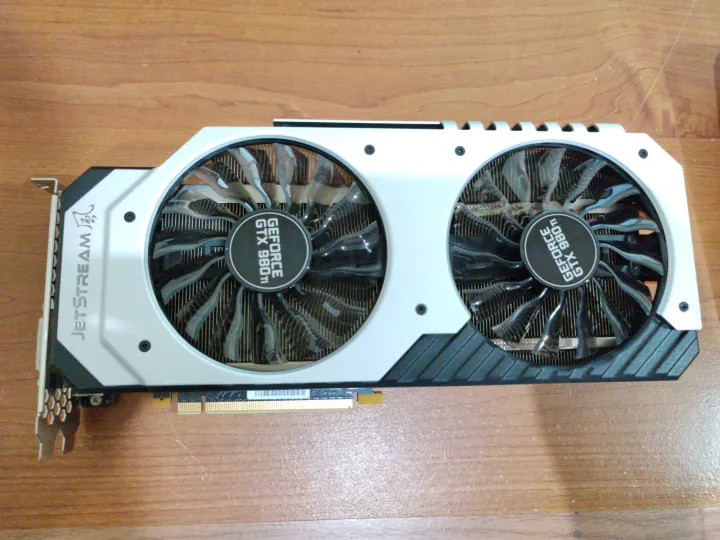

- Move to a working but expendable card, such as a GTX 980, and power it via a PCIe riser cable so any new leaks drip away from the main motherboard, then run live tests to confirm electrical stability while watching temperatures and checking for seepage.
- Finally, install the refined block on your main GPU—for example, an RTX 2060 Super—and compare temperatures against stock and AIO configurations using repeatable loads like Unigine Heaven or a demanding game, looking for load temperatures around 28°C with room-temperature coolant if everything is functioning correctly.
The biggest gotchas in this sequence are impatience and poor testing discipline. The first direct-to-die GPU cooling attempts leaked more than once, and only repeated rounds of epoxy sealing and print tuning turned the block into a reliable cooling solution. Using a riser cable during early powered tests kept any stray coolant from dripping straight onto the motherboard, which is a small step that can prevent a cascading failure if a fitting fails under pressure.
Performance Payoff and Where Things Go Wrong
When the mod is dialled in, the payoff can be impressive. In a like-for-like test on an RTX 2060 Super, the stock cooler held Heaven benchmark loads at 70°C, an AIO clamped to the die dropped that to 36°C, and the direct-to-die custom water block brought it down further to 28°C. With chilled coolant at around -28°C, the same direct-to-die setup kept Heaven runs at about 13°C, though condensation around the pipes became a visible side effect.
That said, the method is not a universal win. The same 3D printed concept performed worse on a CPU than a conventional AIO, running an i5-7600K up to 52°C on all cores while the reference AIO held it at 39°C. Chamber size and internal geometry turned out to matter a lot; a small or poorly shaped chamber can limit heat transfer even when coolant is cold. Meanwhile, relying on marginal print materials caused structural leaks that appeared only once the pump was pressurised, proving that the wrong filament or infill pattern can turn a clever design into an instant failure.
Is It Worth It? Planning, Testing, and Knowing When to Stop
Direct-to-die GPU cooling can work and can deliver exceptional GPU temperature reduction, especially if you are aiming for low-noise performance or heavy overclocking. Seeing a loaded RTX 2060 hold 28°C on both synthetic and game benchmarks is clear evidence that a carefully built custom water block GPU can outperform an attached AIO in some scenarios.
The price you pay is risk and time. Your success depends on meticulous planning, multiple test cycles on sacrificial hardware, and an honest understanding of failure modes—porous prints, leaking fittings, badly sealed joints, and condensation when using sub-zero coolant. If you enjoy experimentation, have spare hardware, and accept that things can fail in a few seconds, this project can be rewarding and educational. If your main GPU is too valuable to lose, your best takeaway is the concept: shorter thermal paths are powerful, but the moment coolant escapes its path, the mod stops being a cooler and becomes a destroyer.
