What Direct-to-Die GPU Cooling Is (and Who It’s For)
Direct-to-die GPU cooling is a risky custom liquid cooling method where water is pumped over the exposed GPU silicon through a custom water block, removing the usual metal block and thermal interface so heat moves straight into the coolant instead of first passing through conventional materials and cooler assemblies. This approach is for modders with strong DIY skills, access to a 3D printer, and a spare graphics card they can afford to lose. If you are comfortable tearing down GPUs and troubleshooting leaks, the payoff can be impressive: one documented RTX 2060 Super dropped from around 70°C on its stock cooler to 28°C under load with direct water on the die. The caveat is blunt: a mistake means water on live circuitry, so treat this as an experiment, not a beginner-friendly upgrade.
Gear and Prep: What You Need Before You Start

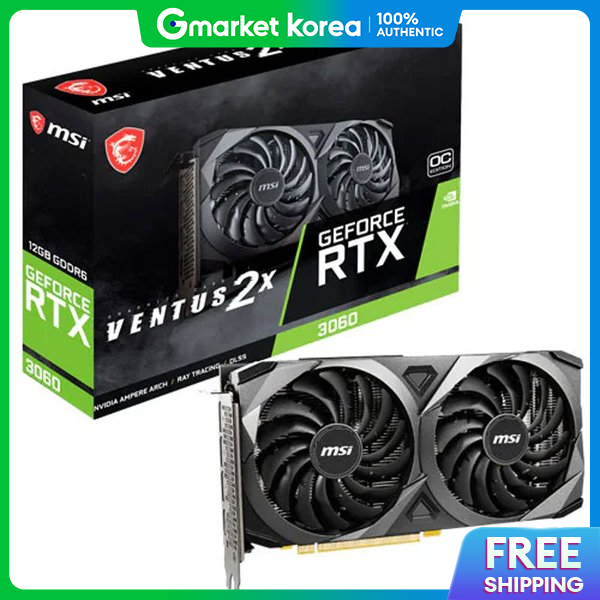

Before touching a working card, build and prove your direct-die GPU cooling setup on dead hardware. TrashBench started with a non‑working GeForce RTX 3060, measuring it up for a 3D‑printed GPU cooler that would route coolant directly over the GPU die. That’s the right mindset: assume your first tries will leak or fail. You’ll need a 3D printer and filament that is not porous, a design for a custom water block, a pump and loop, plus assorted plumbing parts—washers, gaskets, hose clamps, and suitable fittings. You also need insulating materials: brush-on nail polish for surface‑mount parts around the die to help prevent shorts, and epoxy adhesive to seal the block and fittings once you’ve dialed in the geometry. Finally, plan to run the GPU via a PCIe riser so any leak is less likely to drip straight onto your motherboard.
Step-by-Step: Building and Testing a Direct-Die GPU Cooler
- Strip a dead GPU and expose the bare silicon die, noting component positions and mounting points so your custom water block can clamp where the stock cooler did.
- Design and 3D‑print a custom water block that channels coolant over the die, then melt or fix water pipe fittings into the block and add washers, gaskets, and hose clamps.
- Brush nail polish over nearby surface‑mount components to add a protective layer against stray drops or film of water during early leak tests.
- Clamp the 3D‑printed GPU cooler onto the dead card using the original retaining mechanism, connect it to your pump and loop, and run leak tests with the system powered off.
- When leaks appear at block edges or fittings, rework your print settings and apply epoxy adhesive to seal the block to the GPU and around the tube fittings until you achieve a non‑leaky prototype.

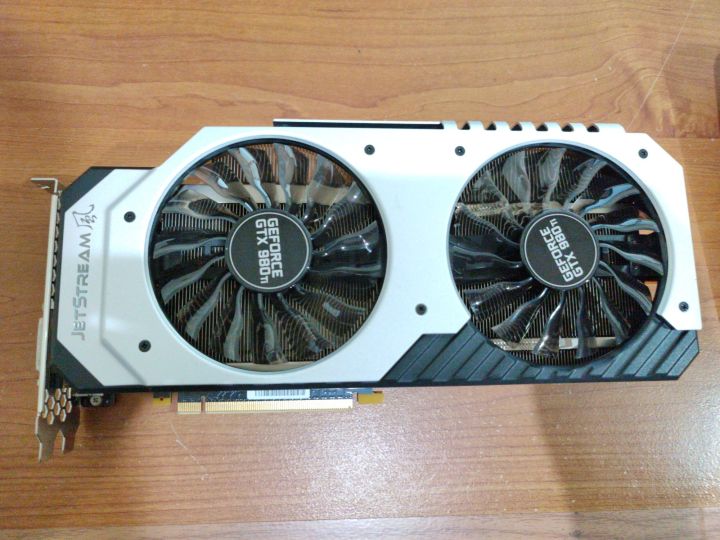

- Move the refined block onto a low‑stakes working card (TrashBench used a GTX 980) and perform powered testing via a PCIe riser, watching closely for oozing from edges or fittings.
- Once you trust the seal, install the block on your target GPU, connect it to the loop, then benchmark and log liquid cooling GPU temperatures under load, comparing to stock and AIO results.
Follow this sequence strictly—especially the dead‑card phase—because the biggest gotchas are leaks and material choice. TrashBench’s first clear‑plastic block began leaking everywhere once water flowed, the plastic even allowing permeation through the bracket. Later tests showed that some 3D‑printed materials not only leaked at edges but were slightly porous. Epoxy around the edges and fittings turned out to be essential: “This initial test sprang a leak, or two, so TrashBench decided to add epoxy adhesive to secure and seal the 3D printed block to the GPU,” and then also to the tube fittings. Skipping these sealing passes is how you end up with coolant creeping into circuitry. Treat every new block or filament as suspect until you’ve pressure‑tested it.
What Temperatures to Expect (and Where It Goes Wrong)

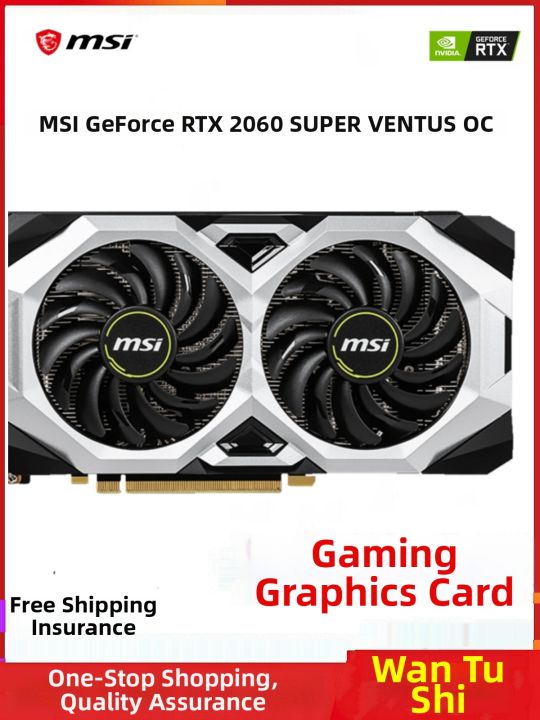

Done carefully, direct-die GPU cooling can beat both stock and AIO solutions by a clear margin. On an RTX 2060 Super, stock cooling saw about 70°C in the Heaven benchmark, an Arctic AIO clamped to the die dropped that to 36°C, and direct water over the silicon cut it down further to 28°C. In gaming loads like Cyberpunk 2077, the direct-to-die setup held around 28°C compared to roughly 33°C on the same AIO. With coolant chilled to around –28°C, the card even ran at 13°C in Heaven, though condensation formed heavily around pipes and the cooler. The flip side is that this approach does not automatically win everywhere: the same custom water block on an Intel Core i5‑7600K reached about 52°C under all‑core load, while the Arctic AIO managed about 39°C. Chamber size, flow path, and die layout matter; a GPU‑tuned block may simply not suit a CPU.
Is Direct-to-Die Cooling Worth the Risk?
If you want the lowest liquid cooling GPU temperatures and enjoy experimental builds, direct-die GPU cooling is one of the most extreme routes you can take. A well‑sealed, custom water block over bare silicon can give a working card RTX 2060‑class temperatures in the high 20s rather than the mid‑30s you see with a solid AIO. In simple terms, you trade convenience and safety for those extra degrees. The hard realities are leaks, porous 3D‑printed materials, and the risk of water damage if your seals fail. The smart way to try this is as a side project: dead GPU first, then a cheaper working card, and only then anything precious. Treat epoxy, gaskets, and leak testing as core parts of the design, not afterthoughts, and accept that long‑term reliability is still an open question. For many builders, that uncertainty will matter more than a 5–10°C win.
