What Direct-to-Die GPU Cooling Is—and Why People Attempt It
Direct-to-die GPU cooling is an extreme GPU thermal management method where coolant is pumped directly over the bare silicon die, using a custom water block instead of a conventional metal cooler or AIO assembly, to chase lower operating temperatures and higher thermal headroom for enthusiasts willing to accept major liquid cooling risks.
In practice, that means removing the stock cooler, often stripping off the metal cold plate, and replacing it with a 3D‑printed chamber that routes water straight across the die. The appeal is obvious: one modder saw an RTX 2060 Super drop from a stock 70°C to 28°C under the Heaven benchmark when switching from factory cooling to direct water, with an AIO landing in the middle at 36°C. This is the kind of result that tempts overclockers, benchmark chasers, and content creators who live for “I can’t believe this is running” builds. The caveat is that every degree you gain on the thermometer comes with extra risk to your PCB, your power delivery, and your warranty.
What You Gain: Temperatures, Headroom, and Real-World Results
The headline benefit of direct-to-die GPU cooling is temperature: the closer you put coolant to the silicon, the less thermal resistance stands in the way. In one widely shared build, a stock RTX 2060 Super ran at 70°C under the Heaven benchmark with the original cooler, dropped to 36°C with an AIO clamped to the die, and then plunged to 28°C when water was pumped directly across the bare GPU. That kind of delta is huge for GPU thermal management, especially if you chase boost clocks or prefer whisper‑quiet fans.
Those same experiments went even further by feeding the loop water chilled down to -28°C, where GPU temperatures around 13°C were reported in synthetic tests. It shows how much potential the method has if you are willing to go past “reasonable” into “laboratory project.” Another takeaway from the same tinkerer: direct-to-die worked far better on the GPU than on a test CPU, where the custom block reached 52°C under load compared with 39°C on a conventional AIO, highlighting how chamber shape and flow path matter a lot for this approach.
How Direct-to-Die GPU Cooling Is Built in Practice

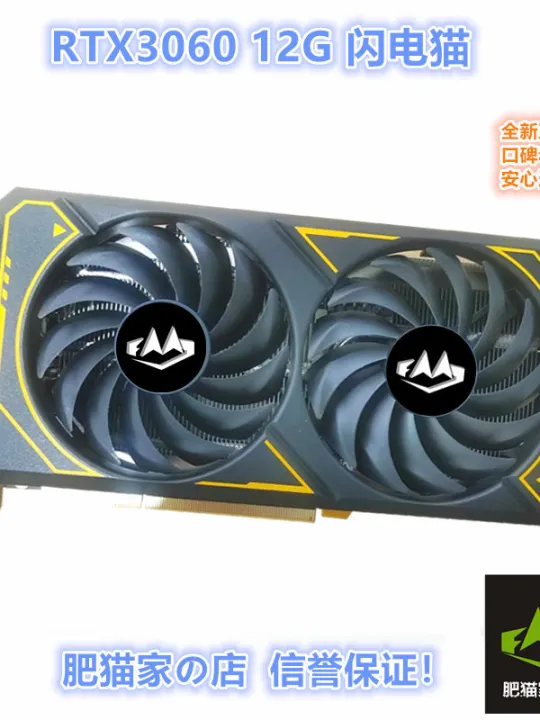

To get water onto bare silicon, modders rely on custom water block installation rather than off‑the‑shelf hardware. One experiment started with a dead RTX 3060, used to prototype a 3D‑printed block shaped around the GPU package so coolant could be directed over the die without destroying a working card during early leaks. The block needed plumbing‑grade touches: washers, gaskets, hose clamps, and melted‑in pipe fittings to secure tubing and prevent flex. Sensitive surface‑mount components near the core were painted with nail polish to reduce the chance of electrical shorts from stray droplets.

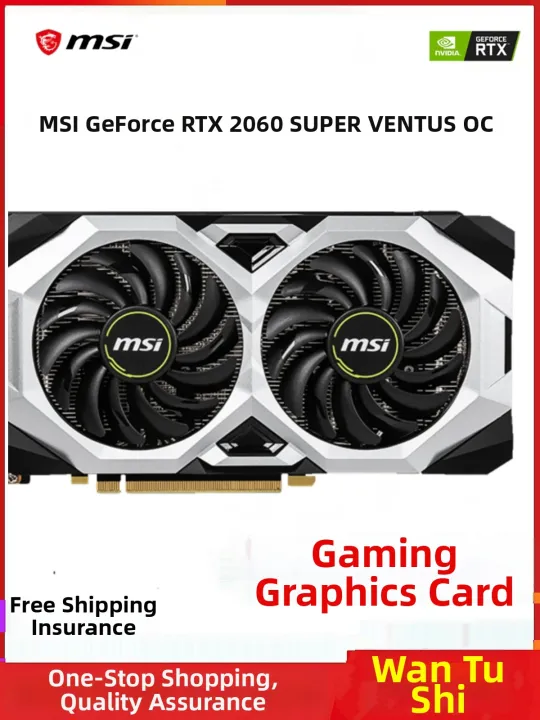

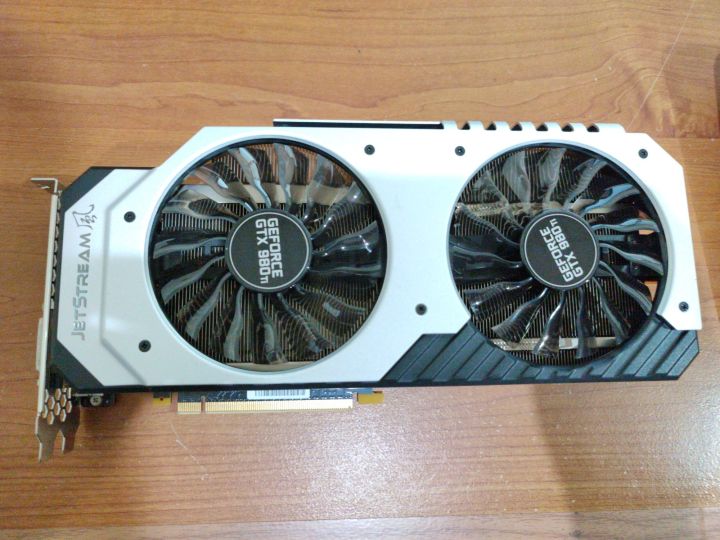

That first revision leaked, so epoxy was added to seal the block to the GPU and to lock down the tube fittings after water began oozing past them. Only after successful live runs on a GTX 980 did the builder move to a working RTX 2060 Super, keeping it on a PCIe riser so any leaks would fall away from the motherboard. A key lesson was how much the 3D printing material and settings matter—some plastics turned out slightly porous, letting water seep through the body of the block itself. This is where “fun weekend project” turns into “small engineering exercise,” and where careful planning separates a cool mod from a dead card.
- Prototype your 3D-printed block on a non-working or expendable GPU so early leaks and fitment issues do not destroy good hardware.
- Design the chamber to route coolant directly across the GPU die and integrate washers, gaskets, and secure hose clamps into the block for a tight seal.
- Add electrical insulation—such as nail polish—around nearby surface-mount components to reduce the chance of coolant-induced shorts during test runs.
- Epoxy the block to the GPU and reinforce tube fittings once you identify any seepage, then run live tests on a cheaper card like a GTX 980 before upgrading.
- Mount the final setup using a riser cable so potential leaks drip away from the motherboard, and monitor temperatures versus a known AIO baseline to confirm gains.
The Real Risks: Leaks, Shorts, and Warranty-Shredding
All liquid cooling risks are amplified when coolant is flowing millimetres from live GPU circuitry. The modder behind these builds went in expecting leaks and saw them: the first printed block sprang leaks at the seams, while tube fittings let water ooze out until they were epoxied. That is with careful assembly, plumbing hardware, and sealant. Any leak on a live card can send coolant across PCB traces, into PCIe contacts, or around VRM components, where even a small bridge can trigger an electrical short.
Covering surrounding components with nail polish was one attempt to shield them from water, but it is a band‑aid rather than a guarantee of safety. There is also the risk of physical damage: mounting pressure from custom clamps or uneven 3D‑printed surfaces can crack a bare die, and epoxy is very permanent if you later need to service the card. On top of that, stripping a GPU down to its silicon and gluing on a custom block almost certainly voids the manufacturer warranty, leaving you to absorb the cost if something fails. The payoff is undeniable—RTX 2060 load temperatures of 28°C speak for themselves—but the path there is lined with ways to destroy hardware.
Is Direct-to-Die GPU Cooling Worth It?
Direct-to-die GPU cooling proves that pumping water straight over silicon can work and can outperform good AIO coolers when the block is tuned for the GPU’s surface. One experimenter saw a clear ladder of performance: stock cooler at 70°C, AIO clamp at 36°C, and custom direct water at 28°C under identical loads. That is potent evidence that, with expert planning, advanced modders can squeeze more headroom out of midrange and older cards alike.
The same experiments also show how fragile the approach is. On the CPU side, a similar direct‑cooling design lost outright to an off‑the‑shelf AIO, hitting 52°C versus 39°C, which underlines how sensitive this method is to block geometry and chamber size. The takeaway: if you are the kind of builder who starts with a dead GPU, a 3D printer, and a spare system to catch the fallout, direct-to-die GPU cooling can be an exciting project. For everyone else, a quality water block or AIO delivers most of the gains with a fraction of the danger. If you ever attempt it, treat leaks as inevitable during testing and never experiment on hardware you cannot afford to lose.
