Bare-die cooling: when a GPU becomes a science experiment
Bare die GPU cooling is an extreme liquid cooling technique where the protective heat spreader and traditional cooler are removed so coolant passes directly over the exposed GPU silicon for maximum heat transfer and minimal thermal resistance, aimed at enthusiasts who accept higher risk for lower operating temperatures. That sounds reckless because it is, but it is also the clearest expression of what the GPU modding scene has become: less about neat RGB builds, more about physics experiments perched over expensive PCBs. When a modder can push a liquid cooling RTX setup to 28°C under load using home-made hardware, we are no longer talking about incremental gains. We are watching people ignore every safety guideline the industry has spent decades building—and sometimes, they are being rewarded for it.
3D printed water blocks and the 28°C RTX 2060 Super

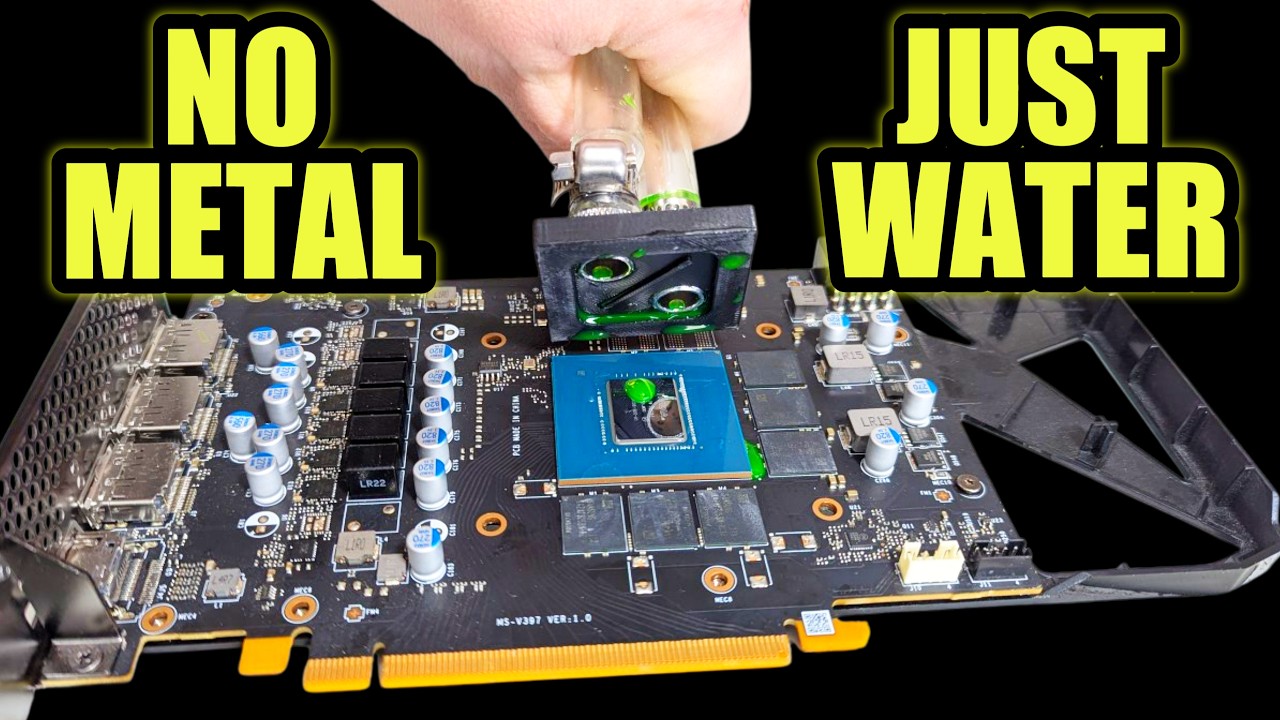

The boldest recent example of direct die cooling comes from TrashBench, who questioned the point of a metal water block and printed one instead. Their 3D printed water block sits over a bare-die GPU and channels coolant directly across the silicon. It started the way most extreme GPU cooling mod attempts do: with leaks, nail polish over surface-mount components, and a dead RTX 3060 as a crash-test dummy. Only after adding epoxy, gaskets, and reinforced tube fittings did the design stop bleeding coolant. According to Tom’s Hardware, the final liquid cooling RTX setup dropped an RTX 2060 Super from 70°C on stock cooling to 28°C with direct water on the die, beating even a clamped-on AIO at 36°C. Those numbers are absurdly low for a consumer card and make one thing clear: metal blocks are thermally conservative by design, not by necessity.
Direct water on silicon: why it works so well
The physics behind bare die GPU cooling are not magic; they are about removing layers between heat and coolant. Traditional GPU coolers force thermal energy through paste, a copper base, sometimes a nickel plate, then into a fin stack or a water channel. Every interface adds resistance. Direct die cooling cuts nearly all of that. Water flowing across the silicon spreads heat into a much larger volume of coolant faster than any plate can conduct it. TrashBench’s tests even played with chamber size, showing that the volume and geometry of the coolant cavity matter as much as contact. When you see a direct die RTX 2060 Super sitting at 28°C under a benchmark while stock sits at 70°C, you are looking at the difference between a design built for safety and compatibility and one built purely for conduction and flow.
From living room consoles to death-lab rigs
This trend is not limited to open test benches. A Steam Machine mod from Techmagnet pushed liquid cooling into a compact, console-style PC that was never meant to house a pump or radiator. Using a custom copper block milled on a desktop CNC, one piece of metal was shaped to cover both CPU and GPU on the same PCB side, then linked to an external 120mm radiator and pump via holes cut in the chassis. PC Guide reports that this water-cooled Steam Machine saw CPU and GPU temperatures drop by about 20–30°C compared to the stock cooler. Yet, because Valve does not support overclocking, the performance remains roughly the same. That is the point: the high-performance modding community is no longer satisfied with factory constraints. Even when raw speed does not increase, they want to prove the thermal envelope was never the real limit.
Who should chase sub-30°C, and who should walk away
Bare-die direct die cooling is becoming a badge of honor among extreme GPU cooling mod fans and overclockers, but it is a terrible idea for most people. You need precise 3D printing or CNC work, careful thermal paste application on a naked die, and a tolerance for leaks that could kill your hardware—or worse, something downstream. You will void warranties, you will live in fear of tiny cracks and porosity in printed parts, and you will be personally responsible for every drop of coolant that escapes. In return, you gain absurd temperature headroom, experimental cred, and a deeper understanding of how your GPU behaves when the usual safety nets are gone. For everyday gamers, a standard liquid cooling RTX setup or a quality air cooler is enough. For modders who see a GPU as a canvas, bare die water cooling is the new frontier—and the risk is the point.
