Why GPU Power Connector Safety Suddenly Matters
GPU power connector safety refers to the design and control features that keep high‑power graphics card connectors from overheating, melting, or failing during heavy gaming or compute workloads, by monitoring current, limiting power, and warning users before damage occurs. The move to 12V-2x6 connectors and extreme power draw on cards like NVIDIA’s RTX 5090 has magnified the stakes. Poorly seated plugs, bent cables, or imbalanced loads across pins can create hot spots that lead to 12V-2x6 connector failures, including partially melted plastic and damaged contacts. Instead of leaving everything to careful cable installation, brands are now building intelligence into GPUs and power supplies. MSI calls its approach Safeguard, while Cooler Master’s new MWE Gold V4 power supplies introduce GPU Shield technology. Both aim to detect problems early and throttle or cut power before a catastrophic hardware failure occurs.
Inside MSI’s Safeguard Tech for RTX 5090 Power Protection
MSI’s RTX 5090 SUPRIM Safeguard card brings the company’s Safeguard concept from the PSU into the GPU itself. The board adds current monitoring hardware and server‑grade eFUSE components to watch voltage and current on each 12V-2x6 power pin in real time. If the system detects abnormal power conditions, MSI Intelligent Power Safeguard responds in layers. First, it warns you with a red LED on the card, a system notification, and an integrated buzzer, with an option for an external buzzer if your case muffles the sound. After 120 seconds of continued imbalance, the card’s protection lock clamps the GPU power limit to 70%, reducing stress on the connector and lowering the risk of overheating. According to Overclock3D, MSI’s approach “detects a load/current imbalance before excessive heat can build up,” giving gamers time to reseat or replace dangerous cables.
Cooler Master’s GPU Shield: PSU-Level Defense Against 12V-2x6 Failures

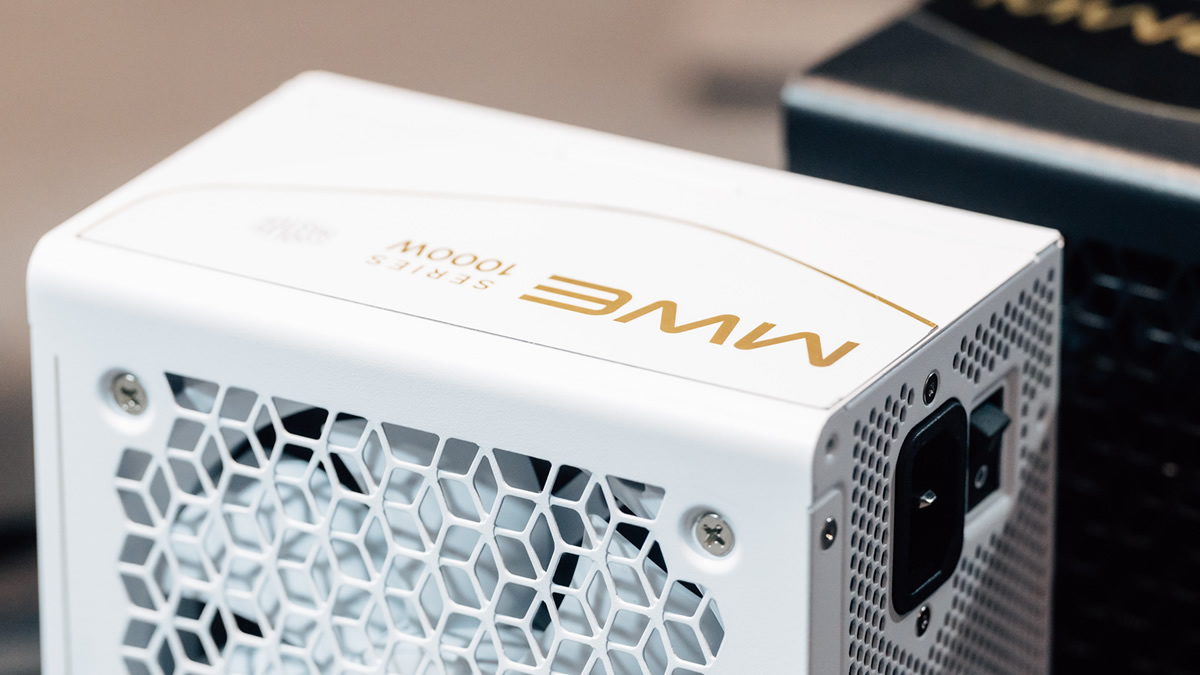

Where MSI protects the graphics card, Cooler Master tackles GPU power connector safety from the PSU side with its MWE Gold V4 series. GPU Shield technology uses per‑pin sensing on the 12V-2x6 output to monitor current in real time and watch for the conditions that cause 12V-2x6 connector failures. If any single pin draws more than 9A, the PSU automatically reduces power delivery to prevent cable melting or connector damage. A red LED near the modular port lights up during the fault, though most users will rely on performance drops as the first sign. If the abnormal state persists for more than three minutes, the PSU shuts the system down entirely. At that point, you are expected to reseat or replace the cable before restarting. Cooler Master is bringing GPU Shield to MWE Gold V4 units from 750W to 1000W, with more models expected.
Next-Gen Power Design: Diamond-Laced Cooling and Resettable Fuses
Beyond power monitoring, MSI is rethinking how its high‑end RTX cards handle heat and faults at the connector level. The company has adopted diamond-laced cooling, a heatsink and thermal interface approach that improves heat spread away from hotspots, including the power input area. Combined with resettable eFUSE‑style protection, this lets the card endure and recover from abnormal conditions without permanent damage to the PCB or power stages. On the RTX 5090 SUPRIM Safeguard, these protections sit alongside the Intelligent Power Safeguard logic, so the GPU can first warn, then limit power, and, if needed, trip protective fuses that can reset once the issue is fixed. This layered design means a misaligned 12V-2x6 cable is less likely to turn into a dead graphics card. Instead, it becomes a fixable installation problem that the card’s own hardware helps you catch.
What Gamers Should Do—and What the New Tech Does for You
For most builders, the best part of these new safeguards is that they work in the background. As long as you plug your 12V-2x6 cable in firmly and avoid extreme bends near the connector, MSI’s Safeguard on the GPU and Cooler Master’s GPU Shield in the PSU handle the rest. If you notice a sudden performance drop on an RTX 5090 SUPRIM Safeguard card, check for the red LED and listen for buzzer alerts, then shut down and reseat the cable. On systems with MWE Gold V4 supplies, a power‑limit event or shutdown under load may signal a pin pulling more than 9A. The message for gamers is clear: the era of high‑power GPUs does not have to mean living in fear of melted connectors. Smart hardware and firmware now step in long before failure.
