What the 12VHPWR Problem Is—and Why Caution Hasn’t Stopped Failures
The 12VHPWR connector failure problem refers to high‑power GPU power plugs overheating or melting at the socket, even when users follow installation guidelines, inspect their systems regularly, and avoid sharp bends or visible strain on cables, raising questions about whether current connector designs and power delivery standards are reliable enough for modern graphics card power demands. Recent reports show GPU power connector failure is not limited to careless builders. A Reddit user with an RTX 5090 said he unplugged his 16‑pin connector every three months, blew dust out, and manually pressed it in every month to keep it fully seated, yet still discovered a burned 12VHPWR cable and blackened GPU socket during a routine check. His card was vertically mounted, with apparent clearance and an official Corsair Type 4 cable, underlining that even “best practices” do not guarantee melted cable prevention.

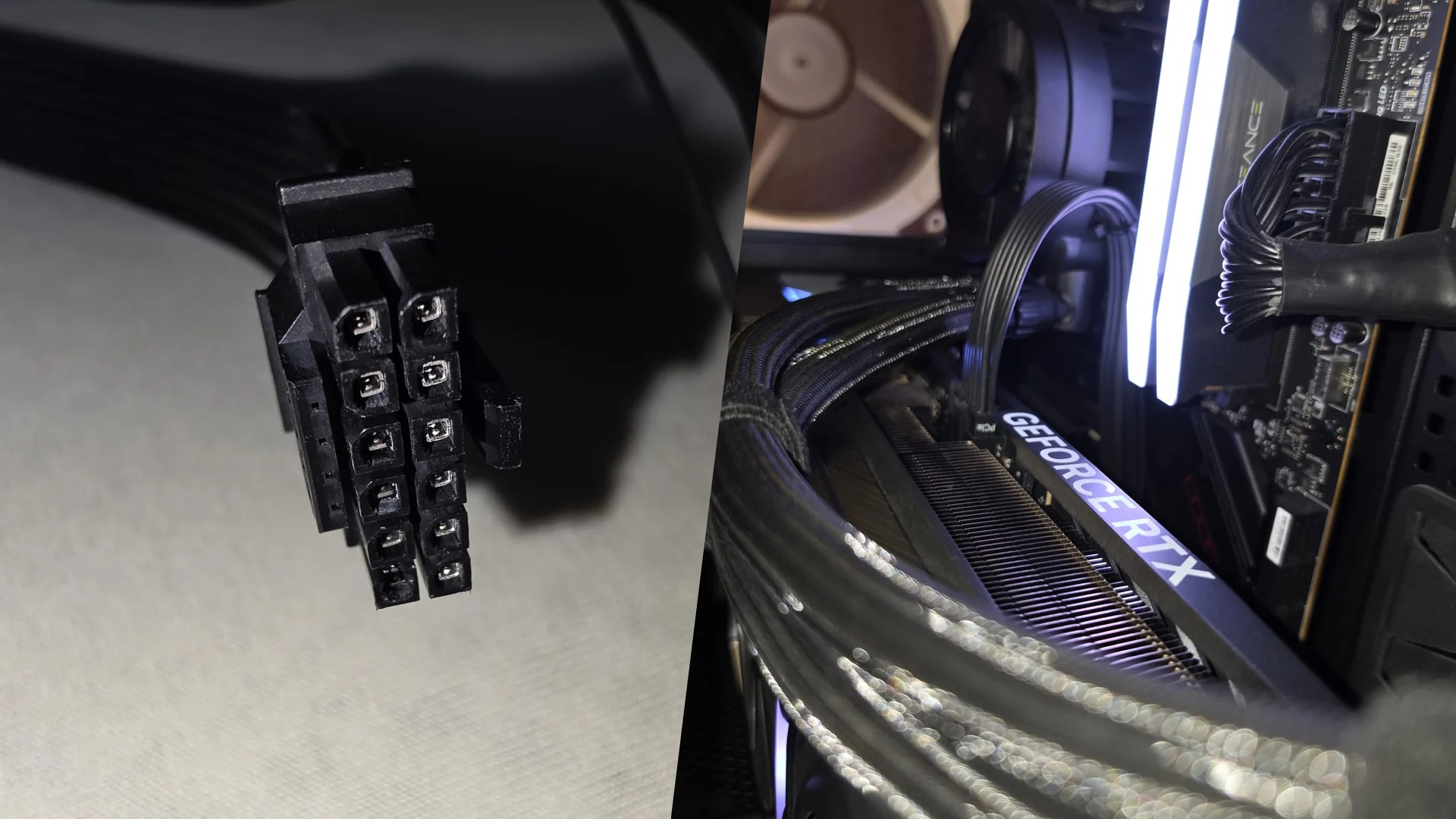

Inside a ‘Religiously Checked’ RTX 5090 That Still Burned

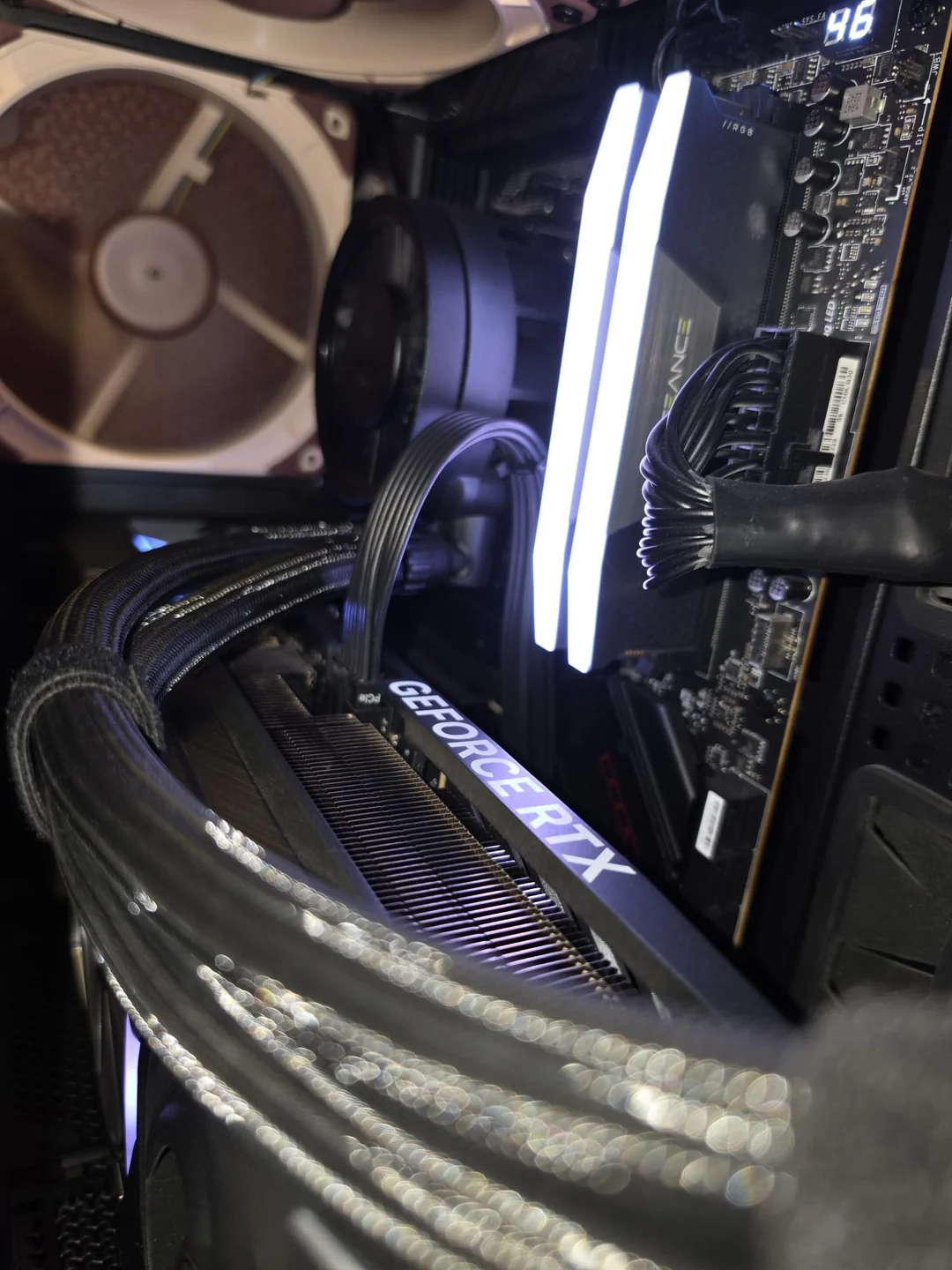

The RTX 5090 case has become a cautionary tale because the owner did almost everything enthusiasts recommend. He avoided adapters, using Corsair’s native Type 4 12VHPWR cable, and his vertical mount left room so the cable was not sharply bent. His routine went further than most: disconnecting and reconnecting the 16‑pin every three months, and pressing the connector in monthly to make sure it was still fully seated. When he inspected the system after several weeks of gaming, he found a melted cable and blackened GPU power connector. According to Wccftech’s report, frequently unplugging a 16‑pin connector is discouraged because it can damage terminals and increase the chance of a weak, high‑resistance contact. That detail suggests some careful habits, like repeated reseating, may worsen 12VHPWR connector safety instead of improving it.
MSI’s 12V-2×6 Response: Intelligent Safeguard on PSU and GPU
GPU makers are starting to treat power connector failures as a design problem instead of a user error problem, and MSI is leading that shift. The company first adopted dual‑tone 12V‑2×6 cables so builders can see at a glance whether the plug is fully inserted. It then released Safeguard and Safeguard+ power supplies that monitor for load and current imbalance and cut risk before a connector overheats. Now MSI is integrating similar logic on the graphics card itself with the RTX 5090 SUPRIM Safeguard. This GPU includes server‑grade eFUSE and per‑pin voltage and current monitoring on the 12V‑2×6 input. If the connector behaves abnormally, the card can trigger MSI Intelligent Power Safeguard, combining hardware and firmware checks aimed directly at GPU power connector failure rather than leaving users to catch problems by sight or smell.
How MSI Intelligent Power Safeguard Tries to Stop Melting
MSI’s Intelligent Power Safeguard is designed to warn users long before a 12V‑2×6 socket reaches the point of visible damage. When the GPU detects abnormal load or current imbalance on its power pins, it lights a red LED on the card, sends a system notification, and triggers a built‑in buzzer; users can also attach an external buzzer for louder alerts inside closed cases. If the problem continues for 120 seconds, the card’s protection lock reduces the power limit to 70% and holds it there. MSI says this lower limit reduces stress on the connector and gives the user time to shut down, reseat, or replace the cable. The idea is proactive melted cable prevention: detect hot spots electronically and force a partial power cut instead of allowing a slow, silent failure to progress into charring.
Are Safeguards Enough—or Does the Connector Standard Need Rethinking?
MSI’s Safeguard‑equipped PSUs and GPUs are a strong sign the industry knows power issues on RTX 5090‑class hardware cannot be blamed solely on user error. However, the RTX 5090 owner’s experience with a burned 12VHPWR connector despite careful checks shows that hardware and software protections still sit on top of a delicate physical interface. Repeated unplugging can wear terminals; imperfect seating on even one pin can raise resistance and heat; legacy 12VHPWR and newer 12V‑2×6 parts share a compact footprint that leaves little margin at extreme power draw. Safeguard‑style monitoring and throttling help, but they do not change the basic geometry or contact mechanics of the plug. Until standards evolve or alternative connectors arrive, the safest strategy combines: avoiding needless reseating, using high‑quality native cables, watching for warning LEDs or alerts, and accepting that some risk remains in the current ecosystem.
