A safety movement born from fear of melting GPU connectors
Community-built GPU power monitoring tools are user-created software and hardware safeguards that watch per-pin current on RTX 5090 power connectors and other 12VHPWR-style plugs, then cut power or reduce load when thresholds are exceeded to prevent cable degradation, 12VHPWR cable melting, and connector failure in high-wattage gaming PCs. Many owners of high-end NVIDIA graphics cards live in fear of the high-density 12+4‑pin connector that supplies power to their video hardware, as the connector has been shown to have dubious reliability versus previous PCI Express peripheral power connectors, largely due to an extremely minimal safety margin. That fear has now turned into action: instead of waiting for a firmware fix, enthusiasts are building their own PCIe power safety net, and they are doing it for free.
12VHPWR Guard: A gamer’s answer to the RTX 5090 power problem
The clearest expression of this DIY safety trend is 12VHPWR Guard, an open-source GPU power monitoring tool written by Reddit user Humza Khalid for ASUS ROG Astral RTX 5080 and RTX 5090 cards. These GPUs ship with an updated 12V‑2×6 connector, but the core power contacts are unchanged, so the burning issue continues. Khalid’s utility polls the card’s per-pin sensors twice per second and force-shuts the PC if any pin stays above 9.5A for 15 seconds, rather than reacting to momentary spikes. That 9.5A limit is intentionally conservative: the pins are rated for about 9A, and ASUS’ own warning threshold is 9.2A. In other words, a gamer has implemented the kind of sustained-overload protection that should have shipped with every high-end RTX card in the first place.
Practical impact: negligible overhead, real protection
For ordinary users, these tools are not science projects; they are practical, low-overhead safeguards. Khalid’s app uses about 35MB of RAM and a tiny amount of CPU time to query the I2C bus twice per second, and has been described as using around 1% of a single CPU core and approximately 35MB of RAM, which means it should have a negligible impact on a modern gaming system. In day-to-day gaming, that overhead is invisible compared with the peace of mind that comes from having a watchdog looking for dangerous per‑pin currents. The tool’s configurable threshold and timing mean enthusiasts can tune how aggressively it clamps down on their RTX 5090 power connector, while still avoiding false alarms from normal GPU load fluctuations. But the author calls it a "last line of defense" and stresses that users must still fully insert the cable and avoid excessive bending or mechanical stress.
When NVIDIA hesitates, Cooler Master and the community step in

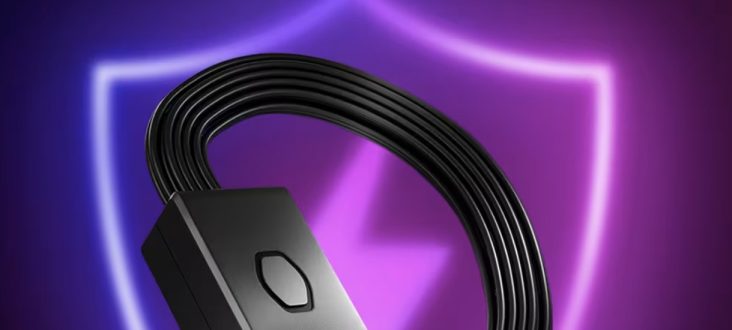

Cable melting worries began with the RTX 4090, before spreading to the RTX 5090, and when concerns surfaced around the Blackwell flagship, NVIDIA denied it was at fault. That stance clashes with lived experience, where it has been proven that the connector can fail through no fault of the user. Into this vacuum of trust steps not only hobbyist coders but also hardware vendors. Cooler Master’s GPU Shield is an inline adapter that sits between the PSU and GPU, individually monitors current across connector pins, adds visual and audible alarms, and can actively reduce system power draw when it detects a major fault. It supports both 12V‑2×6 and 12+4‑pin connectors, signaling that PCIe power safety needs to be connector‑agnostic rather than model‑specific. In effect, the ecosystem around NVIDIA is quietly compensating for design and communication gaps that the company has yet to close.
What comes next: smarter limits and a demand for accountability
This movement is not static. Khalid has already said he will change 12VHPWR Guard from triggering a full system shutdown to lowering the GPU’s power limit through NVIDIA’s management API, giving a faster response when a pin crosses the 9.5A line. That evolution—from brute‑force shutdown to dynamic power limiting—shows enthusiasts edging toward the kind of integrated PCIe power safety that should be embedded at the driver and firmware level. Meanwhile, Cooler Master’s GPU Shield has launched with strong early demand, and the company has not yet announced wider release dates or pricing. The message behind these tools is blunt: if GPU vendors push 500W‑class cards with fragile connectors, users will build their own safeguards. Until NVIDIA fully aligns its hardware design with real-world power delivery reliability, community-built monitoring and protection will remain not a niche hack, but a necessary layer of trust.
