DIY safety nets for a risky RTX 5090 power connector
Community-built tools to protect the RTX 5090 power connector are a mix of lightweight software and inline hardware that monitor per-pin current on modern 12V-2×6 and 12VHPWR-style GPU plugs and then either shut down or throttle a system when dangerous, sustained overcurrent conditions are detected, in order to head off the 12VHPWR cable melting failures that have haunted high-end Nvidia cards. Many owners of high-end Nvidia graphics cards live in fear of the high‑density 12+4‑pin connector because it has weaker safety margins than older PCIe plugs, and those fears have not gone away with the RTX 50‑series refresh of the 12V-2×6 standard. Instead of waiting for a top‑down fix, enthusiasts are writing their own power monitoring tool and buying add‑on hardware, turning GPU power protection into a grassroots project.
How 12VHPWR Guard watches every pin—and yanks the plug

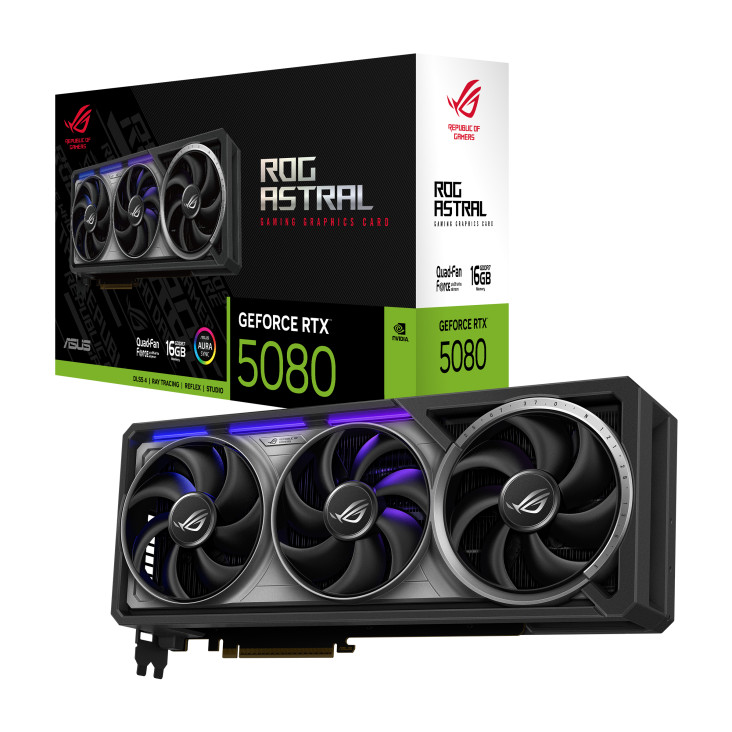

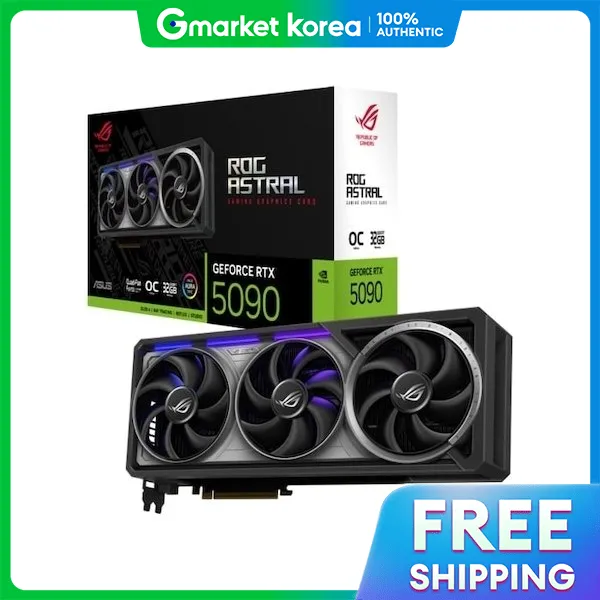

The most striking example of this DIY response is 12VHPWR Guard, a free open‑source app from a Reddit user targeting Asus ROG Astral RTX 5080 and RTX 5090 cards. These GPUs expose per‑pin current data through onboard sensors, and the tool polls those readings twice per second over the GPU’s I2C bus using Nvidia’s NVAPI, consuming about 35MB of RAM and negligible CPU time. The pins are rated for about 9A and Asus’ own warning trips at 9.2A, but the author chose a default threshold of 9.5A sustained for 15 seconds before triggering a forced shutdown that kills blocking apps. The logic is simple but pragmatic: ignore short spikes, act on sustained imbalance that could heat a single pin until it chars. In practice, under a roughly 500W gaming load, the developer reports his six pins sit around 6.5A each, so any one pin drifting above 9.5A for that long is a clear red flag.
From alarm bells to power limits: evolving software protection
What makes 12VHPWR Guard more than a science project is how it fills a gap left by vendor tools. Asus’ GPU software can raise an audible alarm when a pin crosses its 9.2A threshold, but a pop‑up or beep does little if you are in a fullscreen game or away from the desk. By contrast, this app behaves like a circuit breaker: it acts for you when the connector misbehaves. It is Windows‑only, requires Python, and currently supports only Astral 5080/5090 cards because they expose the necessary per‑pin sensors, but its thresholds and timing are configurable for stricter or more lenient behavior. The author is already planning a smarter next step: instead of waiting for a full OS shutdown, the tool will drop the GPU’s power limit through Nvidia’s management API for a faster response, acknowledging that a meltdown happens on the connector, not the desktop.
Cooler Master’s GPU Shield: hardware-level insurance for 12V-2×6
Software can only protect cards that expose sensor data, so hardware vendors are stepping in for everyone else. Cooler Master’s GPU Shield is a dedicated inline adapter that sits between the PSU cable and the GPU’s 16‑pin header, compatible with both 12V-2×6 and 12+4‑pin connectors regardless of brand. It individually monitors current across the connector pins, adds a two‑tone housing to help users visually confirm the plug is fully seated, and uses a multicolored LED ring plus an audible alarm when something looks wrong. When it detects a major fault, it can actively reduce system power draw, functioning as a physical watchdog for any high‑end GPU that uses the new connectors. The initial release sold out quickly and offers different warranty terms by region, with some listings even promising compensation if a connector melts under valid usage, underlining how serious GPU owners still consider 12V-2×6 issues to be.
What this grassroots movement says about GPU power protection
Despite Nvidia’s public insistence that it is not at fault for 12VHPWR cable melting incidents that began with the RTX 4090 and have shadowed the RTX 5090, the paranoia among high‑end GPU owners is not going away. Many of these cards represent premium, four‑figure investments, so it is no surprise that owners are turning to free watchdog apps and aftermarket inline adapters to guard their RTX 5090 power connector before damage occurs. For Astral card owners, 12VHPWR Guard adds an automated safety mechanism that acts when Asus’ warnings might be missed; for everyone else, GPU Shield offers physical peace of mind with pin‑level monitoring and active fault response. Together, they show an uncomfortable truth: when platform‑level protections lag, enthusiasts will build their own. That is admirable, but it also highlights a glaring expectation—that GPU power protection at the connector should be a first‑party feature, not a community patch.
