The uncomfortable truth about RTX power cables
The current wave of high-end GPUs has exposed a clear safety problem: RTX 5090 and 5070 power connectors can overheat and melt when high power draw meets fragile 12VHPWR and PCIe cabling, especially when users rely on bad adapters, poor seating, or overloaded single cables. Enthusiasts are responding with software guards, stricter power delivery habits, and more careful cable management instead of waiting for vendors to fix everything at the hardware level. If you are using an Asus ROG Astral RTX 5090 or RTX 5080, a new free open-source tool could provide an extra layer of protection against one of the biggest concerns surrounding Nvidia’s high-end GPUs: melting 12VHPWR power connectors.
This is not a theoretical risk. The 12VHPWR connector has attracted plenty of attention since the launch of Nvidia’s RTX 50 series, with improperly seated or unevenly loaded power connections potentially resulting in excessive current being delivered through individual pins. In parallel, DIY builders are still abusing old 8-pin cables, as seen in a recent case where an RTX 5070 rig ended up with a melted PCIe lead after one 8‑pin was split into two. Together, these incidents underline a blunt reality: the ecosystem around high-watt GPUs is fragile, and users are being forced to engineer their own safety nets.
12VHPWR Guard: a last line of defense for RTX 5090 owners

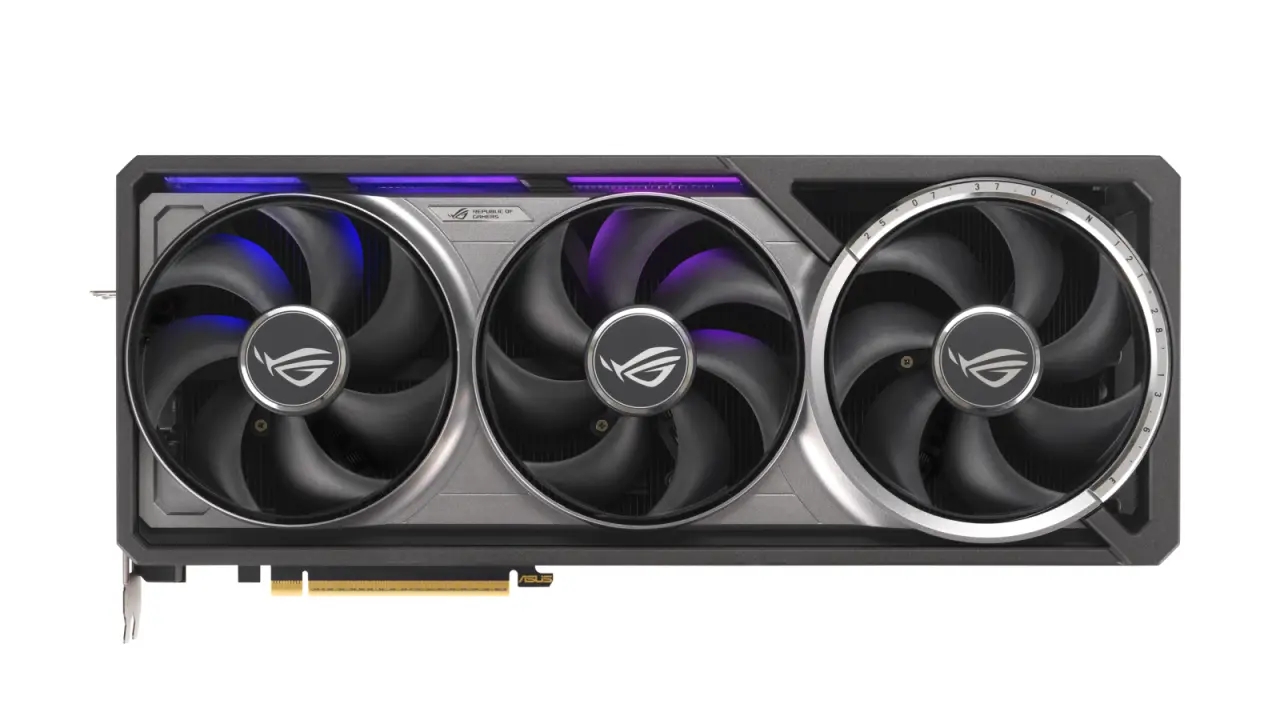

A gamer–developer on Reddit has written what might be the most practical response yet: a lightweight, free tool called 12VHPWR Guard for Asus ROG Astral RTX 5080 and RTX 5090 cards. It uses the cards’ built-in sensors, which can detect anomalies across all six power pins, and continuously watches the current on each pin. Under a roughly 500W gaming load, the six pins on his own RTX 5090 were sitting around 6.5A to 7.1A each, but in failure scenarios single pins can spike to 12–15A while others idle low. That imbalance, not just total wattage, is what cooks plastic.
The tool polls the pins twice per second and, using its default configuration, will force the PC to shut down if any individual pin remains above 9.5A for 15 consecutive seconds. Asus’ own warning threshold is 9.2A, so the app is tuned to act on sustained abuse instead of brief spikes. One quotable fact here is: “The tool polls the pins twice per second and will force the PC to shut down if any individual pin remains above 9.5A for 15 consecutive seconds.” This is true last-line protection: it cannot fix a physically damaged connector, prevent every possible failure mode, or guarantee that a graphics card will never experience a power-related problem, but it can turn a slowly cooking plug into a controlled shutdown instead of a fire.
When DIY goes wrong: the RTX 5070 splitter disaster

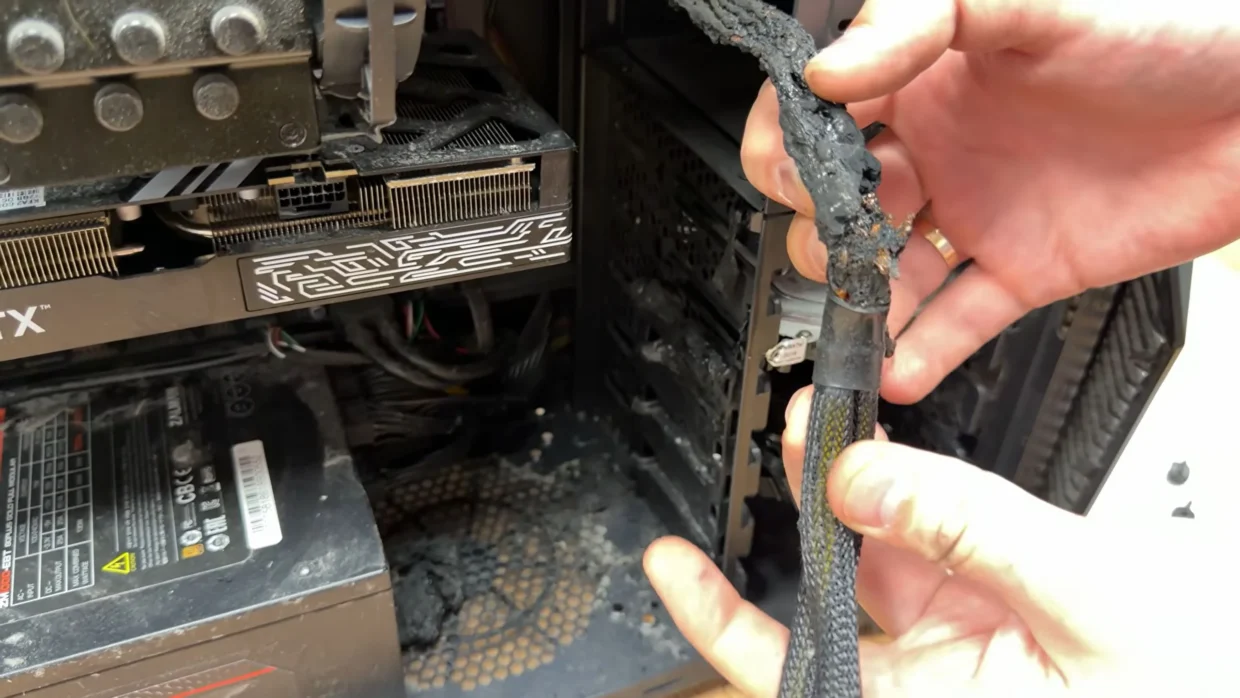

On the other end of the spectrum is a case study in what not to do. A system powered by an NVIDIA RTX 5070 ended up with a melted PCIe cable after the builder powered the card with a 12VHPWR adapter on one side and dual 8‑pin PCIe headers on the other, then fed those dual headers from a single 8‑pin PCIe cable split into two. In broad strokes, one 8‑pin PCIe connector is capable of running up to 150W of power, with a dual 8‑pin PCIe connector handling double that, and directly from the PSU. The 12VHPWR Gen 5 connector is designed to handle up to 600W in a single throughput.
At a very rudimentary level of electrical engineering, even this writer knows that you should never, ever split a single 8-pin PCIe cable into two. Doing this does not double the output, nor does it create another power source. Instead, the RTX 5070 was essentially duped into pulling more power through the cable than it was able to handle, which resulted in the melted casualty shown in the video. By some dark miracle, the 12VHPWR end survived, as did the card from the looks of it. This is the cautionary counterpoint to software safeguards: poor cabling choices can bypass any theoretical safety advantage of the connector and turn high-end hardware into a literal fuse.
Why enthusiasts, not vendors, are setting the safety bar
The contrast between 12VHPWR Guard and the RTX 5070 splitter incident reveals an uncomfortable pattern. Enthusiasts are building safety systems on top of a design that still leaves too much room for user error. The free tool is said to continuously monitor the current flowing through each individual power pin and automatically shut down the PC if one remains above a specified threshold for too long, yet it is restricted to Asus ROG Astral RTX 5080 and RTX 5090 models because only they expose per-pin sensors. So, while the idea is interesting, this is a niche solution rather than something every RTX 5090 or RTX 5080 owner can load up today.
Meanwhile, in the wider DIY world, builders are still making dangerous choices under the false assumption that any 8‑pin is equivalent. Stories of 12VHPWR PCIe cables melting and burning, with the latter nearly taking an entire house down, coexist with marketing about cleaner, smaller connectors. Enthusiasts are responding by tightening their own standards: no single-cable splits for dual 8‑pins, no half-seated 12VHPWR plugs, no sharp bends at the connector, and a bias toward PSUs that can comfortably exceed the GPU’s recommended 650W system requirement in the case of cards like the RTX 5070. Vendors may call apps like 12VHPWR Guard a “last line of defense,” but right now they feel like the first serious line.
Building safer high-end rigs going forward
If you plan to run a flagship card, you cannot treat power delivery as an afterthought. Proper 12VHPWR connector implementation starts with the basics: ensure the cable is completely inserted and not subjected to excessive bending or other mechanical stress, and avoid any adapter or splitter that pushes more wattage through a single cable than it was designed to handle. The RTX 5070, for example, carries a 250W TGP and a recommended 650W PSU, which should be seen as a floor, not a challenge to get as close as possible to the limit.
Software like 12VHPWR Guard is described as a last line of defense, and that is exactly how it should be used: as an automated safety net backing up good cable practice, not replacing it. That distinction matters because software can only react to electrical conditions the GPU sensors detect; it cannot fix a physically damaged connector or guarantee that a graphics card will never experience a power-related problem. Considering the price tier of an RTX 5090-class GPU, an extra layer of protection that costs nothing is a rational move, but the real win will come when safe power delivery is baked into every card and PSU by design, not patched in by the community after the fact.
