A DIY safety net around the RTX 5090 power connector

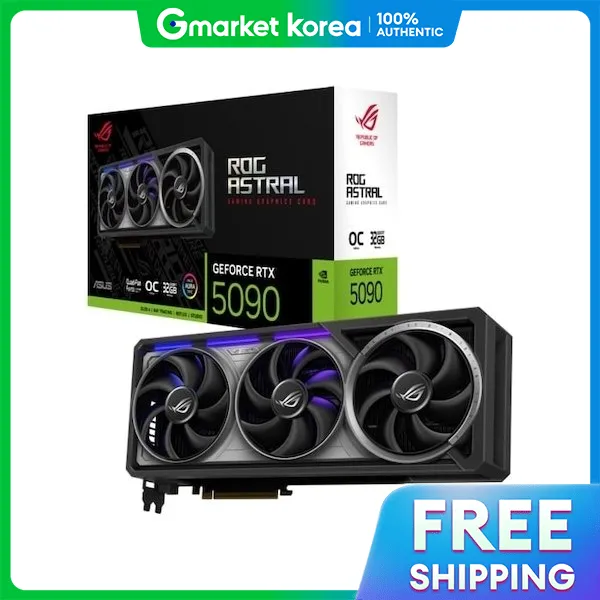

Community-built RTX 5090 GPU cable melting protection tools are small monitoring apps that watch per-pin current on the RTX 5090 power connector and automatically cut power when it exceeds a conservative threshold for several seconds, stepping in where owners fear NVIDIA’s connector safeguards are not enough. At the center of this story is a Reddit user, Humza Khalid, who coded a free Windows utility, 12VHPWR Guard, after deciding that existing protections for his card were not sufficient. The app targets Asus ROG Astral RTX 5080 and RTX 5090 boards, which expose per-pin sensor data over the GPU’s I2C bus. It reads current twice per second and forces a system shutdown if any pin stays above 9.5A for 15 seconds, aiming to intervene before a high-density connector can overheat and melt.
Why enthusiasts are writing their own NVIDIA connector safety code
The rise of these power monitoring tools is less about tinkering and more about distrust. Many owners of high-end NVIDIA GPUs "live in fear" of the dense 12+4-pin RTX 5090 power connector, which has shown weaker reliability and a slimmer safety margin than older PCIe power plugs. The updated 12V‑2x6 design tries to force a fully seated connection by tweaking dimensions, but the core power contacts remain unchanged, so overheating reports persist. Enthusiasts see that board partners like Asus already ship per-pin sensors on ROG Astral cards, yet their official software only pops a warning when a pin exceeds about 9.2A and does not enforce an automatic shutdown in all cases. For hardware that sits at the very top of the market, relying on a notification you might miss mid-game feels irresponsible, so users are filling the gap themselves.
Per-pin monitoring and the reality of cable melting protection
What makes 12VHPWR Guard notable is how specific and uncompromising its protection is. The app polls each of the six +12V pins twice per second via the card’s sensor chip, using NVIDIA’s management API for direct access. With pins rated around 9A, Asus warns at 9.2A, while Khalid’s default threshold is 9.5A sustained for 15 seconds, deliberately tuned to ignore short spikes and focus on truly dangerous loads. Under a roughly 500W gaming load, the developer reports seeing about 6.5A to 7.1A per pin, but failure cases can involve a single pin surging to 12–15A while others carry far less current, creating a localized hot spot that can burn the connector. In its current form the tool cuts power entirely, and future versions are planned to drop the GPU’s power limit instead for a faster, less disruptive response.
What the community response says about NVIDIA connector safety
The enthusiastic response to 12VHPWR Guard is a signal, not a sideshow. People are willing to run Python scripts that poll I2C sensors and force shutdowns because cable melting worries linger from the RTX 4090 era and have carried into Blackwell flagships. NVIDIA has publicly denied fault for connector failures, but the existence and popularity of community GPU cable melting protection shows that owners do not feel fully protected by official specifications or messaging. Given how expensive these GPUs are, resorting to user-made watchdogs makes sense to many. Importantly, Khalid frames his tool as a last line of defense: it only works on Astral 5080/5090 cards with per-pin sensors, requires proper connector seating, and offers configurable thresholds for different risk appetites. The message from the community is blunt: they want hard limits, not soft reassurances.
A grassroots warning shot for future RTX power designs
These community power monitoring tools should be read as a warning shot, not a niche experiment. When enthusiasts start writing their own RTX 5090 power connector guards, it exposes a perceived safety gap that vendors and standards bodies have not convincingly closed. The dense 12VHPWR and 12V‑2x6 connectors may be electrically capable on paper, but owners care about how they behave in imperfect, real-world installs where a single misaligned pin can creep past 9A into coil-melting territory. For now, tools like 12VHPWR Guard give Asus Astral users an extra layer of GPU cable melting protection and some peace of mind. Longer term, this kind of grassroots engineering is a clear request: build connector systems with wider margins, enforce per-pin safety in firmware, and make NVIDIA connector safety an automatic feature, not a community patch.
