Why ESP32 Is Perfect for Budget Robotics and IoT
A budget-friendly ESP32 project is a hands-on build that uses low-cost ESP32 boards, simple electronics, and free tools to teach core skills in servo motor robotics and IoT displays through practical, real-world applications. In this guide you will build two projects under USD 25 (approx. RM115) each: an ESP32 robot arm project with a 5-DOF servo arm rover and a smart dashboard ESP32 info display for live stats. Both projects suit makers with basic soldering and coding skills who want to learn how to control servo motors, serve web interfaces, and pull data from online APIs. You will assemble affordable hardware, wire power safely, and flash ready-made firmware so you can focus on learning instead of plumbing. Along the way you will see how one family of microcontrollers can power both budget robotics projects and a DIY IoT display.
Build a 5-DOF ESP32 Robot Arm Rover

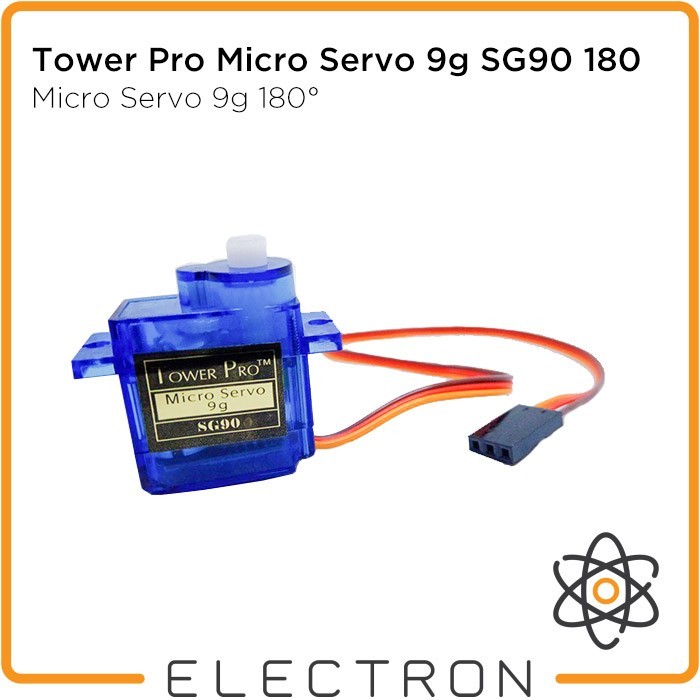

According to Hackster.io, you can build a 5-DOF ESP32 robot arm rover using three MG996 servos, four SG90 servos, and a low-cost ESP32 DevKit. Start with the drivetrain by mounting two MG996 servos on the back of a 3D-printed base, then add a front wheel using 608 bearings and a printed wheel axis so it drives like a small auto rickshaw. Prepare servo horns with M2 and M3 screws to keep joints tight before assembling the arm: base yaw, base pitch with a supported MG996, two SG90 arm joints, and a claw servo at the end. Power the servos from a 6 V boost converter and tie all grounds together, keeping the ESP32 on its own 3.3 V logic rail. Use the documented GPIO pins for each servo and double-check that the arm moves freely by hand before applying power.
Control, Calibrate, and Program the Robot Arm
Once wired, the ESP32 robot arm project turns into a Wi-Fi-controlled rover that students can drive from any browser. When powered, the ESP32 creates an access point named ESP32-Robot-Arm with a web server at http://192.168.4.1, so no router, cloud account, or phone app is required. The interface offers a joystick for the drivetrain, another joystick for the arm, and sliders that map directly to servo PWM values for calibration. A standout feature is the “Program Your Robot” mode, where learners chain simple drivetrain and arm blocks to form a sequence, then press Go to see the robot execute their plan. This mix of instant manual control and block-style programming turns servo motor robotics into an approachable lesson that connects mechanical movement, PWM signals, and basic programming logic in one low-cost build.
Build a Custom ESP32-C3 Smart Info Dashboard
The second project is a smart dashboard ESP32 build that turns an ESP32-C3 into a DIY IoT display for your online stats. The core hardware is an ESP32-C3 module, a 1.69-inch ST7789 color display, three tactile buttons, a buzzer, a voltage regulator, and some discrete components wired with thin hookup wire. The device runs from a 5 V supply and uses a custom DSN_Esp32C3_St7789 C++ graphics library to keep the interface smooth and lively. Pages show YouTube public watch hours and subscribers, AdMob revenue from mobile games, local weather, currency, last video analytics, and system info. Two buttons move between pages and the third fetches data or enters settings, making the dashboard easy to operate on a desk. This project shows how the same ESP32 family that powers a servo robot can also drive a compact information dashboard.
Connect APIs, Add OTA, and Grow Your ESP32 Skills
On the software side, the smart dashboard ESP32 project focuses on real IoT workflows instead of toy data. The ESP32-C3 connects to Google Cloud Console and other services using OAuth 2.0, pulls fresh analytics, then uses the custom display library to draw charts and icons on the 1.69-inch screen. The three-button control scheme keeps the device pocketable while still allowing manual refresh and access to settings pages. The maker is also testing OTA updates so the firmware can check for new versions and update itself, similar to a phone. Together, these projects highlight how ESP32 boards support everything from servo motor robotics to connected analytics tools. Build the robot arm first to learn hardware control and PWM, then tackle the DIY IoT display to gain experience with APIs, graphics, and long-running connected devices.
