The Hidden Friction in Development Board Pins
Pin identification on development boards is the process of visually locating and understanding each pin’s function from the markings on the printed circuit board, and when silkscreen labeling is unclear, this basic step adds preventable friction to hardware prototyping and debugging. Modern boards pack in Wi‑Fi, USB‑C, sensors, and dense headers, but many still treat the silkscreen as an afterthought instead of a user interface. Tiny fonts, cryptic abbreviations, and labels buried under components mean developers keep flipping between the board and online pinout diagrams. That slows the feedback loop that makes prototyping powerful. A microcontroller is inherently complex, but finding the correct GPIO should not be. When the board fails to communicate its own pinout well, every jumper wire, LED test, and logic probe takes a bit longer and feels more error‑prone than it needs to.
How Poor Silkscreen Labeling Hurts Hardware Prototyping
In hardware prototyping, speed matters: you breadboard a circuit, upload firmware, and iterate. Confusing silkscreen labeling on development board pins directly slows this loop. Labels that are half‑covered by modules, mirrored between top and bottom, or overlapped by copper traces force constant second‑guessing. You lose time checking boot‑sensitive pins, hunting for an available GPIO, or trying to remember which side of the dual‑row header belongs to a given signal. Mis‑wired LEDs on data lines or power rails can even block firmware updates or damage components, then send you chasing phantom software bugs. According to Hackster’s write‑up on silkscreen‑based devkits, “If users need to constantly consult a pinout diagram, the board is doing a poor job of communicating.” That quote captures the core problem: the silkscreen is the first line of documentation, and when it fails, every other tool has to pick up the slack.
Rethinking Silkscreen as a User Interface

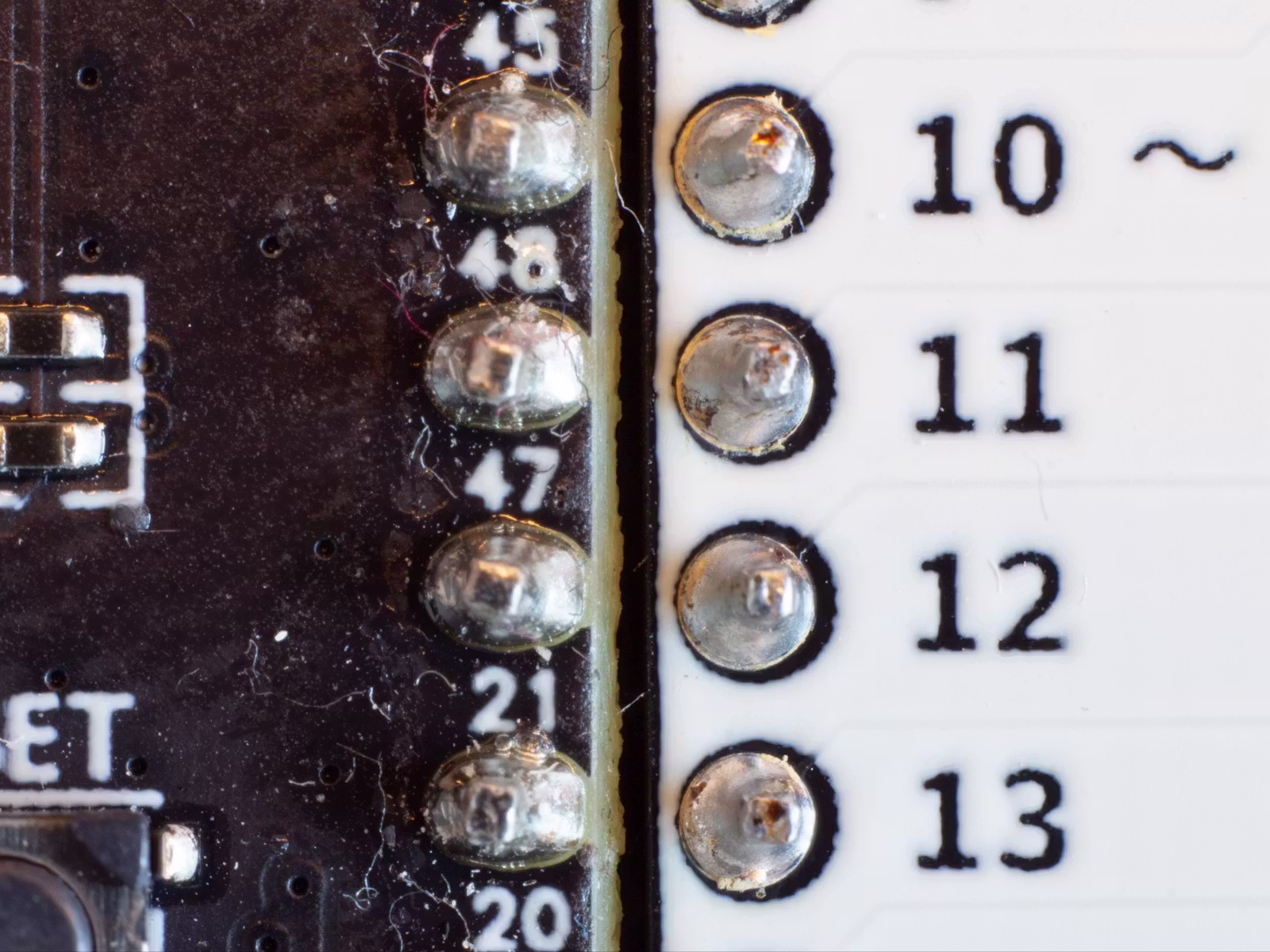

A growing group of designers now treats the PCB silkscreen as a communication layer instead of background decoration. One ESP32‑S3 dev board redesign keeps the same pinout and features as a standard ESP‑32‑Devkit, but rearranges components to free the entire top side for clear labels and graphics. By moving most parts to the bottom, the top becomes a flat surface where every pin can be named next to its pad. Visual hierarchy helps: GND and power pins use the boldest text, with color and contrast to distinguish voltages, while safe, general‑purpose GPIOs are grouped and highlighted as “use first” options. Pins with boot behavior or hidden connections form a separate tier so users do not casually hang LEDs on USB data lines. Thoughtful naming—GPIO number first, then function—aligns the physical board with code, making the mapping from breadboard to firmware straightforward.
Design Patterns for Clearer Pin Identification
Several practical design patterns are emerging for clearer pin identification. First, create space: leave the top side as label territory where possible, and avoid placing large modules over critical pin text. Second, use consistent naming and ordering so GPIOs appear in logical, code‑friendly sequences rather than scattered numerically, which forces custom arrays and mental gymnastics when addressing pins 4 through 8. Third, ensure labels sit directly beside their pins on the usable side of the board and avoid running traces through pin numbers whenever possible. Visual coding helps too: heavier fonts for GND and power, distinct backgrounds or colors for analog, touch, or primary GPIO pins, and subtle groupings that steer beginners toward safe choices. Manufacturing constraints matter—fine text can blur, and full‑color silkscreen can introduce unwanted white margins—so prototypes should test readability with the chosen PCB process before a design is finalized.
Why Better Silkscreen Labeling Improves Developer Experience
Treating silkscreen labeling as part of the developer experience turns the PCB into an always‑available reference. When the board itself explains which pins are safe, which are special‑purpose, and how to power external hardware, teams spend less time checking datasheets and more time shipping features. Clear development board pins also lower the barrier for newcomers, who can focus on learning concepts instead of decoding cryptic symbols. For experts, the payoff is fewer wiring errors and faster bring‑up of new designs. A PCB should communicate what you need to know, where you need to know it: directly next to the pad where the jumper wire goes. If a project demands a separate pinout diagram for every connection, the board is missing an opportunity. Silkscreen‑based devkits show that usability can improve without changing the pinout or increasing hardware cost—only by redesigning how information appears on the board.
