What the Steam Machine ‘Red Line of Death’ Really Is
The Steam Machine ‘Red Line of Death’ is a critical hardware failure state where the system loses video output and its RGB front strip shows a red diagnostic pattern, often after an update, but in most cases this can be cleared by a user-performed CMOS reset rather than a full hardware replacement.
The scare started when an early adopter’s 512 GB Steam Machine suffered a critical hardware failure on launch day, crashing to a black screen during initial setup. The system’s LED strip flashed a red pattern that Valve’s own documentation classifies as a GPU failure. The owner, posting as me_hill, shared the problem across the Steam Community and Reddit, where the ominous LED pattern quickly earned the nickname “Red Line of Death,” in clear reference to past console disasters. That label makes the problem sound fatal, but the emerging evidence points to something far less apocalyptic: a firmware hiccup triggered by early updates, not a batch of dead graphics chips.
How the Failure Shows Up: Black Screens and Cylon Lights

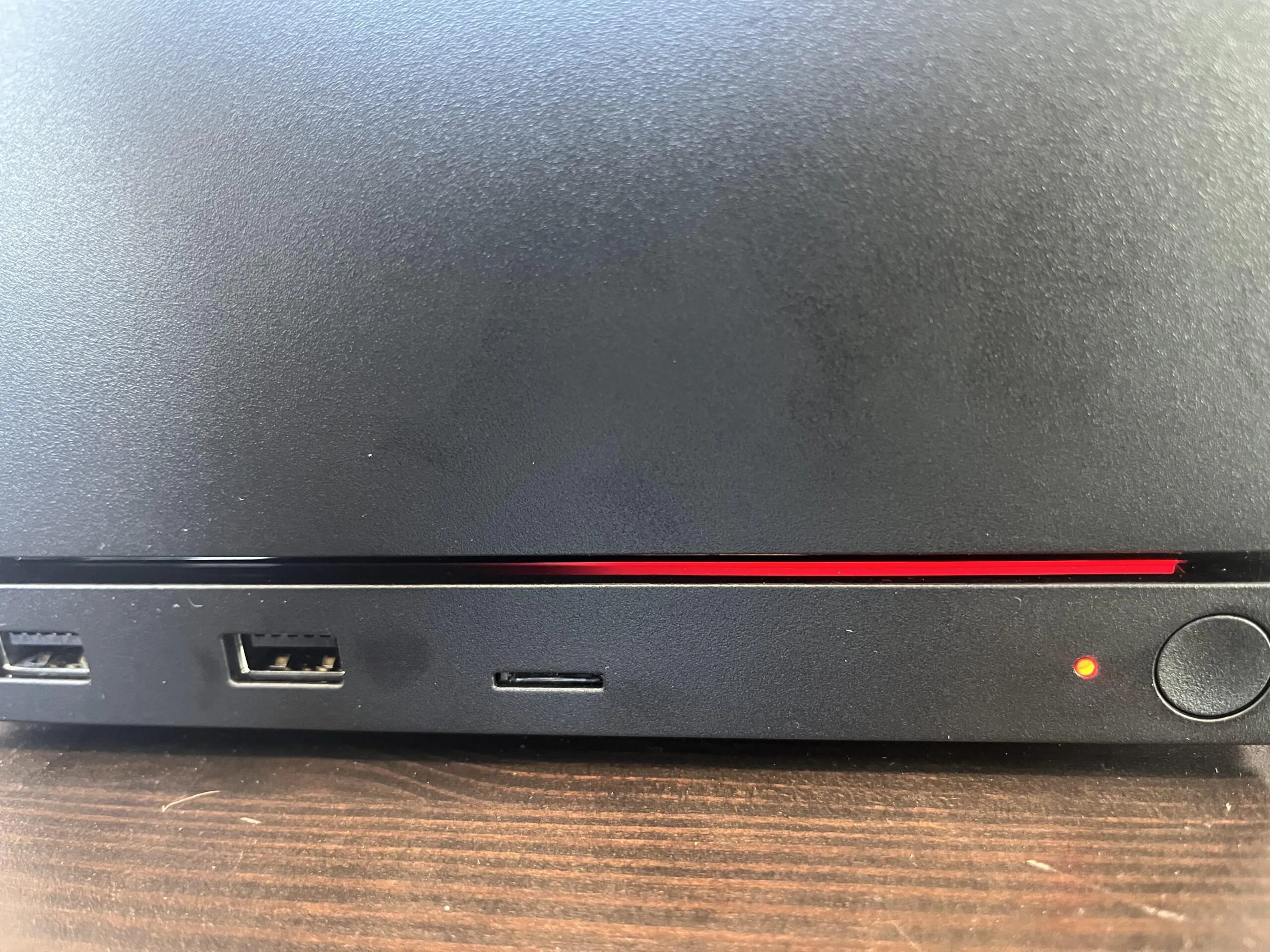

In practice, this Steam Machine hardware failure looks dramatic: the mini‑PC boots, runs for a short time, then loses its video signal and drops to a black screen while the RGB bar begins a Cylon‑like red sweep. In the first widely reported case, that happened about 20 minutes into use, right after a system update installed. Unsurprisingly, early buyers saw this as a sign of deep hardware doom, not a recoverable glitch.

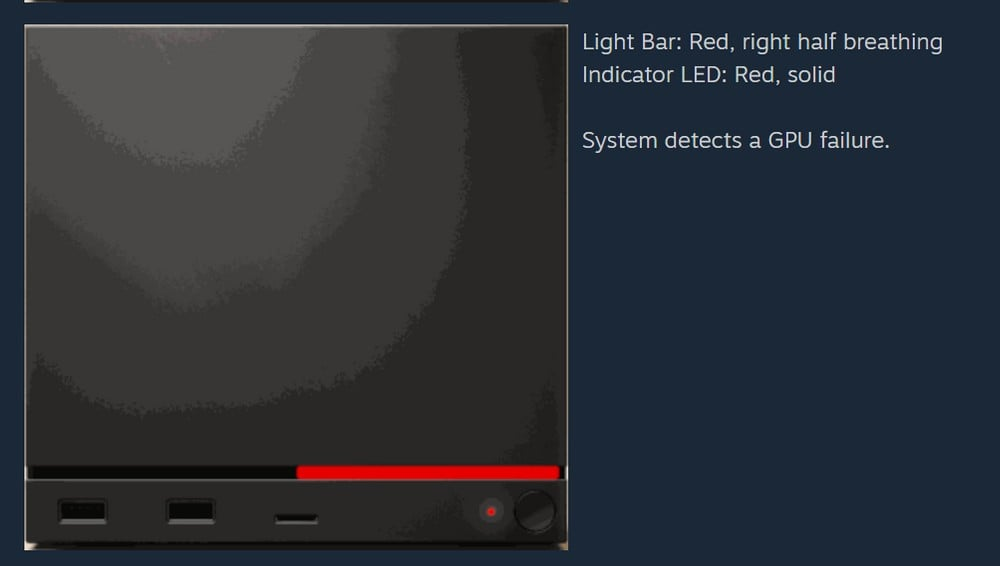

Valve’s diagnostic scheme turns the front LED strip into a status panel: a continuous red strip means overheating, with CPU over 95°C or GPU over 90°C; a pulsating red light in the right quarter signals missing RAM; the second quarter from the left indicates an SSD error; and a red pulsing light on the left side points to a failed memory test. When you combine that complex light code with a sealed, custom design that uses soldered components instead of swappable cards, owners naturally fear the worst.
Why This Isn’t a Dead GPU: Firmware, Training, and Design Limits
Calling this issue a GPU funeral is, in my view, misleading. Yes, the front strip’s pattern maps to a GPU error in Valve’s official documentation. But according to Valve’s own support reply, many of these failures are likely caused by an incomplete BIOS update and a resulting memory‑training problem, not a permanently damaged graphics processor. That distinction matters, because it decides whether you need a wrench or a power button.
Unlike traditional desktops, the Steam Machine’s compact custom architecture relies on soldered components; you cannot pop in a new graphics card to test a suspected failure. That closed design forces owners to lean on manufacturer support once things look hardware‑related. At the same time, it makes robust on‑box recovery tools essential. In this case, those tools exist in the form of a built‑in CMOS reset sequence, even though a miscommunication means the front panel LED code is flipped horizontally out of the box. For now, the weak point is not the silicon, but the update and recovery experience.
Step‑by‑Step: The Official CMOS Reset Fix
The good news: Valve’s own Steam support staff have identified a CMOS reset as the primary Red Line of Death fix, and it is something any owner can attempt without opening the case. This is the Steam Machine troubleshooting path you should try before assuming your system is dead or starting a return.
- Shut down and unplug the Steam Machine. Press the power button a few times to discharge the PSU; you may see the power LED blip briefly.
- Plug the system back in. Check whether the power LED glows with a breathing white pattern; note this for your support ticket if the reset fails later.
- Hold the power button for about six seconds, until the small power indicator LED flashes momentarily, then release it.
- Wait while the power LED cycles through color codes designed for recovery and troubleshooting. When the LED turns green, short‑press the power button to trigger a full CMOS reset.
- Allow the Steam Machine to reboot. On the next successful boot, the RGB bar should appear blue, and the system may take longer than usual while it retrains memory.
If this sequence does not bring the system back, Valve’s support guidance is clear: open a ticket and reference your LED behavior so they can escalate.
Should Early Owners Worry—and What Comes Next?
At this point, there is no hard evidence that the Red Line of Death signals a widespread, baked‑in hardware flaw across large production batches, though it has understandably raised caution among early buyers. It remains unclear whether we are seeing a minor quality‑control oversight multiplied by a shaky update process, or the early signs of a broader technical challenge for the platform.
My view is straightforward: early adopters should be concerned enough to learn the CMOS reset Steam recovery steps, but not so alarmed that they skip the hardware entirely. For now, the issue seems tied to specific launch‑window units and update timing rather than catastrophic component failure. The real test will be whether Valve refines the update pipeline so that users never see the Cylon‑style crash in the first place. Until then, the Red Line of Death fix is in your hands—and it runs through the power button, not the returns desk.
