The Steam Machine Red Line Is a Warning, Not a Funeral

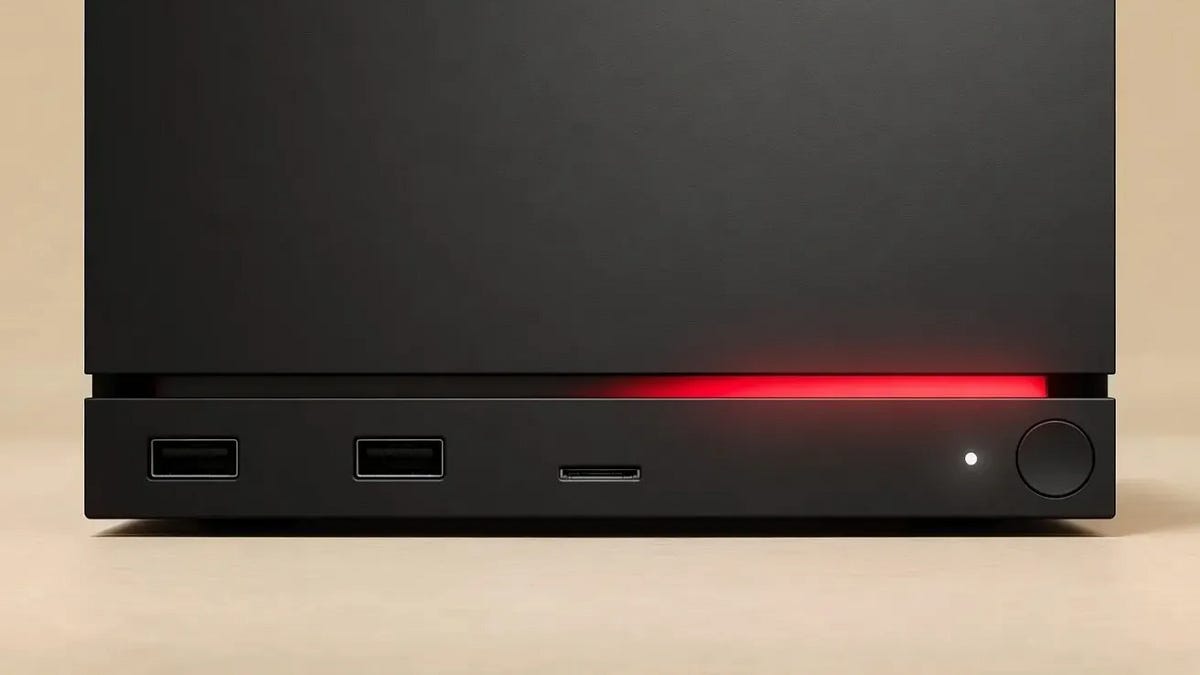

The Steam Machine red line is an LED indicator on the front of the device that can light up during boot to signal states such as GPU memory training, and despite early fan panic, it usually reflects a recoverable configuration issue rather than catastrophic hardware failure.
The internet loves a doom story, so the moment someone saw a half-lit red LED bar on their Steam Machine after a system update, the “Steam Machine red line of death” narrative was born. The comparison to the Xbox 360’s infamous Red Ring of Death made it sound like Valve’s new hardware was bricking itself on day one. In reality, Valve has now confirmed that what many thought was a GPU error is usually the system doing memory training during boot, not a GPU frying itself. Early adopters were not uncovering a design disaster; they were misreading a status light and a set of documentation that turned out to be misleading.
How Misdiagnosis Turned a Status Light into the ‘Red Line of Death’

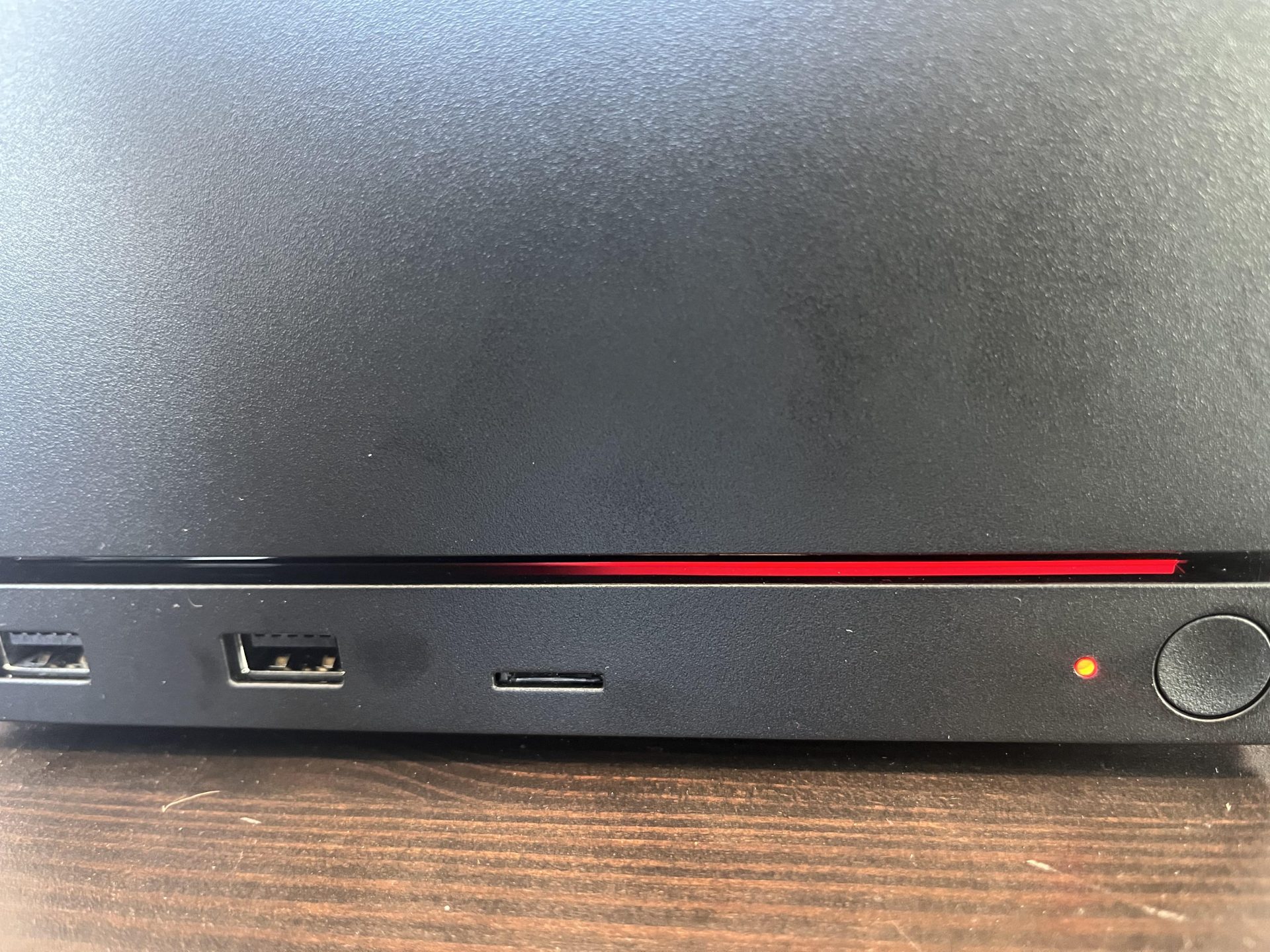

The original scare started when a Reddit user updated their Steam Machine, saw it crash, and then noticed half a red line glowing on the front LED bar. Following Valve’s own guidelines, that red segment was interpreted as a GPU failure, and within hours people were likening it to an Xbox 360-style “red ring of death”. The problem: both the LED and the documentation were out of sync with reality.
Valve has since explained that the front-panel LED bar is physically flipped horizontally compared with how the error codes were originally documented. According to Valve, a red line on the left should indicate memory training, while a red line on the right would point to GPU failure—but on shipping units the bar is reversed, so many users read a memory-training state as a doomed graphics card. What looked like reliable hardware failure diagnosis was, in practice, a labeling error colliding with community anxiety. That is why “what was previously thought to be a GPU failure was later debunked by Valve itself.”
What Valve Says the Red Line Really Means: GPU Memory Training
Valve’s clarification is blunt: “it wasn’t a GPU failure, but it was memory training on the Steam Machine”. In other words, that ominous red LED bar commonly appears while the system is working through GPU memory training after a BIOS update or configuration change. When an update does not fully complete or changes low-level settings, the machine can enter a longer memory initialization phase that looks, to an impatient owner, like a frozen or dying box.
Valve notes that this behavior often happens right after or during a BIOS update on Zen 4 and Zen 5 platforms and that some extra boot cycles are normal while the machine stabilizes and retrains memory timings. On a successful recovery boot, Valve says you should then see the RGB bar turn blue, and it may take a bit longer to reach the OS because it is completing memory re-training. That is a far cry from the permanent hardware death implied by the “red line of death” nickname; it is closer to a finicky boot than a funeral for your GPU.
Official Steam Machine Troubleshooting: How to Respond to the Red Line
Instead of panicking, Valve wants Steam Machine owners to treat the red LED bar as a prompt to run through a structured recovery process, not a verdict of failure. The most widely shared fix came from the same Redditor who sounded the alarm: leaving the machine unplugged overnight and then doing the recommended BIOS steps brought their “dead” Steam Machine back to life, booting “immediately without an issue”.
Valve’s own Steam Machine troubleshooting guide starts with a full power discharge: unplug the machine and press the power button a few times to clear stored energy in the PSU. Then you plug it back in, check the power LED behavior, and hold the power button for around six seconds until the indicator flashes. The LED will cycle through color codes for recovery options; when it turns green, a short press performs a full CMOS reset. On the next boot, you should see a blue RGB bar and may experience a longer startup while memory is retrained. If that sequence fails, Valve advises opening a support ticket with the specified ID format so they can investigate further.
Why the Panic Was Overblown—and What Users Should Learn
In hindsight, the Steam Machine red line episode says more about community expectations than about Valve’s hardware reliability. The original “red line of death” unit did not stay dead; it recovered and is now running games again after nothing more dramatic than a CMOS clear and time to finish memory training. The owner even admitted they “felt stupid” about raising the alarm and now tells others not to panic: leave the system for a few hours and let it sort itself out.
Most of the so-called failures were exaggerated or misidentified by early adopters who were primed to see another Xbox-style disaster. That does not excuse Valve’s miscommunication—shipping a flipped LED code bar is a serious documentation failure—but it does mean the Steam Machine red line should be treated as a diagnostic starting point, not an obituary. If you see it, follow the official GPU memory training recovery steps, give the device time to reinitialize, and only then escalate to support. In other words: respect the warning light, but stop treating it like a death sentence.
