The Red LED Isn’t Your GPU’s Death Rattle
The Steam Machine red LED is a diagnostic light bar that signals states like memory training, missing RAM, SSD errors, and thermal alerts, and recent reports show most red LED events after a BIOS update are tied to memory training and misread codes rather than catastrophic GPU failure. That matters, because many owners are treating a red bar as a hardware obituary when it’s closer to a BIOS status icon. The dramatic “Red Line of Death” nickname took off after users saw a solid red bar and a seemingly dead system right after a firmware update. But Valve’s own support responses make the situation clear: in many of these cases, the machine is stuck in memory training in the BIOS, not mourning a dead GPU. If you understand what the colors and positions mean, you can move from panic to practical troubleshooting.
Valve’s Misflipped LED Bar and Misdiagnosed GPU Failure
The most frustrating part of the Steam Machine red LED saga is that the tool designed to help enthusiasts diagnose problems has been misleading them. Valve support admits the front light bar is flipped horizontally “due to a miscommunication,” which scrambles the visual map people rely on. According to Wccftech’s summary of Valve’s Reddit response, a red line thought to mark GPU failure was in fact the indicator for memory training on the opposite side of the bar. In other words, owners have been reading the LED like a mirror image and jumping straight to GPU failure diagnosis, tearing down hardware that isn’t broken. Combine that flipped bar with a BIOS update that triggers memory training, and you get the perfect storm: a non‑booting system, an alarming red LED, and a community convinced their GPUs died in under half an hour.
CMOS Reset: The Real Fix for Most Red LED Incidents
If you’re staring at a Steam Machine red LED after a BIOS update, your first move should not be ordering a new GPU—it should be a CMOS reset. Valve’s own instructions are refreshingly old‑school: unplug the machine, discharge the power supply with a few presses of the power button, then trigger the built‑in recovery sequence and select the green LED option to perform a full CMOS reset. On the next boot, the RGB bar should turn blue and the system may take longer to start while it goes through memory training in BIOS. One Reddit user even recovered from a so‑called Red Line of Death by a crude CMOS reset: leaving the machine unplugged overnight cleared the issue and the system worked fine the next day. This is why enthusiasts need to treat CMOS reset troubleshooting as a standard step before assuming permanent GPU damage.
- Power down and unplug the Steam Machine.
- Press the power button several times to discharge the PSU.
- Plug it back in and hold the power button for about six seconds until the dot LED flashes.
- Wait for the indicator to cycle colors; when it turns green, short‑press the power button to trigger a CMOS reset.
- Allow the next boot to run; expect a blue RGB bar and a slower start as memory training completes.
Overheat Alerts vs. Real Thermal Limits

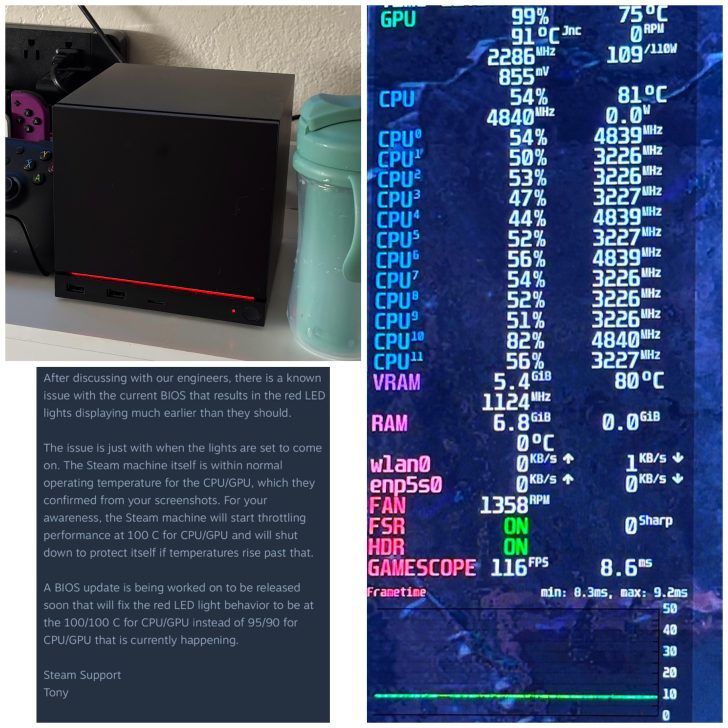

The same red LED that signals memory‑related issues also doubles as a thermal warning, and Valve’s initial thresholds were far too conservative for modern hardware. Users reported overheating alerts while the GPU sat around 75 °C and the CPU at 81 °C—comfortably below the design limits of Zen 4 and Zen 5 chips. Steam Support confirmed the problem: the current BIOS makes the light bar turn red at about 95 °C for CPU and 90 °C for GPU, even though “the Steam machine will start throttling performance at 100 C for CPU/GPU and will shut down to protect itself if temperatures rise past that.” A forthcoming BIOS update will raise the red LED alert to 100 °C for both CPU and GPU, which should end the stream of false warnings that interrupt stress tests and games. Until then, enthusiasts need to treat many red thermal LEDs as early alerts rather than proof of damage.
Why Learning LED Codes Beats Replacing Hardware
The lesson from the Steam Machine red LED saga is blunt: if you own enthusiast hardware, you owe it to yourself to understand its diagnostic language. Memory training BIOS behavior, flipped LED bar codes, and conservative thermal thresholds created a perfect recipe for wasted time and money. A red LED after a BIOS update now strongly points to memory training rather than a GPU killer, and a blue bar after a CMOS reset is a sign of recovery, not a delay to fear. Likewise, knowing that the overheating warning is moving to 100 °C stops you from treating every red light during gameplay as catastrophic. Enthusiasts should stop treating LEDs as mysterious omens and start treating them as tools—decode the Steam Machine red LED, use CMOS reset troubleshooting early, and reserve true GPU failure diagnosis for the rare cases where these steps don’t bring the system back.
