What the Steam Machine Red Line Means (and Why It’s Not Doom)

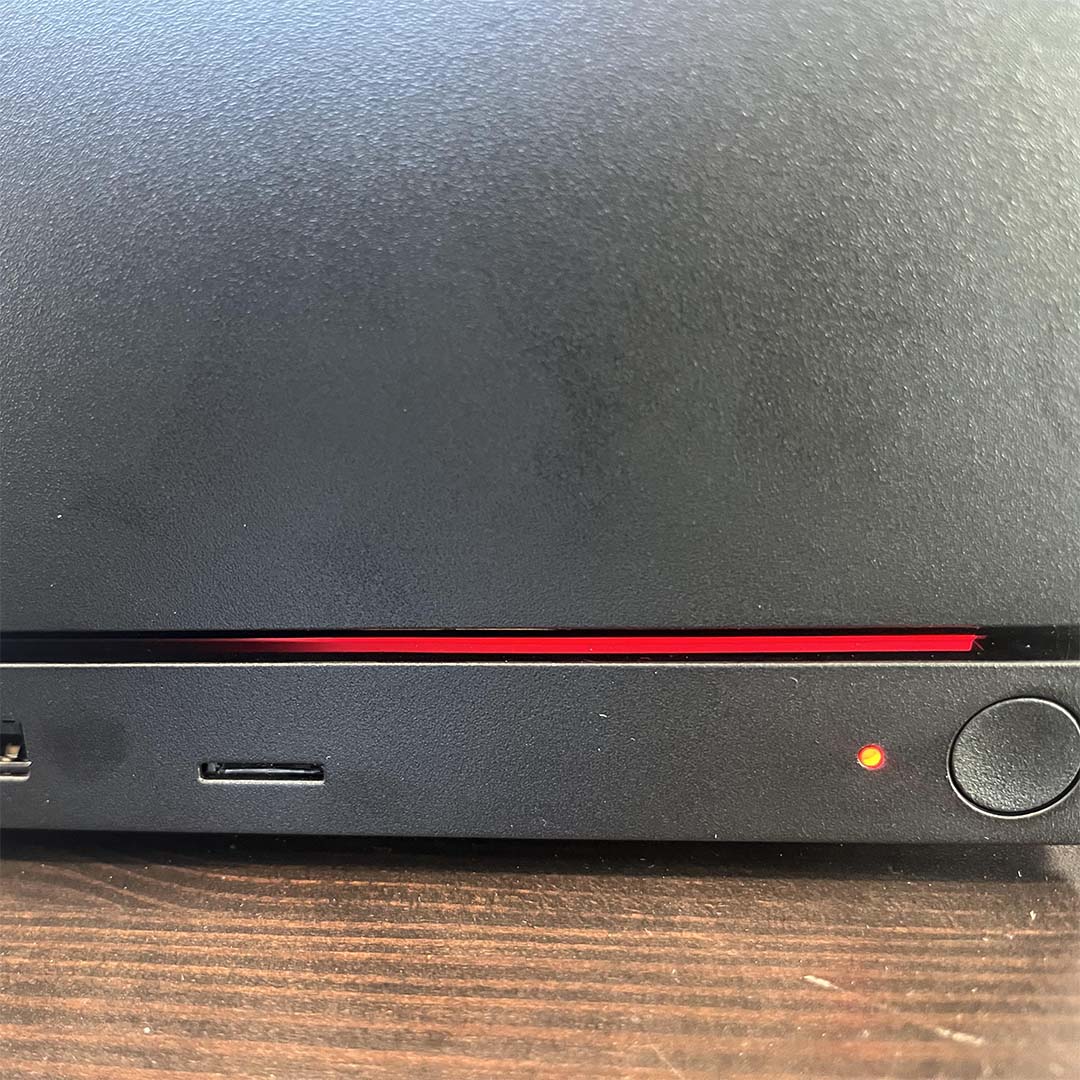

The Steam Machine red line is a diagnostic LED pattern on the front RGB strip that often appears after BIOS updates and, despite the nickname “red line of death”, usually signals a memory training issue rather than a permanent GPU failure. In plain terms, your system is teaching itself how to talk to its DDR5 RAM reliably, which can look scary but is often reversible with patience and a CMOS reset. When users saw a red bar after updates and their Steam Machines refused to boot, they assumed the GPU had died, yet investigation showed the hardware was normally fine and the firmware was still sorting out memory settings.
This guide is for anyone whose Steam Machine stopped booting after an update and now shows a red pattern or Cylon-like blinking on the LED strip. The real prerequisite is time and a bit of care: you need access to the power button, the power cable, and the patience to wait through memory training. If you are worried you need a full GPU failure troubleshooting workflow or a replacement, read this first; understanding what the red line means can save you from unnecessary service calls or hardware swaps.
Memory Training vs GPU Failure: Reading the Flipped LED Codes

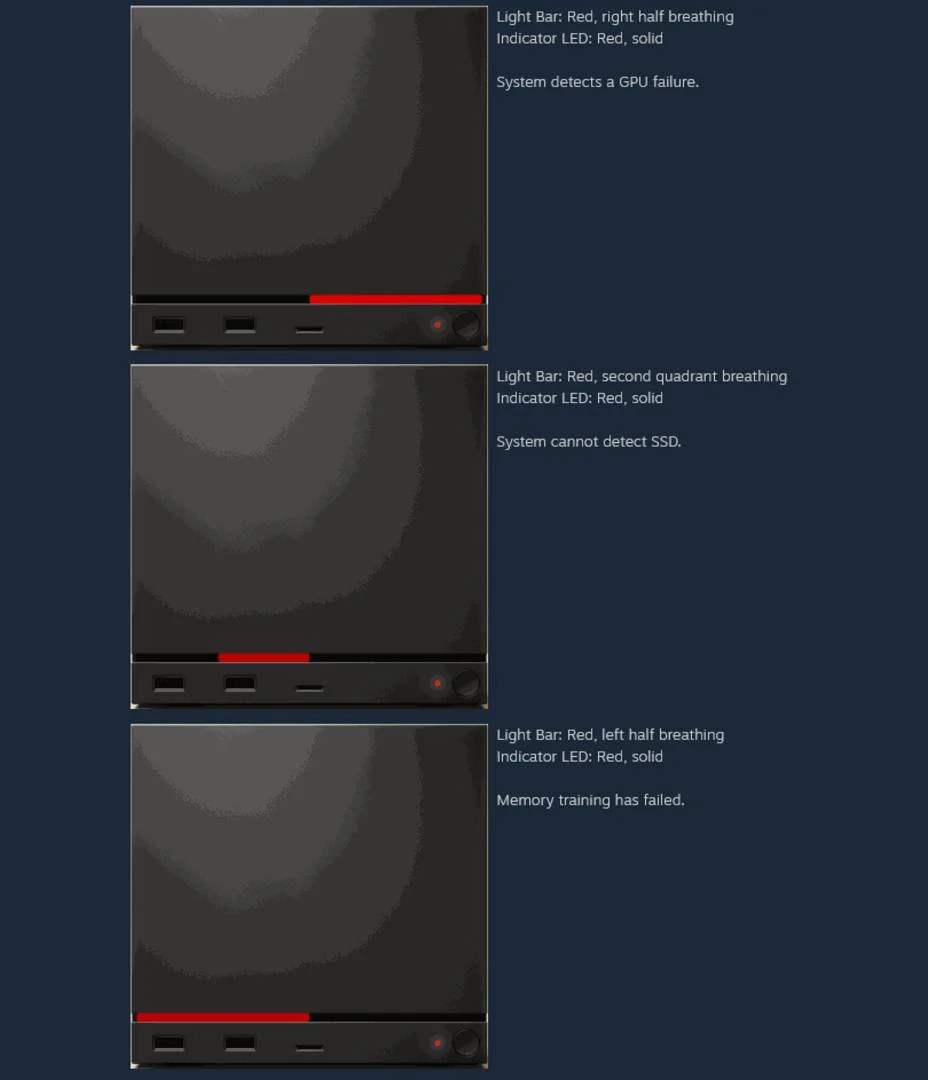

Under the official documentation, a red light at the right end of the front bar was supposed to indicate a GPU failure, while the left side meant memory training. The problem: Valve later confirmed “the front panel code is actually flipped horizontally out of the box,” due to a miscommunication. That means many people read the LEDs backwards and concluded their graphics hardware was dead when the system was busy retraining RAM after a BIOS update. In several reported cases, including one system that had only been used for about 20 minutes, the machine stopped booting after an update, showed the red line, then powered on fine the next day once memory training completed.
The bar also encodes other states: a continuous red light across the entire strip points to CPU overheating above 95 °C or GPU above 90 °C, a pulsating red light in the right quarter means no RAM detected, a red pulsating light in the second quarter from the left signals an SSD error, and a red pulsing light on the left side shows a failed memory test. Knowing that these segments are flipped in practice helps you decide whether you are seeing a memory training fix scenario or a genuine GPU failure issue. In many post-update cases, the timing and the pattern line up with memory training and a stuck BIOS state rather than broken hardware.
Step-by-Step CMOS Reset Guide to Fix the Red Line and Cylon Blinking
Most of the Cylon-like blinking and red line reports share a pattern: the Steam Machine ran a BIOS update, then would not boot and sat on an LED error pattern. In these cases, Valve recommends forcing a CMOS reset, which clears the firmware’s saved settings and triggers fresh memory training on the next boot. This does not erase your games or OS; it resets motherboard-level configuration so the CPU can re-establish clean timings and voltages with your DDR5 RAM. Think of it as telling the board to forget its bad assumptions about your memory and start over with a clean slate.
- Unplug the Steam Machine from power, then press the power button a few times to discharge stored energy in the PSU; you may see the power LED blip briefly.
- Plug the Steam Machine back in and watch the power LED: if it glows with a white breathing pattern, stop here and open a support ticket instead of proceeding further.
- If the LED is not in that white breathing state, hold the power button for about 6 seconds until the tiny power indicator dot flashes, then release the button when it flashes.
- Wait while the power LED cycles through color codes that represent recovery options; when the LED turns green, press the power button briefly once to select that option.

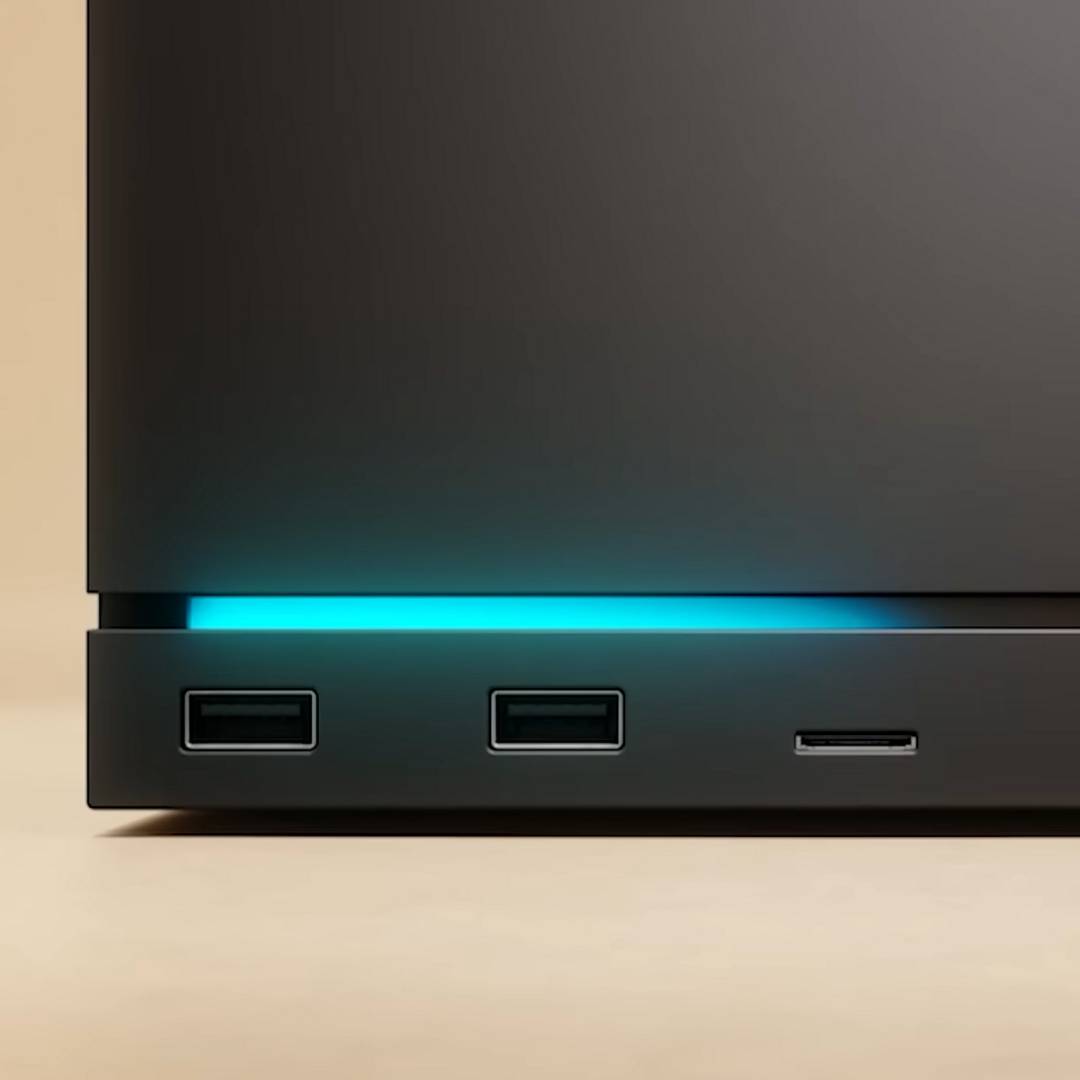

- After the green selection, the machine performs a full CMOS reset; on the next boot the RGB bar should turn blue, and the first startup may take longer because the system is retraining memory.
The only real gotchas are impatience and misreading the LEDs. If you see the white breathing pattern in step two, that is your cue to stop DIY attempts and talk to support. After step five, give the system time: AMD Zen 4 and Zen 5 platforms can sit seemingly inactive while they establish stable electrical signals, timings, and voltages with DDR5 memory, and that training period can be longer than you expect. In many cases, a careful CMOS reset followed by a patient wait is enough to break the loop of Cylon-style blinking and bring the Steam Machine back without any service visit.
When You Still Need GPU Failure Troubleshooting
Even though the famous Steam Machine red line often turns out to be memory training, you should still be aware of true GPU failure troubleshooting signals. A continuous red light along the whole strip is about temperature, not training: it points to a CPU over 95 °C or a GPU over 90 °C, which you treat as an overheating problem first. A pulsating red light in the quarter originally documented as the GPU error zone may in practice map to memory or SSD problems because of the flipped code, so pay attention to where on the bar the light appears and what you were doing before it appeared.
The key distinction is timing: reports that started right after or during a BIOS update are, in Valve’s own words, “very likely” memory training issues and not immediate evidence of a dead GPU. One user who thought their brand-new machine had died found that leaving it unplugged overnight allowed it to boot again, supporting the idea that it was stuck in a long training phase rather than suffering hardware failure. Remember, according to Valve’s hardware feedback account, the front panel LED code is flipped at the firmware level, so relying on the original chart alone can lead you toward unnecessary replacements when a CMOS reset and some patience would have solved it.
Is the Fix Worth Trying? Final Takeaways
If your Steam Machine suddenly shows a red line on the LED strip and refuses to boot after an update, treat it as a memory training fix problem first, not an automatic GPU failure. In many reported cases, the GPU had not failed at all; the system was hung between a BIOS update and DDR5 training, made more confusing by the flipped front panel code. A careful CMOS reset, followed by a wait for retraining, has brought a number of these “dead” machines back into normal operation without any need for replacement hardware or service visits.
So yes, the reset procedure is worth trying as long as you respect the warning about the white breathing power LED, which should send you directly to official support. Understanding how memory training works on AMD Zen 4 and Zen 5 platforms and how it shows up on the Steam Machine’s LED bar will help you stay calm when the Cylon-like blinking starts. Watch for overheating patterns, watch for post-update timing, and let the board complete its CMOS reset and training cycle before calling the hardware dead. Most of the time, your Steam Machine is not dying; it is learning.
