The uncomfortable truth: RTX 5090 power connectors are failing in normal use
RTX 5090 connector failure refers to repeated incidents where the GPU power connector on Nvidia’s flagship card overheats under normal, correctly installed use, leading to 12VHPWR cable melt, charred pins, thermal damage GPU, and sometimes dead graphics cards and power supplies. This is not a fringe edge-case; it is a pattern that high-end builders ignoring at their own risk. The most telling incident involves a GeForce RTX 5090 Founders Edition that turned into a “hot, smouldering mess” during routine testing, killing both the card and the PSU when a single native 12V-2×6 cable from a 1,000W Dark Power 13 melted at both ends. Another tester saw the same connector meltdown on an RTX 5090 Founders Edition while using a 4×8-pin to 12V-2×6 adapter. These are experienced users following guidance, not novices misplugging cables.
Why this looks like a fundamental design flaw, not bad cabling

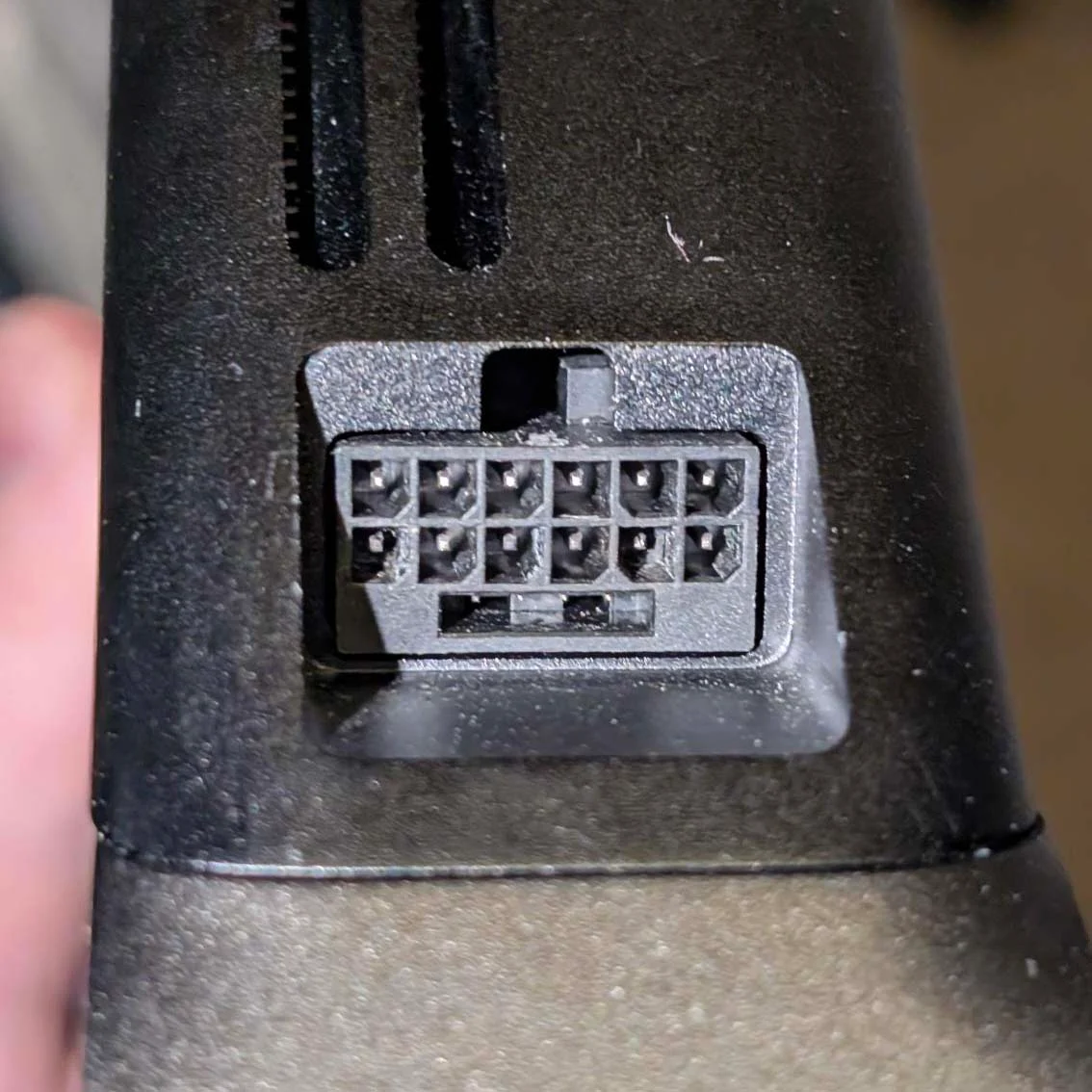

The industry line has been clear: if the 16‑pin GPU power connector melts, the user must have seated it badly, bent it too tightly, or used cheap adapters. Recent RTX 5090 cases blow that excuse apart. In one test rig, the connector pair was a native, dedicated 12V‑2×6 cable from a reputable 1,000W PSU, firmly plugged into both card and supply, with no extensions or experiment-grade hardware in sight. In another, the adapter setup followed Nvidia’s own recommendations for high-power cards. According to Northridge Fix, “not a single day goes by” without a melted 4090 connector arriving for repair, even after the move from 12VHPWR to 12V‑2×6. That upgrade added shorter sense pins and longer power terminals, yet one cable tested with a thermal camera hit 150°C on a single wire, pointing to uneven load distribution and poor current-sharing by design. The connector itself appears to be the weak link.
How widespread failures and thermal damage change the risk calculus
We are no longer talking about isolated RTX 5090 connector failure anecdotes; this is a continuation of the same 12VHPWR cable melt saga that began with the RTX 4090 and has now reached RTX 50‑series flagships. When a connector overheats enough to char and deform pins on the GPU and cable, and to damage the power supply socket, the practical impact on ordinary users is brutal: catastrophic hardware loss and, more importantly, a genuine safety concern. These failures are happening on Founders Edition GPUs and other models, under heavy gaming, AI workloads, and benchmarks where power spikes exceed 500–600W. The pattern is consistent: huge transient loads pushed through a compact 16‑pin interface, with uneven current spreading and localized hotspots. Not only does it break components, but it’s also unsafe. If a kitchen appliance mains cable behaved like this, it would be recalled immediately. PC builders should treat the risk with the same seriousness.
Immediate mitigation strategies for high‑end builders

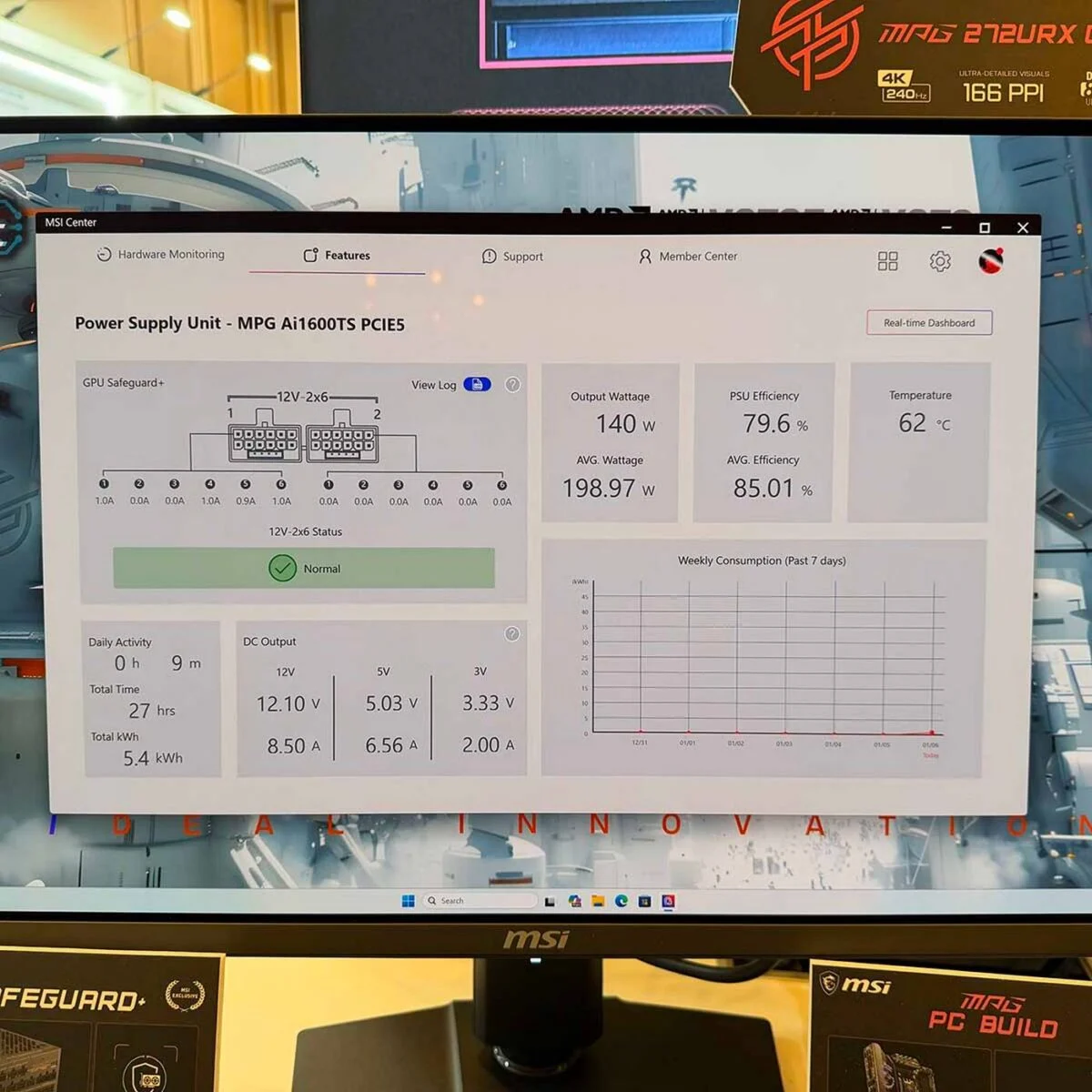

Until the connector situation is fixed, high‑end builders need to change how they approach RTX 5090 builds. First, avoid daisy‑chained or questionable adapters wherever possible; use native 12V‑2×6 cables from high‑quality ATX 3.1 power supplies, and check that the plug is fully seated on both GPU and PSU ends. Keep the cable run as straight and relaxed as your case allows to reduce mechanical stress that can worsen pin contact and heating. Second, treat power limits, undervolting, and monitoring tools not as enthusiast tweaks but as risk mitigation. Several PSU and cable makers now ship temperature sensors, current‑balancing designs, and even audible alarms to detect early connector overheating. These gadgets are band-aids, but they can give you time to shut down before a total melt. If you are affected, document the damage thoroughly—photos of charred pins, melted plastic, and affected components—for RMA and support claims.
What needs to change before RTX 60‑series and beyond
Nvidia continues to stand by the 16‑pin GPU power connector, saying it meets ATX 3.1 specifications and recommending native cables from reputable power supplies. It has replaced failed cards for some users, which is welcome, but that does not fix a design that can send a single cable conductor to 150°C under load. It also does nothing for melted PSUs or the worry that the next spike might come while your system is unattended. There is a window before the next wave of GPUs—RTX 60‑series and RDNA 5—thanks to high DRAM costs delaying launches, and that breathing space should be used to rethink the connector itself. The next ATX standard must offer a safer high‑current interface that handles hundreds of watts without thermal damage GPU or 12VHPWR cable melt. It is time for GPU vendors, CPU vendors, and PSU makers to design a new socket that is secure, easy to seat, and inherently resistant to the failure mode we are watching play out across RTX 4090, 5070, and now 5090 cards.
