A Unified Falcon Platform for Embedded Vision Cameras
Vadzo’s latest Falcon camera lineup is a family of embedded vision cameras built around Onsemi and OmniVision image sensors, designed to meet the distinct needs of medical, robotics, automotive, and industrial automation vision systems within compact, UVC-compliant USB form factors. Rather than offering one generic module, Vadzo has created multiple purpose-built variants that share common interfaces but diverge in resolution, sensor type, and processing features. Across the range, USB 3.0 or USB 3.2 Gen 1 connectivity with UVC compliance allows plug-and-play integration on common operating systems without custom drivers, which shortens development for OEMs. By mixing 13MP and 20MP medical imaging sensors, a 2.5MP automotive HDR camera, and high-resolution robotics vision systems, the Falcon series now spans fundus and dermatology devices, AGVs and collaborative robots, fleet cameras, and inspection lines under a single branding and engineering philosophy.
20MP Medical Imaging Sensors for Fundus, Dermatology, and Diagnostics
In medical imaging, Vadzo is pushing resolution and sensitivity with the Falcon-2020 series, a 20MP USB camera platform based on the Onsemi AR2020 sensor. Available as the Falcon-2020CRS color and Falcon-2020MRS monochrome models, these medical imaging sensors support 5K imaging, dynamic region-of-interest selection, and NIR-sensitive monochrome capture for point-of-care diagnostics and lab automation. According to Vadzo’s product engineering team, “Twenty megapixels in a UVC-compliant USB module changes what is achievable in a handheld or cart-mounted clinical camera.” Fundus cameras, dermatoscopes, and wound documentation systems can achieve sub-millimeter lesion visibility while still connecting over standard USB 3.2 Gen 1. Hardware and software trigger modes help align image capture with clinical workflows, and M12 lens mounts let OEMs tune field of view for diverse optical layouts without changing the underlying camera electronics.

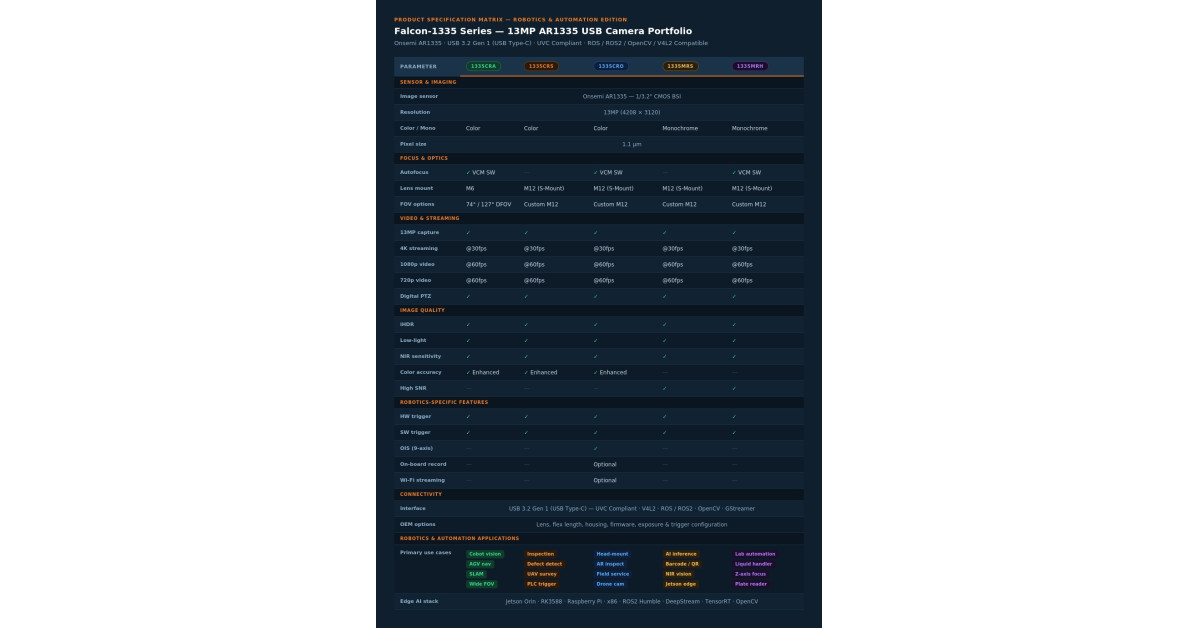

13MP Robotics Vision Systems and On-Board ISP for AGVs
For robotics vision systems and industrial automation vision, Vadzo has extended its 13MP Falcon-1335 lineup and added the Falcon-2020CRS 20MP color camera with on-board ISP. The Falcon-1335 series uses the Onsemi AR1335 sensor and spans autofocus, 4K color, optical image stabilization, and NIR-sensitive monochrome variants that all stream up to 1080p at 60fps and 720p at 60fps. UVC-compliant USB 3.x interfaces integrate with ROS2, OpenCV, GStreamer, and standard Linux drivers, while hardware trigger inputs synchronize cameras with robot motion or conveyor encoders. The Falcon-2020CRS targets AGV navigation and high-resolution inspection, coupling a 20MP sensor with an integrated ISP that manages debayering, color correction, auto exposure, auto white balance, and dynamic ROI. This design sends processed, inference-ready frames over USB without consuming host CPU or GPU cycles, giving robots and AGVs more spatial detail without increasing processing load.
Automotive HDR Camera for Dashcams, Fleet, and Smart Infrastructure
On the automotive and edge infrastructure front, Vadzo has released the Falcon-3C10CRS, a 2.5MP automotive HDR camera built around the OmniVision OX03C10 PureCel Plus-S sensor. This USB 3.0 module delivers a native 140dB high dynamic range and strong LED flicker mitigation, key requirements for dashcams, fleet management systems, and smart city kiosks that operate in scenes with intense contrast and pulsed LED lighting. The sensor’s single-capture HDR avoids motion artifacts and ghosting by eliminating multi-exposure stacking, so it can read license plates in direct sunlight while preserving pedestrian detail in shadows within the same frame. LED flicker mitigation suppresses banding from 100–120Hz lighting without fixed exposure constraints. As a UVC-compliant automotive HDR camera with an M12 lens holder and USB Type-C interface, Falcon-3C10CRS also suits AGVs, robotics, UAVs, and even medical devices that must handle challenging lighting conditions.
From Standalone Cameras to Turnkey OEM Vision Solutions
Vadzo’s expanding Falcon range signals a shift from standalone modules toward turnkey OEM solutions for embedded vision cameras. The company’s medical-focused Falcon-1335 variants are tuned for fundus imaging, dermatology, and other clinical use cases, while robotics versions add hardware triggers and NIR-optimized monochrome options for structured light and low-light factories. The 20MP Falcon-2020 family extends that strategy, pairing high-resolution medical imaging sensors with dynamic ROI and flexible optics, and the Falcon-2020CRS adds an on-board ISP to reduce system complexity in robotics and industrial automation vision deployments. Complementary offerings such as NIR LED array boards, mentioned alongside these cameras, show Vadzo’s move into tightly integrated vision subsystems where illumination, optics, and image processing are engineered together. With medical, robotics, automotive, and industrial automation segments now covered, Vadzo is positioning Falcon as a common platform that can be tailored to each embedded vision market’s specific needs.
