A Modular HyperLux Platform for Industrial Vision Cameras
Vadzo’s expanding family of industrial vision cameras is a modular platform of USB and MIPI board-level modules using Onsemi HyperLux sensors, giving OEMs tuned options for traffic, robotics, medical, and retail edge AI vision applications with resolutions from 2MP to 8MP and support for HDR, global shutter, rolling shutter, autofocus, and monochrome capture. Across the Falcon (USB) and Bolt (MIPI CSI-2) lines, the company has launched more than eight USB MIPI camera modules based on HyperLux and HyperLux LP parts such as AR0821, AR0830, AR0544, and AR0234. USB 3.2 Gen1 variants focus on plug-and-play UVC connectivity on Windows, Linux, and Android, while MIPI CSI-2 modules connect directly to embedded SoC ISPs for low-latency pipelines. This approach lets design teams tune resolution, dynamic range, and power profile while keeping a common sensor architecture and driver model.
Traffic Monitoring and Edge AI Vision on NVIDIA Jetson
For ITS and smart intersection deployments, Vadzo centers its traffic monitoring camera strategy on the Falcon-821CRS, an 8MP AR0821 USB 3.2 Gen1 module delivering 4K HDR imaging with intelligent iHDR, auto exposure, and a native 9-axis IMU. Engineered for scenes that can exceed 100 dB dynamic range, it targets license plate readability and vehicle identification in the mix of direct sun, headlight glare, and deep shadows that defeat many industrial vision cameras. According to Vadzo Imaging, the Falcon-821CRS has been “confirmed operational on NVIDIA Jetson Orin NX, Jetson AGX Orin, and Jetson Orin Nano running JetPack SDK,” including V4L2, GStreamer, OpenCV, and DeepStream. That validation positions the camera as a ready front-end for 4K edge AI vision, letting teams build traffic analytics and smart intersection pipelines without device-tree engineering or MIPI bring-up.
Retail Shelf Compliance and Digital Signage Analytics

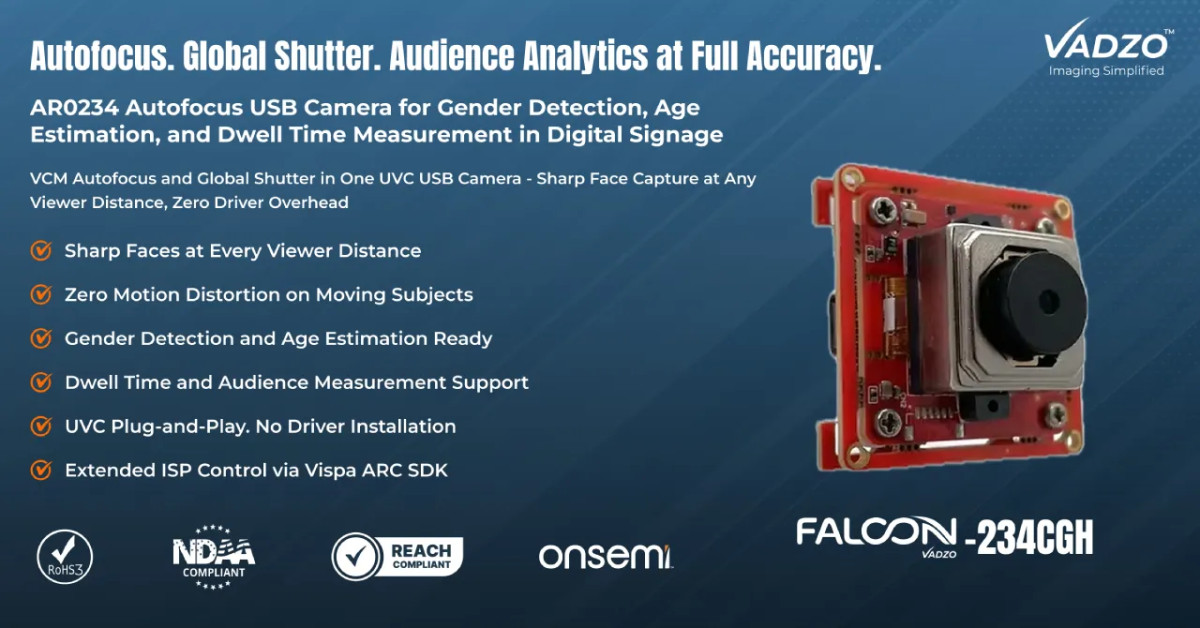

In retail, Vadzo splits use cases between static product monitoring and fast-changing human-centric analytics. For smart shelves and planogram compliance, the Falcon-544CRS uses the 5MP Onsemi HyperLux LP AR0544 color rolling shutter sensor with eDR and LI-HDR, enabling continuous shelf monitoring where bright overhead lighting and shadowed product faces share the same frame. As a low-power USB 3.2 UVC camera, it streams to Windows, Linux, and Android hosts without custom drivers, which is well suited to large-scale shelf deployments. For digital signage and kiosks, the Falcon-234CGH traffic monitoring camera alternative focuses on people, not products: a 2MP AR0234 global shutter autofocus USB camera that captures 1080p at up to 60 fps and VGA at 90 fps, avoiding motion distortion and blurred faces as viewers move past screens, enabling gender, age, and dwell-time analytics at the point of attention.
Robotics, AGV Navigation, and Power-Constrained Wearables
Robotics and mobile platforms need compact, low-power USB MIPI camera modules able to handle variable working distances. On USB, Vadzo’s Falcon-544CRA pairs the 5MP AR0544 HyperLux LP color rolling shutter sensor with a VCM autofocus lens and USB 3.2 Gen1, targeting robotics, AGVs, UAVs, drones, kiosks, medical tools, and even intelligent traffic monitoring where auto exposure and autofocus are essential. For embedded MIPI designs, the Bolt-830CRH adopts the AR0830 HyperLux LP sensor with a 1/2.9-inch BSI array (3848 × 2168), delivering 4K at up to 60 fps in 10-bit linear mode and 30 fps in LI-HDR and eDR modes. A VCM autofocus assembly and four-lane MIPI D-PHY interface make it a single-board choice for wearable cameras, access kiosks, retail automation, and clinical monitoring terminals that demand consistent, high-dynamic-range 4K frames over direct CSI-2 links.
Monochrome and USB vs MIPI Choices for OEM Designs
Vadzo rounds out the lineup with monochrome industrial vision cameras for inspection, NIR imaging, and machine vision tasks. The Falcon-544MRS USB 3.2 Gen1 camera and Bolt-544MRS MIPI CSI-2 module both use the 5MP AR0544 HyperLux LP monochrome rolling shutter sensor, removing the Bayer filter to send full photon flux, including enhanced NIR at 850 nm and 940 nm, to each pixel. With eDR, LI-HDR, Wake on Motion, and multiple subsampling modes, these modules handle industrial inspection, barcode reading, robotics vision, microscopy, and low-power embedded deployments. More broadly, the portfolio illustrates a modular strategy: teams can choose USB 3.2 Gen1 for plug-and-play UVC, simpler host integration, and flexible OS support, or MIPI CSI-2 for tightly coupled ISP pipelines and lower latency when space, power, and deterministic timing matter in edge AI vision systems.
