From Generic Modules to Purpose-Built Embedded Vision Cameras
Specialized embedded vision cameras are application‑tuned imaging modules that combine specific sensors, optics, interfaces, and firmware to match the workflow, lighting, and integration needs of target systems across medical, robotics, and industrial markets. Instead of forcing a single off‑the‑shelf USB camera into every design, Vadzo Imaging is building modular portfolios where each model is optimized for a defined use case yet shares a common technology base. This approach tackles fragmented requirements: medical devices need regulatory‑friendly USB connectivity and clinical‑grade image quality; robotics vision systems require trigger sync and edge AI compatibility; industrial automation cameras must fit into GigE, USB, or MIPI pipelines already on factory floors. By standardizing on sensor families such as Onsemi’s AR1335 and AR2020 while varying optics, focus mechanisms, and monochrome or NIR options, Vadzo aligns camera design with real‑world imaging problems instead of datasheet averages.
Clinical Imaging: Falcon-1335 and Falcon-2020 Target Fundus, Skin, and Telemedicine

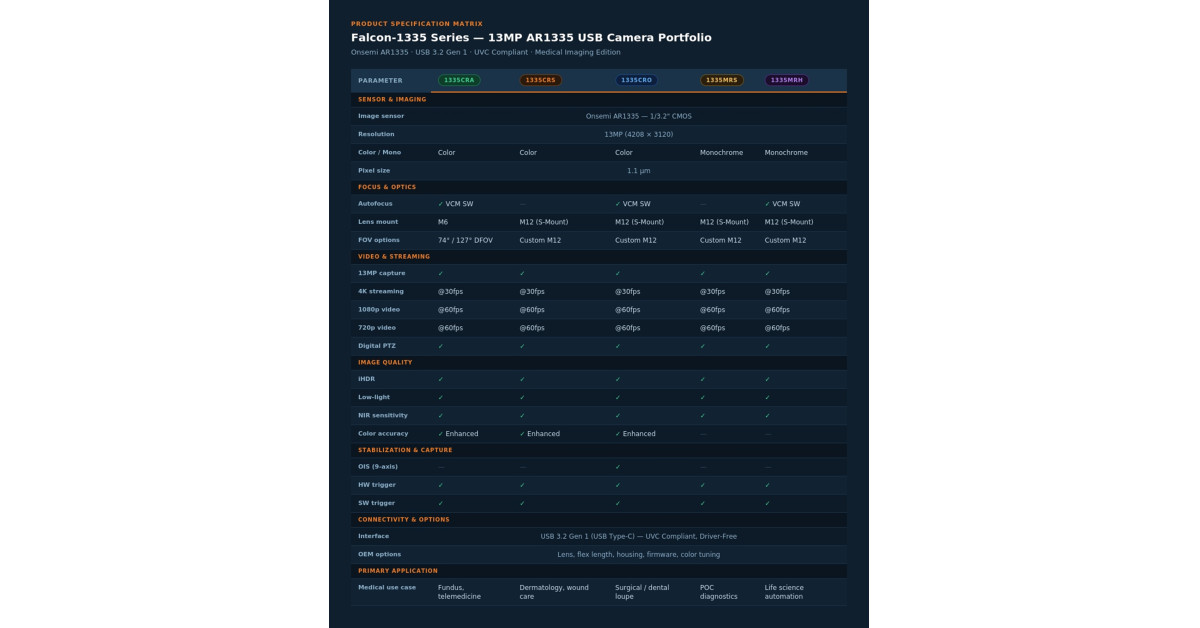

In medical imaging, Vadzo now spans 13MP and 20MP medical imaging sensors tuned for fundus cameras, dermatoscopes, wound documentation, and telemedicine carts. The Falcon-1335 USB family uses the 13MP Onsemi AR1335 across five variants, including autofocus, 4K color, optical image stabilization, and monochrome options, all with UVC-compliant USB 3.0 or USB 3.2 Gen 1 connectivity. According to Vadzo Imaging, “The Falcon-1335 series resolves that tension by giving each clinical application a camera that's optimized for its specific workflow, not a generic module forced to fit.” For higher‑end diagnostics, the Falcon-2020 series moves to the 20MP AR2020 sensor, delivering 5K color and monochrome imaging with dynamic region of interest selection. These HDR USB cameras are aimed at AI‑assisted diagnosis and sub‑millimeter lesion detection while maintaining plug‑and‑play integration on Windows, Linux, Android, and macOS, which helps device OEMs manage software validation and regulatory timelines.
Robotics Vision Systems and Industrial Automation Cameras at the Edge
Robotics and industrial automation cameras must deliver high resolution, deterministic timing, and reliable operation in changing factory lighting. Vadzo’s Falcon-1335 series extends beyond clinics into collaborative robots, AGVs, inspection lines, and AI edge platforms with 13MP USB 3.2 Gen 1 imaging, 4K streaming, and 1080p or 720p at 60 fps. All five models are UVC-compliant, so they attach directly to ROS2, OpenCV, GStreamer, and V4L2-based stacks without custom drivers, while hardware trigger support synchronizes capture with robot motion controllers or PLC pulses. For embedded vision cameras that live far from the data center, this combination of on-board processing, iHDR, and flexible frame rates allows real-time inspection, pick-and-place, and navigation on modest compute. Industrial users can select color, monochrome, autofocus, OIS, or NIR-sensitive variants, aligning sensor choice and optics with each station’s mechanical constraints and throughput targets instead of redesigning the entire vision chain.
HDR USB Cameras for Fleet, Smart City, and Automotive-Grade Monitoring
High dynamic range is now critical wherever scenes mix deep shadows with direct sunlight or fast LEDs. Vadzo’s Falcon-3C10CRS HDR USB 3.0 camera, built on the Omnivision OX03C10 sensor, brings 2.5MP resolution with a native 140dB HDR range and LED Flicker Mitigation to embedded vision systems. Designed originally for automotive camera monitor systems and surround view, this module now targets fleet monitoring, smart city kiosks, AGVs, robotics, UAVs, and medical devices. The single‑capture HDR avoids motion artifacts common in multi‑exposure stacking, so tunnel exits, loading docks, and outdoor kiosks retain license plate detail and shadow‑zone pedestrians in the same frame. LED Flicker Mitigation keeps factory, roadway, and hospital LED lighting from producing banding. Together with the 120dB‑class iHDR support in Falcon‑1335 models, Vadzo is building a continuum of HDR USB cameras that meet the lighting extremes seen in automotive dashcams, fleet management, and urban surveillance.
NIR Monochrome Vision with Integrated LED Arrays for Biometric and Day-Night Use
Beyond visible light, Vadzo is treating near‑infrared as a system‑level design problem, not a box‑checking feature. Its NIR LED Array Board Integration Service pairs monochrome NIR cameras with tailored 850nm or 940nm LED boards, covering 20MP AR2020 MIPI, 13MP AR1335 MIPI, 5MP AR0521 USB, and 3.2MP Sony Pregius S IMX900 GigE configurations. The goal is uniform illumination across the field of view, removing hotspots and edge darkening that hurt biometric accuracy and inspection reliability. Triggered LED pulsing is synchronized to the camera exposure window, so ambient light is suppressed while day‑night operation remains consistent without changing camera settings. That makes these embedded vision cameras suitable for facial and iris recognition, code and surface inspection, and outdoor day‑night vision. When combined with high‑resolution sensors and HDR-capable visible cameras elsewhere in the portfolio, Vadzo’s approach points toward modular, end‑to‑end imaging stacks rather than isolated camera components.
