A 20MP USB Camera Platform for High-Resolution Embedded Vision
Vadzo’s Falcon-2020 series is a family of 20MP USB cameras based on the Onsemi HyperLux AR2020 sensor that bring 5K color and monochrome imaging, dynamic region-of-interest control, and on-board image processing to medical devices and robotics vision systems, enabling high-resolution embedded vision without adding computational load to host processors. At its core, the platform is built for OEMs who need more detail than conventional 13MP sensors provide, especially for AI-assisted diagnosis, precision inspection, and AGV navigation. The cameras stream full 20MP at up to 5 fps and 13MP at up to 10 fps, while also supporting 4K, 1080p, and 720p video modes for real-time workloads. UVC compliance over USB 3.2 Gen 1 means the modules appear as standard devices on Windows, Linux, Android, and macOS, removing the need for proprietary drivers and easing integration into existing clinical and industrial software stacks.
Falcon-2020CRS: Color Medical Imaging Camera for Fundus and Dermatology

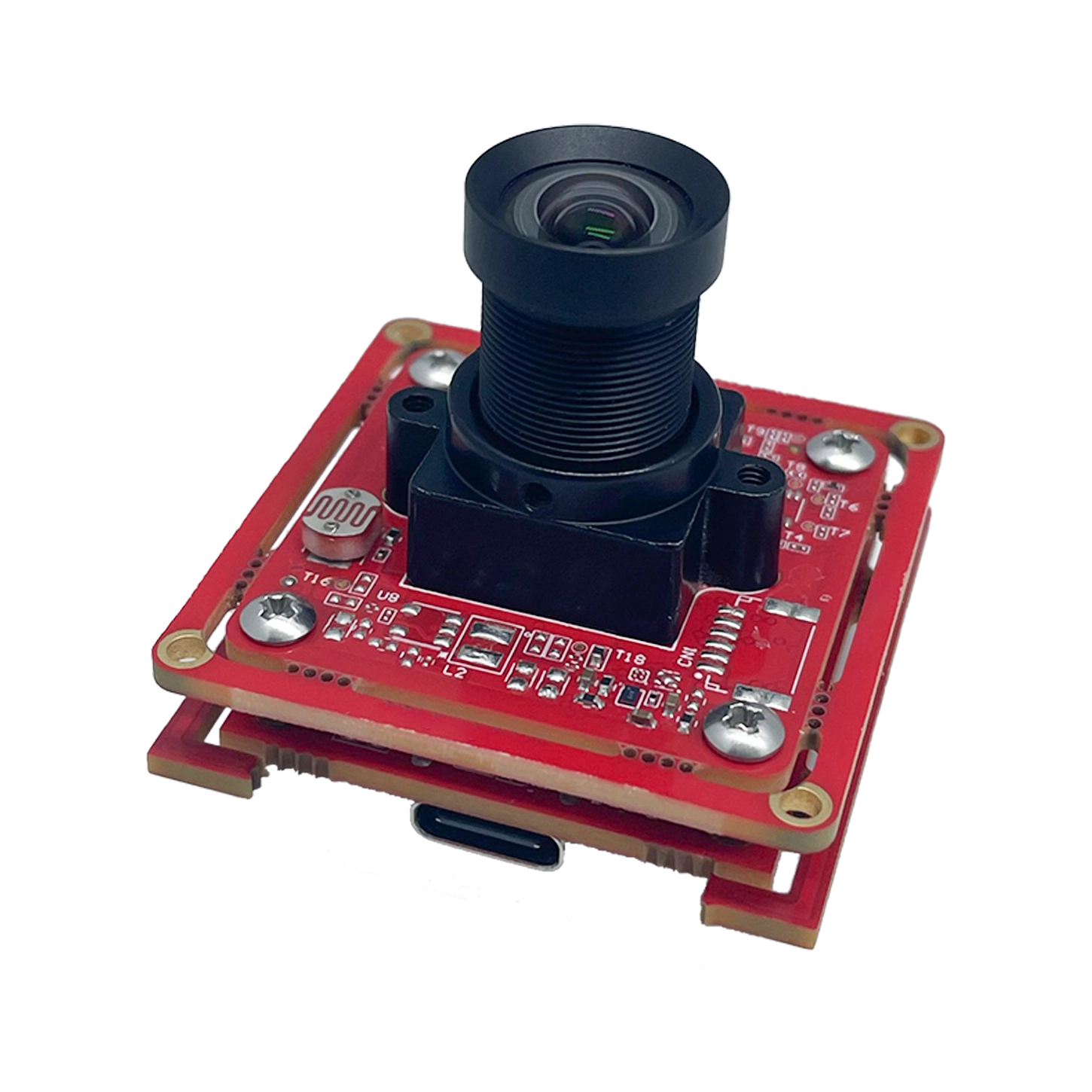

The Falcon-2020CRS is a 20MP color USB camera that targets demanding medical imaging camera applications such as fundus photography, dermatology, and wound documentation. At 5496 × 3672 resolution, it delivers 5K color frames that capture fine retinal vessels, skin microstructures, and subtle pigment variations needed for longitudinal tracking and AI-assisted triage. Dynamic ROI lets systems switch between full-frame 20MP capture for archival records and cropped, higher-frame-rate views for live examination. According to Vadzo Imaging, “Twenty megapixels in a UVC-compliant USB module changes what is achievable in a handheld or cart-mounted clinical camera.” The M12 lens mount supports custom optics, including polarized and cross-polarized dermatoscope adapters, while hardware and software triggers align with both tabletop and portable instruments. For device makers, plug-and-play UVC behavior helps keep regulatory-driven software changes minimal while still upgrading to a modern, high-resolution medical imaging camera platform.
Falcon-2020MRS: Monochrome and NIR for Diagnostics and Lab Automation
Complementing the color model, the Falcon-2020MRS is a 20MP monochrome USB camera tuned for NIR sensitivity and high signal-to-noise ratio, addressing point-of-care diagnostics and life science automation. Its AR2020-based monochrome configuration removes the color filter array, improving sensitivity in low light and under narrowband illumination common to assay readers, rapid test analyzers, and fluorescence-adjacent workflows. High pixel count means that barcode-intensive laboratory systems can decode small or dense codes while still tracking sample wells and control regions in a single high-resolution embedded vision scene. Like the CRS, the MRS is UVC-compliant and USB 3.2 Gen 1, simplifying integration into regulated clinical software environments. Dynamic ROI and trigger modes suit timed assays and stepwise protocols, where only specific regions or time points need to be captured. NIR response also enables application as an AGV navigation camera in low-contrast, label-based guidance schemes inside labs and production facilities.
On-Board ISP and Dynamic ROI for AI-Driven Robotics Perception
For robotics vision systems and AGV navigation, the Falcon-2020CRS stands out by pairing 20MP resolution with a full on-board ISP. Traditional high-resolution sensors offload raw Bayer frames to the host, where debayering, color correction, and exposure control consume CPU and GPU cycles before any AI inference runs. Vadzo’s design instead performs debayering, demosaicing, color correction, contrast adjustment, auto exposure, auto white balance, and center-based auto exposure in-camera, delivering inference-ready sRGB frames over USB without host-side image processing. This reduces latency and frees compute resources for SLAM, detection, and pose estimation models. A 20MP frame yields roughly four times the spatial information of a 5MP camera, resolving small parts, fine label text, and distant obstacles important for bin picking and obstacle detection. Dynamic ROI allows controllers to focus on conveyor zones, bins, or landmarks, raising effective frame rates during critical motion phases without changing optics or interface.
Bridging Medical and Industrial Markets with a Single AR2020 Platform
By standardizing on the HyperLux AR2020 sensor and USB 3.2 Gen 1, Vadzo aligns medical and industrial variants of its 20MP USB camera portfolio around a common architecture. Medical OEMs gain color-accurate, high-resolution sensors suitable for fundus cameras and dermatoscopes, while robotics and AGV designers access the same silicon with color or monochrome configurations tuned for perception workloads. High-resolution embedded vision is central to both domains: clinical AI models benefit from sub-millimeter lesion detail, and robotics perception stacks profit from dense spatial information for 3D reconstruction and semantic understanding. The shared ISP feature set—auto exposure, auto white balance, color correction, and ROI—ensures consistent behavior across devices, simplifying multi-market software development. As AI inference moves closer to the edge, a 20MP, ISP-equipped AGV navigation camera or medical imaging module that avoids host-side preprocessing becomes a practical building block for next-generation autonomous and diagnostic systems.
