What Next-Generation Loudspeaker Design Platforms Do Differently

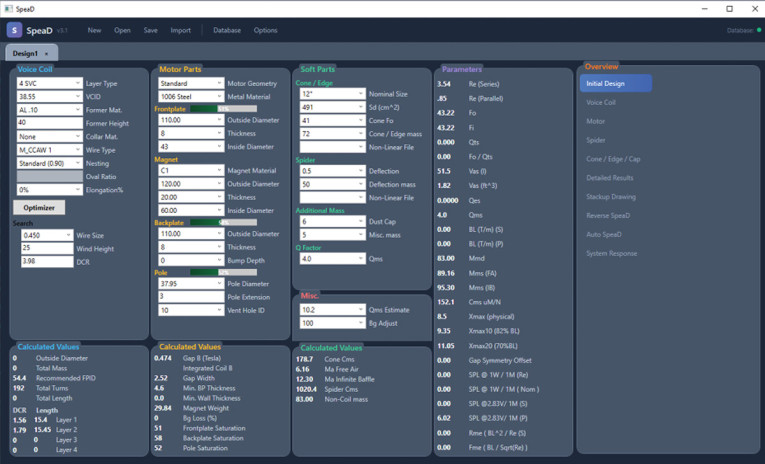

A next-generation loudspeaker design platform is an integrated software environment that lets engineers model, optimize, and validate all loudspeaker driver subsystems—such as motor, voice coil, spider, cone, and system response—within a single, continuously synchronized workflow rather than across separate tools and disconnected simulations. Redrock Acoustics’ SpeaD 2026 shows how this shift changes professional practice. Built for modern Windows systems on .NET 8 with a WPF interface, it replaces earlier workflows where engineers moved data manually between stand‑alone utilities for motors, coils, and spiders. Instead, SpeaD 2026 keeps a single live design file and a shared parameter set, so edits to the cone assembly, soft parts, or motor geometry instantly update all Thiele‑Small parameters. This unified approach reduces the risk of inconsistencies between driver subsystems and allows up to 10 designs to stay active for side‑by‑side comparison. For engineers under tight project deadlines, fewer file hand‑offs and faster feedback loops translate into more time spent on acoustic performance and less on plumbing tools together.
Inside SpeaD 2026: Linking Driver Subsystems for Faster Iteration

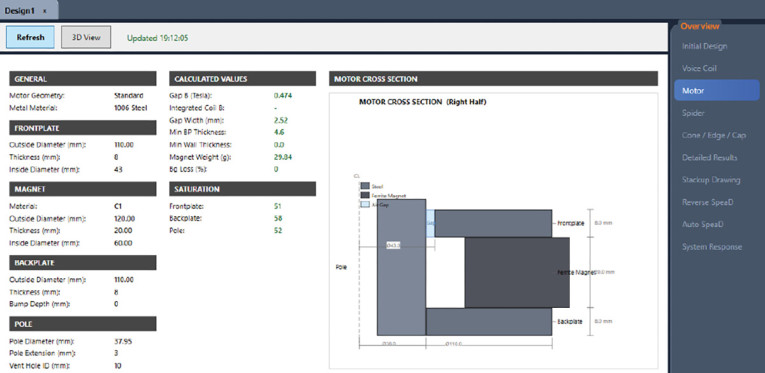

SpeaD 2026 is built around deep subsystem modeling, but its key advantage is that every driver element feeds the same design brain. The voice coil module uses an embedded database of common loudspeaker wire types—round copper, aluminum, CCA, and flat ribbon—plus an Inlay% packing model and wire stretch parameter to predict DC resistance and geometry with precision. As a design solver, it can compute any of Re, winding height, or wire size from the other two, which shortens trial‑and‑error when hitting electrical targets. On the motor side, a hybrid permeance topology with nonlinear B‑H iteration calculates gap flux, BL product, saturation, and BL(x) curves in milliseconds. According to audioXpress, this analytical engine has been benchmarked against “many hundreds of actual driver designs and FEA simulations,” giving engineers FEA‑grade confidence without the setup burden. When these modules operate on a shared parameter set, designers can sweep through options in motor steel, magnet grades, or coil architectures while watching system response update in real time.
Spider and Soft Parts: Mechanical Control Meets System Prediction

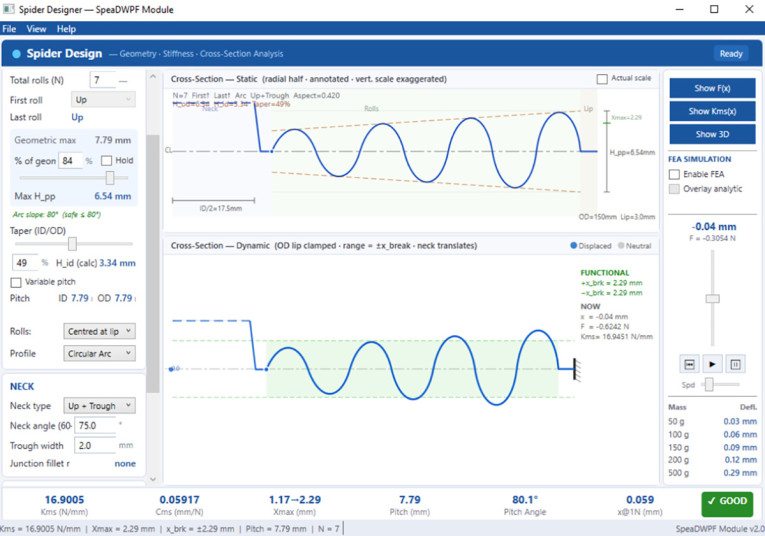

Beyond motors and coils, next-generation audio engineering tools must connect the mechanical behavior of soft parts to overall system performance. SpeaD 2026 includes a spider tab that models corrugated suspensions with detailed geometric control, helping designers balance excursion capability, compliance, and linearity. Because the spider, surround, and cone assembly write into the same parameter pool as the motor and voice coil, changes in stiffness or geometry immediately affect predicted T‑S parameters and system response. This tight integration matters for tuning loudspeakers across frequency ranges. Low‑frequency excursion limits, mid‑band distortion, and high‑frequency breakup are all shaped by the same mechanical parts. Instead of exporting geometry to an external simulator, engineers can explore "what if" scenarios—such as stiffening the spider or changing cone mass—while watching how sensitivity, resonance, and bandwidth move together. The result is fewer physical prototypes and faster convergence on designs that meet excursion, power handling, and tonal goals without over‑engineering any single driver subsystem.
Powersoft’s MM-Force and Spixel: OEM Transducers for Custom Solutions
Integrated software only solves half the challenge; manufacturers also need flexible OEM transducers tailored to modern applications. Powersoft’s new MM‑Force and Spixel offerings expand that hardware toolkit. MM‑Force is a patented balanced moving‑magnet low‑frequency driver available in 8" and 10" formats, with an ultra‑low profile under 80 mm deep. This makes subwoofer integration viable in spaces where enclosure depth usually blocks low‑frequency reinforcement, while a dual‑coil configuration and square carbon‑fiber‑reinforced piston maximize radiating area within a compact footprint. Spixel targets the opposite end of the spectrum: a 2.5" ultra‑compact, high‑efficiency full‑range driver aimed at applications that demand small form factor without giving up bandwidth. Powersoft positions both components as part of a complete audio technology ecosystem, extending its role beyond amplification into transducer research and software. For OEM partners, this means they can pair specialized drivers with integrated control and processing, cutting the time needed to move from concept loudspeaker to production‑ready design.
Democratizing Loudspeaker Engineering Through Integrated Tools
Taken together, platforms like SpeaD and OEM transducers such as MM‑Force and Spixel point toward a more accessible era in loudspeaker engineering. Instead of juggling disconnected motor calculators, coil spreadsheets, and basic box simulators, a modern loudspeaker design platform offers one environment where driver subsystems and system response stay tightly linked. At the same time, specialized OEM transducers give manufacturers high‑performance building blocks that shorten mechanical design and validation cycles. For smaller engineering teams, this combination reduces the expertise barrier to sophisticated driver optimization across the full frequency range. Designers can focus on trade‑offs—size versus output, excursion versus efficiency—while relying on software to keep parameters consistent and on OEM components to cover demanding low‑frequency or compact full‑range roles. As audio brands compete in installation, transportation, and automotive markets where space and reliability are critical, integrated audio engineering tools and flexible OEM transducers will increasingly define how fast new loudspeaker solutions reach the field.
