Understand Car Soundstage Basics and Cabin Challenges

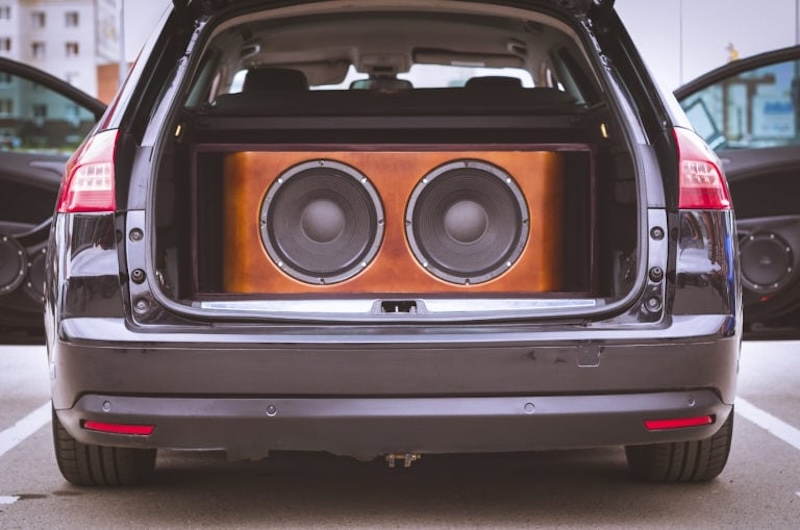

In a car, the cabin becomes part of the audio system, so car audio speaker placement and acoustics determine how realistic your soundstage feels. Unlike a living room, you sit off-center, very close to some speakers and far from others. In hatchbacks, the entire interior behaves like one large enclosure. Bass from rear speakers or a cargo-area subwoofer reflects off the steep back window, then travels forward with a delay. Those reflections collide with the front speakers and cause phase cancellation, muddy midbass, and smeared vocals. Sedans isolate the trunk, so rear bass energy is naturally more contained, but seatbacks, door cavities, and glass still color the sound. Recognizing these differences is the foundation for any serious soundstage installation guide. Your goal is to create a dominant, coherent front image and use the rest of the cabin only to support that primary listening zone.
Plan Speaker Positioning for a Dominant Front Stage

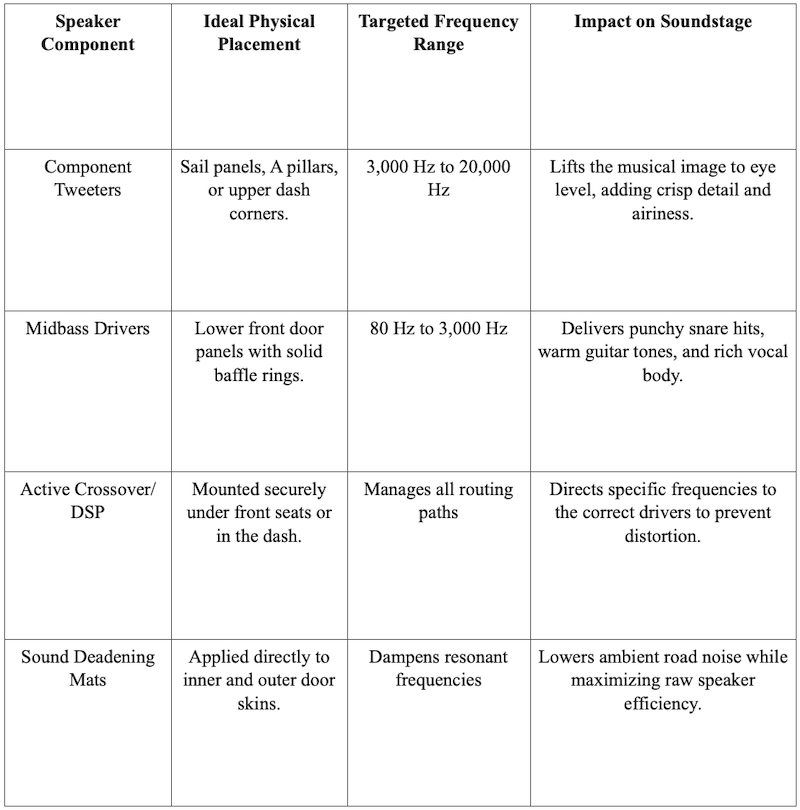

Professional car audio tuning always begins with a strong front stage. Prioritize high-quality component speakers in the front doors and dashboard rather than relying on coaxials or powerful rear speakers. Mount midbass drivers solidly in the doors at factory or slightly raised locations, minimizing gaps and flimsy panels that can vibrate. Place separate tweeters on the A-pillars or upper dash, angled toward the opposite seat, so high frequencies project at ear level instead of down at your ankles. This geometry lifts the soundstage onto the dashboard and windshield area, where vocals should seem to appear. In both hatchbacks and sedans, treat rear speakers as subtle fill: run them at lower levels and avoid directing too much midrange energy from behind. By anchoring the sonic focus to the front, your ears naturally lock onto the music instead of the rear of the car.
Apply Acoustic Treatment and Damping, Especially in Hatchbacks
Acoustic treatment car strategies are essential to control reflections, rattles, and resonance that blur your soundstage. Start by adding damping material inside front doors to reduce panel vibration and improve midbass definition. Seal large access holes where practical to turn the door into a more controlled enclosure for the midbass driver. In hatchbacks, pay special attention to the cargo floor, rear quarter panels, and the area around the back window, where low frequencies often reflect straight toward the front seats. Treating these surfaces reduces harsh reflections and tames boomy, indistinct bass. Also check and secure loose trim or plastic panels that can buzz when the subwoofer plays. The goal is not to make the cabin completely dead, but to remove distracting noises and excessive echo so your carefully positioned speakers can produce a cleaner, more focused front soundstage.
Use Crossovers, Time Alignment, and Phase for Precision Tuning
Once your physical installation is solid, professional car audio tuning and calibration complete the system. A digital signal processor (DSP) lets you apply crossovers, time alignment, and phase corrections. For many hatchbacks, a useful starting point is to set a high-pass filter around 80 Hz on the front door speakers and a matching low-pass at 80 Hz on the rear subwoofer. This keeps deep bass non-directional in the rear while protecting door speakers from excessive low-frequency strain. Time alignment then compensates for your off-center seating position. By delaying the signal to the speakers closest to you, sound from all drivers arrives at your ears simultaneously, creating a stable center image across the dash. Finally, verify speaker polarity: a single midbass wired backward will cancel punch, especially when both fronts play together, dramatically weakening your midbass foundation.
Adapt Your Soundstage Strategy for Hatchbacks vs. Sedans
Different body styles demand tailored car audio speaker placement strategies. In hatchbacks, the open cabin means rear subwoofers and speakers interact more aggressively with the front stage. To avoid a bass-heavy rear sound that overpowers vocals, keep rear levels modest, prioritize front components, and use acoustic treatment near the hatch and glass to control reflections. Sedans offer an isolated trunk, naturally reducing direct rear reflections into the cabin. Here, you can place the subwoofer in the trunk and rely on the rear deck and seat openings to vent bass forward. Still, the same principles apply: strong front speakers, sensible crossover points, and careful DSP tuning. In both layouts, treat the front as your home theater’s main stage and the rear as ambience. This mindset helps you design a balanced, immersive listening experience instead of a system dominated by rear bass.
