Compact Professional Amplifiers: A New Default for Installed Audio
Compact professional amplifiers are purpose-built power and signal devices that deliver reliable output, networking, and control for installed audio systems while reducing rack space, cabling, and configuration overhead compared with traditional multi-box solutions. In the past, integrators often combined separate streamers, DSP, and multi-channel power amps to build distributed or cinema systems. That approach gives flexibility, but it increases wiring, points of failure, and time on site. A new wave of all-in-one amplifier solutions aims to keep audio quality and channel count high, while shrinking size and setup effort. From low- to mid-power commercial installs to extreme residential cinema, manufacturers are tightening feature sets around real-world use cases, embracing Class-D amplifier modules and network streaming amplifiers that put signal, control, and power in one chassis. The result is a clear shift toward simpler, more decentralized architectures that still meet demanding performance expectations.
Powersoft PRIMA: Focused Power for Straightforward Installed Audio Systems
Powersoft’s new PRIMA Series shows how compact professional amplifiers can strip out non-essential features while keeping performance. Offered as the four-channel PRIMA 164 and PRIMA 324, the line targets installed audio systems where signal processing sits upstream or DSP is not required. By omitting onboard DSP, Powersoft concentrates on sound quality, reliability, and efficient Class-D amplification in a compact half-rack chassis that can live behind displays or under conference tables. Each channel supports Hi-Z and Lo-Z operation with independent configuration, so a single unit can drive mixed speaker loads. Auto Setup trims commissioning time by optimizing operating parameters on first power-up, while a diagonal matrix keeps routing predictable and a dedicated connector lets one input feed all outputs. According to Powersoft, the series “addresses a gap in the installed audio market by removing redundant functionality while retaining amplification performance,” reflecting growing demand for lean, install-ready power stages.
Bluesound Professional B240Q: Streaming, Networking, and Amplification in One Box
Bluesound Professional’s B240Q pushes the idea of network streaming amplifiers further by combining source, conversion, and power in a single chassis. The four-channel model carries two BluOS zones and integrates music streaming, digital-to-analog conversion, and flexible speaker connectivity for commercial installed audio systems. Support for both low-impedance and 70V/100V constant-voltage lines means the same compact unit can serve small rooms or large, multi-zone deployments across retail, hospitality, or workplace projects. A key change is its variable input PoE network connections, which supply both data and power over Ethernet to cut down on separate power runs and simplify infrastructure. Bluesound highlights a decentralized architecture that allows the B240Q to be installed close to loudspeakers while the BluOS platform keeps control centralized. This approach shortens speaker cable runs and reduces material costs and points of failure, underlining why all-in-one amplifier solutions appeal to integrators under time and space pressure.

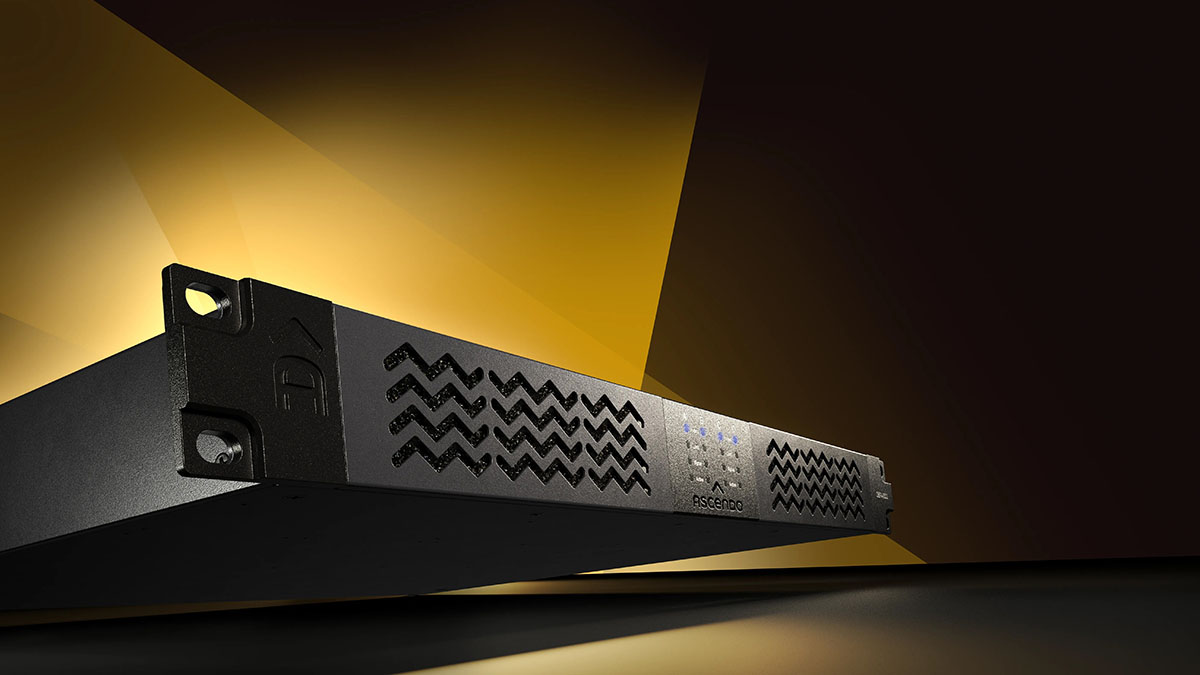

Ascendo DSP4-6602: Extreme Power for High-End Residential Cinema
At the opposite end of the spectrum, Ascendo’s DSP4-6602 shows that compact professional amplifiers are not limited to modest power levels. Designed for high-performance residential cinema, the amplifier concentrates on low-frequency duty, offering up to 6600 watts RMS and stable operation at 2 Ohms, with bridgeable configurations into 4 Ohm loads. That specification targets large-format infrasonic and high-output subwoofer systems that demand long-term, controlled power. Ascendo’s design brief was to avoid common home cinema compromises: consumer amps often lack sustained output, while pro touring amps can be too loud, hard to integrate, or awkward to operate in living spaces. The DSP4-6602 adds quiet cooling for in-room use, Ethernet-based management for multi-amplifier systems, 12V trigger logic, and configurable auto-standby, packaging professional headroom and control in a cinema-friendly chassis. It underlines how compact, high-current amplifiers can bring cinema-grade dynamics to dedicated rooms without traditional rack bulk or noise.

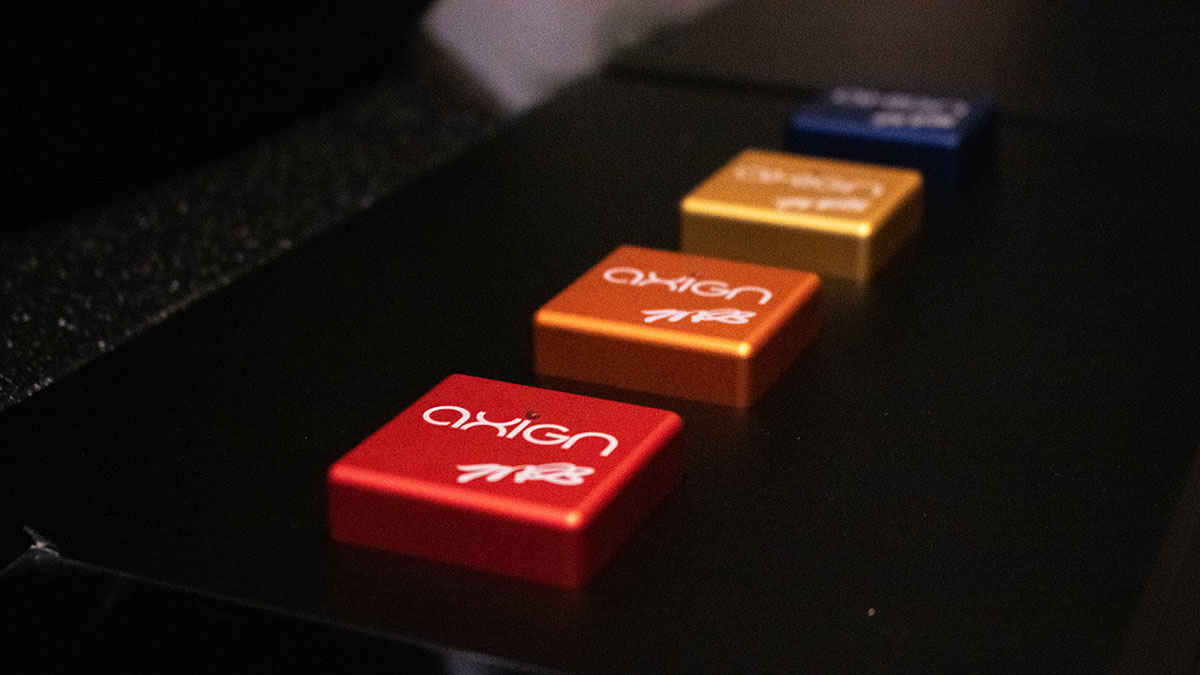

Axign’s Class-D Modules: Predictive Intelligence Behind the Next Wave of Amplifiers

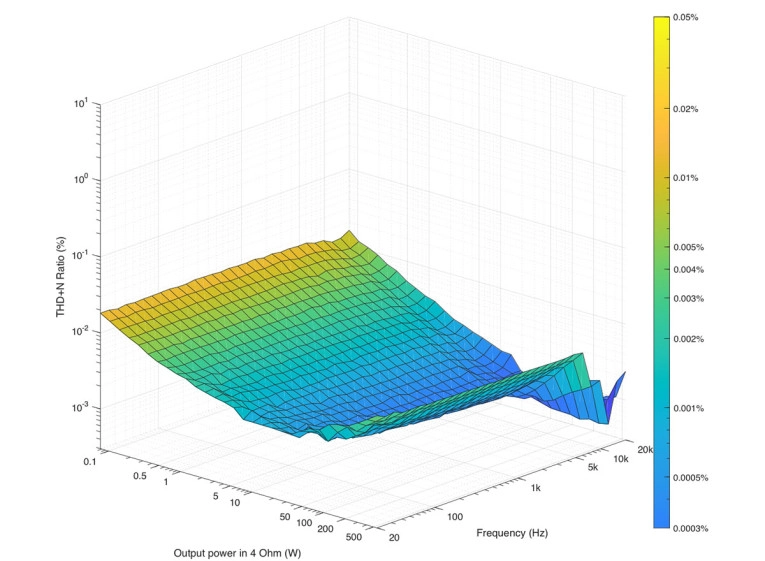

Underpinning many compact professional amplifiers are advances in Class-D amplifier modules, and Axign’s new generation illustrates where this technology is heading. Now part of Monolithic Power Systems, Axign is releasing all-in-one, plug-and-play Class-D amplifier systems that mix predictive feedforward with ultra-fast post-filter feedback. Inspired by neural network techniques, this architecture monitors and corrects the signal in real time, aiming for extremely low distortion and stable gain over the full audible band and at different power levels. The company describes a self-learning, cycle-by-cycle control network that adapts to changing speakers, cables, power supplies, and enclosures, with user-adjustable voicing from “cold to warm, or sharp to soft.” In one flagship example, a 1.4kW wireless, battery-powered setup drives B&W’s Nautilus loudspeakers, showing the power density these Class-D amplifier modules can reach. As such modules filter into commercial and residential products, they will help future all-in-one amplifier solutions stay compact without sacrificing sonic performance.
