Build a Real-Time Arduino and ESP32 Energy Monitor

What You’re Building and Why It Matters

A real-time energy monitor with Arduino and ESP32 is a small, local smart grid system that measures electrical parameters, visualises them on a live dashboard, and automates basic power routing across different parts of a home without depending on a cloud service.

Think of this project as a do-it-yourself smart grid: the Arduino UNO R4 WiFi becomes your Arduino energy monitor, reading voltage, current, and power from an AC line and updating an OLED plus a real-time power dashboard over Wi‑Fi. The ESP32 then takes those ideas upstairs—literally—acting as a simple power router that decides which floor gets power and how battery levels affect that decision. This guide is for anyone comfortable with basic electronics who wants ESP32 power tracking and local dashboards instead of black‑box proprietary systems. The caveat: you must respect mains safety and follow the wiring guidance cautiously, because you are dealing with live AC and a battery source.

Gather the Hardware and Software

Before we touch a wire, set expectations: this build combines a mains-powered Arduino energy monitor and a low-voltage ESP32 controller, so you need both measurement hardware and a way to visualise data. The Arduino UNO R4 WiFi handles the measurement side with an energy monitoring module, while the ESP32 focuses on routing behaviour based on battery level and a vacation mode input.

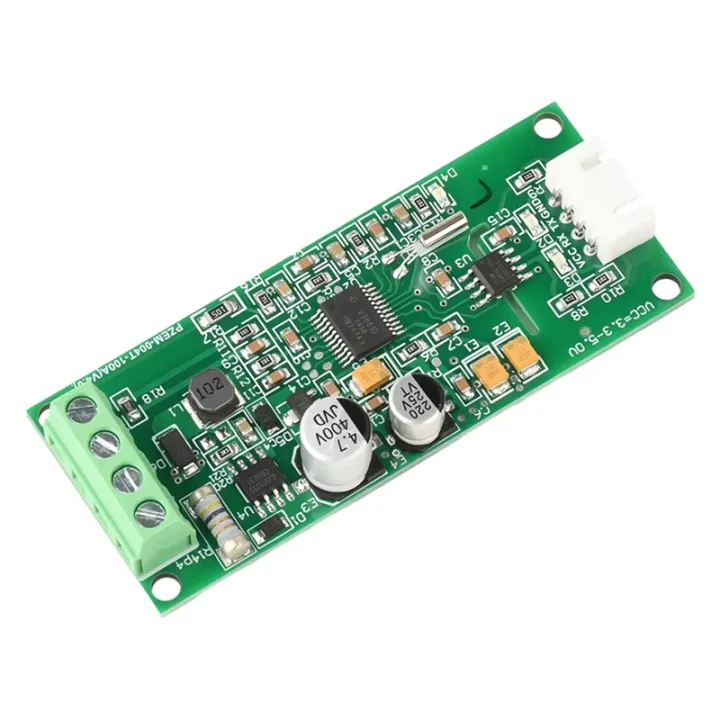

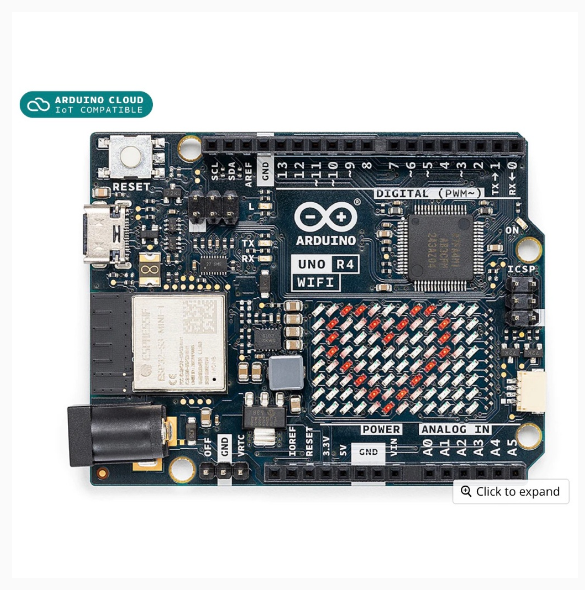

• Arduino UNO R4 WiFi, a PZEM-004T energy monitoring module, an I2C OLED display, connecting wires, an optional breadboard, a USB cable, and an AC load for testing form the core measurement setup.
• On the software side, you need the Arduino IDE, the UNO R4 board package, required libraries for the OLED, the energy monitoring module, Wi‑Fi communication, and integration with an IoT dashboard account, plus USB drivers to talk to the board.
• An ESP32 board, a battery connected to an analog input, a push button for vacation mode, and two LEDs representing power to a ground floor and a first floor complete the automation portion of your DIY smart grid.

Build, Code, and Test Your Local Smart Grid

Now you will wire the hardware, load the code, and bring the two devices to life. Take your time here; the sequence matters because you are mixing AC measurement, Wi‑Fi connectivity, and power-routing logic. One reassuring detail: the PZEM‑004T handles the heavy lifting of electrical measurements internally, so the Arduino UNO R4 WiFi mainly focuses on communication, display, and updates to your IoT dashboard.

1. Wire the Arduino UNO R4: connect the OLED display via I2C, hook the PZEM‑004T energy monitoring module to the AC line and to the Arduino according to its communication interface and power needs, power the board via USB or a regulated supply, and double‑check that all AC wiring is insulated and secure.
2. Install the Arduino software stack: install the Arduino IDE, add the UNO R4 board package from Boards Manager, and install libraries for the OLED display, the energy monitoring module, Wi‑Fi, and your chosen IoT platform integration.
3. Configure and upload the monitoring sketch: open the project sketch, fill in your Wi‑Fi SSID, Wi‑Fi password, IoT authentication data, and device identifiers, then compile and upload the sketch to the Arduino UNO R4 WiFi.

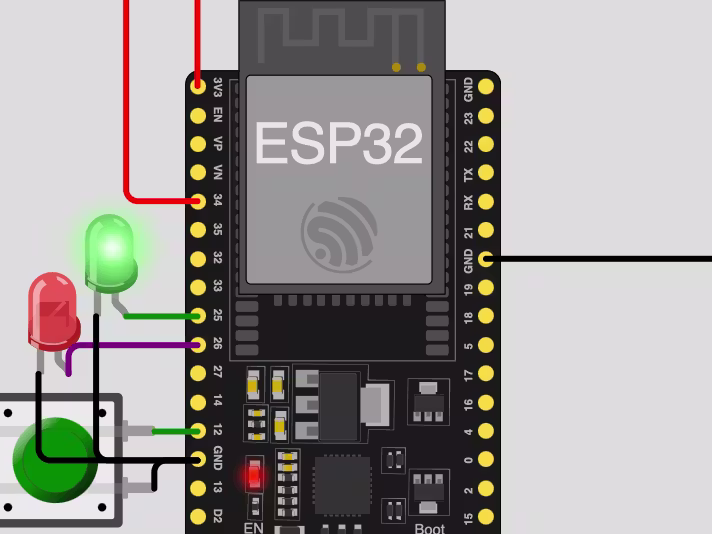

4. Connect and program the ESP32: wire the battery to analog pin 34, connect a vacation mode push button to pin 12 with input pull‑up, and map LEDs for the ground floor and first floor to pins 26 and 25; in the code, read the battery level with analogRead, map it from 0–4095 to 0–100, and toggle vacationMode on button presses to control which LED (floor) receives power.
5. Power on and observe operation: after powering the Arduino, confirm that it initialises the OLED and Wi‑Fi, begins communicating with the PZEM‑004T, and updates electrical parameters in real time both on the display and on your IoT dashboard as loads switch on or off; then check the ESP32 serial output showing battery percentage and vacation status, and watch the LEDs reflect whether the ground floor is powered or, when vacation mode is active, the first floor LED is on or flickering under low‑power conditions.

The real gotchas: never adjust AC wiring while the system is live, and remember that accurate readings depend on correct PZEM‑004T connections and calibration. One useful sign that everything is aligned is seeing the same voltage, current, active power, energy, frequency, and power factor values on both the OLED and your online dashboard while your ESP32 logs clean battery percentages.

What You Should See and How to Use It

When everything is working, your Arduino UNO R4 WiFi continually acquires voltage, current, active power, energy, frequency, and power factor values from the PZEM‑004T, refreshes the OLED with live measurements, and sends periodic updates to your IoT dashboard so you can watch power usage changing in real time as different loads switch on and off. A quotable way to remember this is: “The Arduino UNO R4 WiFi provides continuous real-time voltage, current, and power monitoring with automatic wireless dashboard updates.”

On the ESP32 side, the board prints the measured battery level as a clean percentage and reports vacation mode status, then routes power using floor-specific LEDs: with vacation off, the ground floor LED on pin 26 turns on while the first floor LED stays off; with vacation on, the first floor LED on pin 25 turns solid when the battery is above 20%, and flickers when the battery level is at or below 20%. In daily use, that gives you a low‑power trigger and a simple multi‑floor energy management pattern: normal days feed the main floor, while vacation mode feeds the upper floor only when the battery allows.

Is This Build Worth the Effort?

If you want a hands‑on DIY smart grid project instead of a sealed, cloud‑bound gadget, this build is worth the effort. You end up with a local Arduino energy monitor that displays detailed electrical parameters and feeds a real-time power dashboard, plus a separate ESP32 power routing system that reacts to battery levels and vacation mode for multi‑floor control. The main thing to watch is safety: keep AC and low‑voltage sections physically separated, never work on mains wiring while it is powered, and use proper enclosures before leaving the system running. The reward is a transparent, extendable setup you understand end to end, which makes it easier to tweak thresholds, add relays later, or expand into more advanced home energy experiments.
