Two Very Different Answers to the Same Modern Loudspeaker Problem
Modern loudspeaker engineering is increasingly split between point‑source coaxial driver speakers that aim for phase‑coherent imaging and compact Balanced Mode Radiator (BMR) driver technology arrays that chase high sensitivity and room‑friendly dispersion for both professional and audiophile use. That divide is now visible at audio shows, where pendant loudspeakers for commercial spaces share floor space with wide‑baffled home speakers designed to sing on low‑powered tube amps. That tension is the real story behind two recent launches. On one side, a 9‑inch coaxial driver pendant loudspeaker promises wide coverage and broad bandwidth for restaurants and hospitality spaces that now care about aesthetics as much as SPL. On the other, a sealed floorstander built around twelve 85mm BMR units and a compression tweeter offers about 99dB sensitivity from a design that wants to live close to a rear wall and be driven by an 8‑watt 300B amplifier. Both products solve different problems, yet they point to the same conclusion: driver topology has become a primary design statement, not a hidden technical detail.
Coaxial Pendant Loudspeakers: Point-Source Ambition Meets Commercial Reality

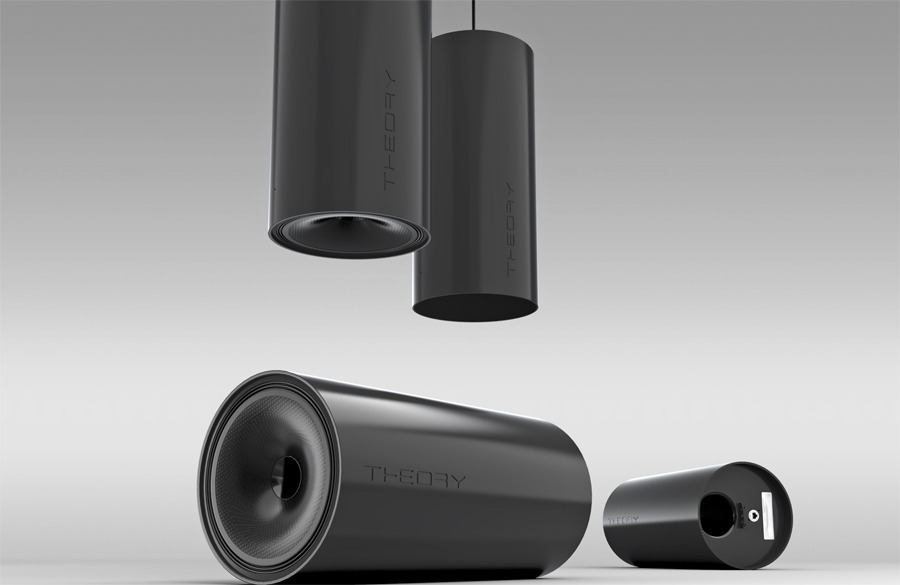

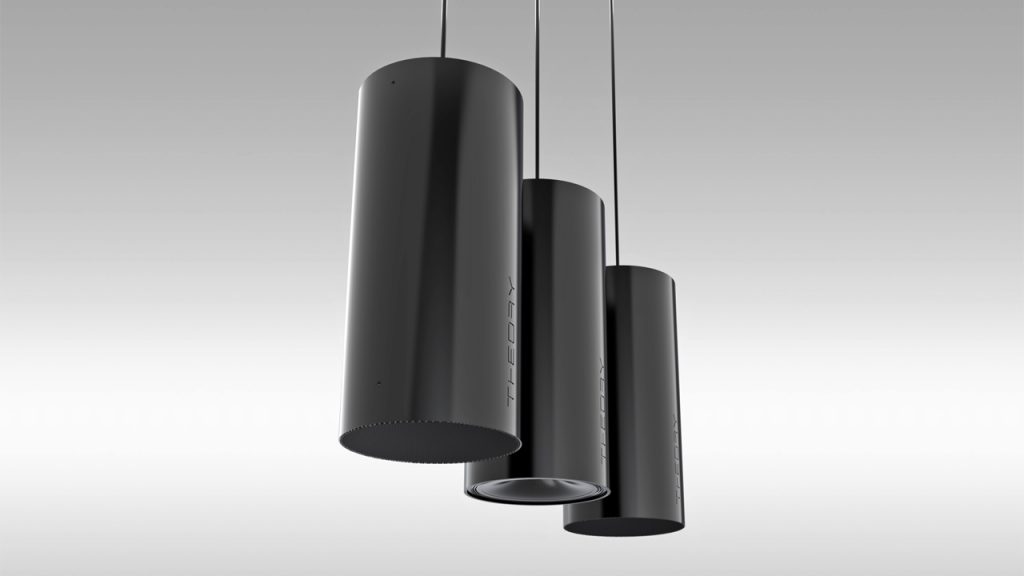

The most telling development in commercial AV is not another wall of line arrays, but the rise of pendant loudspeakers that sound like serious hi‑fi. One new model expands a pendant lineup aimed at premium commercial spaces that need more output, wider bandwidth and more flexible placement than typical compact pendants can provide. Inside a slender black anodized enclosure sits a 9‑inch driver system that uses an axi‑symmetric waveguide and a carbon‑fiber sandwich diaphragm, with a specified response of 45Hz to 20kHz. For foreground music, that makes the “no subwoofer needed” claim more than marketing. Equally important is coverage. The driver and waveguide are designed to hold a 120‑degree dispersion pattern through the upper frequencies, meaning fewer loudspeakers can cover large areas of listeners spread under low ceilings. According to the manufacturer, “for restaurants, hotels, retail spaces, spas, clubs, and premium residential or light‑commercial projects with exposed ceilings, that could mean fewer speakers, less visual clutter, and potentially no subwoofer for foreground music systems”. In other words, this pendant is a point‑source tool designed to keep architects happy while making integrators’ lives easier.
BMR Arrays: High-Sensitivity Widebands for Tube-Amplified Listening Rooms

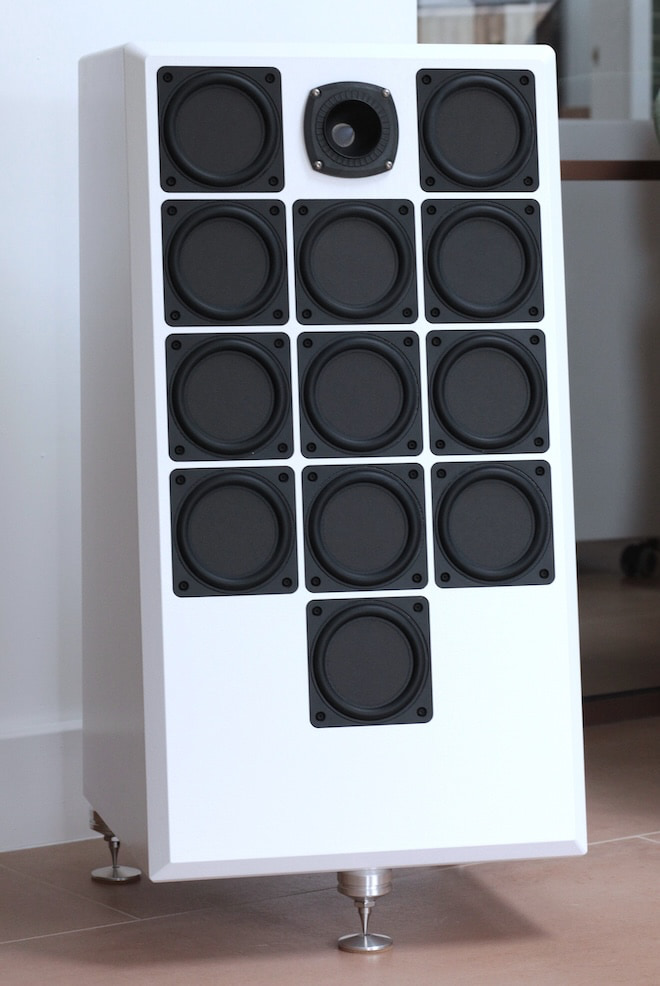

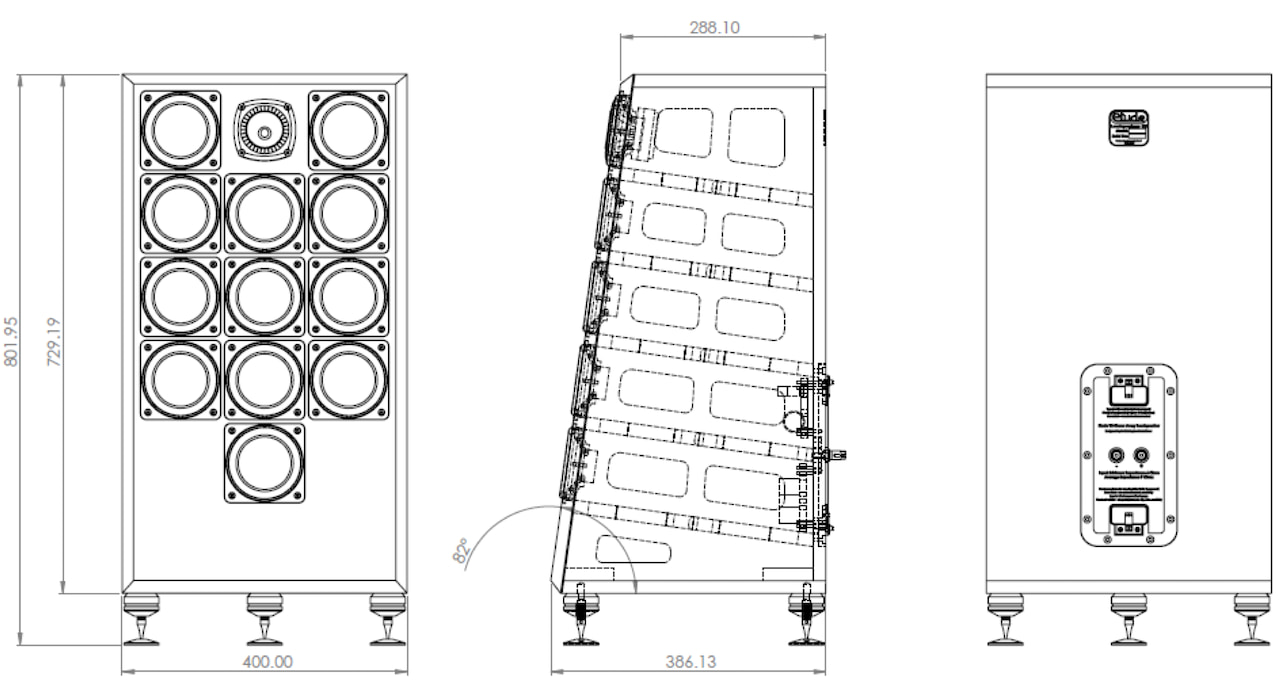

The Etude Tri Linear Array takes almost the opposite path: a deliberately broad‑shouldered, sealed, boundary‑loaded floorstander that uses many small drivers instead of one large one. Twelve 85mm BMR units form three vertical arrays sharing a single internal volume, supported by a compression tweeter that fades in from roughly 4–5kHz through a second‑order slope. At lower frequencies the BMRs behave like normal cones, but higher up their controlled flex helps them cover a wide band and spread sound more evenly around the room. This is a high sensitivity speaker design in the literal sense. Etude claims approximately 99dB/W sensitivity at 600Hz, with a nominal 8‑ohm impedance and 240‑watt programme power handling. The goal is “real output and dynamic freedom from amplifiers with modest power reserves, including single ended valve designs”. At the North West Audio Show, the speaker will be demoed with an 8‑watt‑per‑channel 300B single‑ended triode integrated amplifier, plus valve DAC and preamp. This is a loudspeaker built to flatter low‑power tubes without demanding a giant horn system.
Practical Consequences: Ceiling Grids vs Sofa Positions

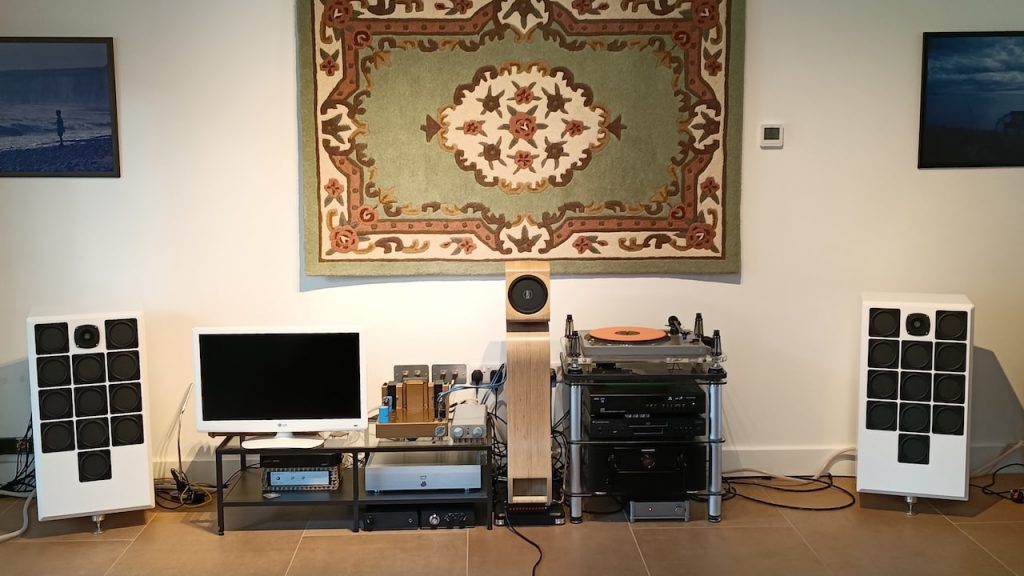

What matters to ordinary listeners and system designers is how these choices play out in real spaces. The pendant loudspeaker’s wide 120‑degree dispersion and 45Hz–20kHz bandwidth are tuned to restaurants, hotels and retail environments where listeners move constantly and ceiling height is fixed. Fewer pendant loudspeakers, more even coverage and a reasonable chance of skipping dedicated subwoofers can cut hardware, simplify design and reduce visual clutter. It also addresses a familiar frustration: refined interiors let down by purely utilitarian speakers that sound and look like an afterthought. The ETLA, by contrast, is voiced for boundary placement, aiming for roughly 50Hz bass before room gain extends the in‑room reach to a claimed 32Hz at –6dB. Owners can trim the outer BMR arrays to change horizontal dispersion and the presence region, and adjust tweeter level with solderless resistors at the rear. That experimentation‑friendly approach turns the listening room into part of the system, inviting careful setup instead of accepting wherever the sofa happened to land.
Where Speaker Design Goes Next: More Intentional, Less Generic
Taken together, these launches argue that loudspeaker engineering is moving away from one‑size‑fits‑all boxes and toward designs that admit their biases. The pendant loudspeaker is openly built for exposed‑ceiling commercial installs, bringing point‑source dispersion control and full‑range bandwidth into a visually discreet form factor that is expected to ship in both passive 16‑ohm/70V and PoE versions in Q4, with further demonstrations planned at a major residential integration show. The ETLA is equally unapologetic: a direct‑sale, roughly £3,000‑per‑pair sealed floorstander with a user‑tunable BMR array that assumes its owner will care enough to tweak resistor values and boundary placement. The lesson for designers is straightforward. Coaxial driver speakers and BMR driver technology are not incremental tweaks; they embody two philosophies—point‑source coherence and distributed wideband arrays—that now surface in very targeted products. The lesson for listeners is sharper: stop asking which approach is "better" in the abstract, and start asking which one fits the room, the amplifier and, most of all, the way the system will be used.
